LG Air Conditioning Ceiling / Floor Heat Pump Standard Inverter

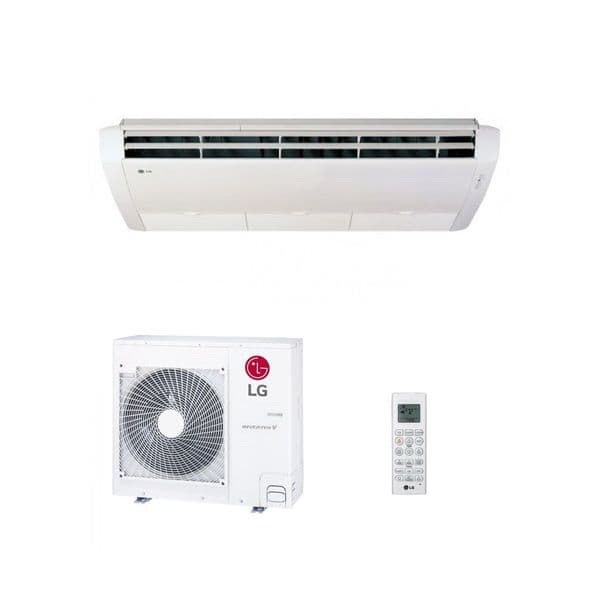

LG Air Conditioning CV30-NJ2 Inverter Ceiling / Floor Heat Pump 8Kw/30000Btu A+ 240V~50Hz

LG Air Conditioning CV30-NJ2 Inverter Ceiling / Floor Heat Pump 8Kw/30000Btu A+ 240V~50Hz

£2,768.43 £2,307.03 (ex. VAT)
Stock Status: In Stock


The Lg air conditioning range of CV Floor / Ceiling suspended convertible indoor units has the flexibility of multiple installations. The CV Indoor unit can easily be mounted on the floor or suspended from the ceiling. The indoor unit has a quiet operational noise of 26dB on smaller models in the sleep mode to offer you peace and quiet for the bedroom or office. In addition, the outdoor units have drastically reduced vibration and noise thanks to a super quiet fan and motor and an innovative anti noise mechanism. The CV convertible system features "Gold Fin" protection on the Outdoor Unit and energy saving heat exchanger in the Indoor Unit.

The Advanced CV range of floor/ceiling units has now been extended to include new small capacity STANDARD INVERTER systems starting at 2.5kW / 9000Btu, and an high capacity system 14kW at the top end. The 7-Day Programmable Timer now included in standard controls specification with a 24Hr control function. Lg air conditioning and heat pump high performance floor / Ceiling suspended convertible indoor split systems are designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas.

The standard inverter air conditioning system's CoP (Coefficient of Performance) is up to 3.6 on some models. This means the system can deliver 3.6 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Lg air conditioning hyper inverter technology with R410A refrigerant. The new design has improved air flow-pattern through the unit, and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets



Gold FinTM Anti Corrosion

LG’s Outdoor Heat Exchanger is coated with a golden anti-corrosive epoxy treatment on the aluminum coil to minimised corrosion. This maintains heat transfer properties of the coil for an extended time where as non-Gold Fin coils progressively lose efficiency due to surface corrosion. Standard on every LG air conditioner, this assists in areas suffering from pollution or near the ocean where the unit may subjected to higher levels of salt.

Super Low Power Consumption Use in Standby Mode by Adopting SMPS (Switching Mode Power Supply):
Power waste due to standby power - Power is wasted if a plug is connected to an outlet even though the appliance is turned off. Development of super power-saving SMPS (Switching Mode Power Supply) - Low standby power function reducing standby power by 90%







Product Key Feature's

• Plasma Air Purifying System
• Anti Corrosion Gold Fin (Outdoor)
• Weekly Program
• Low Standby Power
• Child Lock Function
• Easy-to-Clean Air Filter
• Optimal Air Distribution

• Auto Cleaning
• Auto Changeover
• Auto Restart
• Auto Operation
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• 24-Hour ON/OFF Setting Timer

• Optimal air distribution with directional Air flow system

Technical Information

Nominal Capacity Cooling     kW  -    8.0
Capacity (UK) Cooling     kW  -  8.0
Nominal Capacity (T1) Heating     kW  -   8.4

Power Supply to Unit     V/Phase/Hz  -  240/1/50
Power supply to  -   Outdoor
Inter connecting Cables   -  4
cores and rating     No. Amps      5
Running Current     Cooling     Amps  -   11.8
Running Current     Heating     Amps   -  11.0
Power Input     Cooling     kW  -  2.18
Power Input     Heating     kW  -  2.37
Start Current     Cooling     Amps     -     <10
Start Current     Heating     Amps     -     <10

Circuit Breaker     Amps   -  25
T1 EER     Cool     (W/W)   -  3.02
T1 COP     Heat     (W/W)  -   3.01
ECA compliant    -   yes
Air Circulation     Indoor  -   (m3/min)   -  16
(High Speed)     Outdoor  -   (m3/min)  -   58
Sound Levels     Indoor  -   dB(A)+/-3 (at 1.0m)  -   41
(High Speed)     Outdoor   -  dB(A)+/-3 (at 1.0m)  -   52
Indoor Units       (mm)  -   960 x 220 x 650
Outdoor Units         (mm)  -   870 x 320 x 808
Indoor Units     (Kg)  -   22
Outdoor Units     (Kg)  -  60
Liquid     (Inch)   -  3/8
Suction     (Inch)   -  5/8
Drain (ID)     (mm)   - 20/16
Maximum Elevation     (m)  -   30
Max. Distance between In & Out     (m)  -  50
Factory charge     (Kg)  -   2.0
Charged for — m     (m)  -   7.5
Additional g/m     (g/m) -    35




PDF Data:






These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
