This Model is now back in stock due to popular demand May 2019

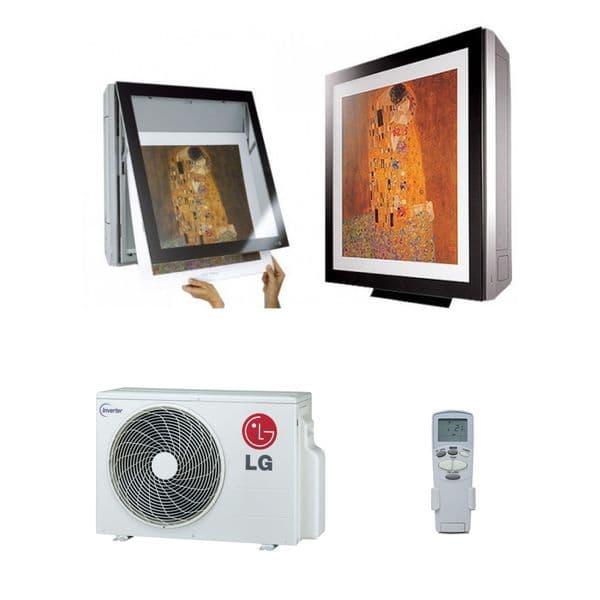

Lg Air Conditioning Artcool Gallery: Lg Air Conditioning ArtCool Gallery A12AW1-NF2 Wall Mounted (3.5 Kw / 12000 Btu) wall mounted heat pump split air conditioning unit (3.52 Kw / 12000 Btu) inverter (A12AW1-NF2)
Traditionally, air conditioning indoor units have been prime examples of function winning over form – but now that tradition has been broken.
Ultra-slim, uncluttered and minimalist Art Cool transforms air conditioning indoor units from being simply a means to an end to become an object of desire – even when it’s not operating, people notice it, perfectly blending in with any environment. The front fascia clips open and allows the user to put a picture in for display giving the unit the added feature of a picture frame. Totally unique to Lg Art cool Gallery units. The ultra slim indoor unit is only 145mm deep.
Art Cool’s beauty, though, is far more than skin deep. For behind its slim-line profile and clean lines is one of the most efficient, effective and advanced air conditioning units but what would you expect from the world’s top selling air conditioning manufacturer for five consecutive years. Making Art Cool the only air conditioning unit that’s as easy on the eye as it is good at its job – the coolest thing on the market.

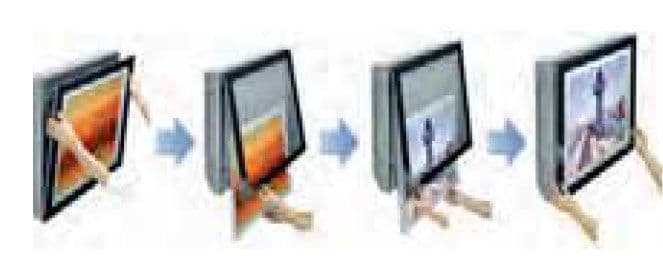

Changing the picture is simple

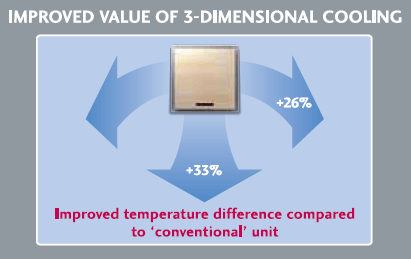

3-Dimensional Cooling
- Improvement on ‘conventional’ units that only expel air in a single direction
- Time to reach desired temperature drastically reduced in comparison to more ‘conventional’ units
- Air pours out in three directions simultaneously –
horizontally and vertically
- More effective over a greater area
Product Key Feature's
•Auto Changeover
•Auto Clean
•3-Dimensional Cooling and heating
•Four-Way Auto Swing
•Heat exchanger surfaces coated with
anti-corrosive gold finish
•Nano Plasma Air Purifying System
•High speed mode
•Self Diagnostic Programme
•Artistic design
LG ArtCool A12AW1-NF2 Wall Mounted Gallery
Capacity Cooling (kW) (Nominal) 3.55
Capacity Heating (kW) (Nominal) 3.81
Capacity Cooling (kW) (UK) 3.24
Capacity Heating (kW) (UK) 3.33
Electrical Data
Input Cooling (kW) 1.11
Input Heating (kW) 1.12
Running Current (Amps) Cooling 4.9
Running Current (Amps) Heating 5.1
Starting Current (Amps) Cooling 28
Starting Current (Amps) Heating 28
Power Supply (V/Ph/Hz) 240/1/50
Circuit Breaker (Amps) 15
Performance
EER Cooling (W/W) 3.2
COP Heating (W/W) 3.4
Air Circulation (m3/s) 0.16
Noise Level @ 1m (dBA) (H/M/L) INDOOR 36/34/32
Noise Level @ 1m (dBA) OUTDOOR 53
Dimensions
Net Dimensions (WxHxD mm) INDOOR 600x600x153
Net Dimensions (WxHxD mm) OUTDOOR 770x540x245
Net Weight
Indoor Unit (Kg) 9
Outdoor Unit (Kg) 34
Pipe Connections
Liquid (Inch) 1/4"
Gas (Inch) 3/8"
Drain Hose (mm) (ID) 16
Maximum Pipe Lengths (m) 15
Maximum Elevation (m) 7
Refrigerant
Charge R410A @ 7.5m (Kg) 0.88
