Includes:

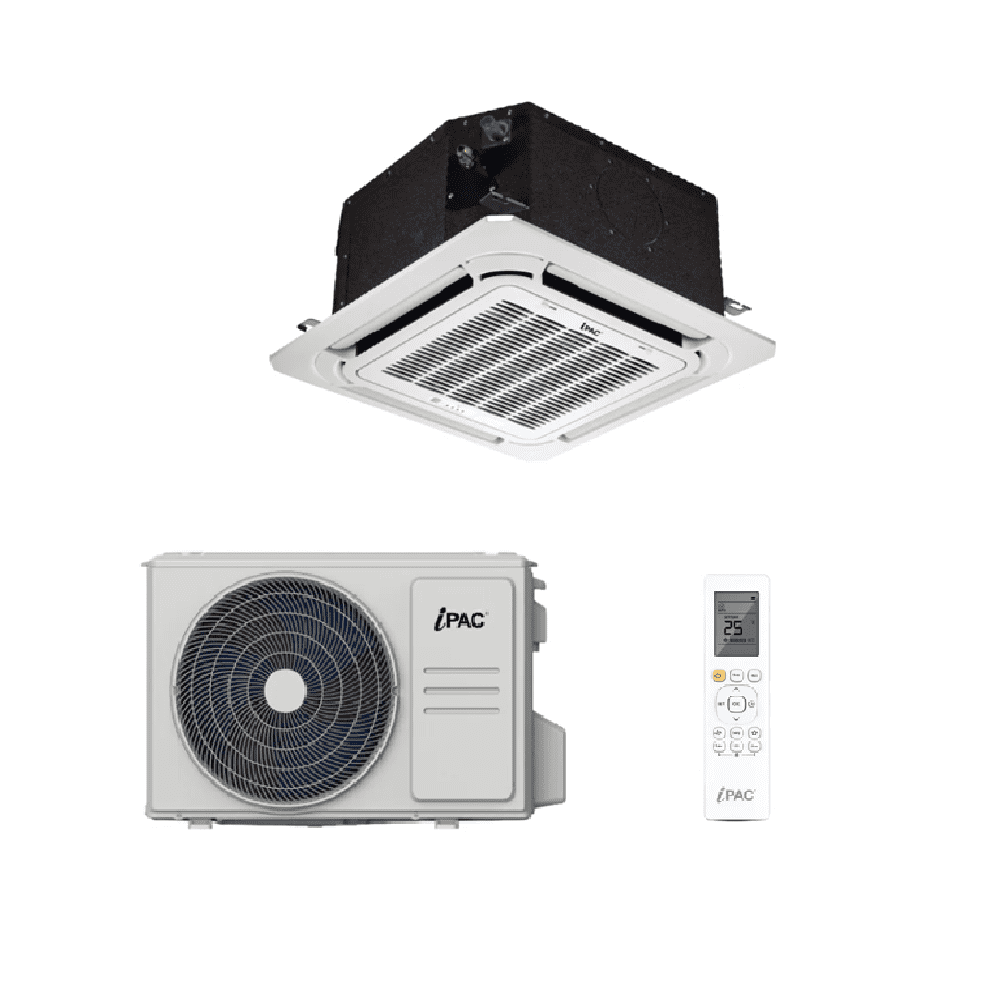

• 1 x iPac Cassette Air Conditioning Heat Pump Inverter iPAC-74CC-IN 7kW/24000 Btu 240V~50Hz
• 1 x Outdoor iPac Heat Pump Inverter iPAC-74CC-ODU 7kW/24000 Btu 240V~50Hz
• 1 x Ir Remote Control
• 1 x 5m Connecting Pipes
• 1 x Instruction / Installation manual
The iPac Cassette Air Conditioning Heat Pump Inverter iPAC-74CC provides reliable, year-round comfort for both residential and commercial spaces. With a 7kW/24000 Btu output, this Easyfit split unit is designed for easy installation and delivers high energy efficiency, making it ideal for homes, offices, retail spaces, and small commercial premises. This advanced ceiling cassette air conditioning system ensures rapid cooling in the summer and warm, cosy heating during the winter, thanks to its super inverter heat pump technology.
Equipped with adjustable fan speeds, the iPAC-74CC allows for customisable comfort, whether you require rapid cooling or a quieter, low-noise mode. The oscillating air vanes ensure wide and even air distribution for optimal climate control, while the built-in timer feature allows the unit to automatically turn on and off according to your schedule. The unit’s advanced air filters remove odours and particles, improving indoor air quality, while an anti-mould coating ensures hygienic operation. The digital display provides convenient control with precise, real-time temperature management.
Key Product Features:
- Super inverter technology for high energy efficiency and lower utility bills.
- Dual cooling and heating function, providing comfort all year round.
- Adjustable fan speeds for rapid cooling or quieter operation.
- Oscillating air vanes to ensure even distribution of air.
- Air filtration system that removes odours and particles, enhancing air quality.
- Anti-mould coating to maintain hygienic operation.
- Digital display for easy temperature control.
- Timer function for automatic on/off programming, increasing energy efficiency.
- Compact ceiling cassette design, ideal for both residential and small commercial environments.
Technical Data:
Indoor Model |
iPAC-74CC-IN |
Energy Efficiency Rating Cooling |
A++ |
Energy Efficiency Rating Heating |
A+++ |
Power Rating (Ph-V-Hz) |
1/220-240V/50Hz |
Capacity BTU/h (Cooling) Kw |
24000 / 7.0 |
Capacity BTU/h (Heating) Kw |
26000 / 7.6 |
Power Input (W) (Capacity) |
2320 (780~2748) |
Current Input (A) C/H |
10.2 / 8.5 |
EER/SEER (BTU/hr.W) |
6.2 |
COP/SCOP (W/W) |
4 |
Indoor Noise Level SPL dB (A) (Max) |
50 |
Indoor Airflow (m3/h) (Hi/Mi/Lo) |
1247/1118/992 |
Max. Current Rating C/H (A) Fuse Rating (Type D) |
12 / 12.1 |
Net Dimension (mm) Indoor (WxDxH) |
830x830x205 |
Net Weight Indoor (Kg) |
21.6 |
Max Room Size (m2) |
32~47 |
Operating Temp Indoor (Cooling/Heating) °C |
16~32 / 0~30 |
Indoor Packaging Size (mm) |
910x910x250 |
Indoor Gross Weight (kg) |
25.4 |
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
