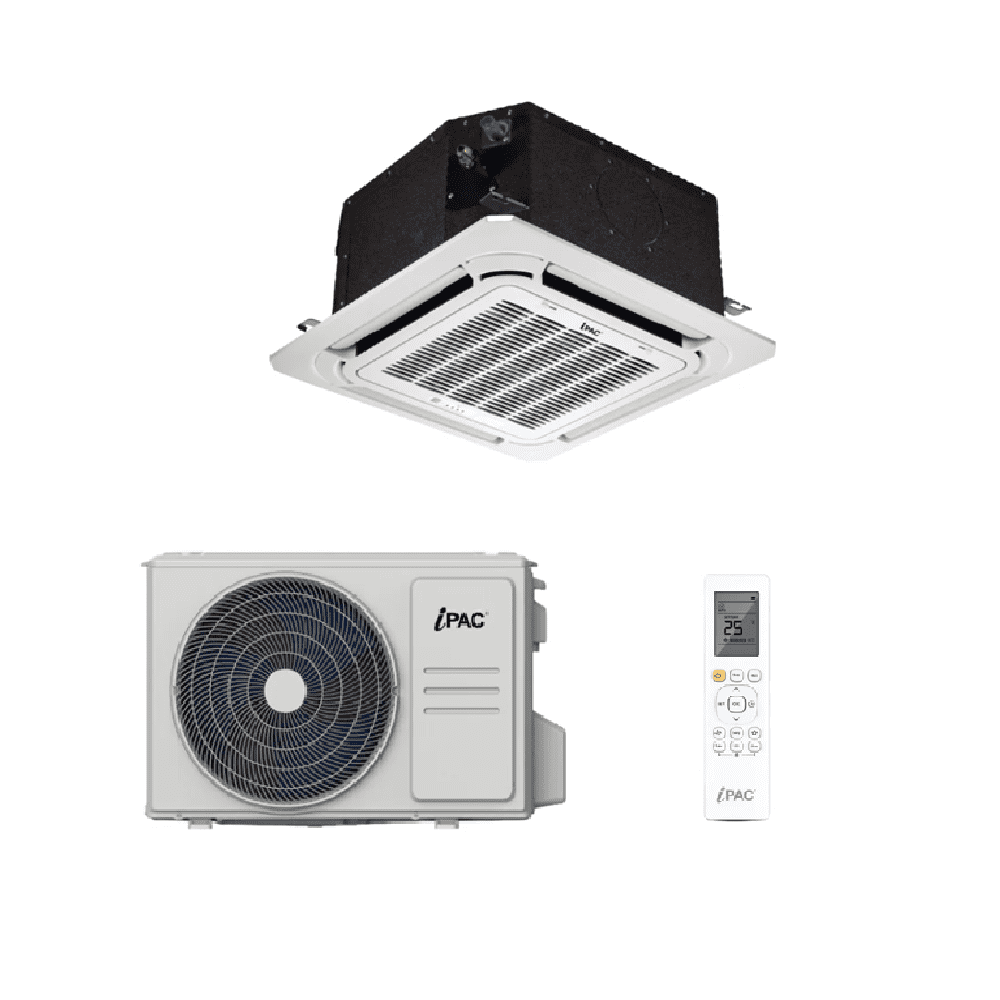

Includes:
1 × iPac Cassette Indoor Unit iPAC-120CC-IN (12kW / 42,000 Btu) 240V~50Hz
1 × iPac Outdoor Heat Pump Inverter Unit iPAC-120CC-ODU (12kW / 42,000 Btu) 240V~50Hz
1 × IR Remote Control
1 × Instruction / Installation Manual
The iPac iPAC-120CC cassette system is a high-capacity Easyfit split air conditioning and heat pump solution engineered for large residential, commercial and retail spaces. Delivering 12.0kW cooling and 13.4kW heating, it provides rapid temperature control throughout the year. With A++ cooling efficiency and A+++ heating efficiency, the system uses super inverter technology to reduce energy consumption and maintain strong, stable performance.
The compact ceiling cassette design integrates cleanly into suspended ceilings and delivers wide, even airflow using oscillating vanes and a high-volume multi-speed fan system. Indoor air quality is enhanced by integrated filtration that removes airborne particles and odours, while an anti-mould coating ensures hygienic long-term operation. A digital display and remote control offer precise temperature adjustment, and a programmable timer allows accurate on/off scheduling.
Ideal for offices, hospitality spaces, commercial premises, classrooms, shops and large open-plan rooms.
Technical Data:
Indoor Unit – iPAC-120CC-IN
• Energy Efficiency Rating Cooling: A++
• Energy Efficiency Rating Heating: A+++
• Power Rating (Ph-V-Hz): 1 / 220-240V / 50Hz
• Cooling Capacity: 41,000 BTU/h (12.0 kW)
• Heating Capacity: 46,000 BTU/h (13.4 kW)
• Power Input (Cooling/Heating): 4200W (680–4350W range)
• Current Input (A) Cooling/Heating: 18.8A / 16.3A
• EER/SEER: 6.1
• COP/SCOP: 4.0
• Indoor Noise Level SPL dB(A) Max: 52.5 dB(A)
• Indoor Airflow (m³/h Hi/Mi/Lo): 1900 / 1750 / 1600
• Max Current Rating Cooling/Heating (A): 19.1A / 19A
• Fuse Rating (Type D): 19A
• Net Dimensions (WxDxH): 830 × 830 × 287 mm
• Net Weight: 29.3 kg
• Recommended Room Size: 64–94 m²
• Indoor Operating Temp (Cooling/Heating): 16–32°C / 0–30°C
• Indoor Packaging Size: 910 × 910 × 330 mm
• Indoor Gross Weight: 33.5 kg
Outdoor Unit – iPAC-120CC-ODU
• Outdoor Noise Level Max: 63 dB(A)
• Outdoor Dimensions (WxDxH): 946 × 410 × 810 mm
• Outdoor Net Weight: 71 kg
• Outdoor Gross Weight: 75 kg
• Max Room Size Compatibility: 64–94 m²
• Pipe Kit Included: 5 metres
• Copper Pipe Size: 3/8" & 5/8"
• Outdoor Operating Temp (Cooling/Heating): 16–32°C / 0–30°C
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
