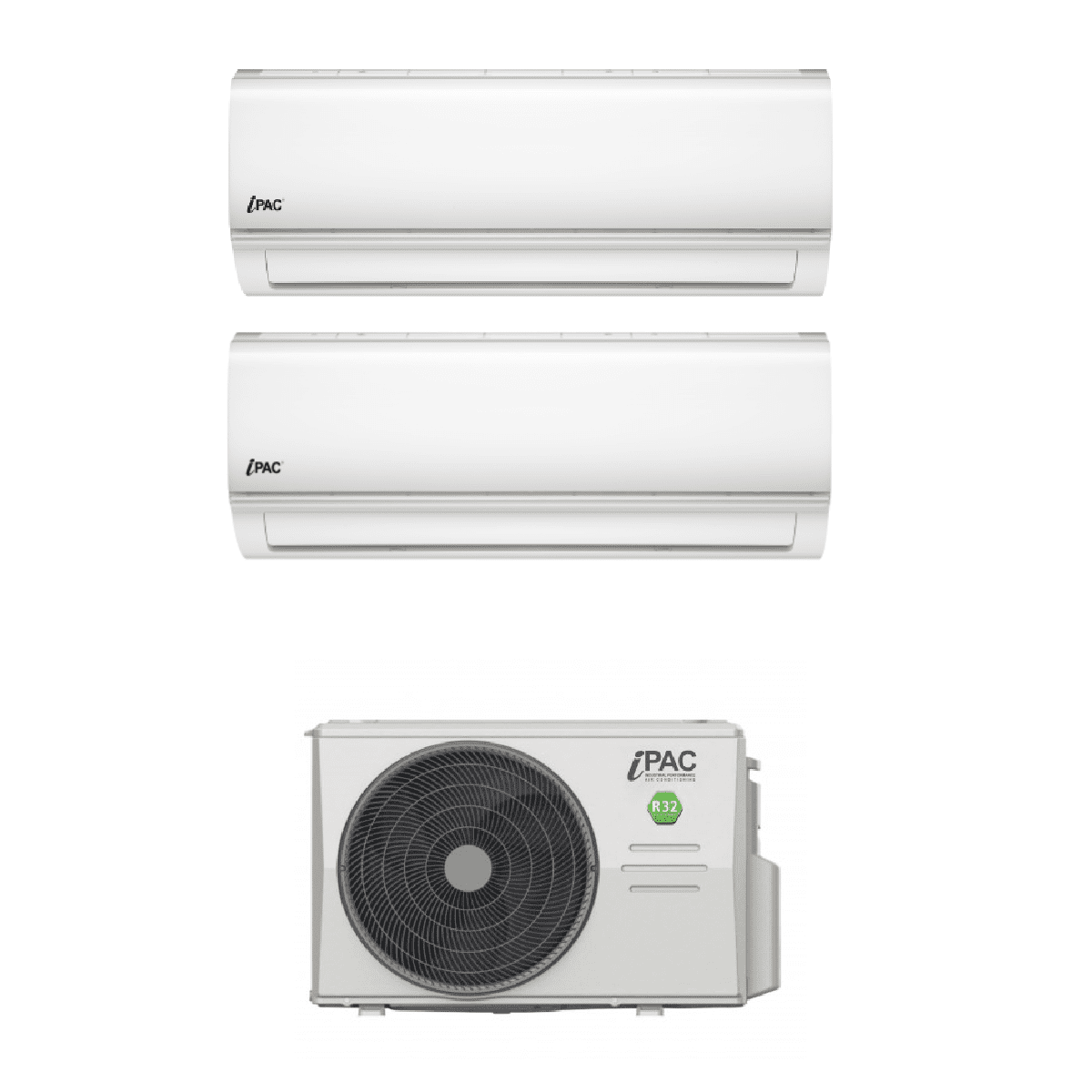

iPac Air Conditioning iPAC-27-MOU 7Kw Outdoor 2 x 3.5kW iPAC-12WS-IN Wall Mounted Kit
This Kit Includes:

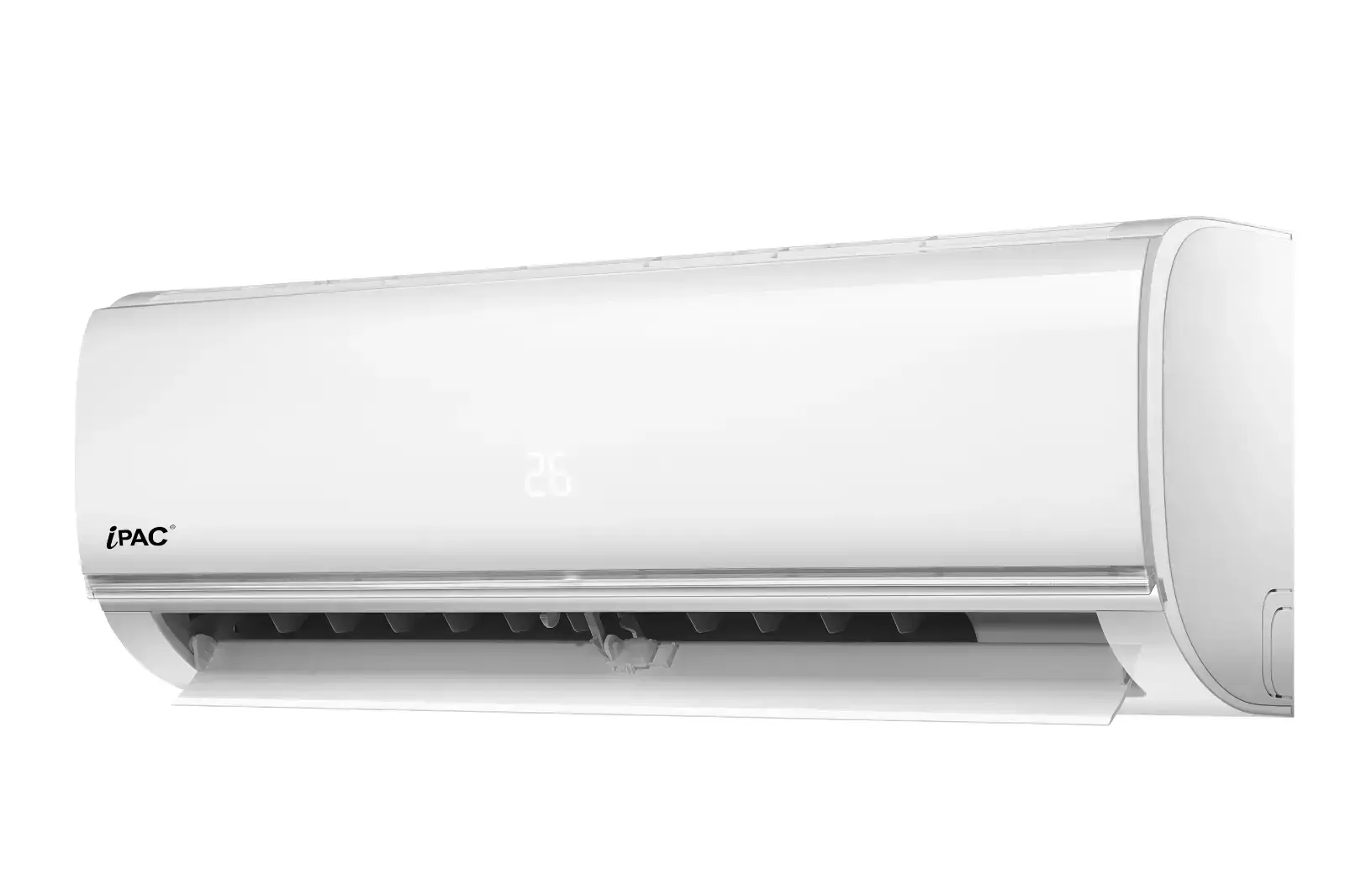

2 x iPAC-12WS-IN Indoor Wall-Split System 3.5Kw/12000Btu
1 x iPAC-27-MOU Outdoor Unit 7Kw / 24000Btu 2 Head Multiple room Split Outdoor Unit

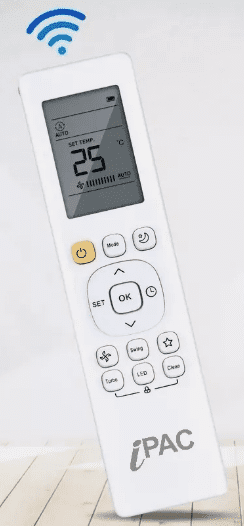

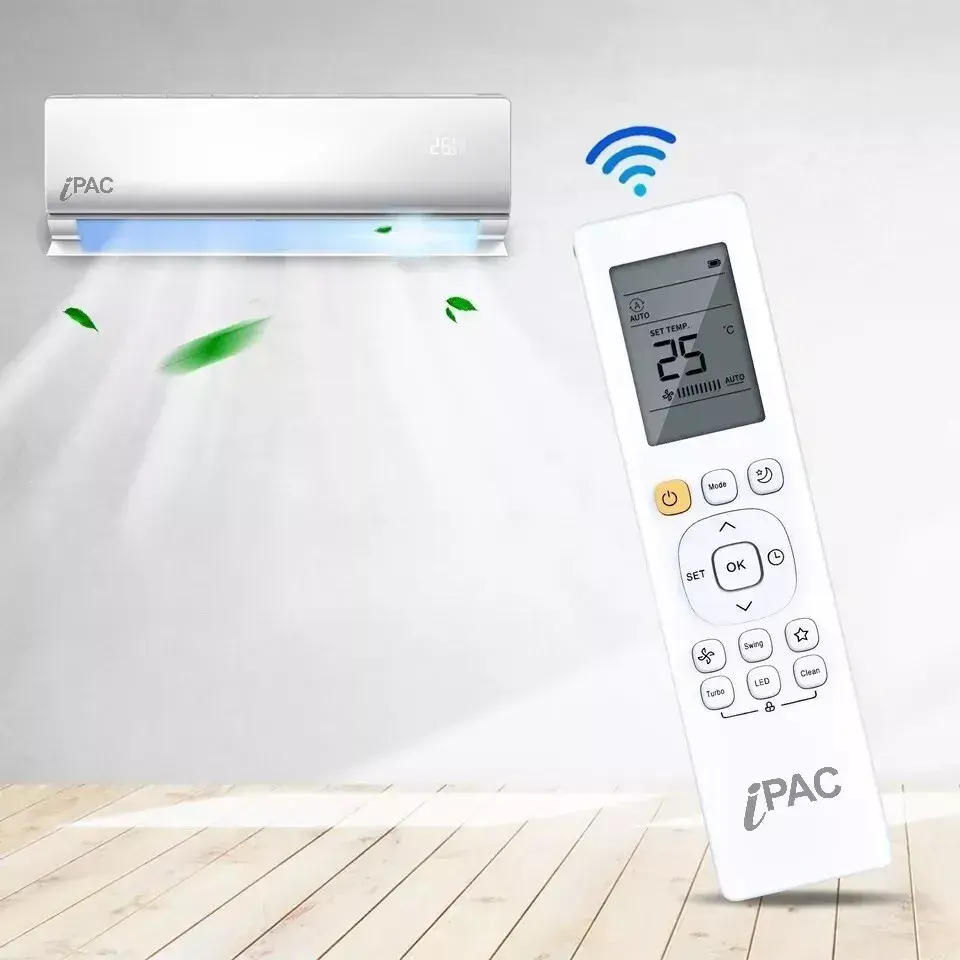

2 x Controllers for the indoor units
2 x 4 Meter Insulated pipe services 1/4" x 3/8"
Extra pipe can be ordered as option
The iPAC-27-MOU 7kW Outdoor Unit, paired with two iPAC-12WS-IN 3.5kW Wall-Mounted Indoor Units, is an EASYfit split air conditioning solution designed for both residential and commercial environments. With its energy-efficient design and multi-purpose functionality, it delivers year-round climate control, offering cooling during the summer and heating in the winter. The iPAC multi-split system is a reliable, energy-saving solution for creating the ideal indoor climate. With its EASYfit installation, it offers an efficient, adaptable setup for any home or office space.
Key Features:
- Adjustable Fan Speeds: Choose between rapid cooling or quieter operation.
- Oscillating Air Vanes: Maximize airflow for even cooling or heating throughout the room.
- Convenient Timer Feature: Automate the unit to switch on and off as needed.
- Built-In Air Filters: Remove odours and particles, enhancing air quality.
- Anti-Mould Coating: Ensures hygienic operation over time.
- Digital Display: Provides easy-to-read information and control.
- Heat Pump Functionality: Enjoy both heating and cooling modes, ensuring comfort in all seasons.
Specification:
| Outdoor Model |
iPAC-27-MOU |
| Energy Efficiency Rating Cooling |
A++ |
| Energy Efficiency Rating Heating |
A+++ |
| Power Rating (Ph-V-Hz) |
1/220-240V/50Hz |
| Capacity BTU/h (Cooling) Kw |
27000 |
| Capacity BTU/h (Heating) Kw |
28000 |
| Power Input (W) (Capacity) |
2450 (290~3100) |
| Current Input (C/H) (A) |
11.2 / 10.1 |
| EER/SEER (BTU/hr.W) |
SEER 6.1 |
| COP/SCOP (W/W) |
SCOP 4 |
| Outdoor Noise Level SPL dB (A) (Max) |
58 |
| Outdoor Airflow (m3/h) |
3000 |
| Max. Current Rating C/H (A) Fuse Rating (Type D) |
13.5 / 13 |
| Unit Dimension (mm) Outdoor (WxDxH) |
890*342*673 |
| Net Weight Outdoor (Kg) |
48 |
| Max. Input Consumption (W) |
4100 |
| Pipe Kit Included (Metre) |
*N/A |
| Copper Pipe Size (Inch) |
3x1/4" & 3x3/8" |
| Max. Length for All Rooms (m) |
60 |
| Max. Length for One Indoor Unit (m) |
30 |
| Max. Height Difference Between Indoor/Outdoor Unit (m) |
15 |
| Operating Temperature (℃) |
-15-50 |
| Outdoor Gross Size (mm) (WxDxH) |
1030x438x750 |
| Outdoor Gross Weight (kg) |
51.8 |
| Indoor Model |
iPAC-12WS-IN |
| Energy Efficiency Rating Cooling |
A++ |
| Energy Efficiency Rating Heating |
A+++ |
| Power Rating (Ph-V-Hz) |
1/220-240V/50Hz |
| Capacity BTU/h (Cooling) Kw |
12000 / 3.6 |
| Capacity BTU/h (Heating) Kw |
13000 / 2.6 |
| Power Input (W) (Capacity) |
1213(130~1580) |
| Current Input (A) C/H |
5.27 / 4.73 |
| EER/SEER (BTU/hr.W) |
SEER 6.1 |
| COP/SCOP (W/W) |
SCOP 4.0 |
| Indoor Noise Level SPL dB (A) (Max) |
40.5 |
| Indoor Airflow (m3/h) (Hi/Mi/Lo) |
540/430/314 |
| Max. Current Rating C/H (A) Fuse Rating (Type D) |
6.9 / 6.9 |
| Net Dimension (mm) Indoor (WxDxH) |
805x194x285 |
| Net Weight Indoor (Kg) |
7.6 |
| Max Room Size (m2) |
16-23 |
| Operating Temp Indoor (Cooling/Heating) °C |
17~32 / 0~30 |
| Indoor Packaging Size (mm) |
870x270x365 |
| Indoor Gross Weight (kg) |
9.8 |
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
