This Kit Includes:

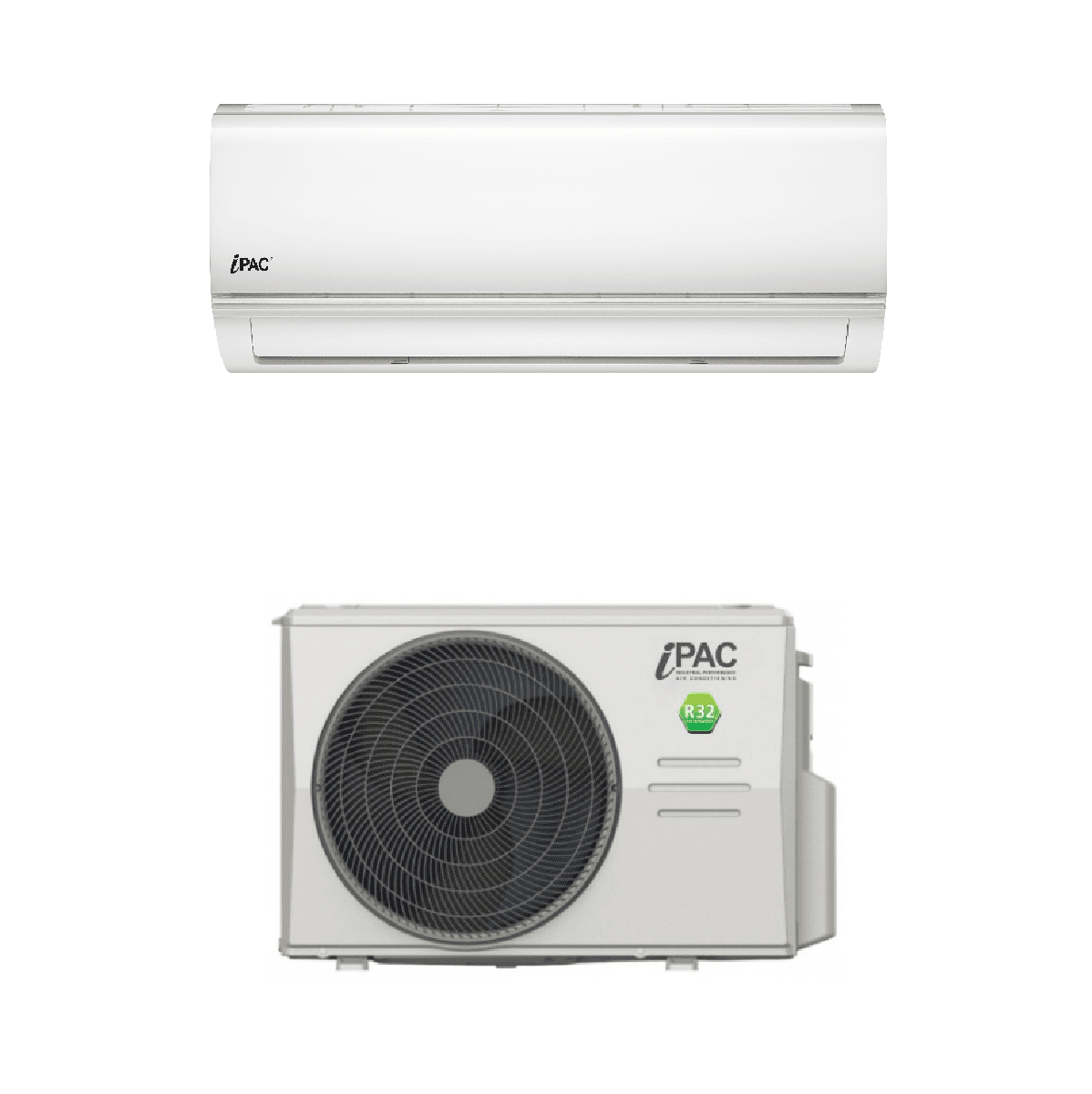

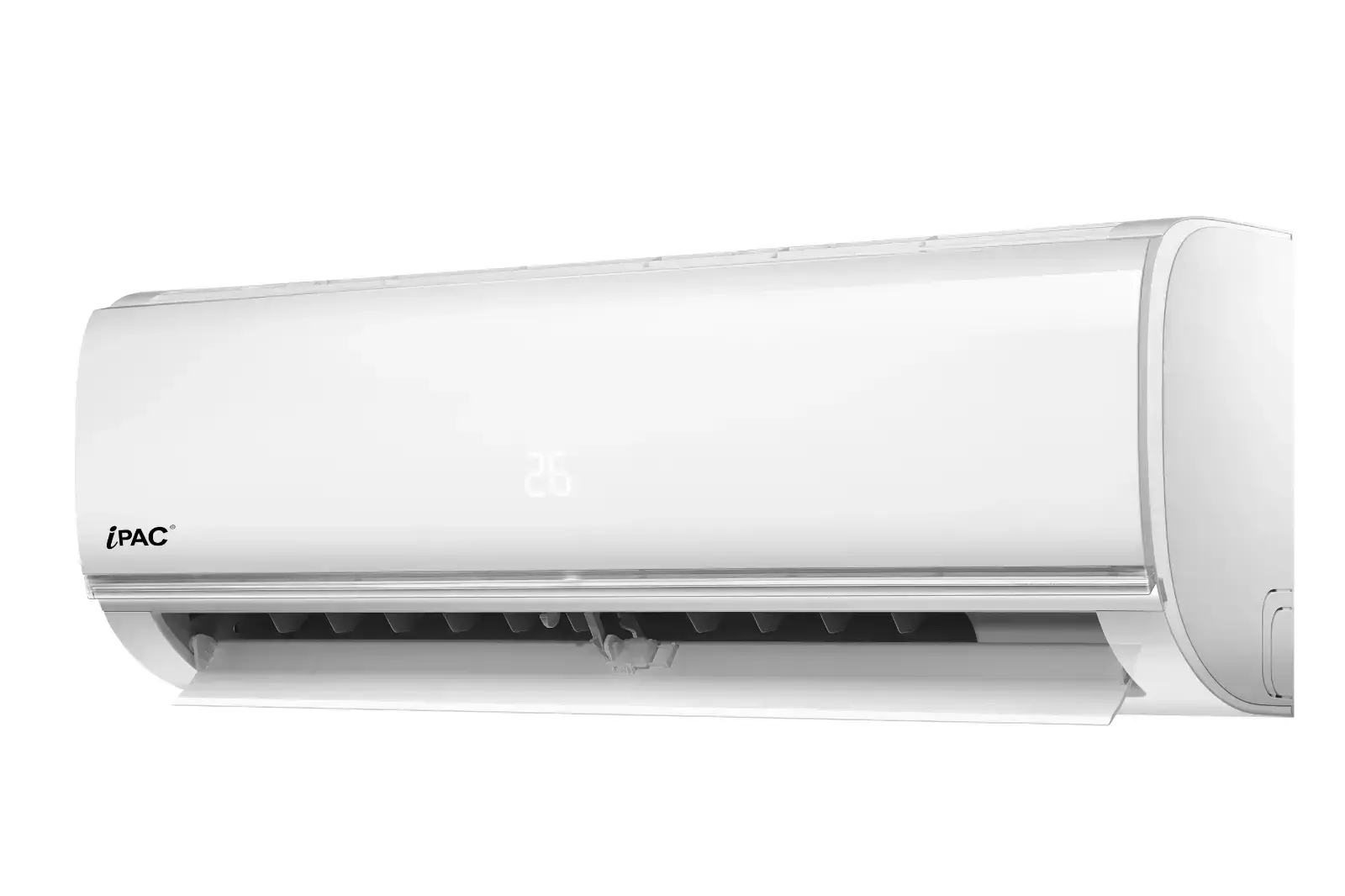

• 1 × iPac Air Conditioning iPAC-18WS-IN Wall Mounted Indoor Unit
• 1 × iPac Air Conditioning iPAC-18WS-ODU Outdoor Unit

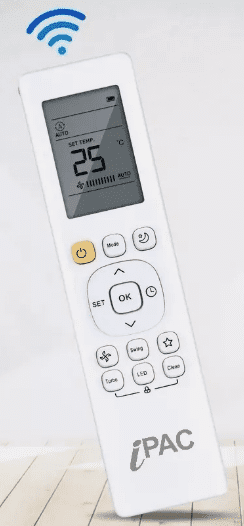

• 1 × Remote Controller
• 1 × 4-Metre Insulated Pipe Services (1/4" × 1/2")
• Installation Manual
• Additional pipework available as an optional extra

Comfort, Efficiency and Power for Medium–Large Rooms

The iPac iPAC-18WS wall mounted system delivers powerful 5.2kW cooling and 4.1kW heating performance, making it ideal for home living areas, offices, loft conversions and commercial spaces requiring reliable, year-round climate control. This A++ rated R32 system operates with low energy consumption, while its inverter technology ensures quick temperature response, quiet operation and excellent long-term efficiency. The 4-metre insulated pipe kit enables a straightforward EASYfit installation, and the outdoor multi-system capability allows up to three indoor units to be added as your needs grow.

Key Product Features:

• High-efficiency A++ cooling performance with low running costs
• 5.2kW cooling and 4.1kW heating capacity for medium to large rooms
• Inverter heat pump technology for precise all-season climate control
• Adjustable fan speeds for rapid cooling or low-noise operation
• Wide-angle oscillating airflow for improved room coverage
• Built-in air filtration to remove particulates and odours
• Anti-mould coating for cleaner, more hygienic air output
• Programmable timer for automated temperature scheduling
• Digital display for precise and intuitive control
• Multi-system outdoor unit supports up to three indoor units

Technical Specifications:

Indoor Unit – iPAC-18WS-IN
• Energy Efficiency (Cooling): A++
• Energy Efficiency (Heating): A+++
• Power Rating: 1/220-240V~50Hz
• Cooling Capacity: 18,000 BTU / 5.2 kW
• Heating Capacity: 19,000 BTU / 4.1 kW
• Power Input (Cooling/Heating): 1550 W (140–2300 W range)
• Current Input (Cooling/Heating): 6.7 A / 6.8 A
• SEER: 7.4
• SCOP: 4.0
• Indoor Noise Level (Max): 42.5 dB(A)
• Airflow (High/Medium/Low): 840 / 680 / 540 m³/h
• Max Current Rating (Cooling/Heating): 10 A / 10.2 A (Type D fuse)
• Net Dimensions (WxDxH): 957 × 213 × 302 mm
• Net Weight: 10 kg
• Max Room Size: 24–35 m²
• Operating Temperature (Cooling): 17–32°C
• Operating Temperature (Heating): 0–30°C
• Packaging Size: 1035 × 295 × 385 mm
• Gross Weight: 13 kg

Outdoor Unit – iPAC-18WS-ODU / iPAC-18-MOU
• Power Supply: 220–240V, 1Ph, 50Hz
• Cooling Capacity: 18,000 BTU/h (7,800–19,500)
• Cooling Input: 1635 W (690–2000 W)
• Cooling Rated Current: 7.3 A (3.2–9.0 A)
• EER: 3.23
• Heating Capacity: 19,000 BTU/h (8,200–19,600)
• Heating Input: 1500 W (600–1780 W)
• Heating Rated Current: 6.6 A (2.8–7.95 A)
• COP: 3.71
• Seasonal Cooling PdesignC: 5.3 kW
• SEER: 6.1 (A++)
• Average Heating PdesignH: 4.8 kW
• SCOP: 3.8 (A)
• Warmer Climate PdesignH: 5.0 kW
• SCOP: 5.1 (A+++)
• Compressor Type: GMCC Rotary
• Outdoor Airflow: 2100 m³/h
• Outdoor Sound Pressure: 54 dB(A)
• Outdoor Sound Power: 65 dB(A)
• Refrigerant: R32
• GWP: 675
• Charge Quantity: 1.25 kg
• Outdoor Dimensions (WxDxH): 805 × 330 × 554 mm
• Outdoor Packaging: 915 × 370 × 615 mm
• Net / Gross Weight: 35 / 38 kg
• Refrigerant Piping (Liquid/Gas): 1/4" × 1/2"
• Max Piping Length (All Rooms): 40 m
• Max Piping Length (Single Indoor): 25 m
• Max Height Difference (Indoor–Outdoor): 15 m
• Max Height Difference (Between Indoors): 10 m
• Operating Temperature – Cooling: –15 to 50°C
• Operating Temperature – Heating: –15 to 24°C
