This Kit Includes:

• 2 × iPAC-12WS-IN Indoor Wall-Mounted Units (3.5kW / 12,000 BTU each)
• 1 × iPAC-18-MOU Outdoor Multi-Split Unit (5kW / 17,000 BTU)

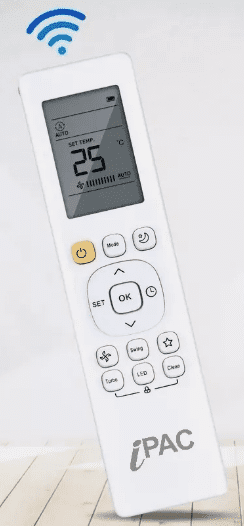

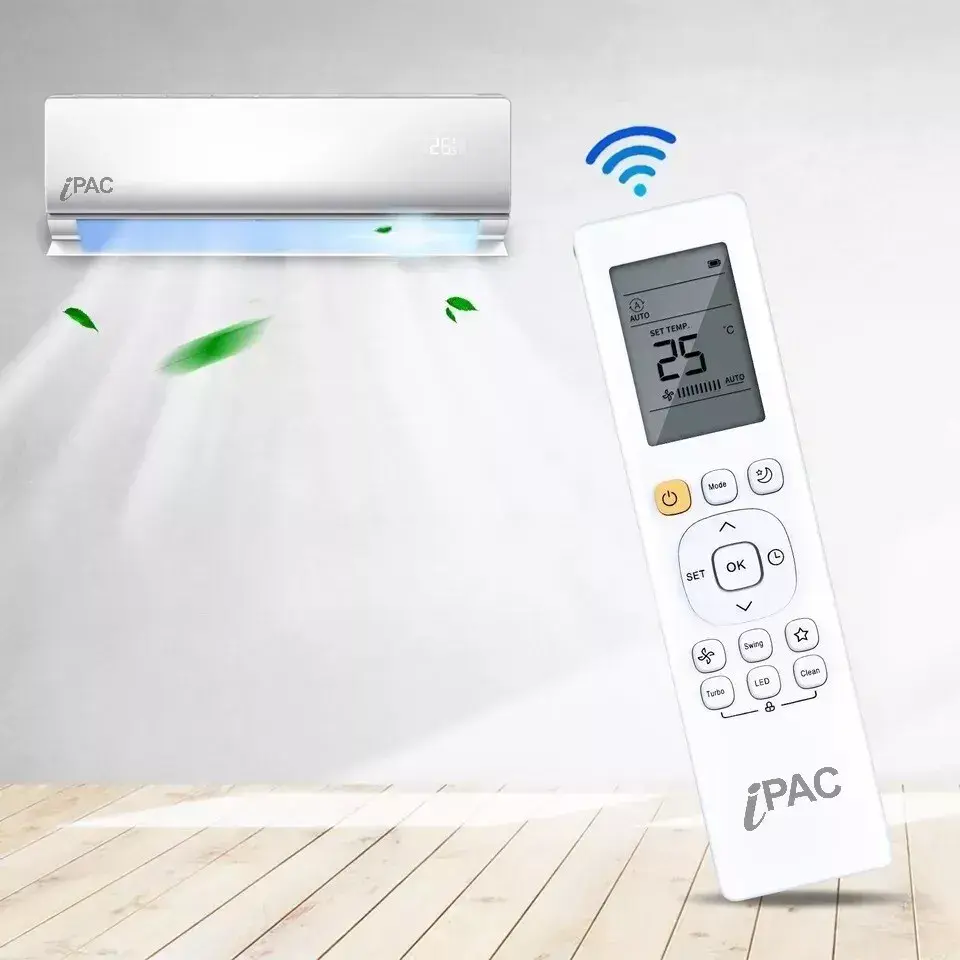

• 2 × Remote Controllers
• 2 × 4-Metre Insulated Pipe Sets (1/4" × 3/8")
• Installation Manual
• Additional pipework available as an optional extra

Dual-Room Efficiency with Powerful Multi-Split Climate Control:

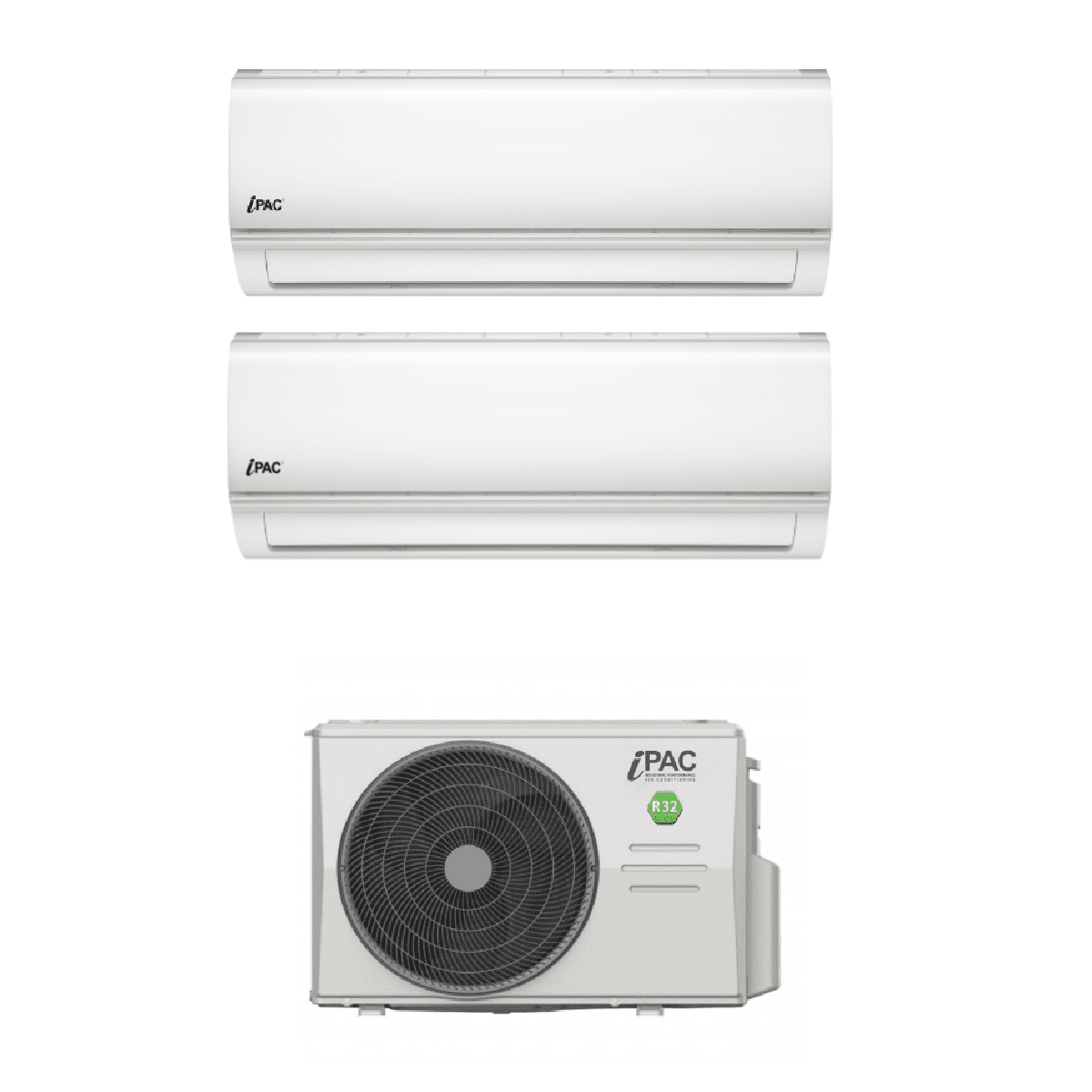

The iPac iPAC-24-MOU multi-split system pairs two 3.5kW iPAC-12WS-IN indoor units with a high-efficiency 5kW outdoor unit, providing a versatile climate-control solution for homes, offices, retail rooms and commercial workspaces. Ideal for applications requiring independently controlled rooms, this EASYfit setup delivers reliable cooling in summer and efficient heating in winter thanks to advanced inverter heat pump technology.
Using eco-friendly R32 refrigerant and achieving strong A++ seasonal performance, this system offers excellent energy savings, quiet operation and consistent airflow distribution. With flexible installation and dual-room capability, it is a practical and efficient solution for modern living or working environments.

Key Product Features:

• Multi-split outdoor unit supports two indoor heads for separate room control
• 3.5kW cooling per indoor unit, ideal for bedrooms, offices and medium rooms
• A++ energy-efficient operation reduces running costs year-round
• Heat pump functionality for efficient heating and cooling
• Adjustable fan speeds for rapid cooling or quieter operation
• Oscillating air vanes for wide, even airflow distribution
• Air filtration removes dust, particles and odours
• Anti-mould coating for cleaner and more hygienic performance
• Digital display and precise temperature control
• EASYfit installation with supplied insulated pipe sets

Technical Specifications:

Outdoor Unit – iPAC-18-MOU
• Power Supply: 220–240V, 1Ph, 50Hz
• Cooling Capacity: 18,000 BTU/h (7800–19,500)
• Cooling Input: 1635 W (690–2000 W)
• Cooling Rated Current: 7.3 A (3.2–9.0 A)
• EER: 3.23
• Heating Capacity: 19,000 BTU/h (8200–19,600)
• Heating Input: 1500 W (600–1780 W)
• Heating Rated Current: 6.6 A (2.8–7.95 A)
• COP: 3.71
• Seasonal Cooling PdesignC: 5.3 kW
• SEER: 6.1 (A++)
• Seasonal Heating PdesignH: 4.8 kW
• SCOP: 3.8 (A)
• Warmer Climate SCOP: 5.1 (A+++)
• Outdoor Dimensions (WxDxH): 805 × 330 × 554 mm
• Packaging Size: 915 × 370 × 615 mm
• Net / Gross Weight: 35 / 38 kg
• Compressor Type: GMCC Rotary (KSN140D58UFZ)
• Refrigerant: R32
• Charge Quantity: 1.25 kg
• Max Input Consumption: 3050 W
• Max Input Current: 13 A

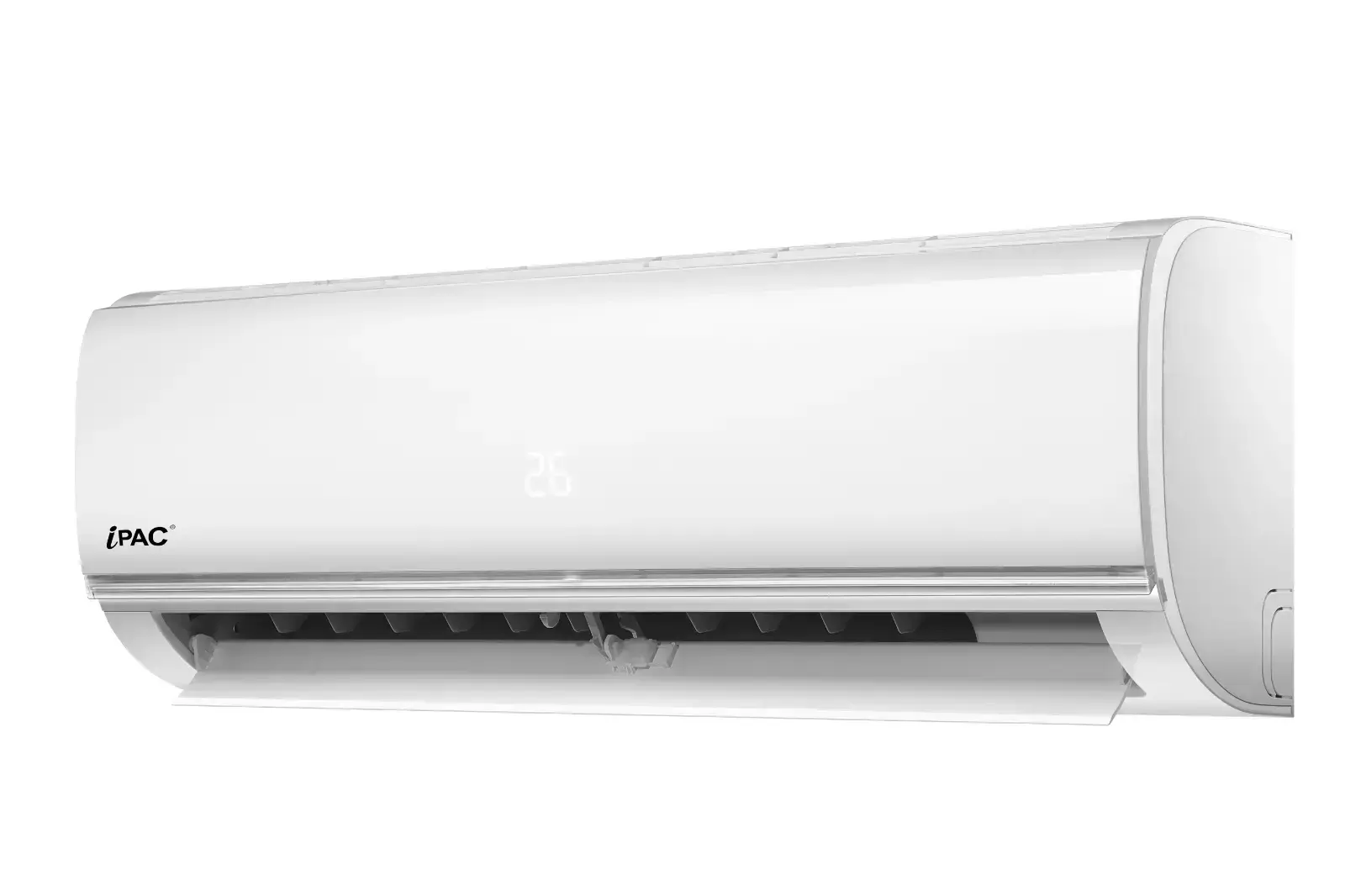

Indoor Units – iPAC-12WS-IN (×2)
• Energy Efficiency (Cooling): A++
• Energy Efficiency (Heating): A+++
• Power Rating: 1/220–240V~50Hz
• Cooling Capacity: 12,000 BTU / 3.6 kW
• Heating Capacity: 13,000 BTU / 2.6 kW
• Power Input (Cooling/Heating): 1213 W (130–1580 W range)
• Current Input (Cooling/Heating): 5.27 A / 4.73 A
• SEER: 6.1
• SCOP: 4.0
• Indoor Noise Level (Max): 40.5 dB(A)
• Indoor Airflow (High/Med/Low): 540 / 430 / 314 m³/h
• Max Current Rating (Cooling/Heating): 6.9 A / 6.9 A (Type D Fuse)
• Indoor Dimensions (WxDxH): 805 × 194 × 285 mm
• Net Weight: 7.6 kg
• Max Room Size: 16–23 m²
• Operating Temperatures: 17–32°C (Cooling), 0–30°C (Heating)
• Packaging Size: 870 × 270 × 365 mm
• Gross Weight: 9.8 kg
