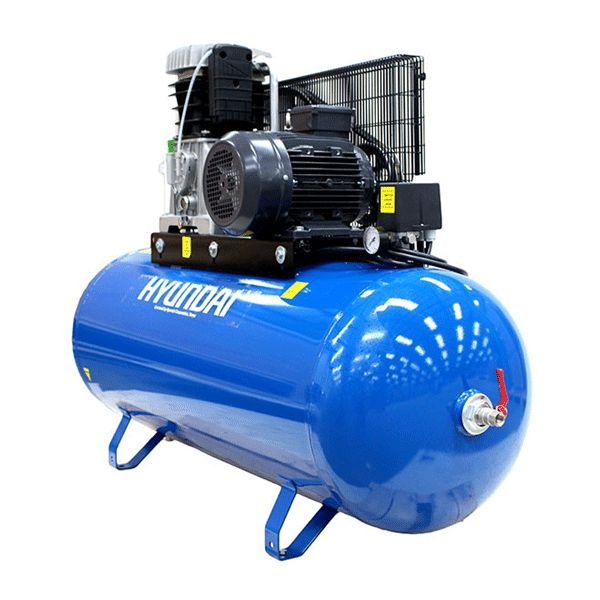

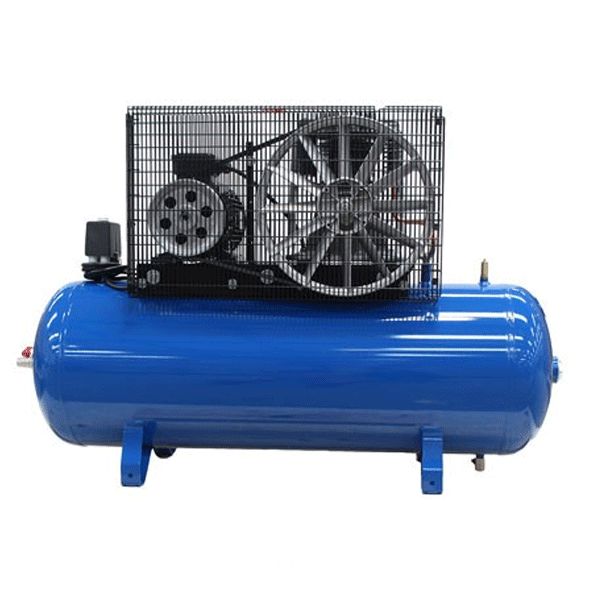

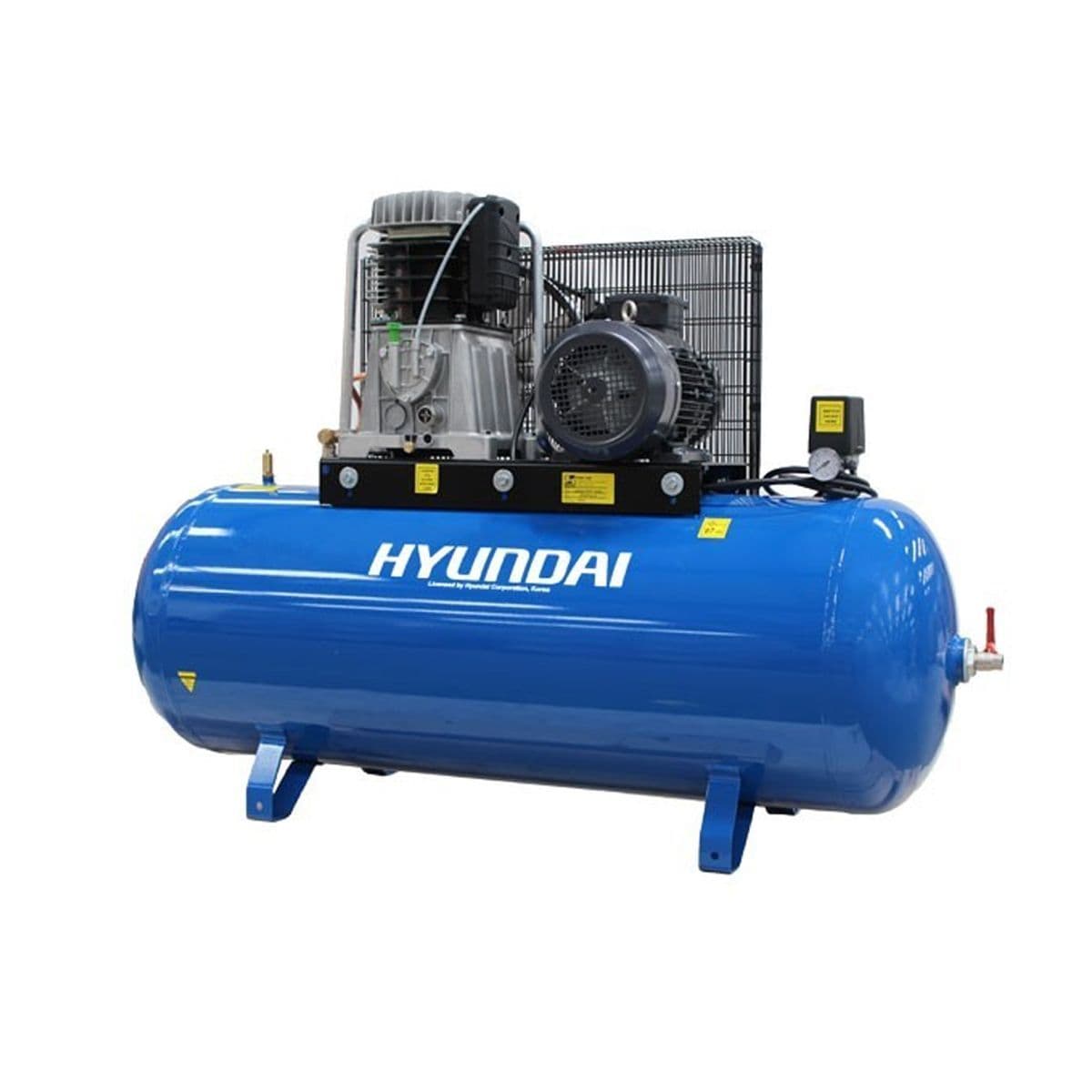

The HY75270-3 is a heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance. This air compressor benefits from the powerful 7.5hp engine and produces 29 CFM from its large 270 litre rolled steel air tank.

The heavy duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pump has a slow running, 3 phase motor, for lower noise levels and increased life expectancy.

The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE.

Technical Specification:



Voltage (V)                                            400.00
Phase                                                    3.00
Frequency (Hz)                                     50.00
Motor Power (hp/kW)                             7.5/5.6
Rated Motor Speed (rpm)                      2800.00
Maximum Pressure (PSI/Bar)                145/10
Cut-Out Pressure (PSI/Bar)                   120/8.3
Cut-In Pressure (PSI/Bar)                      87/6
Tank Capacity (L)                                   270.00
Free Air Delivery (CFM - L/min)             21/595
Displacement (CFM - L/min)                   29/821
Air Outlet                                                 Valve Tap/½"  BSP
Outlet Pressure Regulation Type            Fixed
Drive Type                                               Belt
Overall Dimensions L x W x H (mm)       1600 x 500 x 1040
Tank Material                                           Rolled steel
