Hyundai Pro Series Air Compressors

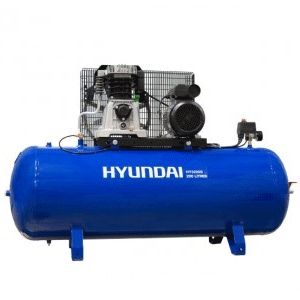

Hyundai HY3200S Direct Drive 'Pro Series' Belt Air Compressor 200L 240V~50Hz

Hyundai HY3200S Direct Drive 'Pro Series' Belt Air Compressor 200L 240V~50Hz

£583.00 £485.83 (ex. VAT)
Stock Status: Sold Out
Sorry, this item is out of stock

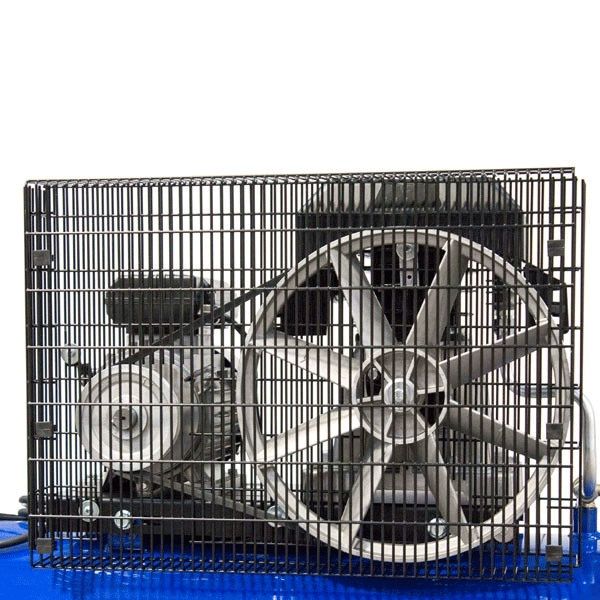

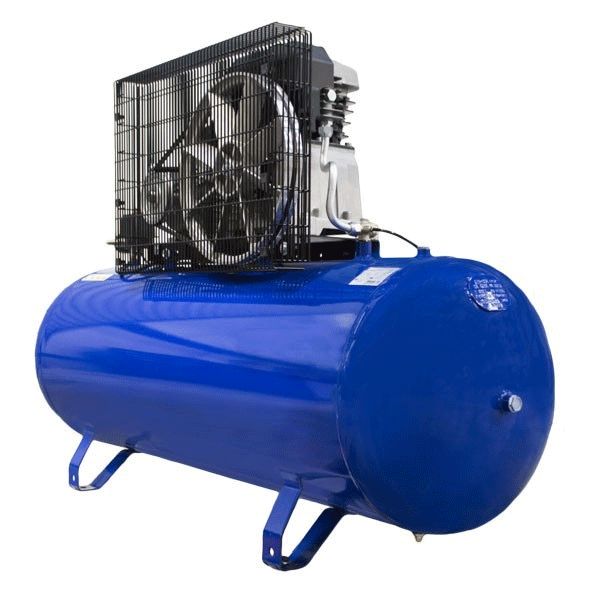

The HY3200S is slow running belt drive air compressor for professional and commercial users, built to tackle the toughest requirements on a daily basis. Equipped with a large 200L rolled steel air tank, this heavy duty air compressor has the capacity needed for powering mechanical, industrial and workshop tasks. It's powered by a 3hp 230v electric motor and benefits from a belt drive system, which provides efficient, quiet and cool performance.

The HY3200S produces a maximum pressure output of 145psi / 10bar with a displacement of 14cfm, making it the ideal choice for professional users who have demanding air-powered tools. With a tough cast iron twin cylinder block, this air compressor is built to last and conforms to all of the latest European Standards.

With a net weight of 110kg, the HY3200S is a large air compressor and is ideal for mechanics or engineers who need to carry out repairs in the field.

Compressor Care:  Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.

Technical Specification:

Warranty 2 Year
Manufacturer Hyundai
Model HY3200S
Portable or Stationary Stationary
Voltage (V) 230v
Phase Single
Frequency (Hz) 50.00
Connection Method / Cable Length (m) Hard Wired 13A 3 Pin UK Plug
Motor Power (hp/kW) 3hp / 2.2kW
Rated Motor Speed (rpm) 2850rpm
Maximum Pressure (PSI/Bar) 145psi / 10bar
Cut-Out Pressure (PSI/Bar) 145psi / 10bar
Cut-In Pressure (PSI/Bar) 116psi / 8bar
Tank Capacity (L) 200.00
Pump RPM 1050rpm
Displacement (CFM - L/min) 14CFM / 396
Air Outlet Euro type Quick release
Outlet Pressure Regulation Type Adjustable
Drive Type Poly V Belt Drive
Mounting Mounted on 4 anti-vibration rubber feet
Lubrication Oil lubricated
Overall Dimensions L x W x H (mm) 1460x460x1140
Tank Material Rolled Steel
Cylinder(s) One
Net Weight (kg) 110.00
Noise @ 7m (dB) 70.00
