Hitachi Air Conditioning Floor Mounted RAF A+

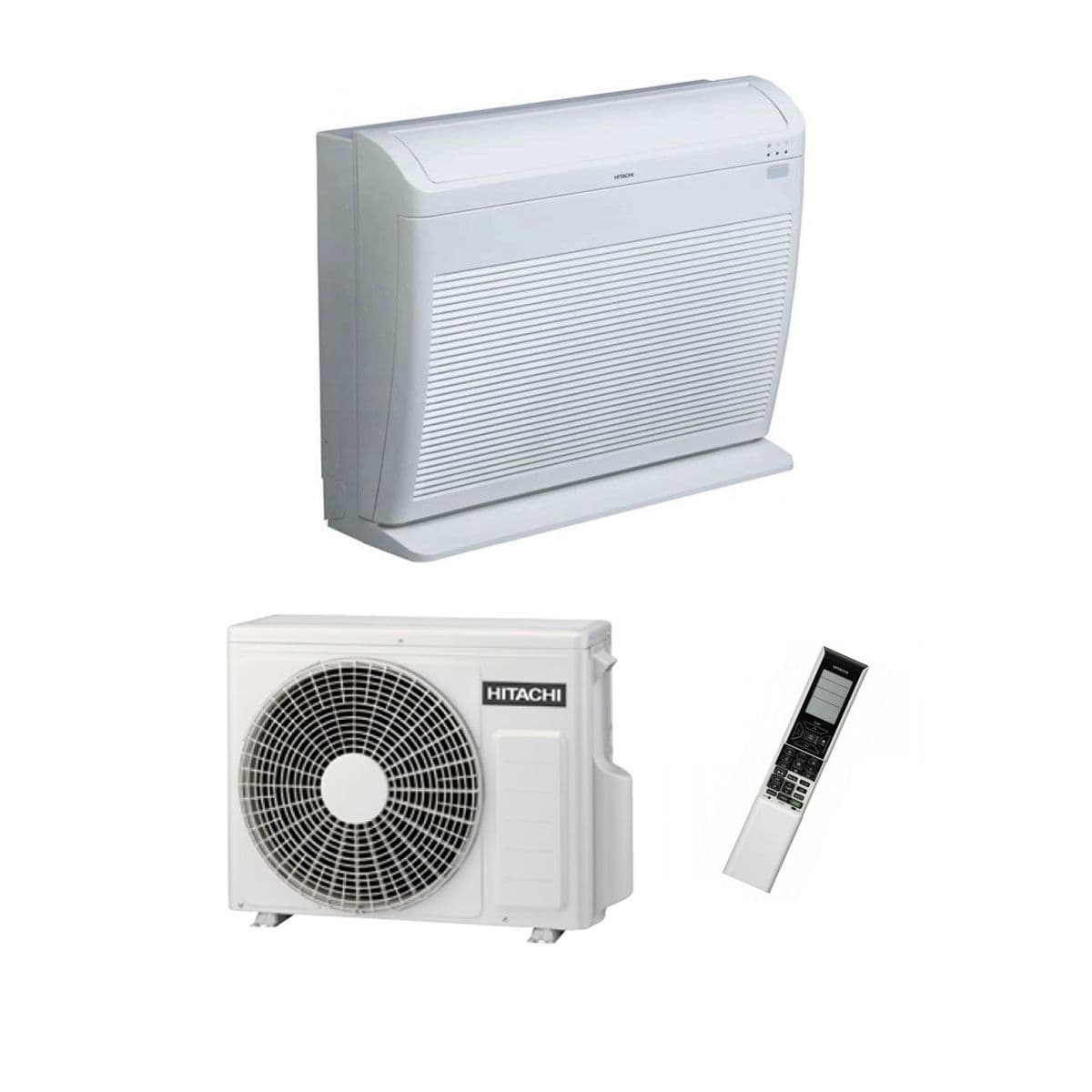

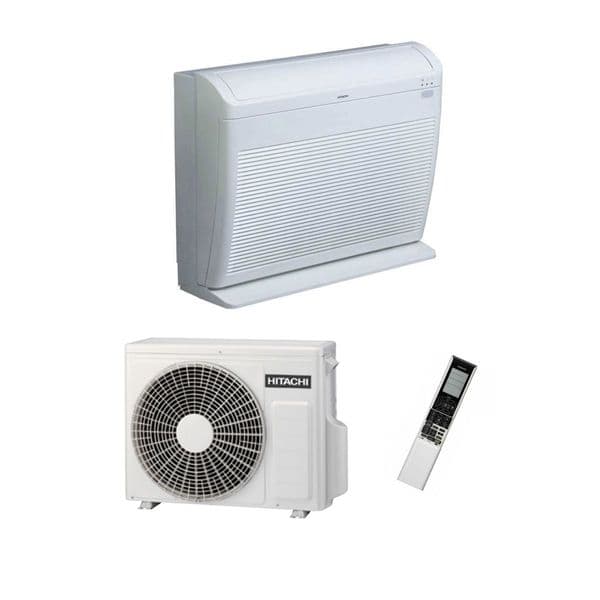

Hitachi Air Conditioning Floor Mounted RAF-50RPA Inverter Heat Pump 5.0Kw/17000Btu A+ 240V~50Hz

Hitachi Air Conditioning Floor Mounted RAF-50RPA Inverter Heat Pump 5.0Kw/17000Btu A+ 240V~50Hz

£1,224.00 £1,020.00 (ex. VAT)
Stock Status: In Stock

A+ Energy Rated Product

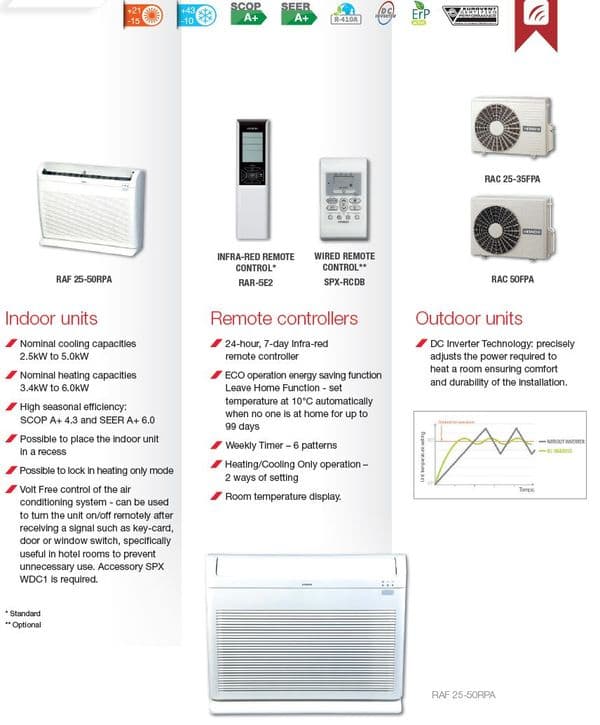

The Hitachi air conditioning RAF floor mounted range are highly economical and environmentally friendly. Using the latest compressor and inverter technology keeps power consumption to a minimal, but at the same time providing powerful cooling and heating. All Hitachi’s air conditioning units offer high seasonal efficiencies, with models in this series achieving high seasonal performance SCOP A+ 4.3 and SEER A+ 6.0 . ​​The compact dimensions of the RAF Series (600 x 760 x 235) are common across the entire range and allow for easier integration. The Indoor air flow comes from the upper and lower outlets allows the room to be heated or cooled evenly and quickly from floor to ceiling.

Enhanced inverter performance and system performance are achieved by the addition of a ‘Direct Current’ drive compressor, resulting in up to 10% more efficient than standard 'AC' (Alternating Current) Systems. The variable speed compressor (inverter) enables the system to rapidly reach the desired room temperature setting. Once the desired room temperature has been achieved the compressor rotation peed is reduced, saving up to 30% in energy usage (when compared to standard fixed speed systems). Includes 24-hour, 7-day Infra-red remote controller and ECO operation energy saving function Leave Home Function - set temperature at 10°C automatically when no one is at home for up to 99 days.

Volt Free control of the air conditioning system option, used to turn the unit on/off remotely after receiving a signal such as key-card, door or window switch, specifically useful in hotel rooms to prevent unnecessary use. Accessory SPX WDC3 is required.



Product Key Feature's:


  • High CoP, up to record 4.3 A+
  • Infra-red controller
  • Slim construction 235mm
  • Pipe runs up to  20 meters
  • Low noise 23dBA on low
  • Cold draft prevention on heat pump start up
  • Fault diagnosis
  • Auto re-start after power interruption
  • PRE-CHARGED WITH REFRIGERANT for up to 7.5 metres pipe length
  • Light weight noise absorbing outdoor unit
  • 5 years Warranty




Indoor Unit RAF-50RPA

Power source 1 ph 240V
Type  Inverter  rotary
COOLING (nominal) max. kW 5.0 / 16500 BTU
HEATING (nominal) max. kW 6.0 / 20500 BTU
UK Cooling (max) kW  5.2 / 17200  BTU
UK Heating (max) kW  7.3 / 24000 BTU

Fuse Rating 16A
E.E.R.  n/a
Energy label in heating  A
Energy label in cooling  A
C.o.P  3.61
ECA - Yes

Indoor Unit


Exterior dimensions (mm) 600 x 760 x 235
Net weight kg 15
Air flow rate* (cooling) (m3//min) 12.3/10.5/7.5
Air flow rate* (heating) (m3//min) 14.3/12.0/9.5



Outdoor Unit RAC-50FPA

Exterior dimensions (mm) 600 x 760 x 235
Net weight kg 40
Power Source Rating MCB A 16A
Refrigerant max piping length m 20
Pipe sizes - 1/4" x  1/2"



PDF Data:





These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
