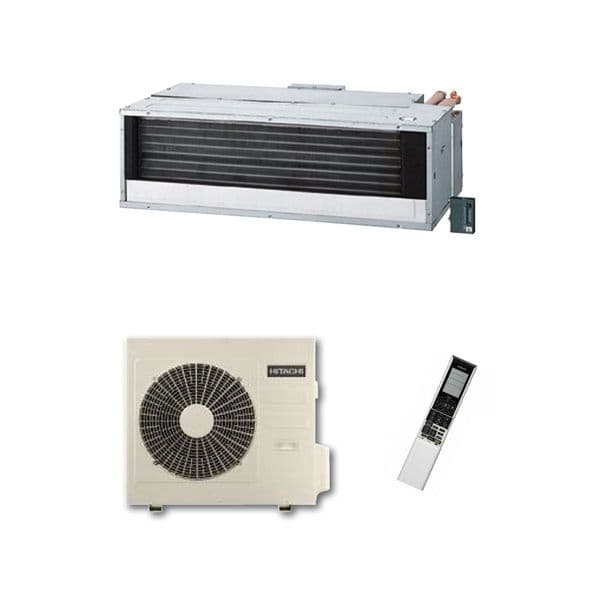

Hitachi Air Conditioning Ducted RAD Inverter Heat Pump A

Hitachi Air Conditioning Ceiling Concealed Ducted RAD-35RPA Inverter Heat Pump 3.5Kw/12000Btu A 240V~50Hz

Hitachi Air Conditioning Ceiling Concealed Ducted RAD-35RPA Inverter Heat Pump 3.5Kw/12000Btu A 240V~50Hz

£1,232.36 £1,026.97 (ex. VAT)
Stock Status: In Stock

A Energy Rated Product

The Hitachi air conditioning RAD Ducted range are economical and environmentally friendly. Using the latest compressor and inverter technology keeps power consumption to a minimal, but at the same time providing powerful cooling and heating. All Hitachi’s air conditioning units offer high seasonal efficiencies, achieving high seasonal performance SCOP A 3.8 and SEER B 4.7. ​​The dimensions of the model (235x750x400) allow for easier integration into ceiling and loft spaces.
Enhanced inverter performance and system performance are achieved by the addition of a ‘Direct Current’ drive compressor, resulting in up to 10% more efficient than standard 'AC' (Alternating Current) Systems. The variable speed compressor (inverter) enables the system to rapidly reach the desired room temperature setting. Once the desired room temperature has been achieved the compressor rotation peed is reduced, saving up to 30% in energy usage (when compared to standard fixed speed systems).

This unit is ductable, meaning airflow can be ducted to another area in the room or another smaller areas, the unit has its own internal drain pump to remove accumulated condensation water from the drain pan even while it is operating. A float switch monitors the water level and automatically activates the pump as necessary. High Stream turbo fans with curved blades for 20% increased efficiency with noise levels as low as 27dB(A)

Volt Free control of the air conditioning system option, used to turn the unit on/off remotely after receiving a signal such as key-card, door or window switch, specifically useful in hotel rooms to prevent unnecessary use. Accessory SPX WDC3 is required.

Product Key Feature's:


  • High CoP, up to record 3.8
  • Infra-red controller
  • Slim construction 235mm
  • Pipe runs up to 20 meters
  • Low noise 27dBA on low
  • Cold draft prevention on heat pump start up
  • Fault diagnosis
  • Auto re-start after power interruption
  • PRE-CHARGED WITH REFRIGERANT for up to 7.5 metres pipe length
  • Light weight noise absorbing outdoor unit
  • This unit is also Ductable (Air flow can be ducted into other areas)

RAD Ducted RAD-35RPA
Power source 1 ph 240V
Type  Inverter  rotary
COOLING (nominal) max. kW 3.5 / 11550 BTU
HEATING (nominal) max. kW 4.8 / 15840 BTU
UK Cooling (max) kW  4.0 / 13200 BTU
UK Heating (max) kW  6.6 / 21780 BTU

Fuse Rating 16A
E.E.R.  n/a
Energy label in heating  A
Energy label in cooling  A
C.o.P  3.8
ECA - Yes

Indoor Unit:

Exterior dimensions (mm) 235 x 750 x 400
Net weight kg 19
Air flow rate* (cooling) (m3//min) 9.0/7.7/6.7/6.3

Air flow rate* (heating) (m3//min) 9.5/7.7/6.8/6.3
Outdoor Unit:

Exterior dimensions (mm) 570 x 750 x 280
Net weight kg 40
Power Source Rating MCB A 16A
Refrigerant max piping length m 20
Pipe sizes - 1/4" x  3/8"

PDF Data:


These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
