This Kit Includes:
1 x DCD-3.0 (Door base element 2x PVC foil incl. velcro fastener + transport bag)
1 x Air Cleaner PF 1000 Fan
1 x Dust bag M class + fastening clip + hose (length 7.6m) + hose adapter

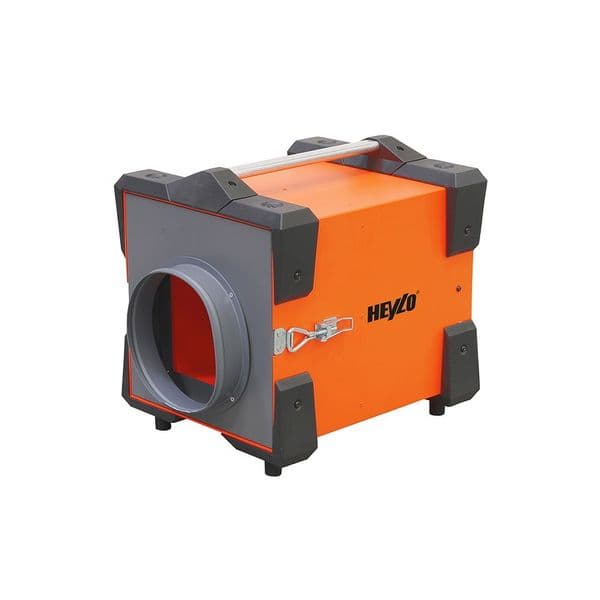

The Heylo PowerFilter 1000 air cleaner is a versatile and efficient solution designed to improve air quality and maintain vacuum conditions in various environments. This compact and lightweight unit is especially suited for use in confined spaces, such as construction sites, where the removal of hazardous substances and odors is critical. It achieves this through a sophisticated filtration system compliant with European standards, ensuring high efficiency and safety.
The filtration system includes a pre-filter equipped with a coarse dust filter of class G4, following the EN779 European standard, which serves as the first line of defense against larger particles. Additionally, an activated carbon pre-filter is available for the absorption of gases and odors, providing a comprehensive approach to air purification.
At the heart of the PowerFilter 1000 are the main filters, offering multiple layers of protection. The fine dust filter, classified as F9 according to EN779 and dust class M as per EN 60335, captures smaller particulate matter, ensuring a cleaner air output. For environments requiring the highest level of air purity, a suspended solids filter HEPA H14, in accordance with EN1822 and dust class M compliant with EN 60335, is utilised to remove even the finest particles. An activated carbon main filter is also an option for enhanced removal of odours and gases, making the PowerFilter 1000 a comprehensive air cleaning solution.
The PowerFilter 1000's design prioritizes ease of use and maintenance. Its metal housing is not only durable but also designed for easy access, allowing for quick and straightforward servicing. Filters, including those for specific classes (H-Class, M-Class), can be easily replaced or maintained, ensuring the unit continues to operate at peak efficiency. For odour remediation, the inclusion of an activated carbon filter adds an extra layer of versatility, making the PowerFilter 1000 an ideal choice for a wide range of applications, from construction sites to indoor spaces requiring clean and safe air.
Key Product Features:
-
Air cleaner with an ventilator air flow rate of max. 917m³/h
-
Compact, lightweight design (aluminum housing) for optimum handling
-
With ergonomic handles and protective corners
-
Energy meter MID standard
-
Stackable
-
Hose connection possible on the pressure and suction sides
-
Fan infinitely variable
-
Very quiet with 64dB(A) at full speed
-
Fast and easy filter change
-
Flexible filter assembly (H, M and carbon filter)
|
Specifications
|
Units
|
DCS-PF 1000
|
| Ventilator-air flow without filters |
m³/h
|
917
|
| Air flow with free M-filter F9 |
m³/h
|
760
|
| Air flow with free H-filter H14 |
m³/h
|
515
|
| Air flow by saturated filters |
m³/h
|
346
|
| Power consumption |
kW
|
0.185
|
| Power supply |
V/Hz
|
230/1ph/50
|
| Rated current |
A
|
1.33
|
| Protection class |
|
IP44
|
| Sound level |
dB(A)
|
0-66
|
| Hose intake/outlet side |
Ømm
|
205
|
| Box size (l x w x h) |
mm
|
800 x 600 x 1250
|
| Net weight |
kg
|
35
|
