This Kit Includes:

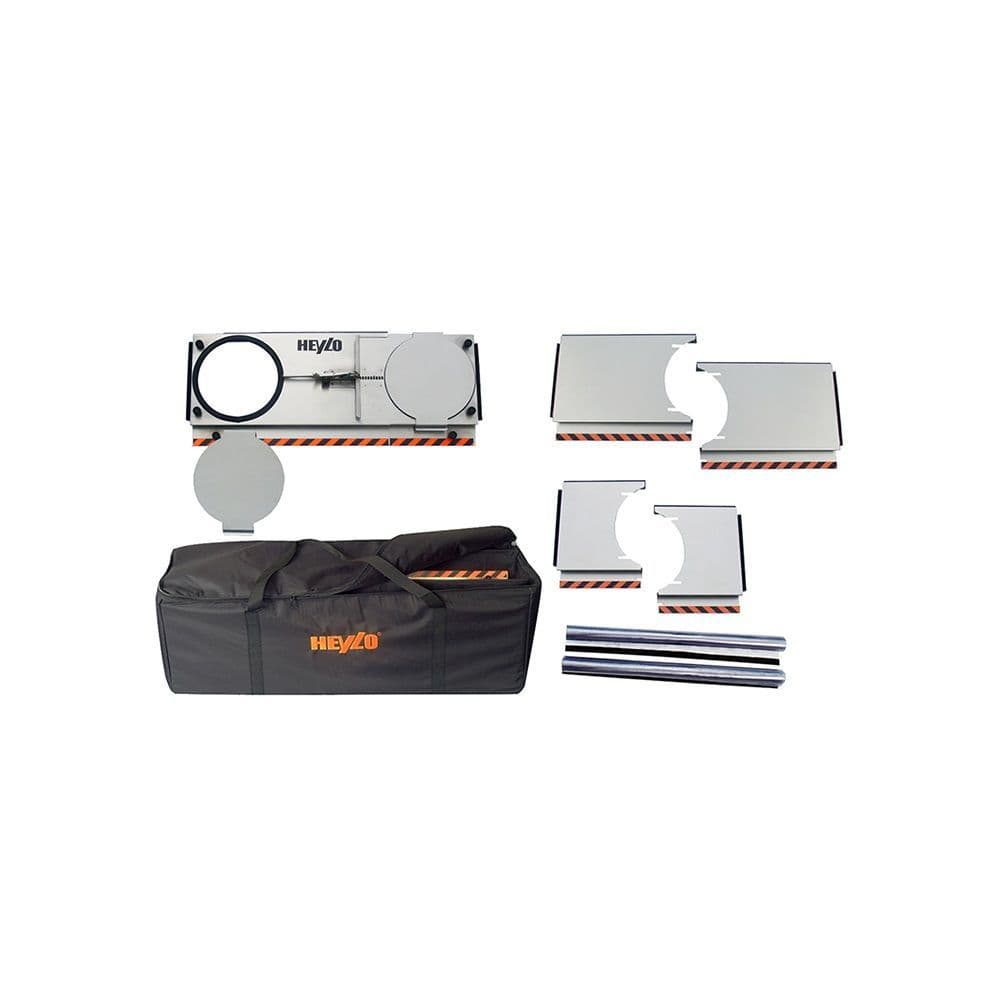

1 x DCD-3.0 (Door base element 2x PVC foil incl. velcro fastener + transport bag)

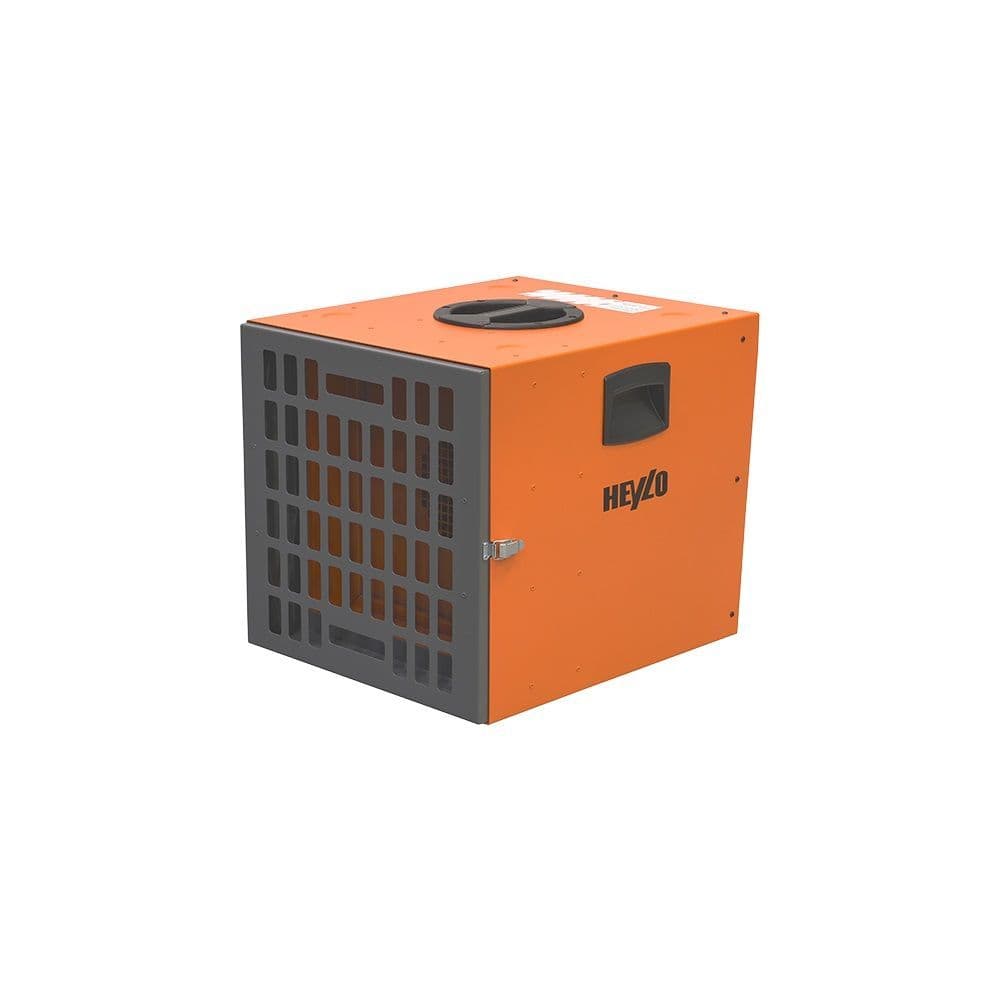

1 x Air Cleaner PF 1400 + coarse dust filter (G4) + fine dust filter (F9/M class) + suction piece.

1 x Dust bag M class + fastening clip + hose (length 7.6m) + hose adapter

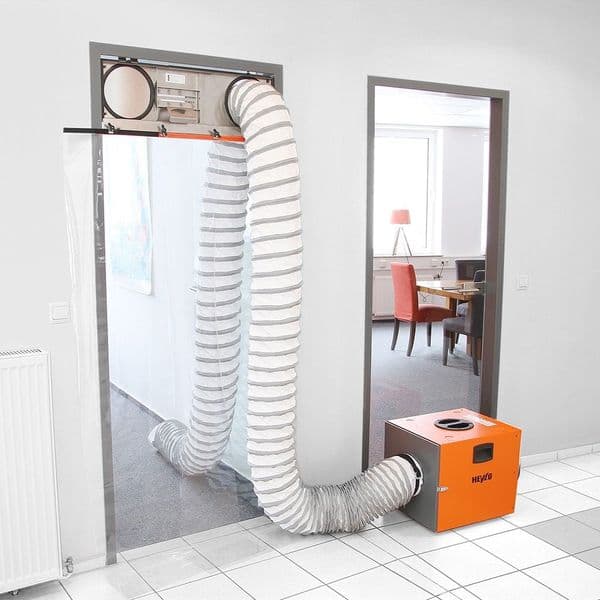

The Heylo DCS-PF 1400 dust protection system presents a comprehensive solution for dust extraction and maintaining negative pressure in enclosed spaces, streamlining the process of keeping areas clean, especially during renovations or construction work. This system is adept at swiftly creating safe and clean partitions between work zones and clean spaces, specifically designed to accommodate door widths ranging from 680 to 1430mm. Its flexibility is further enhanced by the option to use various door adapters, allowing for a custom fit in diverse settings.

Installation of the system is both quick and straightforward, thanks to its quick-release fasteners. The dust protection door itself integrates two dust extraction openings, facilitating a high airflow rate that ensures efficient dust control. For environments requiring stringent air purity, such as mould remediation projects, the system offers the option to incorporate a HEPA filter H14 (class H), providing an added layer of filtration to capture even the smallest particulates.

At the core of this innovative system is the combination of the dust protection door DCD and the PowerFilter 1400, which work together to generate negative pressure in the designated renovation or work area—referred to as the black area. This setup effectively prevents the dispersal of fine dust into adjacent rooms by extracting it directly at its source through the strategically placed hose openings in the door.

Designed with mobility and ease of use in mind, the Heylo dust protection system can be transported effortlessly and set up quickly, offering significant savings in both time and expenses. Unlike water-based dust control methods that often require laborious clean-up, this system simplifies the post-work process. Users can simply remove, tap out, and dispose of the dust bags and filters, eliminating the need for time-consuming cleaning tasks. This efficiency not only streamlines renovation and construction projects but also ensures a cleaner, healthier environment with minimal disruption.

Key Product Features:

• Dust protection system for dust extraction and negative pressure maintenance in rooms

• Quickly installed

• For mould remediation, HEPA filter H14 (class H) can also be used as an option

• For door widths from 680-1430mm

• Can be optionally extended with various door adapters

• Quick and easy to install with quick-release fastener

• Two integrated dust extraction openings in the door

• High air flow rate possible in the dust protection door
