Haier Air Conditioning

Haier Air Conditioning TIDE AS35THMHRA-C 1U35YEFFRA-C Wall R32 Heat Pump Wi-Fi 3.5Kw/12000Btu A++

Haier Air Conditioning TIDE AS35THMHRA-C 1U35YEFFRA-C Wall R32 Heat Pump Wi-Fi 3.5Kw/12000Btu A++

£516.00 £430.00 (ex. VAT)
Stock Status: In Stock
Blog

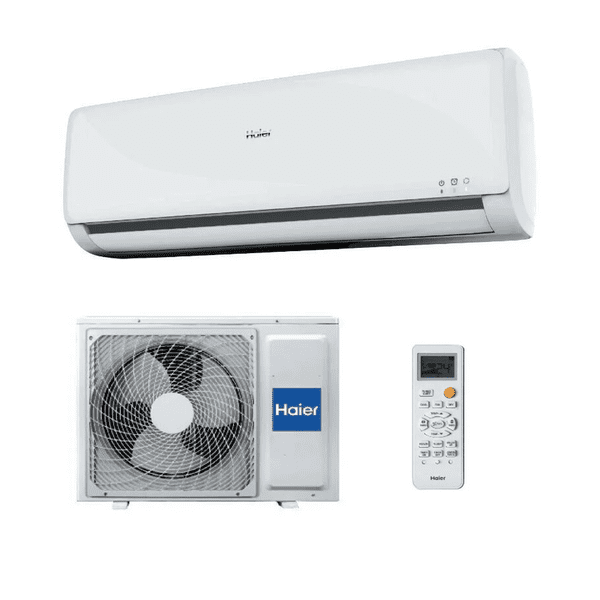

Haier Air Conditioning TIDE AS35THMHRA-C 1U35YEFFRA-C Wall R32 Heat Pump Wi-Fi 3.5Kw/12000Btu A++ 240V~50Hz



Includes:

  • 1 of Haier Air Conditioning TIDE AS35TAMHRA-C Wall Mounted R32 Heat Pump Wi-Fi 3.5Kw/12000Btu A++
  • 1 of Haier Air Conditioning YR-HE Infrared remote controller
  • 1 of Haier Air Conditioning TIDE 1U35YEFFRA-C Outdoor Unit R32 Heat Pump 3.5Kw/12000Btu A++ 220-240V~50Hz

Now Available (R32:The next generation refrigerant)






High Seasonal Efficiency A++ Rated

Haier TIDE revolutionizes the air conditioning and heat pump wall mounted market with their groundbreaking standard inverter range "TIDE" wall-mounted system. Experience the sleek aesthetics of the feature laden wall mounted units with their streamlined compact design that’s not just appealing but also simpler to maintain.

Harnessing the power of inverter compressor technology and eco-friendly R32 refrigerant, giving a A++ seasonal efficiency. Haier introduces in this wall mounted system the “Intelligent Air” technology, this ensures minimal noise with powerful air circulation. The result? A superior cooling and heating system strikes a balance between unparalleled comfort and energy efficiency.

Design meets functionality. The slimmed-down profile of the indoor unit, now only 280mm in height, provides versatility, allowing installations above doors and windows. The ingeniously designed multi-stage heat exchanger wraps around the top section of the fan casing. This ensures a muted airflow and noise reduction, all while delivering peak performance and efficiency. Not only that, but the unit has "Silver" Antibacterial technology on the indoor cooling coil, the coating contains silver nanoparticles capable of effectively killing 99% of the bacteria by inhibiting their proliferation.

Haier TIDE MonoSplit inverter wall mounted air conditioning unit has Wi-Fi hOn App as standard, this elevates your home comfort and convenience with cutting-edge technology which is fully installed into the system. Haier ensures a seamless integration into the modern smart home with its compatibility with Google Assistant and Alexa.

Seamless Smart Integration:

  • Integrated Wi-Fi Module: Built directly into the unit, freeing you from additional set-up.
  • hOn App: Your centralized command center for all Haier group appliances. This intuitive app lets you control, monitor, and fine-tune the settings of your Haier devices from anywhere, available for download from the App Store, Google Play, and Huawei AppGallery.
  • Voice Control Enabled: Thanks to its compatibility with Google Assistant and Alexa, a simple voice command can activate your TIDE unit.

Performance Meets Efficiency:

  • High SCOP: Experience unmatched performance with Haier's TIDE Wall Mounted air conditioning system.
  • A++ Seasonal Efficiency: Optimized to deliver comfort cooling or heating, ensuring maximum energy utilization.
  • R32 Refrigerant: An environmentally-friendly choice that boosts efficiency.

Smart Features for a Smart Lifestyle:

  • Group Control: Command multiple units effortlessly with a single device.
  • Smart Reminder: Ensures you're reminded to clean the filter mesh, prolonging unit life and efficiency.
  • Custom Program: DIY settings at your fingertips, tailor the AC to your exact needs.
  • Error Alert: Instant malfunction alerts with specific error codes.
  • Voice In-App: Enjoy built-in voice control for streamlined interaction.
  • Holiday Mode: Prep your unit for your time away with a single touch.
  • Real-Time Energy Consumption: Stay informed about your energy usage in real time.



Technical Data:

INDOOR UNIT

Model

Rating

AS35TAMHRA-C

OUTDOOR UNIT

Performance data

Model

1U35YEFFRA-C

Output power - COOLING

nom (min-max)

kW

3,20 (0,80-3,60)

Output power - HEATING

nom (min-max)

kW

3,40 (0,80-4,20)

Absorbed power – COOLING

nom (min-max)

kW

1,063 (0,30-1,60)

Absorbed power – HEATING

nom (min-max)

kW

1,000 (0,30-1,60)

Energy class

EER

W/W

3.01

COP

W/W

3.4

COOLING Pdesign

35 °C

kW

3,20

HEATING Pdesign

(-10 °C)

kW

2,80

Energy class

SEER

6,10 (A++)

SCOP

4,00 (A+)

Annual Energy Consumption - COOLING

kWh/a

184

Annual Energy Consumption - HEATING

kWh/a

980

Indoor Unit

Power supply

Ph/V/Hz

1/220-240/50

Treated air volume

H

m3/h

550

Dehumidification

L/h

1.4

High sound power - COOLING

dB

56

High sound power - HEATING

dB

56

Sound pressure - COOLING

dB(A)

38/34/29/20

Sound pressure -HEATING

dB(A)

38/34/29/20

Net dimensions

WxDxH

mm

820x195x280

Packaging dimensions

WxDxH

mm

909x279x355

Net/gross weight

kg

8,2/10,5

Outdoor Unit

Power supply

Ph/V/Hz

1/220-240/50

Power cable

N x mm2

3 x 1,5

Interconnection cable

N x mm2

4 x 1,0

Sound power

H

dB

63

Sound pressure

H

dB(A)

50

Running current cooling/heating

Max

A

7,1/7,1

Starting current cooling/heating

Max

A

1,5/1,5

Net dimensions

WxDxH

mm

700x245x544

Packaging dimensions

WxDxH

mm

845x320x593

Net/gross weight

kg

23,5/26,0

Compressor type

Rotary inverter

Installation data

Refrigerant

R32

Liquid pipe

Ø

mm (inch)

6,35 (1/4)

Gas pipe

Ø

mm (inch)

9,52 (3/8)

Standard pipe length without refrigerant charge

m

5

Maximum pipe length

m

20

Maximum IU - OU elevation

m

10

Refrigerant charge in the factory

kg

0.53

Refrigerant charge in the factory

TCO2eq

0.36

Additional ref. charge over std length

g/m

20

Operating limits - COOLING (in/out)

min-max

°C

21~35ºC/-10~43ºC

Operating limits - HEATING (in/out)

min-max

°C

10~27ºC/-15~24ºC



PDF Data Sheet:






Sizes to Suit Every Need: Available in capacities of 2.5 kW, 3.5 kW, 5.0 kW, and 6.8 kW, there's a TIDE model to meet the specific requirements of your space.

Indoor Models: AS25THMHRA-C, AS35TAMHRA-C, AS50TDMHRA-C, AS68TEMHRA-C

Outdoor Models: 1U25YEFFRA-C, U35YEFFRA-C, 1U50MEMFRA-C, 1U68RENFRA-C


These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
