Includes:

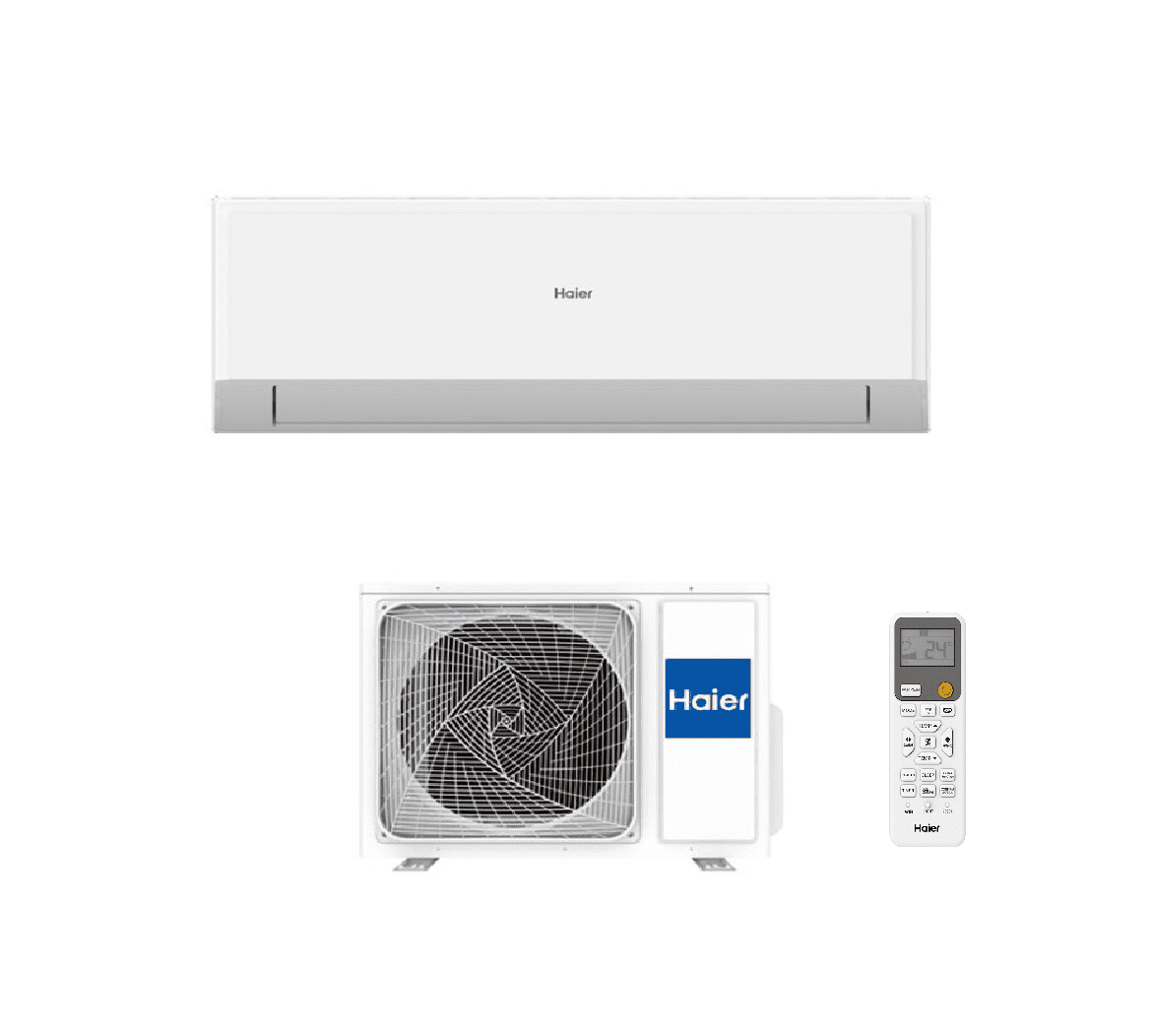

1 of Haier Air Conditioning Revive AS68RDAHRA-4 Wall Mounted R32 Heat Pump Wi-Fi 6.2Kw/21000Btu A++
1 of Haier Air Conditioning YR-HE2 Infrared remote controller
1 of Haier Air Conditioning 1U68MRAFRA-4 Outdoor Unit R32 Heat Pump 6.2Kw/21000Btu A++ 220-240V~50Hz
Now Available (R32 The next generation refrigerant)
High Seasonal Efficiency A++ Rated
Introducing the new Haier Air Conditioning Revive Wall R32 Heat Pump Wi-Fi A++, a pinnacle of innovation in home climate control. This sleek wall-mounted system, powered by Haier, boasts an array of cutting-edge features designed to revolutionise your indoor environment. With a cooling capacity of 6.2 kW , a heating capacity of 6.2Kw and utilising the latest R32 refrigerant, it ensures optimal performance while prioritising energy efficiency with an A++ rating.
By intelligently limiting compressor frequency across three levels (20%, 35%, and 55%), users can enjoy significant energy savings without compromising performance. This dedication to sustainability is further reinforced by the integration of Haier's Coanda Plus technology, leveraging the Coanda effect to maximise airflow power, enhancing cooling efficiency.

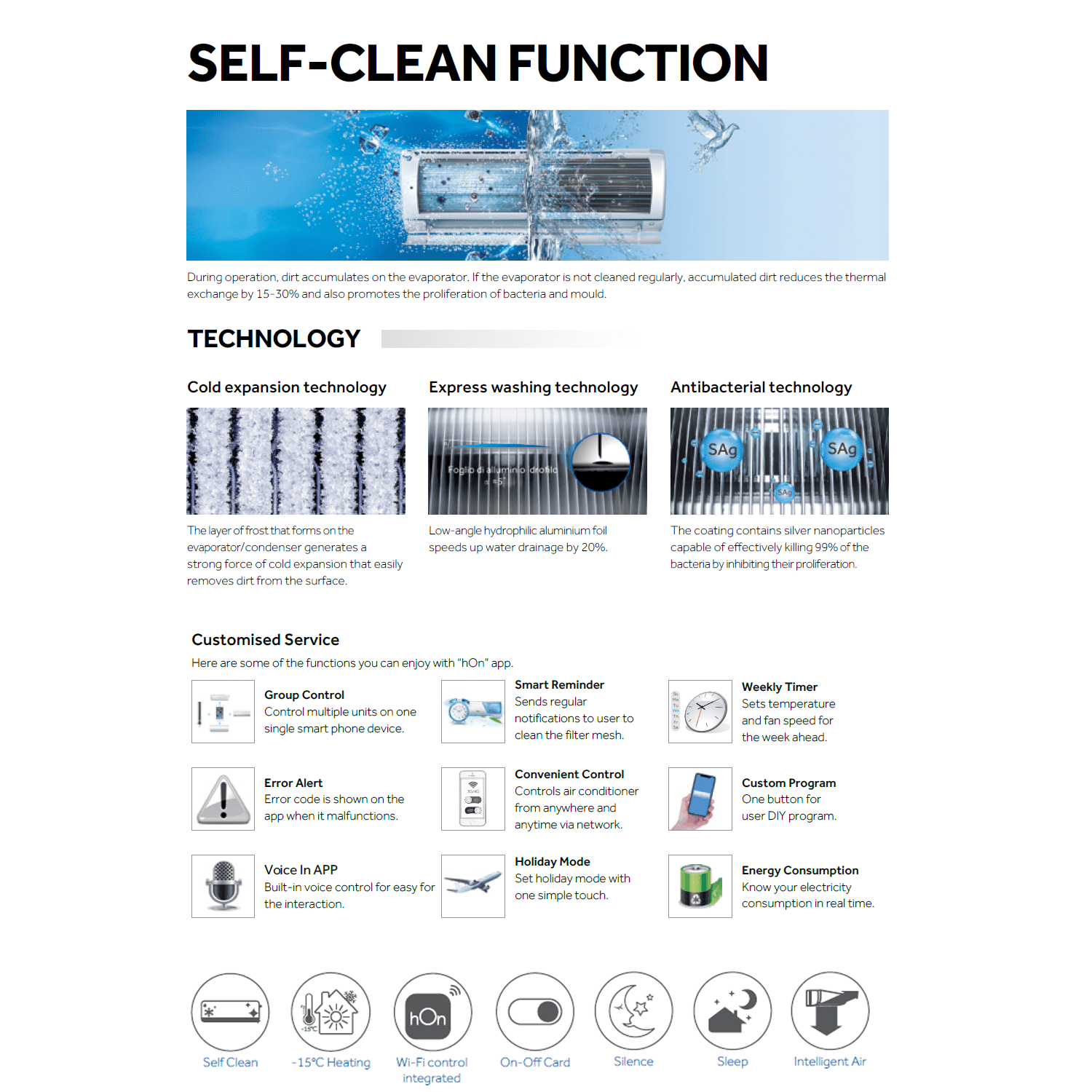

At the heart of its functionality lies the capability to heat the evaporator to a precise 56°C for 30 minutes, effectively eradicating harmful bacteria and viruses. Complementing this is the Coil Cleaning Datasheet, which meticulously freezes and washes away dust particles from the evaporator coil, ensuring sustained performance and longevity of the system.

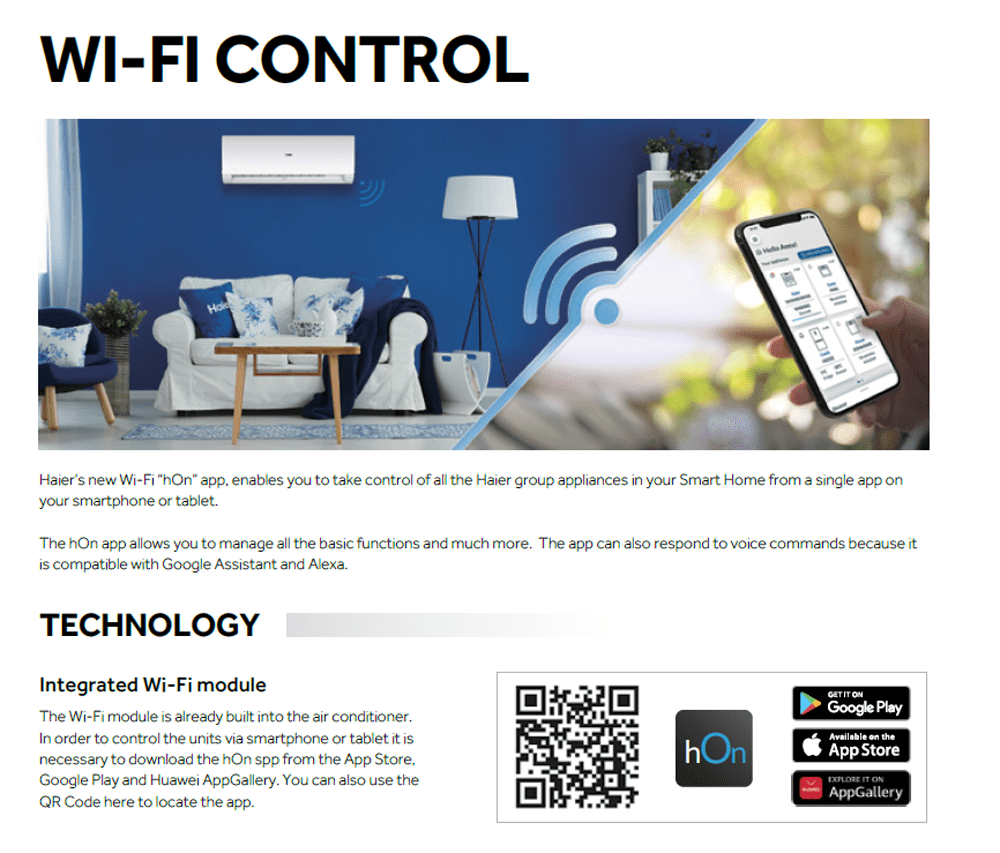

The Revive Plus doesn't just stop at cleanliness, the Revive Plus seamlessly integrates into your smart home ecosystem with Haier's hOn app. This intuitive application allows users to control multiple functions effortlessly and even connect to smart speakers, providing unparalleled convenience and flexibility. Adding to the user-friendly experience is the dedicated Wi-Fi button on the remote controller, simplifying the Wi-Fi pairing process.
Enhancing comfort is the Haier "I Feel Controller", which utilises a sensor inside the remote control to dynamically adjust cooling based on the room's temperature, ensuring optimal comfort levels at all times. Paired with the Haier outdoor unit, this system delivers unparalleled performance, efficiency, and convenience, making it the ideal choice for modern homes seeking a superior climate control solutions without the heavy price tag.
Key Product Features:
- Heats evaporator to 56°C for 30 mins to kill bacteria & viruses
- Freezes and washes away dust on the evaporator coil
- Limits compressor frequency for three levels of energy savings (20%, 35% & 55%)
- Special air deflector uses Coanda effect to increase airflow power
- Haier's hOn app for control of multiple functions and connect to smart speakers
- Dedicated Wi-Fi button on remote controller makes Wi-Fi pairing easier
- iFeel activates a sensor inside the remote control, adjusting cooling to the temperature within the room
Technical Data:
|
Indoor Unit
|
Model
|
|
AS68RDAHRA-4 |
| Outdoor Unit |
Model |
|
1U68MRAFRA-4 |
|
Output power - COOLING
|
nom (min-max)
|
kW
|
6,2 (1,3-7,4)
|
|
Output power - HEATING
|
nom (min-max)
|
kW
|
6,3 (1,4-7,5)
|
|
Power supply
|
|
Ph/V/Hz
|
1/220-240/50
|
|
Interconnection cable
|
|
|
4 x 1,0
|
|
Treated air volume
|
H
|
m3/h
|
1100/1000
|
|
Indoor Unit Info
|
|
|
|
High sound power - COOLING
|
|
dB
|
64
|
|
High sound power - HEATING
|
|
dB
|
64
|
|
Sound pressure - COOLING
|
|
dB(A)
|
47/45/37/29
|
|
Sound pressure -HEATING
|
|
dB(A)
|
47/45/37/29
|
|
Net dimensions
|
WxDxH
|
mm
|
975x222x318
|
|
Net/gross weight
|
|
kg
|
11,6/14,4
|
|
Outdoor Unit Data WxDxH
|
975x222x318 |
| Weight Kg |
33 |
|
Liquid pipe
|
Ø
|
mm (inch)
|
6,35 (1/4)
|
|
Gas pipe
|
Ø
|
mm (inch)
|
12,70 (1/2)
|
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
