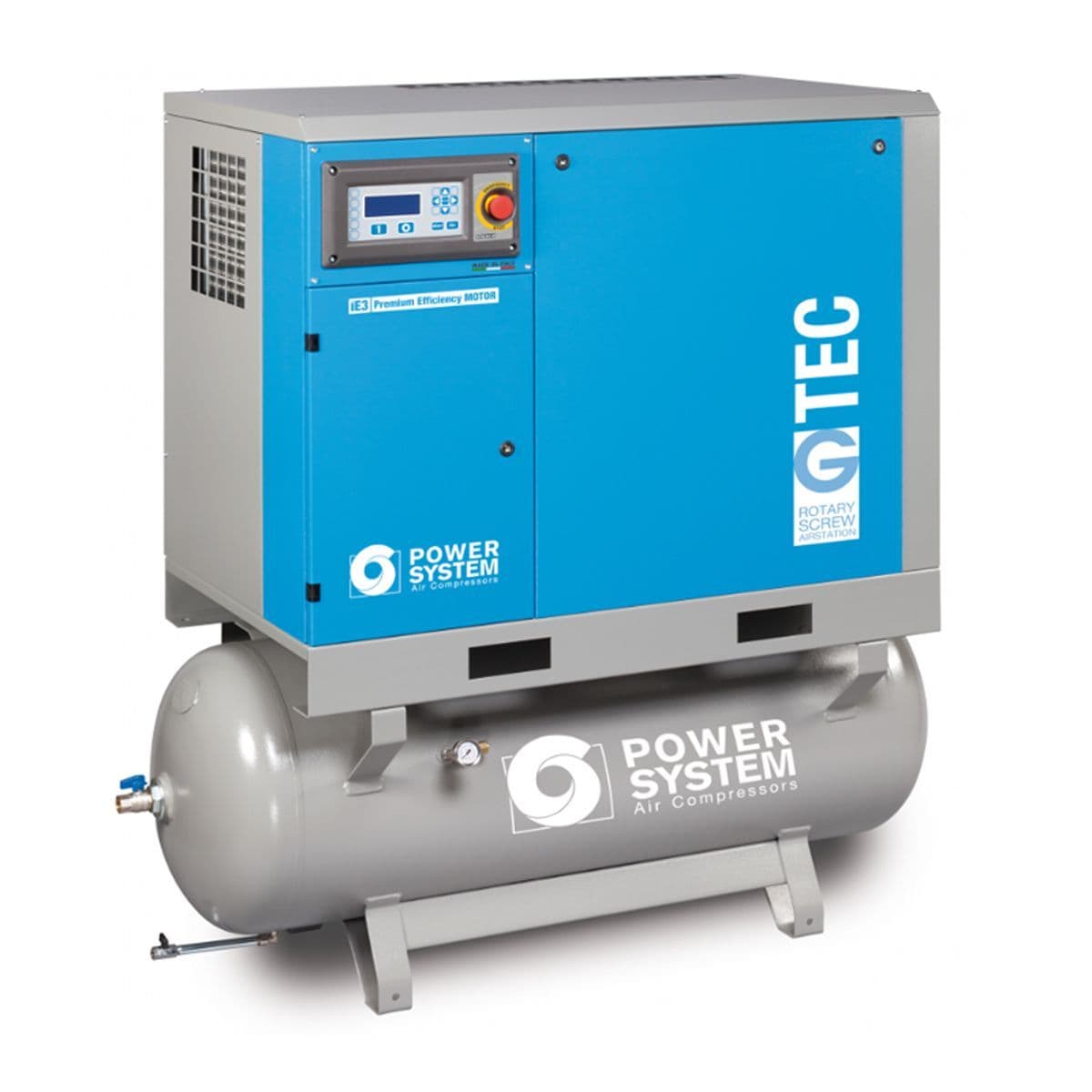

G-TEC PS-V83SY92PWG380 22-10 500 DF Screw Air Compressor Receiver Dryer Dual Filtration 30Hp 22Kw 3000L/Min 3Ph, includes air compressor, refrigerated dryer, pre and fine filtration, singular condensate drain, sophisticated electronic controller and air receiver
The G-TEC range features a fully integrated and complete air treatment module including a generously sized refrigerated air dryer and both inlet and outlet high efficiency filtration. This allows the integrated air station to provide both dry and clean compressed air to quality standard classification 2-4-2, in accordance with ISO 8573-1. The automatic draining of the condensate is collected from the refrigerated dryer and filters and arranged in convenient, single outlet. The integration of all the fundamental components that make an ideal compressed air system (screw compressor, dryer, filters, controller and air-receiver) are arranged into a single modular device, providing an extremely compact space saving solution, with numerous significant advantages.
The centrifugal fan design along with the careful arrangement of other components when added to the extensive sound insulation results in the G-TEC offering the lowest operating noise levels available. The advanced controller fitted to the G-TEC range has been specifically developed to guarantee optimum monitoring and regulation of the compressor’s operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety. The design of the G-TEC compressors, including the high efficiency IE3 motors, has been fully focused on combining the different components that make up a perfect compressed air installation for a completely integrated, modular and functional system that combines maximum convenience with optimum energy efficiency
Key Features:
- Drastically reduced installation time and cost
- High quality, clean and dry compressed air
- Forms a fully automatic, self monitoring and integrated system
- Excellent access for simple maintenance and easy access to the filters, refrigerated dryer and other components
- Dry air receiver providing a constant flow of high quality compressed air and reduced corrosion
- Lower operating costs
- Automatic condensate discharge operated and adjusted from the main controller and arranged in a single outlet
- Visualization clearly indicating all operating values of the compressor as well as the operation of the dryer via the indicator available from the large and clear display of the main controller.
- 3/4" connection
Technical Data:
Fixed Speed - Receiver Mounted with Dryer + Dual Filtration
G-TEC PS-V83SY92PWG380 22-10 500 DF
|
Code
|
Model
|
Start
|
Hp
|
kW
|
Volt
|
L/min
|
Cfm
|
Bar
|
Psi
|
dB(A)
|
kg
|
LxWxH (mm)
|
|
PS-V83SY92PWG380
|
G-TEC 22-10 500 DF
|
SDS
|
30
|
22
|
400
|
3000
|
106.0
|
10
|
145
|
71
|
615
|
1980X730X1750
|
