Fujitsu AIRSTAGE AUXG09KVLA AOEG09KBTB Compact Cassette Air Conditioning 4-way Flow R32 A++ 2.5kW/9000Btu 220-240V~50Hz Installation Kit
This Kit Includes:

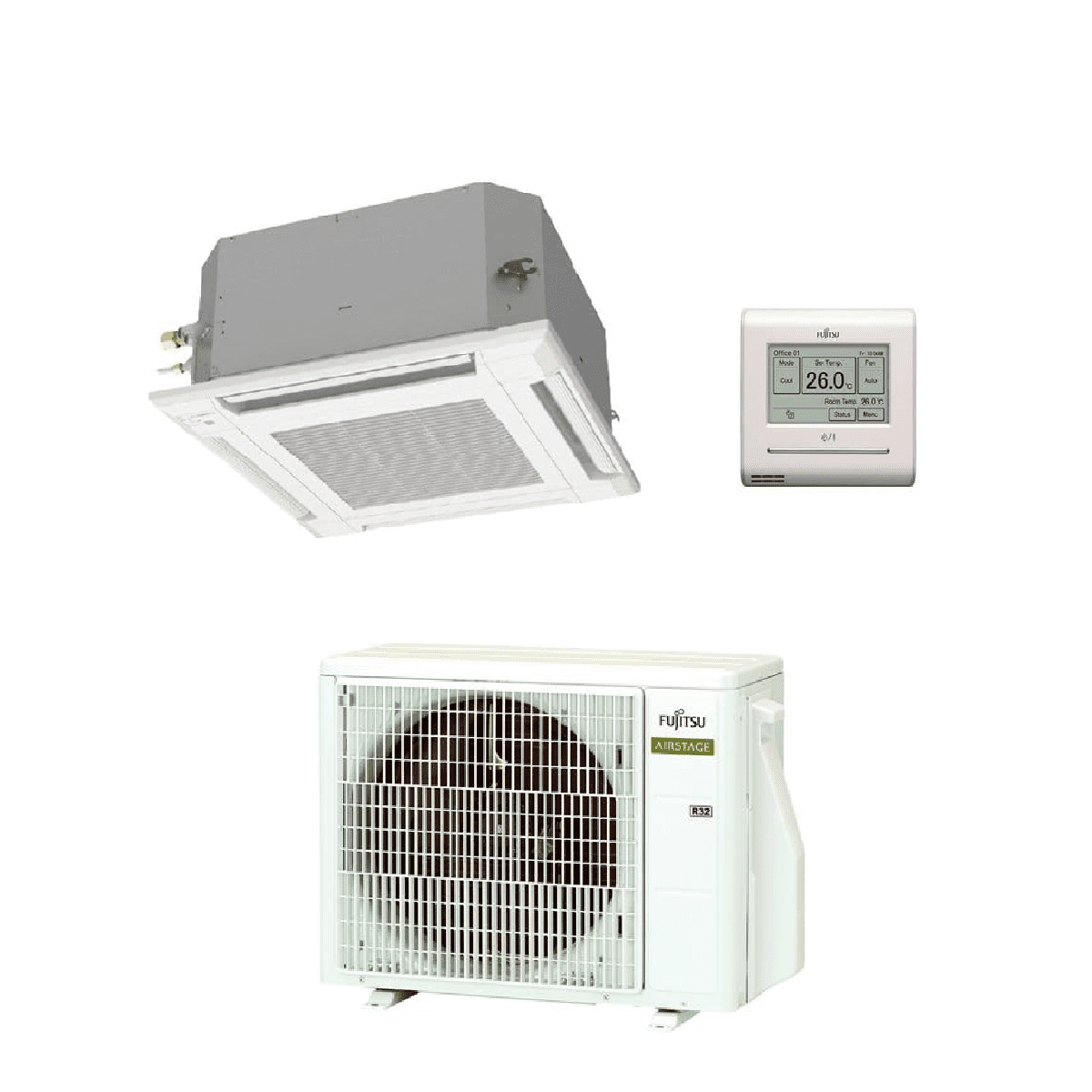

1 x Fujitsu AIRSTAGE AUXG09KVLA Compact Cassette Air Conditioning Heat Pump R32 A++ 2.5kW/9000Btu
1 x Fujitsu AIRSTAGE AOEG09KBTB R32 A++ 2.5kW/9000Btu Outdoor Heat Pump Inverter Air Conditioning Unit 220-240V~50Hz
1 x Touch Screen Controller UTY-RNRYZ3
1 x UTG-UFYF-W Fascia Panel

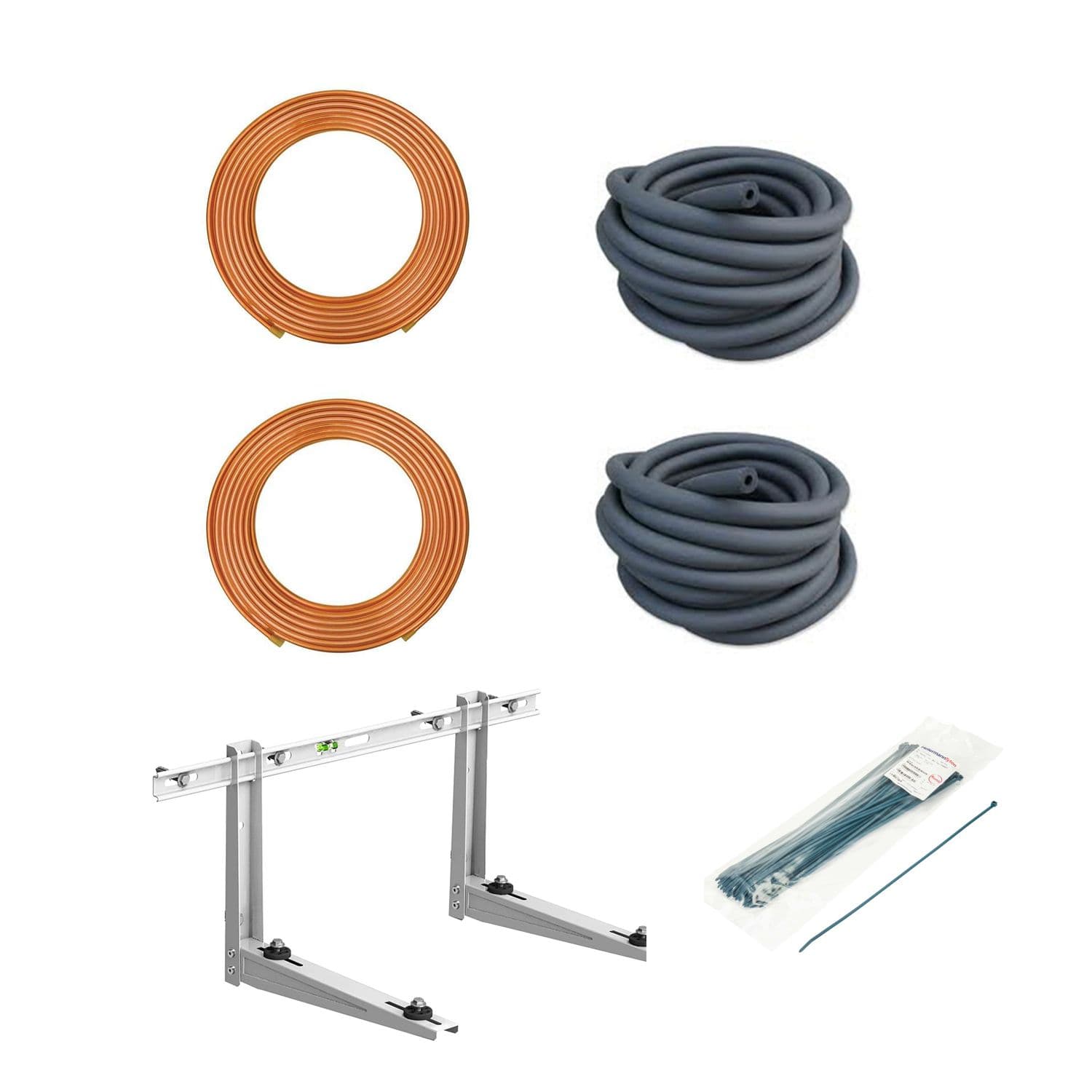

15 Meters x 1/4 inch coil pipe.
15 Meters x 3/8 inch coil pipe.
8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black
8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black
Wall Bracket BJ TYPE 2 BRACKETS 60KG LOAD

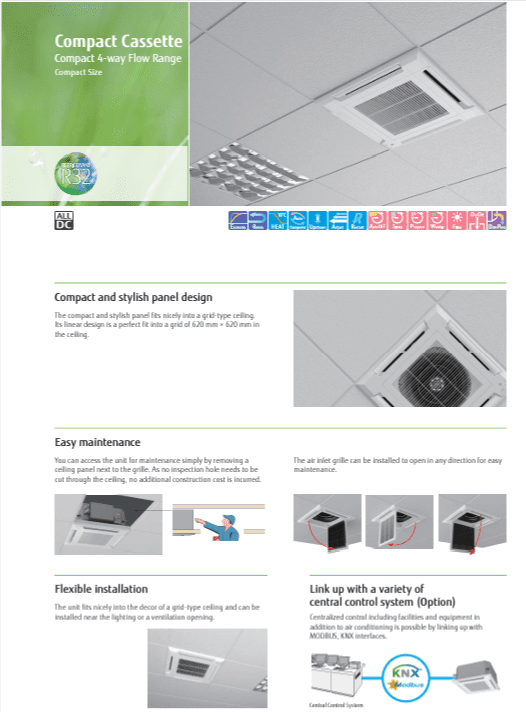

The Fujitsu AUXG Compact Cassette 4-Way Flow Range is a versatile and high-performance air conditioning solution designed for residential and commercial applications. From small offices and shops to restaurants, hotels, gyms, and open-plan spaces, this range offers flexible climate control with capacities starting at 9,000 BTU for smaller spaces and extending up to 24,000 BTU for larger areas. Its advanced heat pump inverter technology ensures efficient cooling and heating, reducing energy consumption for long-term savings.

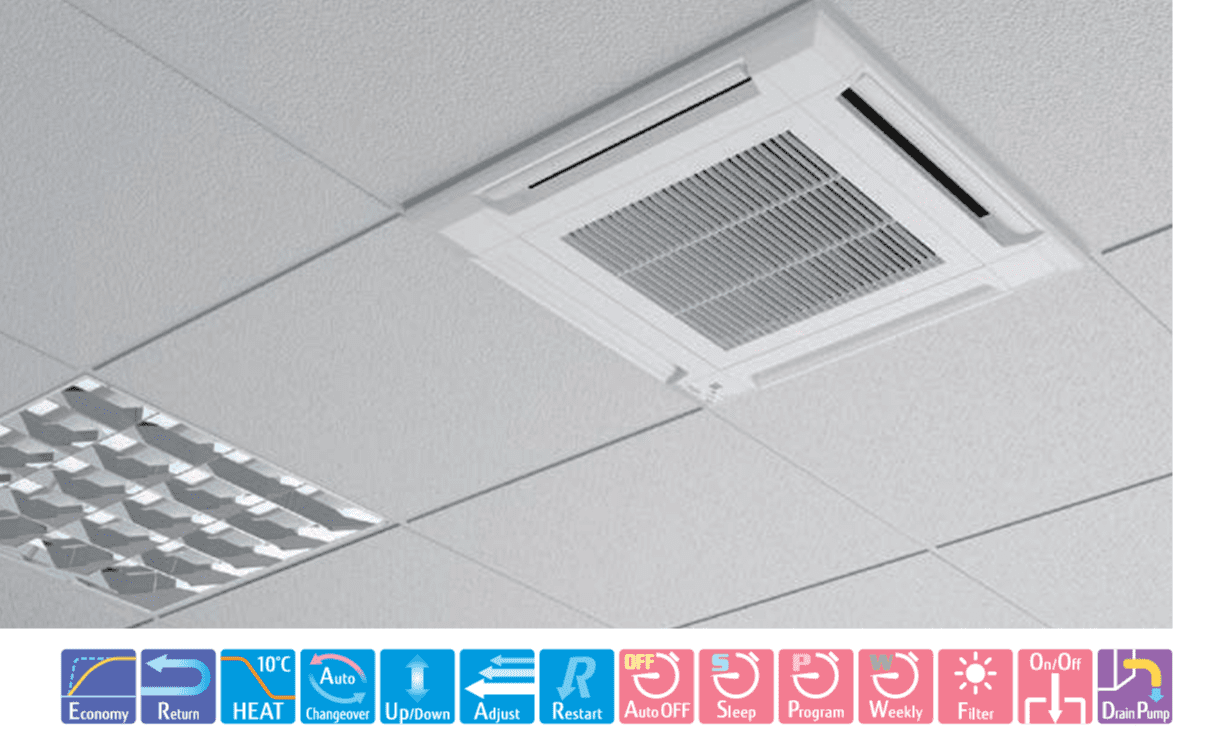

The compact design of the cassette units allows them to integrate seamlessly into grid-type ceilings with dimensions of 620 mm × 620 mm. This sleek, low-profile appearance complements modern interiors, while flexible air distribution capabilities enable customized comfort. The units can configure airflow in two, three, or four different directions, ensuring uniform air conditioning throughout the room. Swirl swing functionality further enhances comfort by evenly distributing air across the space, while the auto-swing function allows you to select airflow direction using the remote control.
Equipped with a Wired Remote Controller (Touch Panel) UTY-RNRYZ3, the system includes a standard 7-day timer for easy programming. Weekly scheduling enables up to two on/off cycles per day, offering precise control and energy efficiency. The auto-changeover feature automatically switches between cooling and heating modes, adjusting air vanes to suit the operational mode. In heating mode, air is distributed at a lower angle to ensure efficient circulation of warm air.
Designed with quiet operation in mind, the indoor unit features a silent operational mode, making it ideal for noise-sensitive environments such as bedrooms, meeting rooms, and offices. The outdoor unit incorporates an innovative noise-reduction mechanism and a super-quiet fan motor to further minimize vibration and sound levels, creating a peaceful climate control experience.
Maintenance is simple and hassle-free. The air inlet grille can be installed to open in any direction, allowing easy access for cleaning or servicing without additional construction costs. Compact yet powerful, the outdoor units have been engineered for durability while maintaining a small footprint.
For added convenience, the AUXG range is compatible with central control systems, offering integration with building management systems via MODBUS and KNX interfaces. This flexibility makes the Fujitsu AUXG Compact Cassette Range an excellent choice for both small-scale applications and larger, interconnected spaces requiring advanced climate control.
Product Key Feature's:
- Wide Capacity Range – From 9,000 BTU to 24,000 BTU, suitable for diverse room sizes.
- Flexible Air Distribution – Configurable airflow in two, three, or four directions for uniform air conditioning.
- Swirl Swing Technology – Evenly distributes air throughout the room for enhanced comfort.
- Quiet Operation – Low-noise indoor and outdoor units ensure a peaceful environment.
- Auto Changeover – Automatically switches between cooling and heating based on room temperature.
- Wired Touch Panel Remote – Includes a 7-day timer for easy programming and precise control.
- Compact Design – Fits neatly into standard grid-type ceilings for a sleek and unobtrusive look.
- Energy Efficient – Advanced heat pump inverter technology saves energy for long-term use.
- Easy Maintenance – Accessible grille design simplifies cleaning and servicing.
- Central Control Compatibility – Integrates with MODBUS and KNX systems for advanced control.
Technical Data:
| Specification |
AUXG09KVLA |
| Indoor Unit |
AUXG09KVLA |
| Outdoor Unit |
AOEG09KBTA |
| Power Source |
Single phase, ~230 V, 50 Hz |
| Cooling Capacity (Rated) |
2.5 kW |
| Cooling Capacity (Min-Max) |
0.9 – 3.2 kW |
| Heating Capacity (Rated) |
3.2 kW |
| Heating Capacity (Min-Max) |
0.9 – 3.5 kW |
| Input Power - Cooling (Rated) |
0.559 kW |
| Input Power - Heating (Rated) |
0.770 kW |
| EER (Cooling) |
4.47 |
| COP (Heating) |
4.15 |
| Pdesign (Cooling/Heating -10°C) |
2.5 / 2.6 kW |
| SEER |
6.70 |
| SCOP (Heating - Average) |
4.00 |
| Energy Efficiency Class (Cooling) |
A++ |
| Energy Efficiency Class (Heating) |
A+ |
| Maximum Operating Current - Cooling/Heating |
7.0 / 10.0 A |
| Annual Energy Consumption - Cooling |
131 kWh/a |
| Annual Energy Consumption - Heating |
826 kWh/a |
| Moisture Removal (l/h) |
1.5 |
| Indoor Sound Pressure Level (Cooling) H/M/L/Q |
33 / 31 / 29 / 27 dB(A) |
| Outdoor Sound Pressure Level (Cooling/Heating) High |
46 / 46 dB(A) |
| Airflow Rate - Indoor (Cooling) |
540 / 1,480 m³/h |

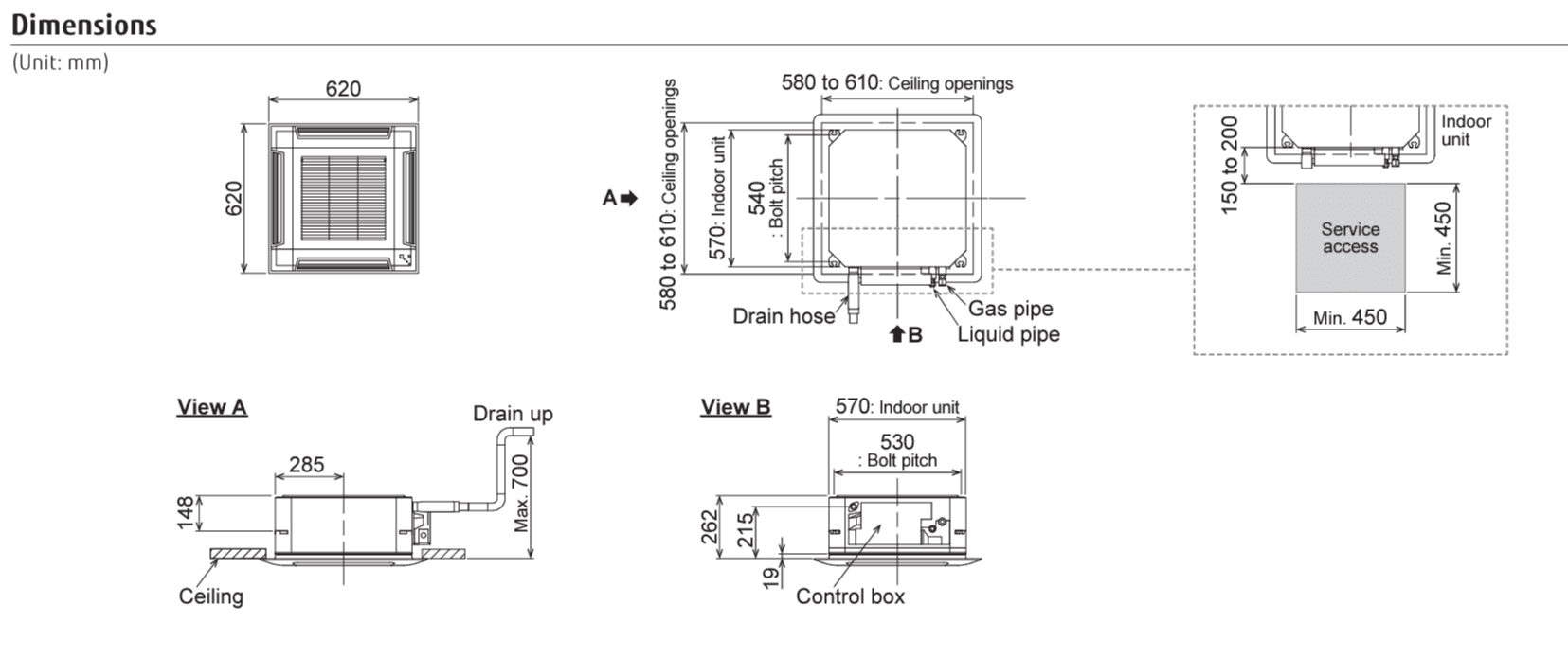

| Net Dimensions (Indoor, mm) |
265 × 570 × 570 |
| Net Dimensions (Outdoor, mm) |
542 × 799 × 290 |
| Weight (Indoor) |
16 kg |
| Weight (Outdoor) |
38 kg |
| Connection Pipe Diameter (Liquid/Gas) |
Ø6.35 / Ø9.52 mm |
| Max. Pipe Length (Pre-Charge) |
15 m |
| Max. Height Difference |
15 m |
| Operating Range - Cooling |
-15 to 46 °C DB |
| Operating Range - Heating |
-15 to 24 °C WB |
| Refrigerant Type (GWP) |
R32 (675) |
| Refrigerant Charge |
0.82 kg (0.554 CO2eq-T) |
Options:
| Category |
Description |
Model Number(s) |
| Controllers |
Wired Remote Controller (Design Type) |
UTY-RVRY |
|
Compact Wired Remote Controller |
UTY-RCRYZ1 |
|
Wired Remote Controller (Touch Panel) |
UTY-RNRYZ5 |
|
Wired Remote Controller |
UTY-RLRY, UTY-RNLYM, UTY-RNVYM |
|
Simple Remote Controller (Without Operation Mode) |
UTY-RHRY |
|
Simple Remote Controller |
UTY-RSRY |
|
Wireless Remote Controller |
UTY-LNTY |
|
External Switch Controller |
UTY-TERX |
| WLAN Adapter |
WLAN Adapter |
UTY-TFSXZ1, FG-AC-WIFI-1, UTY-TFSXJ2, FG-AC-WIFI-121 |
| Additional Accessories |
Air Outlet Shutter Plate |
UTY-YDZB |
|
Cassette Grille |
UTG-UYFY-W |
| Network Converters |
Network Converter for Single Split (DC Power Supply Type) |
UTY-VTGX |
|
Network Converter for Single Split (AC Power Supply Type) |
UTY-VTGXV |
| Special Components |
Insulation Kit for High Humidity |
UTZ-XCQC |
|
External Input and Output PCB |
UTY-XWZX, UTZ-CBRA |
|
External Input and Output PCB Box |
UTZ-CBRA |
| Filters |
Silver Ion Filter |
UTD-HFAA |
|
Fresh Air Intake Kit |
UTZ-VXAA |
| Connection Kits |
External Connect Kit |
UTY-XWZXZG |
PDF Data Sheet:
