Fujitsu AIRSTAGE Air conditioning ASEG07KPCE AOEG07KPCA Economy Wall Heat pump A++ R32 2Kw/7000Btu 220V-240V~50Hz ECO Range Compact

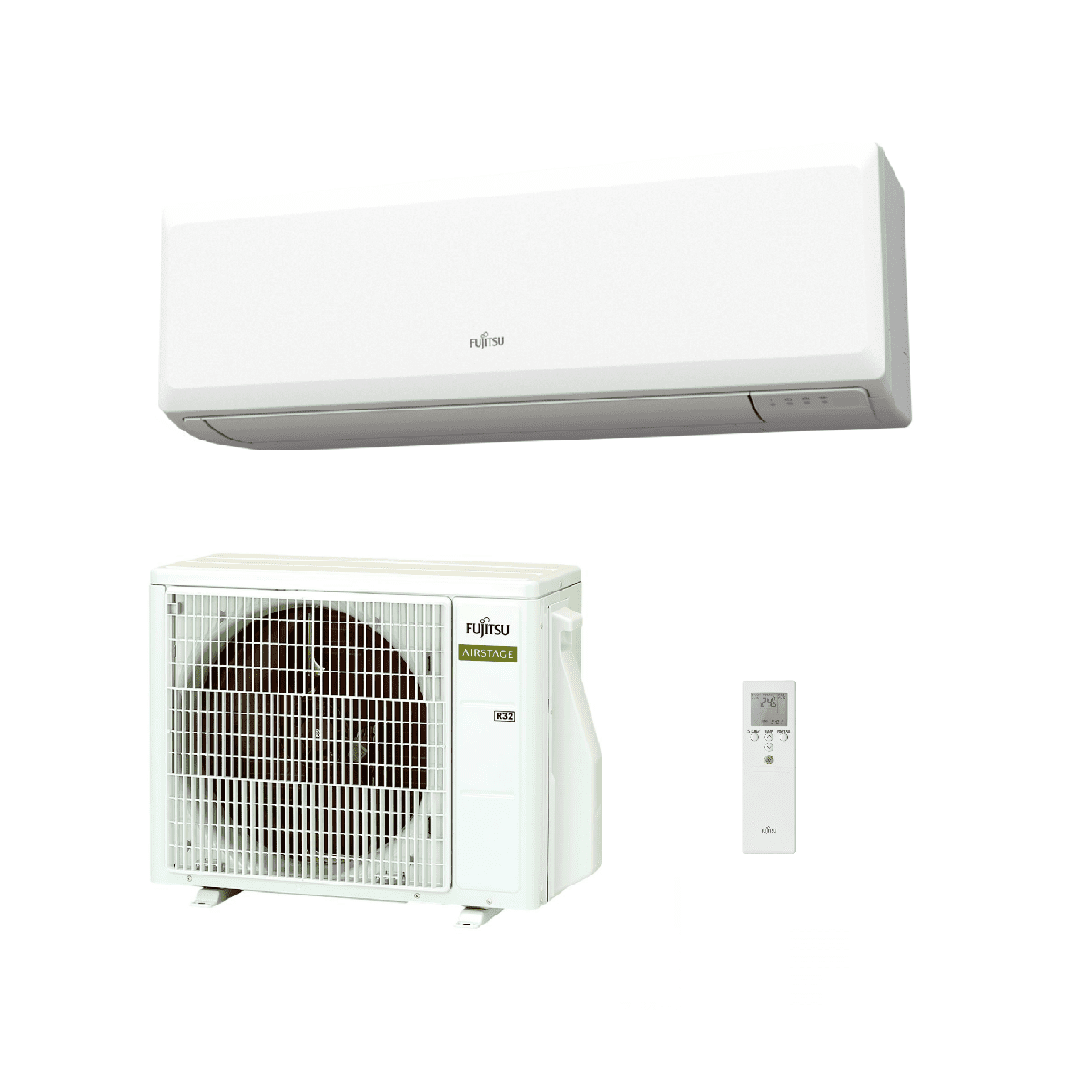

This Kit Includes:
1 x Fujitsu AIRSTAGE Air conditioning ASEG07KPCE Economy Wall Heat pump A++ R32 2Kw/7000Btu
1 x Fujitsu AIRSTAGE Air conditioning AOEG07KPCA Economy Heat pump Outdoor unit A++ R32 2Kw/7000Btu 220-240V~50Hz
1 x Wireless Infrared Remote Controller
The Fujitsu AIRSTAGE ASEG-KPCE Economy R32 wall-mounted air conditioning series is a compact, well priced, eco-friendly, and efficient solution designed for comfortable heating and cooling in living spaces, offices, bedrooms, and small rooms. These A++ rated systems offers reliable performance with minimal environmental impact, thanks to its use of R32 refrigerant and inverter heat pump technology that conserves electricity.

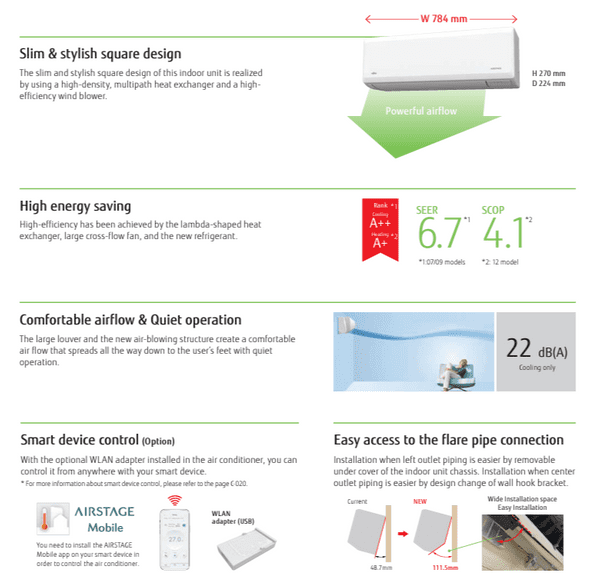

With a slim, flat front panel design, the ASEG-KPCE indoor units integrate seamlessly into any room decor. The discreet, hidden air return at the top enhances aesthetics and makes the unit easier to clean. Measuring only 224mm in depth, the indoor unit’s compact, slim-line build allows for flexible installation. It operates quietly, producing as little as 22 dB of noise, making it ideal for noise-sensitive environments like bedrooms and offices. The high-density heat exchanger and advanced turbine fan design optimize airflow efficiency and keep noise levels low by allowing the fan to operate at reduced speeds.
The ASEG-KPCE series comes with a fully functional infrared remote control for easy adjustments, and an optional Wi-Fi adapter allows for smartphone control. This makes managing room temperature convenient and accessible, even from outside the home.
The outdoor units in this series are designed to withstand varying weather conditions with a lightweight, durable construction. Their compact design reduces weight, making installation easier, while vibration-absorbing materials and a single drainage point for condensate help to minimize noise. This durability and noise reduction ensure that the unit operates efficiently and quietly in all outdoor conditions.
Overall, the Fujitsu ASEG-KPCE series provides a people-friendly, energy-efficient, and compact air conditioning solution, offering essential features like automatic operation, easy-to-clean air filters, and advanced airflow control. Ideal for both residential and small commercial applications, it brings comfort, convenience, and sustainability together in one stylish package.
Product Key Feature's:
• High SCOP
• Infra-red controller
• Slim square construction
• Pipe runs up to 15 metres
• Low noise – 22dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 15 metres pipe length
• Low ambient tested to -15 Deg/C in heating.
• Light weight noise absorbing outdoor unit.
Technical Data:
| Specification |
ASEG07KPCE |
| Indoor Unit |
ASEG07KPCE |
| Outdoor Unit |
AOEG07KPCA |
| Power Source |
Single phase, ~230 V, 50 Hz |
| Cooling Capacity (Rated) |
2.0 kW |
| Cooling Capacity (Min-Max) |
0.9 – 2.8 kW |
| Heating Capacity (Rated) |
2.8 kW |
| Heating Capacity (Min-Max) |
0.9 – 3.4 kW |
| Input Power - Cooling (Rated) |
0.410 kW |
| Input Power - Heating (Rated) |
0.615 kW |
| EER (Cooling) |
4.87 |
| COP (Heating) |
3.97 |
| Pdesign (Cooling/Heating -10°C) |
2.0 / 2.3 kW |
| SEER |
6.70 |
| SCOP (Heating - Average) |
4.00 |
| Energy Efficiency Class (Cooling) |
A++ |
| Energy Efficiency Class (Heating) |
A+ |
| Maximum Operating Current - Cooling/Heating |
6.5 / 9.0 A |
| Annual Energy Consumption - Cooling |
769 kWh/a |
| Annual Energy Consumption - Heating |
729 kWh/a |
| Moisture Removal (l/h) |
1.0 |
| Indoor Sound Pressure Level (Cooling) H/M/L/Q |
45 / 38 / 31 / 22 dB(A) |
| Indoor Sound Pressure Level (Heating) H/M/L/Q |
46 / 40 / 35 / 22 dB(A) |
| Outdoor Sound Pressure Level (Cooling/Heating) High |
47 / 45 dB(A) |
| Indoor Sound Power Level (Cooling/Heating) High |
57 / 58 dB(A) |
| Outdoor Sound Power Level (Cooling/Heating) High |
58 / 58 dB(A) |
| Airflow Rate - Indoor (Cooling) |
580 / 1,450 m³/h |
| Airflow Rate - Indoor (Heating) |
580 / 1,450 m³/h |

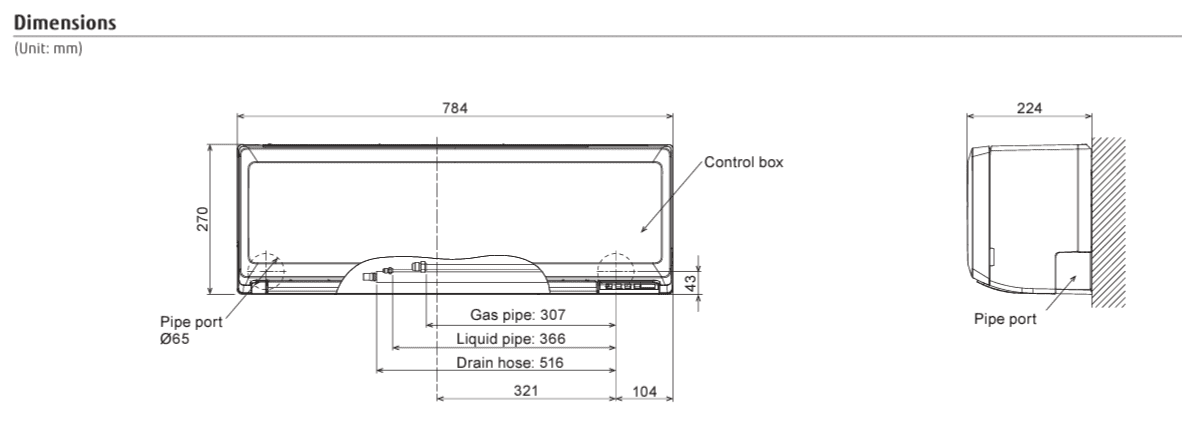

| Net Dimensions (Indoor, mm) |
270 × 784 × 224 |
| Net Dimensions (Outdoor, mm) |
541 × 663 × 290 |
| Weight (Indoor) |
9.5 kg |
| Weight (Outdoor) |
25 kg |
| Connection Pipe Diameter (Liquid/Gas) |
Ø6.35 / Ø9.52 mm |
| Drain Hose Diameter (I.D./O.D.) |
Ø13.8 / Ø16.8 mm |
| Max. Pipe Length (Pre-Charge) |
20 m |
| Max. Height Difference |
15 m |
| Operating Range - Cooling |
-10 to 46 °C DB |
| Operating Range - Heating |
-15 to 24 °C WB |
| Refrigerant Type (GWP) |
R32 (675) |
| Refrigerant Charge |
0.55 kg (0.371 CO2eq-T) |
Options:
WLAN Adapter: UTY-TFSXF2, UTY-TFSXH3
Silver Ion Filter: UTR-FA16-5
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
