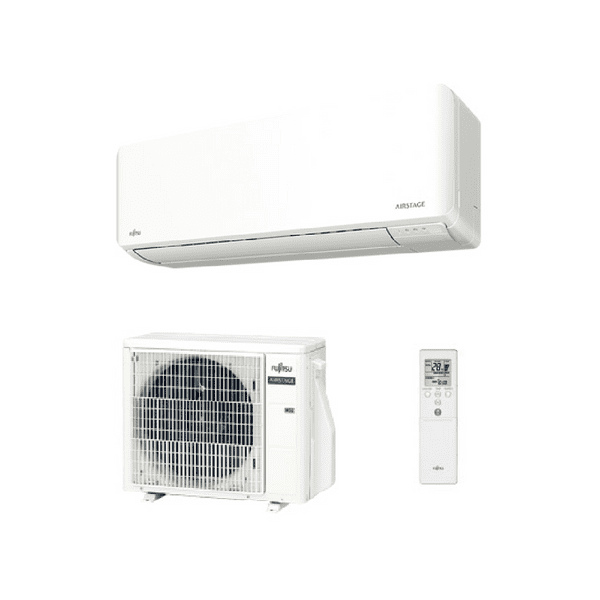

Fujitsu AIRSTAGE Air conditioning AOEH09KMCG ASEH09KMCG Wall Mounted Heat pump A++ R32 2.5Kw/9000Btu With Wi-Fi
Includes:
1 x Fujitsu AIRSTAGE Air conditioning ASEH09KMCG Wall Mounted Heat pump A++ R32 2.5Kw/9000Btu
1 x Fujitsu AIRSTAGE Air conditioning AOEH09KMCG Heat pump A++ R32 2.5Kw/9000Btu Outdoor Unit
1 x Wireless Infrared Remote Controller
The Fujitsu ASEH-KMCG R32 wall-mounted air conditioners offer a compact yet powerful solution, designed to deliver comfort and efficiency in equal measure. This people-friendly, feature-rich, and eco-conscious range provides both heating and cooling, making it a versatile choice for various spaces, from living rooms and bedrooms to offices, children’s rooms, and even server rooms.
Each unit in the ASEH-KMCG range features a modern square design with a sleek, flat front panel, measuring just 210mm in depth for a slim and unobtrusive profile. The streamlined construction allows for easy cleaning, with the air return discreetly hidden at the top, leaving the front fascia smooth and uninterrupted. Inside, a high-density heat exchanger optimises airflow and efficiency, enhancing the heat-to-air ratio. The low-speed turbine fan minimises noise, achieving impressively quiet operation, ideal for noise-sensitive spaces.
Built with advanced heat pump inverter technology, the ASEH-KMCG range is highly efficient, helping to reduce electricity usage while delivering top-tier performance. This environmentally friendly design conserves energy without compromising on comfort. With models available across different capacities, this range caters to a variety of room sizes, providing reliable temperature control all year round. A WLAN adapter is included as standard equipment. By installing the AIRSTAGE mobile app on your smart device, you can check and control the operating status of the air conditioner from anywhere indoors or outdoors.
Fujitsu has equipped the ASEH-KMCG range with features designed to maximise convenience and comfort. Automatic operation modes, air cleaning filters, and a user-friendly infrared remote control simplify managing your indoor climate. For added flexibility, an optional Wi-Fi adapter is available, allowing remote control from your smartphone or tablet.
The outdoor units are crafted from lightweight yet durable materials, built to withstand all types of weather. Their rigid structure absorbs vibrations and reduces noise while providing protection for connection valves and ensuring efficient drainage. This thoughtful design simplifies installation and enhances system longevity.
The Fujitsu ASEH-KMCG R32 air conditioner range is more than just an appliance; it’s an investment in a comfortable, quiet, and energy-efficient environment. Whether for home or workplace settings, these units are designed to deliver a consistently pleasant atmosphere with minimal environmental impact.
Product Key Feature's:
- High CoP – up to 4.4
- Quiet operation – 21 dBA on quiet mode
- Slim construction – only 210mm deep
- Infra-red remote control with optional Wi-Fi
- Automatic heating and cooling modes
- Eco-friendly R32 refrigerant
- High-density heat exchanger for improved efficiency
- Air cleaning filters for enhanced indoor air quality
- Durable, lightweight outdoor unit with noise reduction
- Auto restart after power interruptions
Technical Data:
| Specification |
ASEH09KMCG |
| Indoor Unit |
ASEH09KMCG |
| Outdoor Unit |
AOEH09KMCG |
| Power Source |
Single phase, ~230 V, 50 Hz |
| Cooling Capacity (Rated) |
2.5 kW |
| Cooling Capacity (Min-Max) |
0.9 – 3.2 kW |
| Heating Capacity (Rated) |
2.8 kW |
| Heating Capacity (Min-Max) |
0.9 – 4.0 kW |
| Input Power - Cooling (Rated) |
0.650 kW |
| Input Power - Heating (Rated) |
0.620 kW |
| EER (Cooling) |
3.85 |
| COP (Heating) |
4.52 |
| Pdesign (Cooling/Heating -10°C) |
2.5 / 2.4 kW |
| SEER |
7.00 |
| SCOP (Heating - Average) |
4.60 |
| Energy Efficiency Class (Cooling) |
A++ |
| Energy Efficiency Class (Heating) |
A++ |
| Maximum Operating Current - Cooling/Heating |
6.5 / 9.0 A |
| Annual Energy Consumption - Cooling |
104 kWh/a |
| Annual Energy Consumption - Heating |
1042 kWh/a |
| Moisture Removal (l/h) |
1.3 |
| Indoor Sound Pressure Level (Cooling) H/M/L/Q |
40 / 34 / 29 / 20 dB(A) |
| Indoor Sound Pressure Level (Heating) H/M/L/Q |
42 / 36 / 31 / 22 dB(A) |
| Outdoor Sound Pressure Level (Cooling/Heating) High |
50 / 50 dB(A) |
| Indoor Sound Power Level (Cooling/Heating) High |
55 / 57 dB(A) |
| Outdoor Sound Power Level (Cooling/Heating) High |
65 / 65 dB(A) |
| Airflow Rate - Indoor (Cooling) |
700 / 1,650 m³/h |
| Airflow Rate - Indoor (Heating) |
700 / 1,450 m³/h |
| Net Dimensions (Indoor, mm) |
270 × 834 × 222 |
| Net Dimensions (Outdoor, mm) |
541 × 663 × 290 |
| Weight (Indoor) |
10 kg |
| Weight (Outdoor) |
31 kg |
| Connection Pipe Diameter (Liquid/Gas) |
Ø6.35 / Ø9.52 mm |
| Drain Hose Diameter (I.D./O.D.) |
Ø13.8 / Ø15.8 mm |
| Max. Pipe Length (Pre-Charge) |
20 m |
| Max. Height Difference |
15 m |
| Operating Range - Cooling |
-10 to 50 °C DB |
| Operating Range - Heating |
-15 to 24 °C WB |
| Refrigerant Type (GWP) |
R32 (675) |
| Refrigerant Charge |
0.70 kg (0.47 CO2eq-T) |

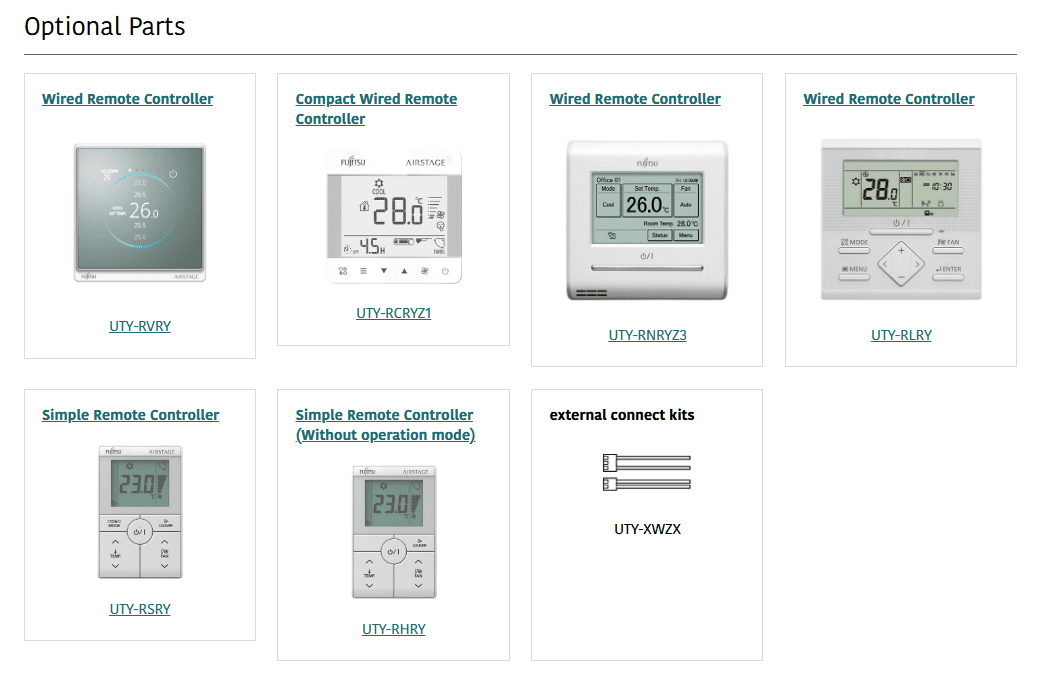

| Optional Part |
Model Number |
| Wired Remote Controller (Design type) |
UTY-RVRY |
| Compact Wired Remote Controller |
UTY-RCRYZ1 |
| Wired Remote Controller (Touch Panel) |
UTY-RNRYZ5 |
| Wired Remote Controller |
UTY-RLRY |
| Simple Remote Controller (without operation mode) |
UTY-RHRY |
| Simple Remote Controller |
UTY-RSRY |
| Communication Kit |
UTY-TWRXZ2 |
| External Connect Kit |
UTY-XWZX |
| External Connect Kit |
UTY-XWZXZ5 |
| Network Converter for Single Split (DC Power Supply Type) |
UTY-VTGX |
| Network Converter for Single Split (AC Power Supply Type) |
UTY-VTGXV |
| Silver Ion Filter |
UTR-FA16-5 |
| External Input and Output PCB* |
UTY-XCSXZ2 |
| Note: *Required when 2 or more external input and output ports are used. |
|
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
