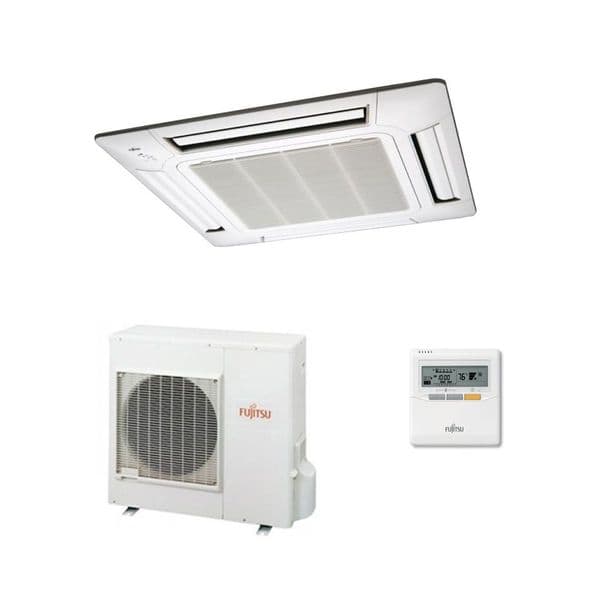

The Advanced Fujitsu air conditioning AUYG standard cassette range has now been extended to include new smaller capacity INVERTER system starting at 8.5kW / 30000Btu, and an high efficiency system 14kW / 48000Btu at the top end of the standard cassette range. (figures stated are for cooling/heating performance). The 7-Day Programmable Timer now included in standard controls specification and 24Hr control. Fujitsu air conditioning and heat pump high performance inverter compact cassette series split systems designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas.
In order to be able to adapt to the shape of the room to be conditioned, the Fujitsu air conditioning cassette units are able to configure the air impulsion in two, three or four different directions and thus achieve uniform air conditioning. The unit can make a sweep using its deflector slats to air-condition the premises more quickly. The direction of the sweep as well as the auto swing function can be selected by using the remote control. Models with a movable rosette incorporate weekly programming control that allows on and off programming up to twice a day.

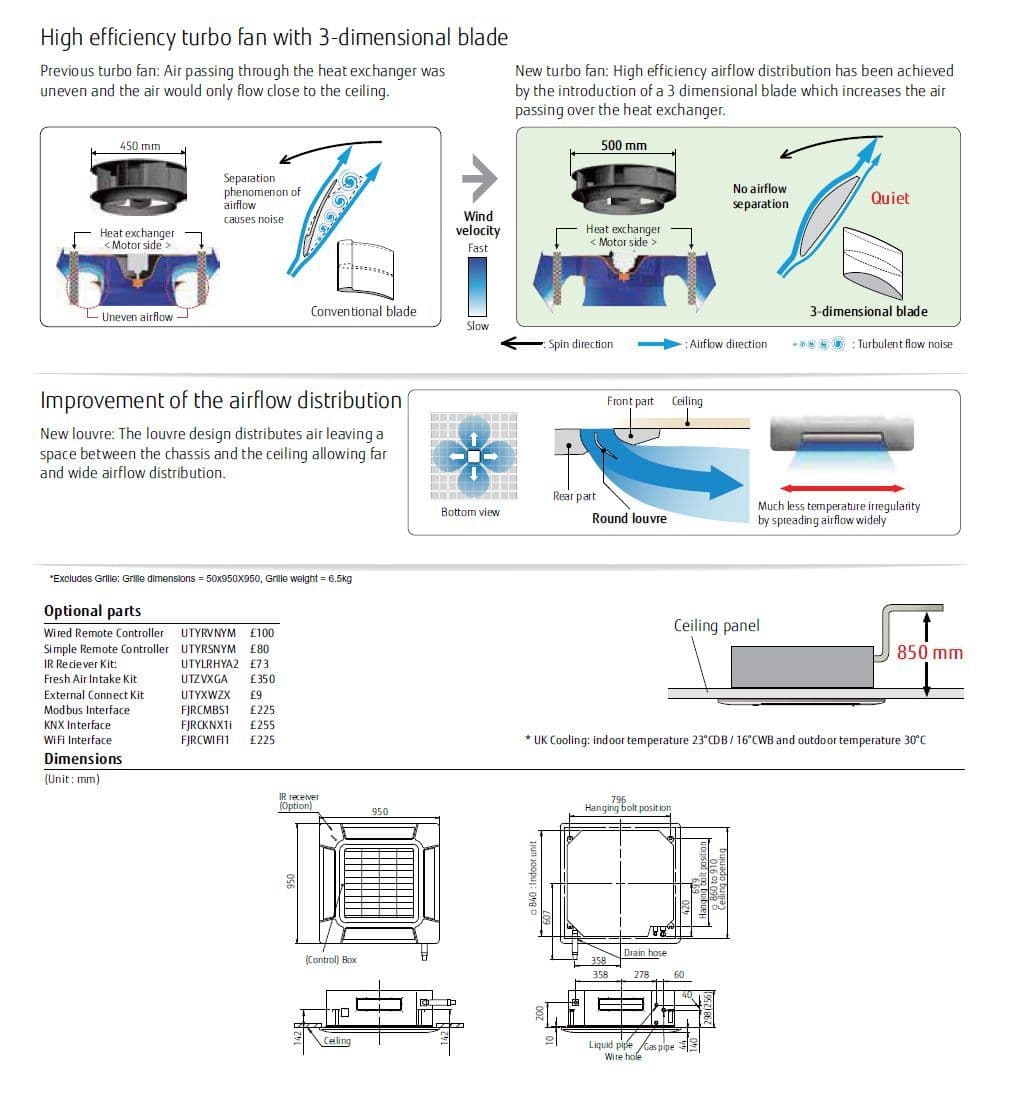

The Fujitsu air conditioning AUYG range of heat pump inverter air conditioning system's CoP (Coefficient of Performance) is up to 3.6 on some models, this means the system can deliver 3.6 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Fujitsu air conditioning inverter technology with R410A refrigerant. The New 4 way blow Cassette Design has improved air flow-pattern through the unit, and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets.
Auto Changeover: The air conditioner will switch automatically from cooling to heating modes depending on the set temperature. Optimized Cooling & Heating Air Flow: The air vanes will be adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising. Swirl Swing: Swirl swing distributes air evenly throughout the room to ensure a more comfortable conditioned environment by adjusting the movement of the louvers.
Product Key Feature's
• High Head Drain Pump 850mm
• Auto Changeover (heating and cooling)
• Low Standby Power (switch mode)
• Auto Restart after power outage
• Easy-to-Clean Air Filter
• Two Thermistor Temperature Control (Controller and Unit)
• Optimal 4 way Air Distribution
• Auto Operation
• Quiet Operation
• Healthy De-humidification
• Hot Start on heat mode
• 24-Hour ON/OFF Setting Timer With Weekly Program
• Optimal air distribution with 4-way directional Air flow system.
• 4-way Auto Swing
Other Controller Features
- Programming of different operating schedules each day.
- On and off programming twice a day.
- Set the time in periods of five minutes.
- Cancellation of operation on a specific day (public holiday)
Technical Data
|
Indoor
|
AUYG30LRLE
|
AUYG36LRLE
|
Outdoor
|
AOYG30LETL
|
AOYG36LETL
|
Nominal Capacity (kW)
|
Cooling
|
8.50 (2.80-10.00)
|
10.00 (2.80-11.20)
|
Heating
|
10.00 (2.70-11.20)
|
11.20 (2.70-12.70)
|
UK Total / Sensible Cooling *
|
|
8.63 / 6.22
|
10.53 / 7.58
|
Power Consumption (kW)
|
Cooling
|
2.65
|
3.12
|
Heating
|
2.77
|
3.02
|
EER / COP (Nominal Conditions)
|
|
3.21 / 3.61
|
3.21 / 3.71
|
Pdesign (kW) @ -10°C
|
Cooling
|
8.50
|
10.00
|
Heating
|
8.00
|
8.70
|
SEER
|
Cooling
|
6.50
|
6.30
|
SCOP
|
Heating (Average)
|
4.30
|
4.20
|
(QHUJ\ (IÀFLHQF\ &ODVV
|
Cooling
|
A++
|
A++
|
Heating (Average)
|
A+
|
A+
|
Annual Energy Consumption (kWh/a)
|
Cooling
|
458
|
555
|
Heating
|
2604
|
2897
|
Moisture Removal
|
l/h
|
2.50
|
3.50
|
Dimensions (HxWxD) mm
|
Inner (Ex. Grille)*
|
288x840x840
|
288x840x840
|
Outer
|
830x900x330
|
830x900x330
|
Net Weight (kg)
|
Inner (Ex. Grille)*
|
26
|
26
|
Outer
|
61
|
61
|
Room Air Circulation (high) m3/h
|
Inner
|
1600
|
1800
|
Outer
|
3600
|
3800
|
Power Supply
|
V-PH-Hz
|
230 / 1 / 50
|
230 / 1 / 50
|
Power Supply To
|
|
Outdoor
|
Outdoor
|
Running Current (A)
|
Cooling
|
11.60
|
13.70
|
Heating
|
12.20
|
13.30
|
Starting Current
|
A
|
12.20
|
13.70
|
Suggested MCB/Fuse
|
A
|
20
|
20
|
Interconnecting Cable
|
|
3 + E
|
3 + E
|
Remote Control Type
|
|
Wired
|
Wired
|
Sound Pressure (dB(A) Cooling)
|
Indoor Q/L/M/H
|
32 / 36 / 38 / 40
|
32 / 36 / 38 / 43
|
Outdoor H
|
53
|
54
|
Sound Power (dB(A) Cooling)
|
Indoor H
|
54
|
57
|
Outdoor H
|
68
|
69
|
Max Pipe Length
|
m
|
50
|
50
|
Max Height Difference
|
m
|
30
|
30
|
Refrigerant Charge
|
m
|
20
|
20
|
Additional Refrigerant Charge
|
g/m
|
40
|
40
|
Pipe Size (inches)
|
Gas
|
5/8
|
5/8
|
Liquid
|
3/8
|
3/8
|
Operating Range (OC)
|
Cooling
|
-15 ~ 46
|
-15 ~ 46
|
Heating
|
-15 ~ 24
|
-15 ~ 24
|
Refrigerant
|
|
R410A
|
R410A
|
Grille (to be ordered separately)
|
|
UTGUGYAW
|
UTGUGYAW
|
System List Price
|
£
|
2178
|
2508
|
*Excludes Grille: Grille dimensions = 50x950X950, Grille weight = 6.5kg
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
