Ducted Air Conditioning

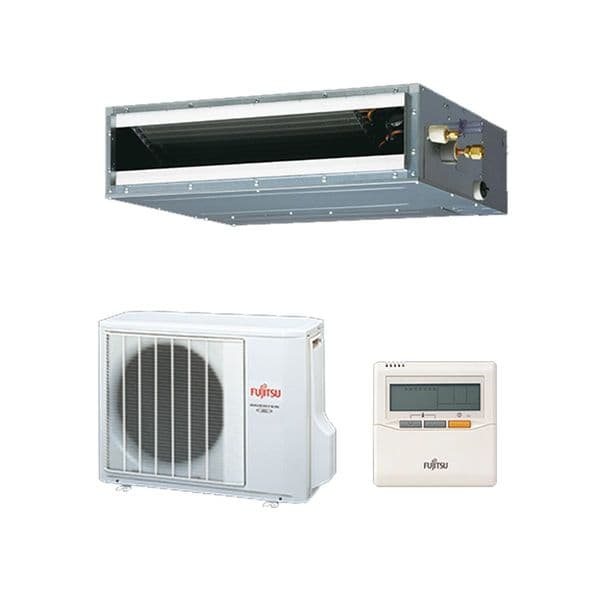

Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz

  • Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz
  • Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz
  • Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz
  • Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz
  • Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz

Fujitsu Air Conditioning ARYG14LLTB Slimline Convertible Concealed Duct Heat Pump Inverter (4Kw / 14000Btu) 240V~50Hz

£1,181.77 £984.81 (ex. VAT)
Stock Status: In Stock

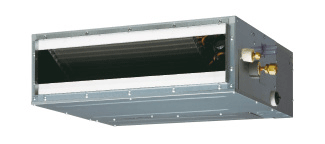

A convertible ducted unit that can be seated horizontally or vertically

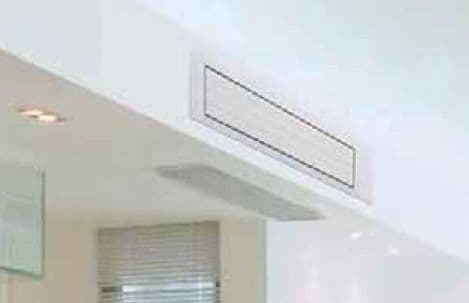

Perfect for areas where you want concealed air conditioning, the ARYG units are convertible and can be seated upright for floor based applications or mounted above a ceiling. The ARYG is Fujitsu air conditioning is designed for homes, offices, restaurants or shops, the unit operates at low noise levels and is virtually invisible when installed within a suspended ceiling.  Its low unit height (198mm) and lightweight design also helps to make installation easier and more convenient. It's whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or commercial uses. Available in three sizes, it can be installed in a bulkhead for a different and attractive architectural finish or can be ducted within the space for total integration with the room.
Fujitsu air conditioning have developed a new DC inverter outdoor unit with a energy saving V-Ram circuit. The result is a compact and light outdoor unit with a reduced sized DC compressor which, in addition to providing greater performance, allows the appliance to heat up efficiently even when the outside temperature is very low. Unlike conventional systems, the Fujitsu inverter technology adapts the speed of the compressor to the needs of each moment, consuming only the energy required. This allows temperature swings to be reduced drastically and maintains a margin of between ±0,5ºC, providing greater room temperature stability and comfort.

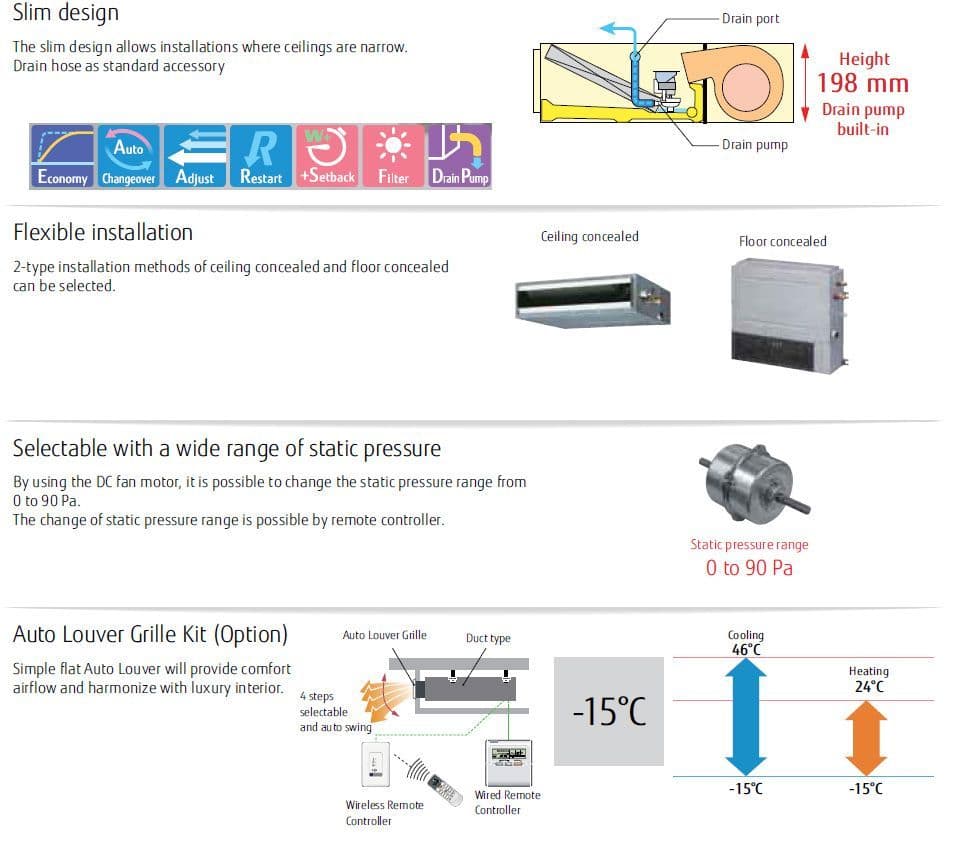

Key Product Features:
  • Increased static pressure range
  • Slim design for adaptable installation
  • Dual concealed type
  • Air intake direction can be selected
  • Optional Auto Louver Grille Kit
  • Compact and powerful


Specification:



Indoor

ARYG14LLTB

Outdoor

AOYG14LALL

Nominal Capacity (kW)

Cooling

4.30 (0.90-5.40)

Heating

5.00 (0.90-6.50)

UK Total / Sensible Cooling *

3.97 / 2.90

Power Consumption (kW)

Cooling

1.33

Heating

1.34

EER / COP (Nominal Conditions)

3.21 / 3.71

Pdesign (kW) @ -10°C

Cooling

4.30

Heating

4.50

SEER

Cooling

5.80

SCOP

Heating (Average)

3.90

(QHUJ\ (IÀFLHQF\ &ODVV

Cooling

A+

Heating (Average)

A

Annual Energy Consumption (kWh/a)

Cooling

259

Heating

1614

Moisture Removal

l/h

1.50

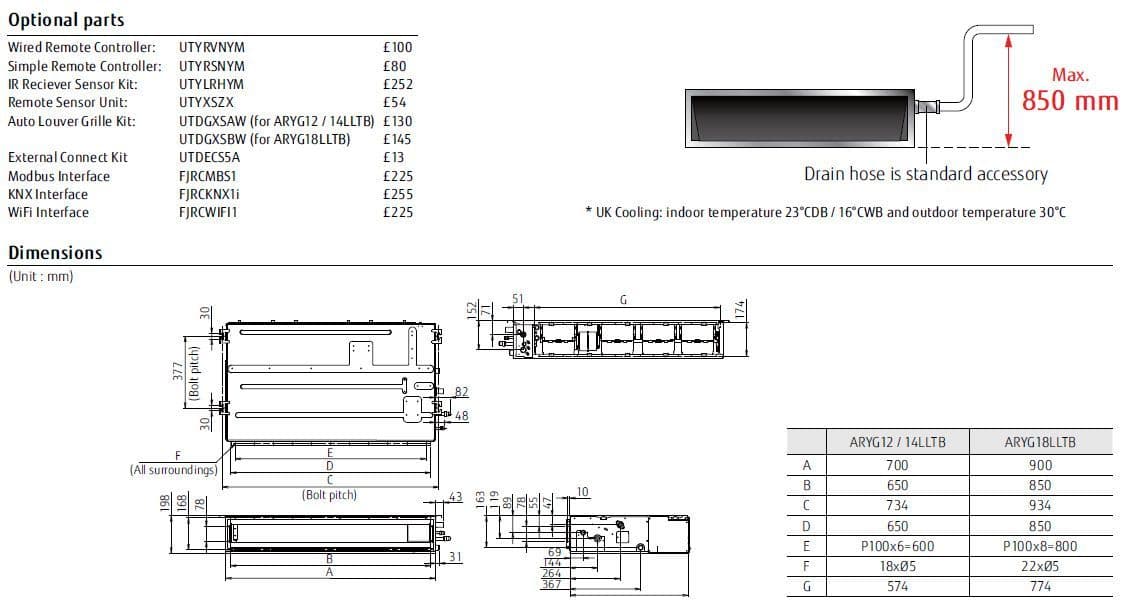

Dimensions (HxWxD) mm

Inner

198x700x620

Outer

578x790x300

Net Weight (kg)

Inner

19

Outer

40

Room Air Circulation (high) m3/h

Inner

800

Outer

1910

Static Pressure Range (Standard)

Pa

0 to 90 (25)

Power Supply

V-PH-Hz

230 / 1 / 50

Power Supply To

Outdoor

Running Current (A)

Cooling

6.10

Heating

6.10

Starting Current

A

6.10

Suggested MCB/Fuse

A

16

Interconnecting Cable

3 + E

Remote Control Type

Wired

Sound Pressure (dB(A) Cooling)

Indoor Q/L/M/H

26 / 28 / 30 / 32

Outdoor H

49

Sound Power (dB(A) Cooling)

Indoor H

60

Outdoor H

62

Max Pipe Length

m

25

Max Height Difference

m

15

Refrigerant  Charge

m

15

Additional Refrigerant Charge

g/m

20

Pipe Size (inches)

Gas

1/2

Liquid

1/4

Operating Range (OC)

Cooling

-10 ~ 46

Heating

-15 ~ 24

Refrigerant

R410A

System List Price

£

1310

PDF Data Sheet:




These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.​​​​​​​
