Fujitsu Air Conditioning AOYG Series Multi-Split Heat Pump Inverter A++

Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 x ARXG09KLLAP 2.5Kw/9000Btu Ducted A++ R32 240V~50Hz

  • Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 x ARXG09KLLAP 2.5Kw/9000Btu Ducted A++ R32 240V~50Hz
  • Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 x ARXG09KLLAP 2.5Kw/9000Btu Ducted A++ R32 240V~50Hz
  • Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 x ARXG09KLLAP 2.5Kw/9000Btu Ducted A++ R32 240V~50Hz
  • Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 x ARXG09KLLAP 2.5Kw/9000Btu Ducted A++ R32 240V~50Hz
  • Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 x ARXG09KLLAP 2.5Kw/9000Btu Ducted A++ R32 240V~50Hz

Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 x ARXG09KLLAP 2.5Kw/9000Btu Ducted A++ R32 240V~50Hz

£4,499.00 £3,749.17 (ex. VAT)
Stock Status: In Stock

Fujitsu Air Conditioning AOYG36KBTA5 Multi 5 way 9.5 (3.0-11.0)kw 5 x ARXG09KSLAP 2.5Kw/9000Btu Ducted Units A++ 240V~50Hz

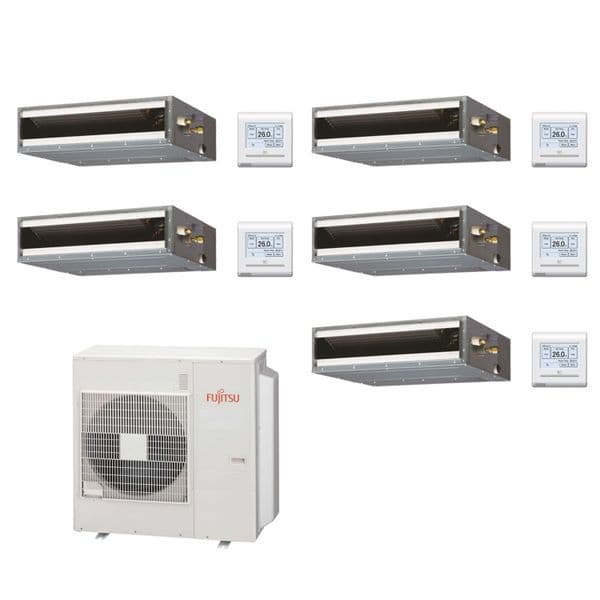

This Kit Includes:



1 x AOYG36KBTA5 R32 Inverter Heat Pump Condensing unit 5 way 9.5 (3.0-11.0)kw 220-240v~50Hz

5 x ARXG09KSLAP Ducted Air Conditioning Heat Pump R32 2.5Kw/9000Btu

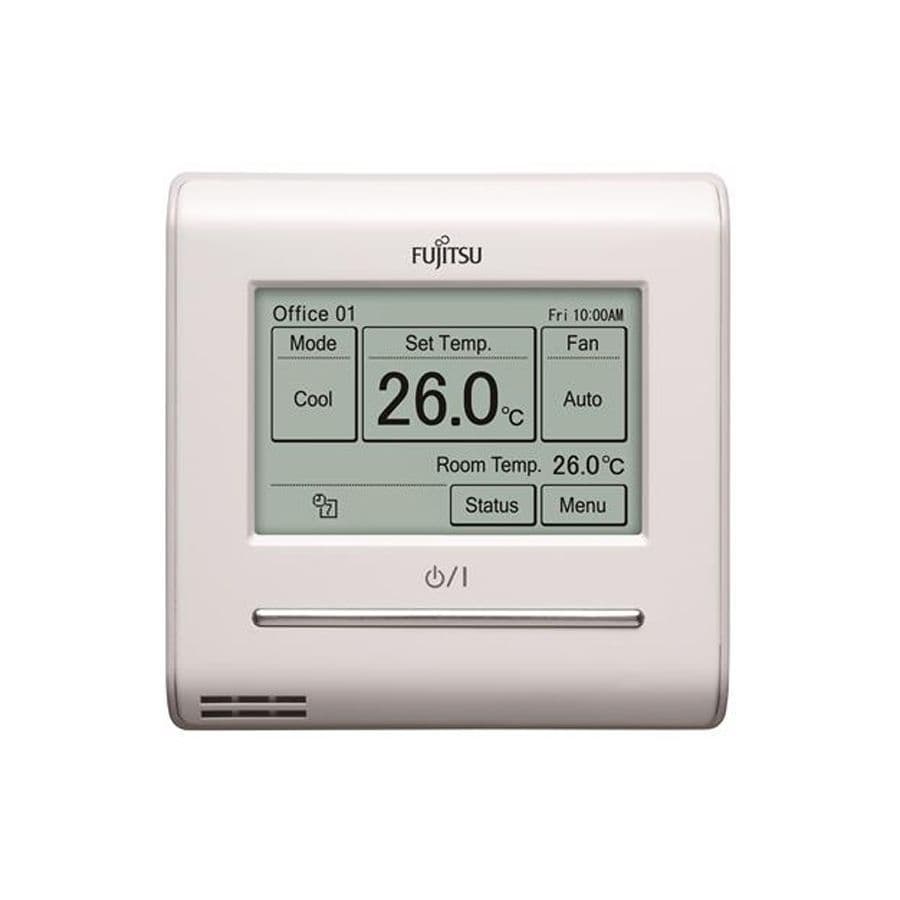

5 x Wireless Controllers Wired Remote Controller (Touch Panel): UTY-RNRYZ3








5 ducted style indoor units connected to 1 outdoor unit, 15m long piping connections also possible, total 80m. Compared with single type, the outdoor unit can be installed in various places offering space-saving installation.

The AOYG Series R32 A++ Multi-split units make it easily possible to have combinations of different kinds of indoor units with different capacities, in order to adapt to the needs of the user. Furthermore, being fitted with Inverter technology allows greater performance and lower energy consumption. Thanks to the DC Multi Inverter system, the Fujitsu R32 Multi-split Inverter units are up to 50% more efficient and offer a considerable energy saving with regard to the conventional models. This means the temperature reaches its optimum point in a rapid and uniform manner.

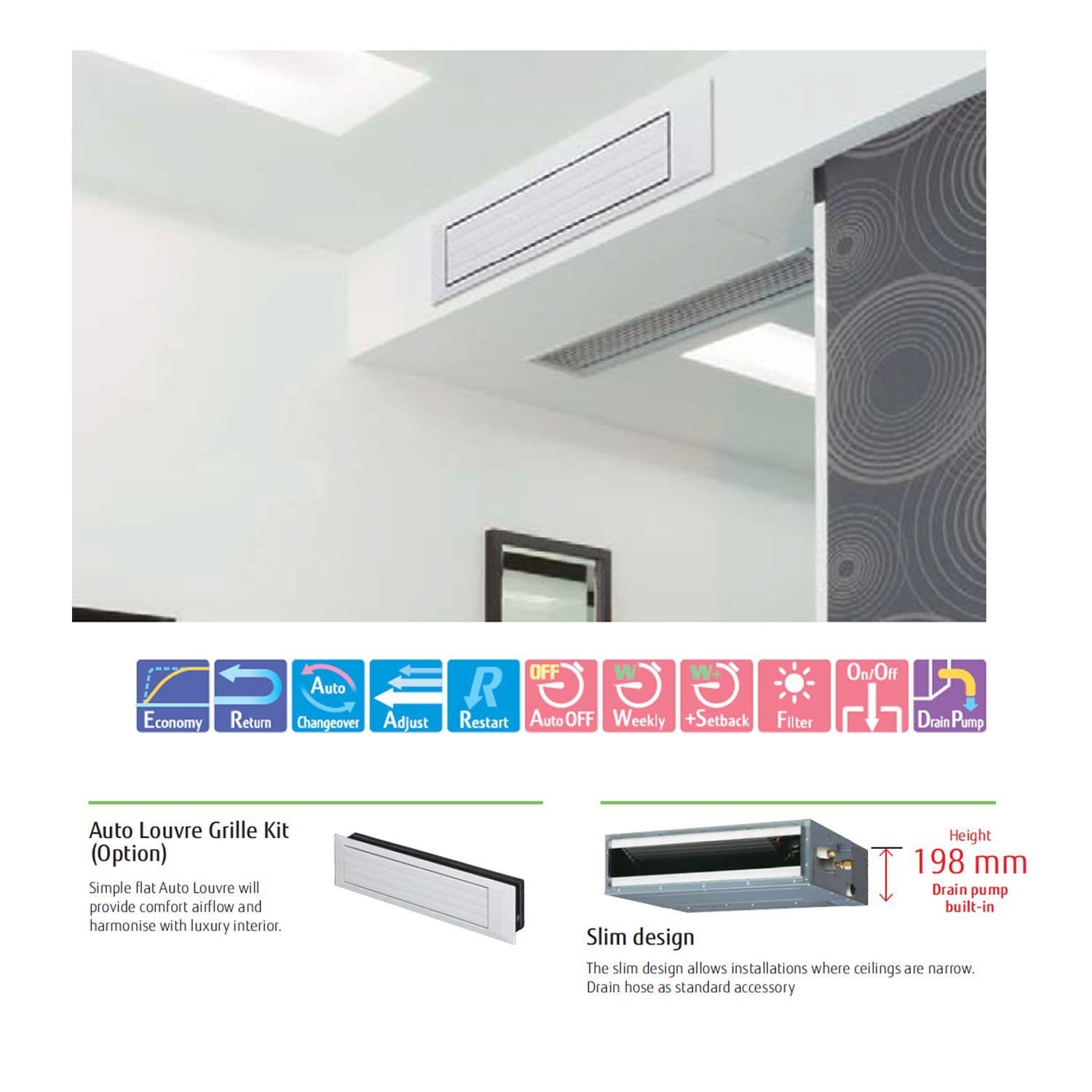

The R32 AXRG ducted horizontal mounted air conditioner with High Efficiency & Quiet operation, the combination of the V-shaped heat exchanger, air stabiliser, and the highly efficient DC fan motor allows high efficiency and quiet operation. The indoor units are designed to be hidden away in a roof void with open chassis design and easier cleaning as the air return which remains hidden. The indoor unit is a slim-line construction, has "Automatic Airflow adjustment function" a unique and innovative function which detects required air flow in each application case and automatically adjust the volume.

Ideal For Home or Small Office Applications:



As there is no need to install a large number of outdoor units, the outside aesthetics are virtually unaffected. Furthermore, these outdoor units are more compact than previous models, quieter and offer a greater installation location flexibility to ease the installation of the indoor units enormously.

Product Key Feature's:


• CoP, up to 4.7 A++
• Infra-red controller
• Slim construction on indoor and outdoor unit 320mm
• Pipe runs up to 30 metres
• Low noise – 21dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis with code output
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
• Cleaner and healthier air with washable indoor unit filters
• Low ambient tested to -10 Deg/C
• Light weight compact noise absorbing outdoor unit

Indoor Unit:



Model No. Indoor unit

ARXG09SLAP

kW Class

kW

2.5

Power Source

Single phase, ~230V, 50Hz

Sound Pressure Level

Cooling

H/M/L/Q

dB(A)

28/27/26/25

Heating

28/26/25/24

Sound Power Level

Cooling

H

dB(A)

57

Heating

57

Air Flow

Cooling

H/M/L/Q

m3/h

550/490/470/440

Heating

550/490/470/440

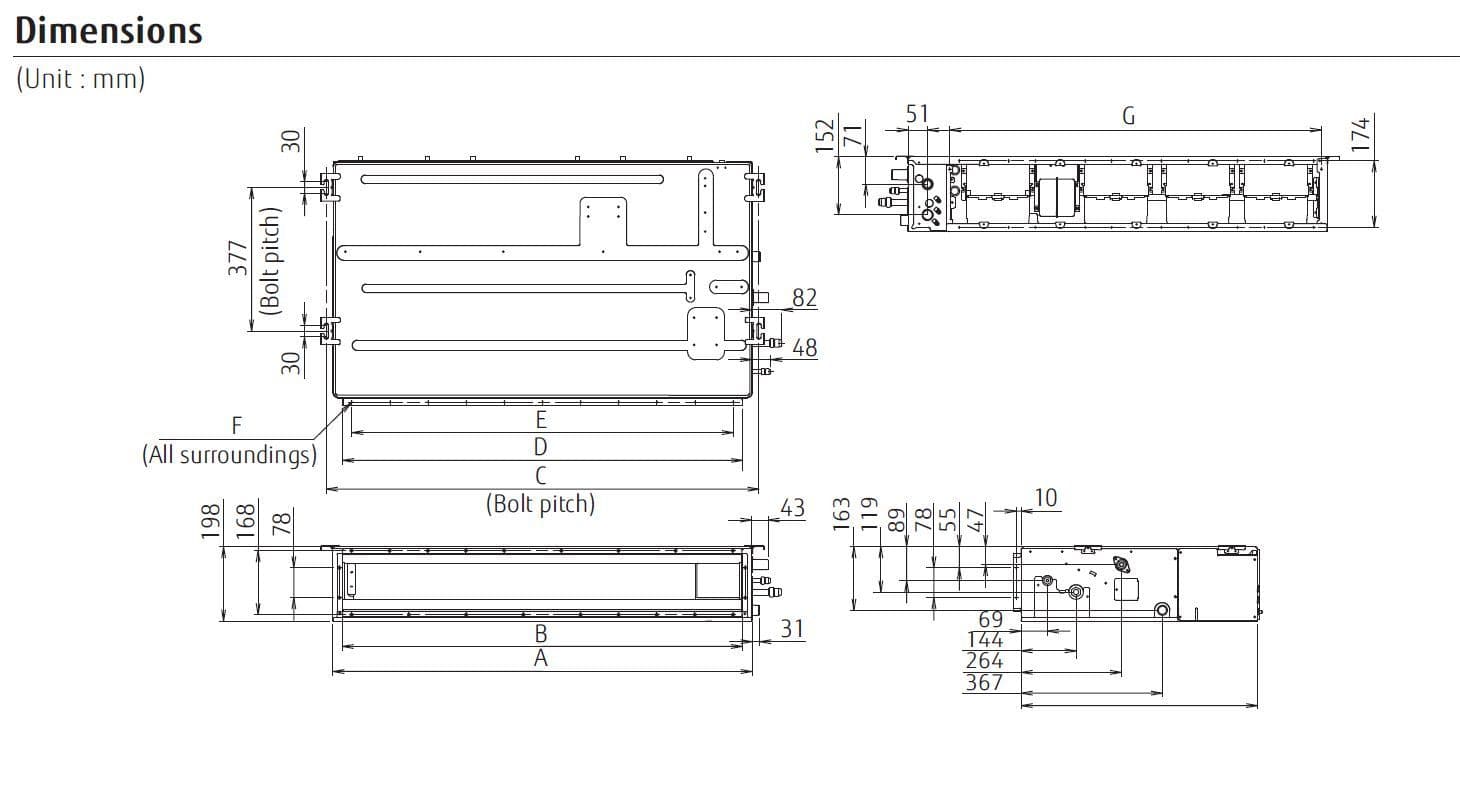

Net Dimensions

mm

198x700x620

Weight

kg(lbs)

16 (35)

Connection Pipe Diameter

Liquid/Gas

mm

6.35/9.52

External static pressure

Pa

0 to 90

Drain pump

Standard

Accessories:

Compact Wired Remote Controller:

UTY-RCRYZ1

KNX® Converter:

UTY-VKSX

Wireless LAN Interface:

UTY-TFSXZ1

Wired Remote Controller (Touch Panel):

UTY-RNRYZ3

MODBUS® Converter:

UTY-VMSX

IR Receiver Unit:

UTY-LBTYM

Wired Remote Controller:

UTY-RVNYM

External input and output PCB:

UTY-XCSX

Network Converter for single split (DC power supply type):

UTY-VTGX

Simple Remote Controller (Without operation mode):

UTY-RHRY

External Connect Kit:

UTY-XWZXZG

Network Converter for single split (AC power supply type):

UTY-VTGXV

Simple Remote Controller:

UTY-RSRY

External input and output PCB:

UTZ-GXNA

Wireless interface for use with Smart home products:

FJ-AC-WIFI-1

External Switch Controller:

UTY-TERX

Long-Life Filter:

UTD-LFNA (36-54)

Remote Sensor Unit:

UTY-XSZX

Auto Louver Kit:

UTD-LFNB (18-30)

UTD-LFNC (12-14)

External Connect Kit:

UTY-XWZXZ3


Outdoor Unit:

AOYG36KBTA5

Power source Phase Single-phase
Voltage ~ 230 V
Frequency 50 Hz
Capacity Cooling 9.5 (3.0-11.0)
Heating 10.6 (3.5-12.0)
EER Cooling 3.80
COP Heating 4.5
Sound Pressure Level (High) Cooling 53 dB(A)
Heating 55 dB(A)
Sound Power Level (High) Cooling 67 dB(A)
Heating 68 dB(A)
Net Dimensions Height 844 mm
Width 820 mm
Depth 315 mm
Net Weight 59 kg
Connection Pipe Diameter Liquid 6.35×5 mm
Gas 9.52 × 3, 12.7 × 2 mm
Max Pipe Length Total 80 m
Each 25 m
Max Height Difference Between Outdoor Unit and Each Indoor Units. 15 m
Between Indoor Units. 10 m
Operation Range Cooling -10 to 46 °CDB
Heating -15 to 24 °CDB
Refrigerant Type R32
Global Warming Potential 675
