Fujitsu Air Conditioning Multi-Room R32 Inverter AOYG36KBTA5 9.5 (3.0-11.0)kw Heat Pump 5 x ASYG12KGTB 3.5Kw / 12000Btu Wall Mounted R32 A++ 240V~50Hz

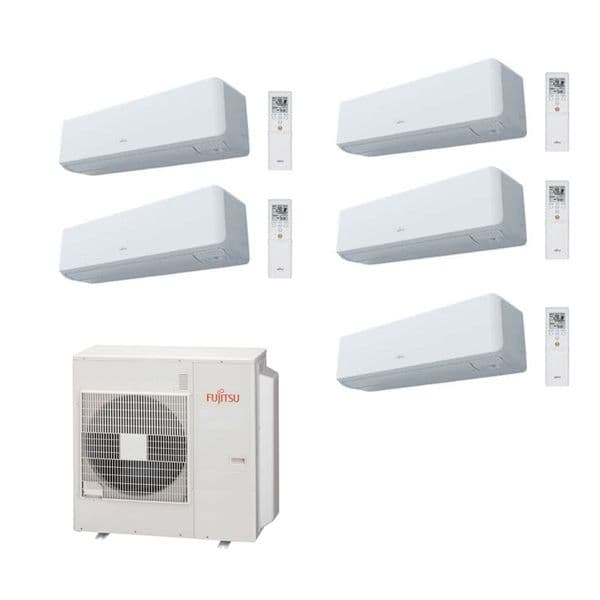

This Kit Includes:
1 x AOYG36KBTA5 R32 Inverter Heat Pump Condensing unit 5 way 9.5 (3.0-11.0)kw 220-240V~50Hz
5 x ASYG12KGTB Wall Mounted Air Conditioning Heat Pump R32 (3.5Kw / 12000 Btu)
5 x Wireless Controllers
5 Wall mounted indoor units connected to 1 outdoor unit, 15m long piping connections also possible, total 80m. Compared with single type, the outdoor unit can be installed in various places offering space-saving installation.

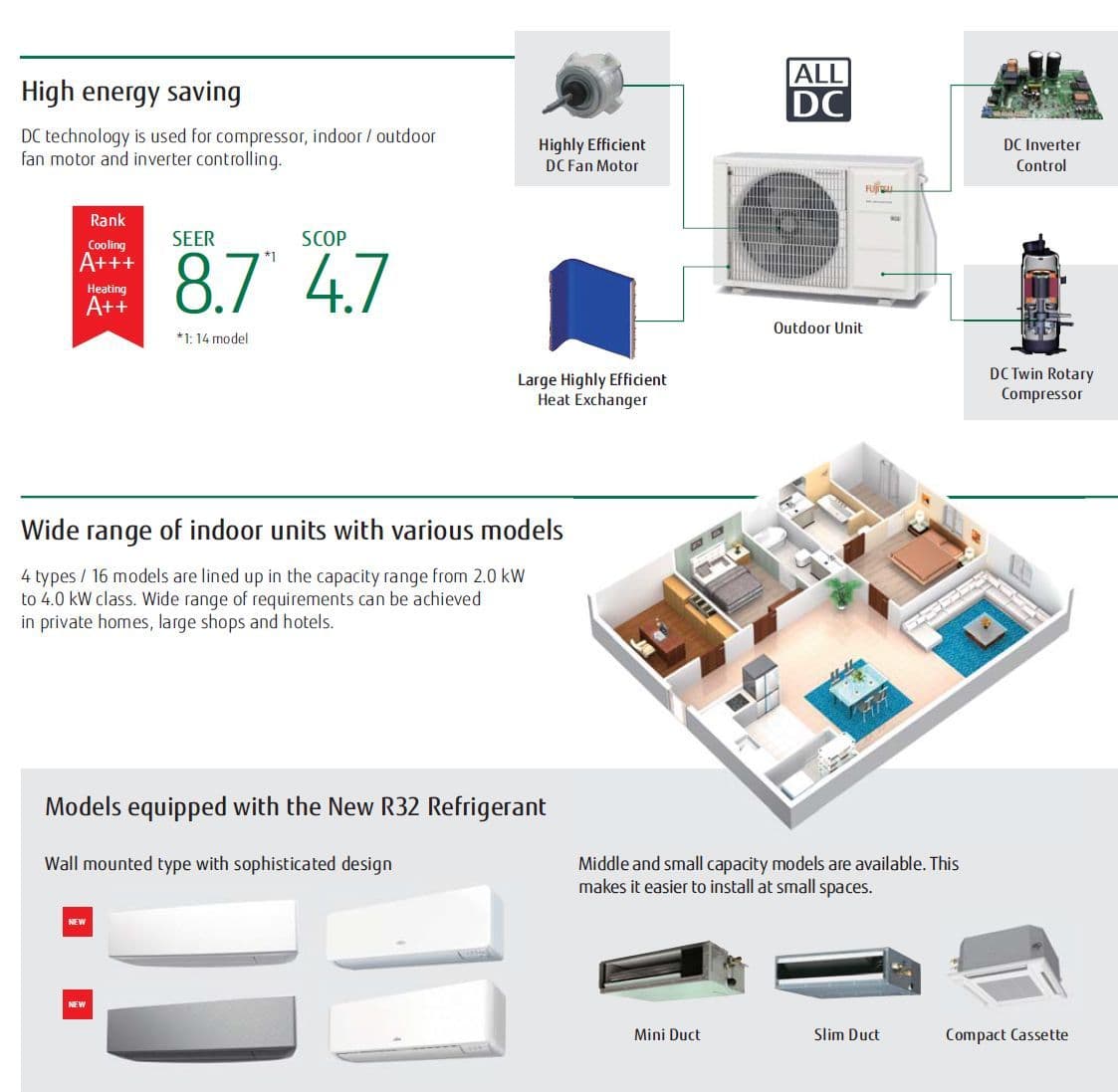

The AOYG Series R32 A++ Multi-split units make it easily possible to have combinations of different kinds of indoor units with different capacities, in order to adapt to the needs of the user. Furthermore, being fitted with Inverter technology allows greater performance and lower energy consumption. Thanks to the DC Multi Inverter system, the Fujitsu R32 Multi-split Inverter units are up to 50% more efficient and offer a considerable energy saving with regard to the conventional models. This means the temperature reaches its optimum point in a rapid and uniform manner.
The R32 ASYG-KGTB standard indoor wall mounted units offer attractive aesthetics, the new design of the front of the indoor wall units provides easier cleaning as the air return remains hidden at the top. The indoor wall unit is a slim-line construction.
Ideal For Home or Small Office Applications:
As there is no need to install a large number of outdoor units, the outside aesthetics are virtually unaffected. Furthermore, these outdoor units are more compact than previous models, quieter and offer a greater installation location flexibility to ease the installation of the indoor units enormously.
Product Key Feature's:
• CoP, up to 4.7 A++

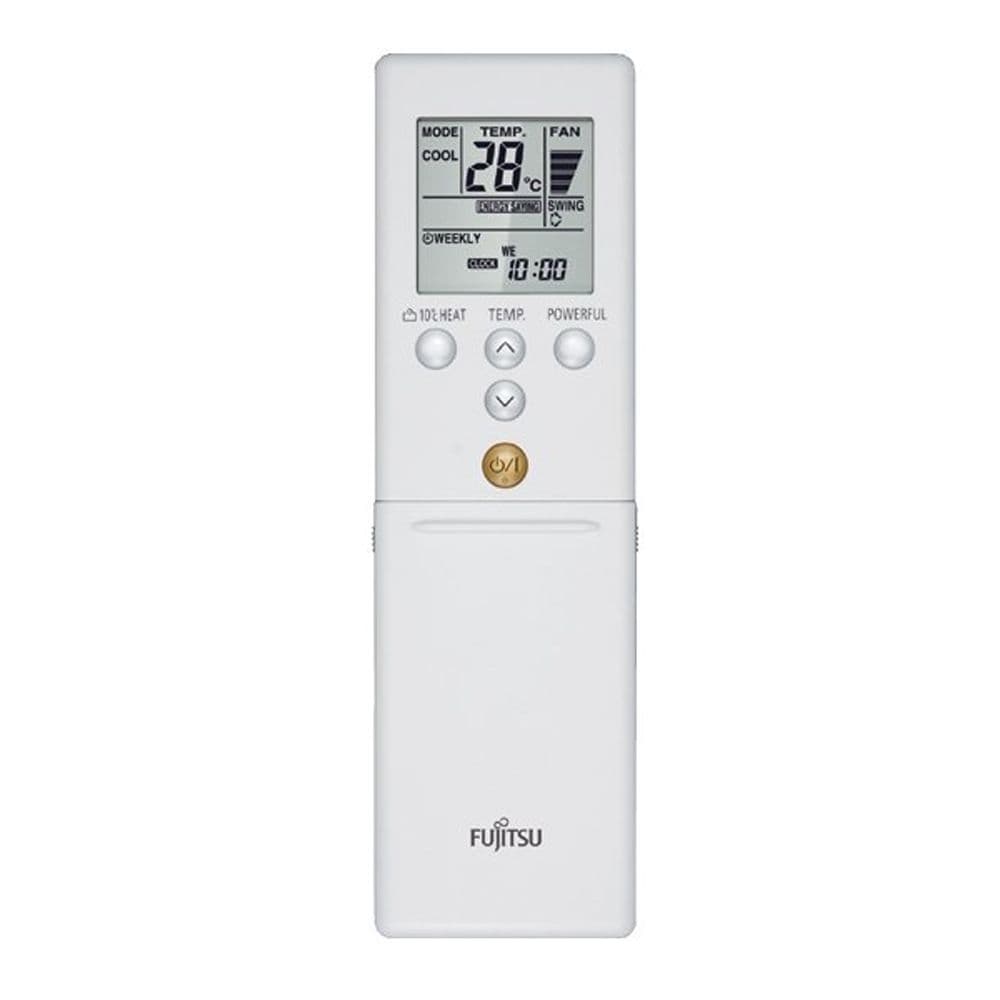

• Infra-red controller
• Slim construction on indoor and outdoor unit 320mm
• Pipe runs up to 30 metres
• Low noise – 21dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis with code output
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
• Cleaner and healthier air with washable indoor unit filters
• Low ambient tested to -10 Deg/C
• Light weight compact noise absorbing outdoor unit
Indoor Unit:
|
Model No. Indoor unit ASYG12KGTB
|
|
kW Class
|
kW
|
3.5
|
|
Power Source
|
Single phase, ~230V, 50Hz
|
|
Sound Pressure Level
|
Cooling
|
H/M/L/Q
|
dB(A)
|
41/35/30/21
|
|
Heating
|
42/36/31/22
|
|
Sound Power Level
|
Cooling
|
H
|
dB(A)
|
55
|
|
Heating
|
57
|
|
$LUÁRZ 5DWH
|
Cooling
|
H/M/L/Q
|
m3/h
|
700/560/430/270
|
|
Heating
|
750/610/470/330
|
|

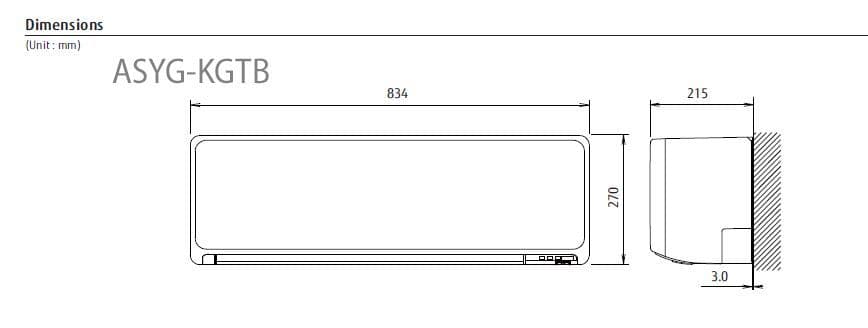

Net Dimensions
|
mm
|
270x834x215
|
|
Weight
|
kg(lbs)
|
10 (22)
|
|
Connection Pipe Diameter
|
Liquid/Gas
|
mm
|
6.35/9.52
|
Accessories:
Wired Remote Controller: UTY-RVNYM
Simple Remote Controller: UTY-RSNYM
KNX® Converter:UTY -VKSX
MODBUS® Converter: UTY-VMSX
External connect kit: UTY-XWZXZ5
External Switch Controller: UTY-TERX
Communication kit: Wireless LAN Interface:UTY-TWBXF2 UTY-TFSXW1
Network Converter for single split (DC power supply type): UTY-VTGX
Network Converter for single split (AC power supply type): UTY-VTGXV
Wireless interface for use with Smart home products: FJ-AC-WIFI-1
Outdoor Unit:
AOYG36KBTA5
| Power source |
Phase |
Single-phase |
| Voltage |
~ 230 V |
| Frequency |
50 Hz |
| Capacity |
Cooling |
9.5 (3.0-11.0) |
| Heating |
10.6 (3.5-12.0) |
| EER |
Cooling |
3.80 |
| COP |
Heating |
4.5 |
| Sound Pressure Level (High) |
Cooling |
53 dB(A) |
| Heating |
55 dB(A) |
| Sound Power Level (High) |
Cooling |
67 dB(A) |
| Heating |
68 dB(A) |
| Net Dimensions |
Height |
844 mm |
| Width |
820 mm |
| Depth |
315 mm |
| Net Weight |
59 kg |
|
| Connection Pipe Diameter |
Liquid |
6.35×5 mm |
| Gas |
9.52 × 3, 12.7 × 2 mm |
| Max Pipe Length |
Total |
80 m |
| Each |
25 m |
| Max Height Difference |
Between Outdoor Unit and Each Indoor Units. |
15 m |
| Between Indoor Units. |
10 m |
| Operation Range |
Cooling |
-10 to 46 °CDB |
| Heating |
-15 to 24 °CDB |
| Refrigerant |
Type |
R32 |
| Global Warming Potential |
675 |
