Fujitsu Air Conditioning AOYG18KBTA2 Multi 2 x ARXG12KLLAP 3.5Kw/12000Btu Ducted Units A++ 240V~50Hz

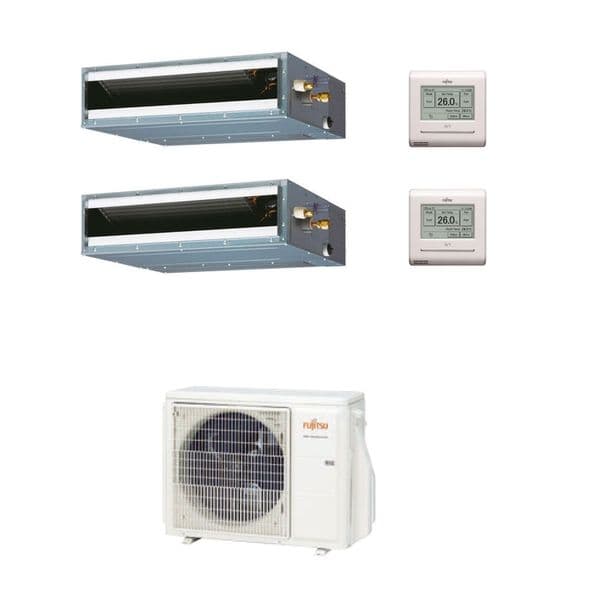

This Kit Includes:
1 x AOYG18KBTA2 R32 Inverter Heat Pump Condensing unit 2 way
2 x ARXG12KLLAP Ducted Air Conditioning Heat Pump R32 3.5Kw/12000Btu

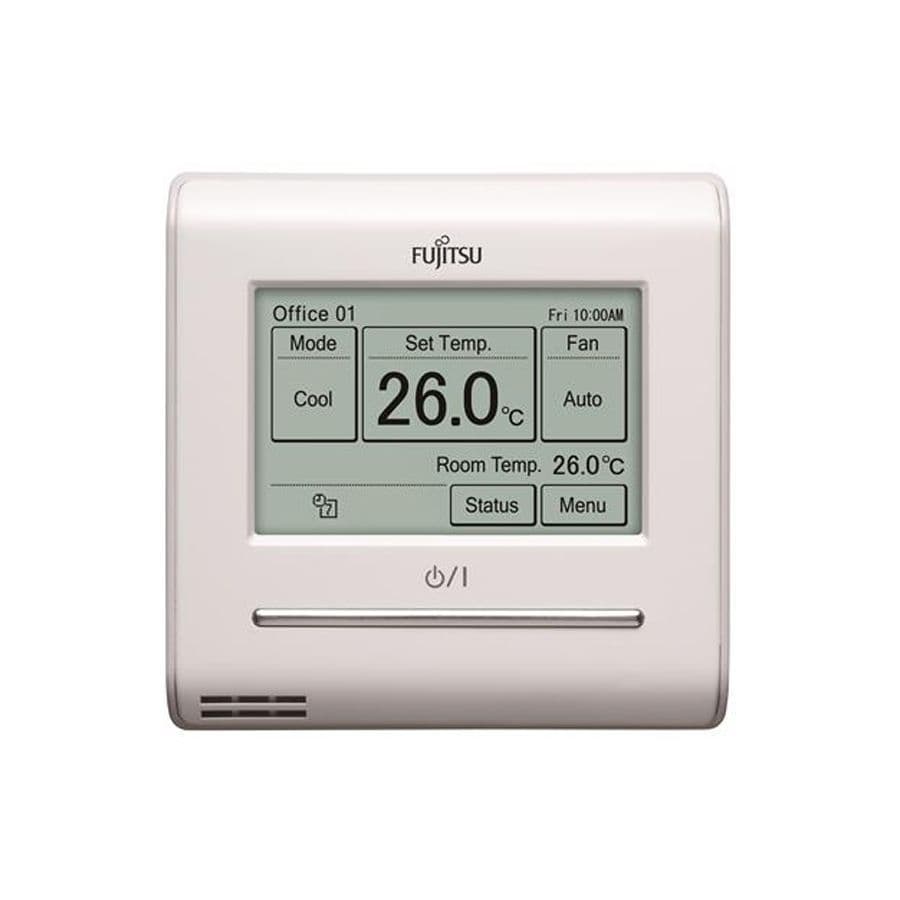

2 x Wireless Controllers Wired Remote Controller (Touch Panel): UTY-RNRYZ3
.jpg)
2 ducted style indoor units connected to 1 outdoor unit, 15m long piping connections also possible. Compared with single type, the outdoor unit can be installed in various places offering space-saving installation.
The AOYG Series R32 A+++ Multi-split units make it easily possible to have combinations of different kinds of indoor units with different capacities, in order to adapt to the needs of the user. Furthermore, being fitted with Inverter technology allows greater performance and lower energy consumption. Thanks to the DC Multi Inverter system, the Fujitsu R32 Multi-split Inverter units are up to 50% more efficient and offer a considerable energy saving with regard to the conventional models. This means the temperature reaches its optimum point in a rapid and uniform manner.

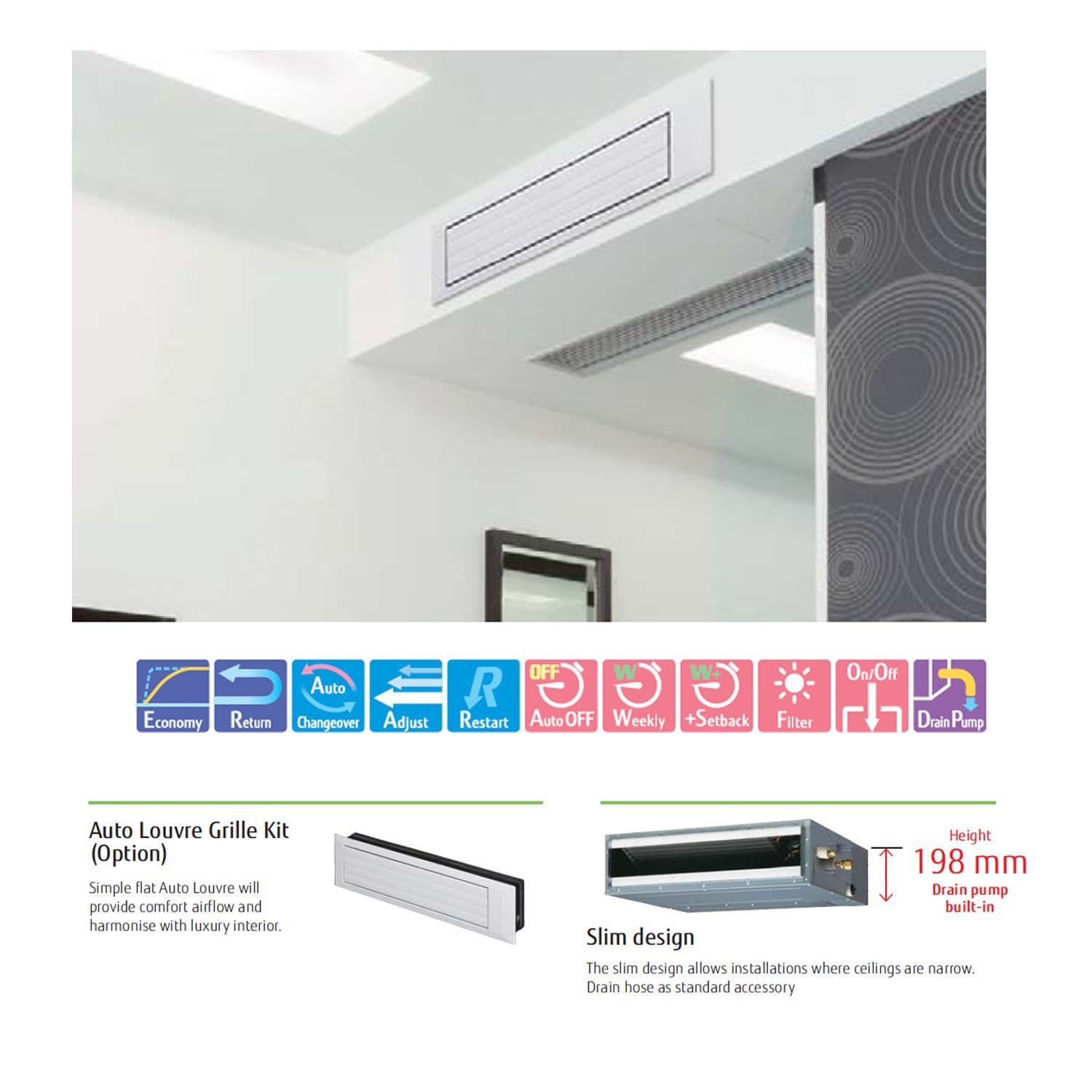

The R32 AXRG ducted horizontal mounted air conditioner with High Efficiency & Quiet operation, the combination of the V-shaped heat exchanger, air stabiliser, and the highly efficient DC fan motor allows high efficiency and quiet operation. The indoor units are designed to be hidden away in a roof void with open chassis design and easier cleaning as the air return which remains hidden. The indoor unit is a slim-line construction, has "Automatic Airflow adjustment function" a unique and innovative function which detects required air flow in each application case and automatically adjust the volume.
Ideal For Home or Small Office Applications:
As there is no need to install a large number of outdoor units, the outside aesthetics are virtually unaffected. Furthermore, these outdoor units are more compact than previous models, quieter and offer a greater installation location flexibility to ease the installation of the indoor units enormously.
Product Key Feature's:
• CoP, up to 4.7 A+++
• Infra-red controller
• Slim construction on indoor and outdoor unit 320mm
• Pipe runs up to 30 metres
• Low noise – 21dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis with code output
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
• Cleaner and healthier air with washable indoor unit filters
• Low ambient tested to -10 Deg/C
• Light weight compact noise absorbing outdoor unit
Indoor Unit:
|
Model No. Indoor unit
|
ARXG12KLLAP
|
|
kW Class
|
kW
|
3.5
|
|
Power Source
|
Single phase, ~230V, 50Hz
|
|
Sound Pressure Level
|
Cooling
|
H/M/L/Q
|
dB(A)
|
|
|
Heating
|
|
|
Sound Power Level
|
Cooling
|
H
|
dB(A)
|
58
|
|
Heating
|
58
|
|
Air Flow
|
Cooling
|
H/M/L/Q
|
m3/h
|
650/600/550/480
|
|
Heating
|
650/600/550/480
|
|

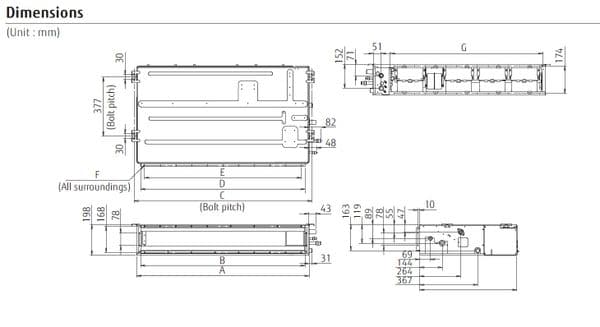

Net Dimensions
|
mm
|
198x700x620
|
|
Weight
|
kg(lbs)
|
16 (35)
|
|
Connection Pipe Diameter
|
Liquid/Gas
|
mm
|
6.35/9.52
|
|
External static pressure
|
Pa
|
0 to 90
|
|
Drain pump
|
Standard
|
|
Accessories:
|
|
Compact Wired Remote Controller:
|
UTY-RCRYZ1
|
KNX® Converter:
|
UTY-VKSX
|
Wireless LAN Interface:
|
UTY-TFSXZ1
|
|
Wired Remote Controller (Touch Panel):
|
UTY-RNRYZ3
|
MODBUS® Converter:
|
UTY-VMSX
|
IR Receiver Unit:
|
UTY-LBTYM
|
|
Wired Remote Controller:
|
UTY-RVNYM
|
External input and output PCB:
|
UTY-XCSX
|
Network Converter for single split (DC power supply type):
|
UTY-VTGX
|
|
Simple Remote Controller (Without operation mode):
|
UTY-RHRY
|
External Connect Kit:
|
UTY-XWZXZG
|
Network Converter for single split (AC power supply type):
|
UTY-VTGXV
|
|
Simple Remote Controller:
|
UTY-RSRY
|
External input and output PCB:
|
UTZ-GXNA
|
Wireless interface for use with Smart home products:
|
FJ-AC-WIFI-1
|
|
External Switch Controller:
|
UTY-TERX
|
Long-Life Filter:
|
UTD-LFNA (36-54)
|
|
|
|
Remote Sensor Unit:
|
UTY-XSZX
|
Auto Louver Kit:
|
UTD-LFNB (18-30)
|
UTD-LFNC (12-14)
|
|
|
External Connect Kit:
|
UTY-XWZXZ3
|
|
|
|
|
Outdoor Unit:
|
Model No. AOYG18KBTA2
|
|
Power Source
|
Single phase, ~230V, 50Hz
|
|
Nominal Capacity (min-max)
|
Cooling
|
kW
|
5.0 (1.7-5.8)
|
|
Heating
|
5.6 (1.8-6.6)
|
|
Power consumption
|
Cooling / Heating
|
kW
|
|
|
EER
|
Cooling
|
W/W
|
4.03
|
|
COP
|
Heating
|
4.59
|
|
Pdesign
|
Cooling/Heating(-10°C)
|
kW
|
5.0 / 4.2
|
|
SEER
|
Cooling
|
W/W
|
8.60
|
|
SCOP
|
Heating (Average)
|
4.70
|
|
Energy Rating
|
Cooling
|
|
A+++
|
|
Heating (Average)
|
|
A++
|
|
Annual Energy Consumption
|
Cooling
|
kWh/a
|
263
|
|
Heating
|
1434
|
|
Sound Pressure Level (High)
|
Cooling
|
dB(A)
|
47
|
|
Heating
|
50
|
|
Sound Power Level (High)
|
Cooling
|
60
|
|
Heating
|
62
|
|
$LUÁRZ 5DWH
|
Cooling/Heating
|
m3/h
|
1,960/2,020
|
|

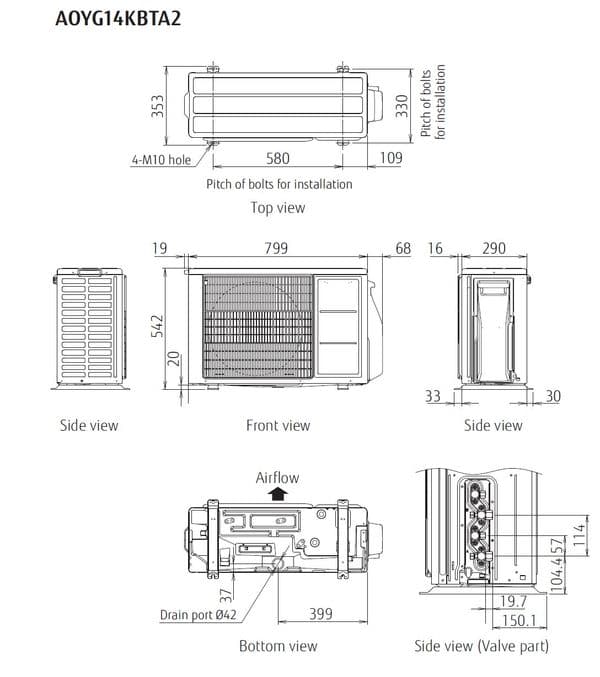

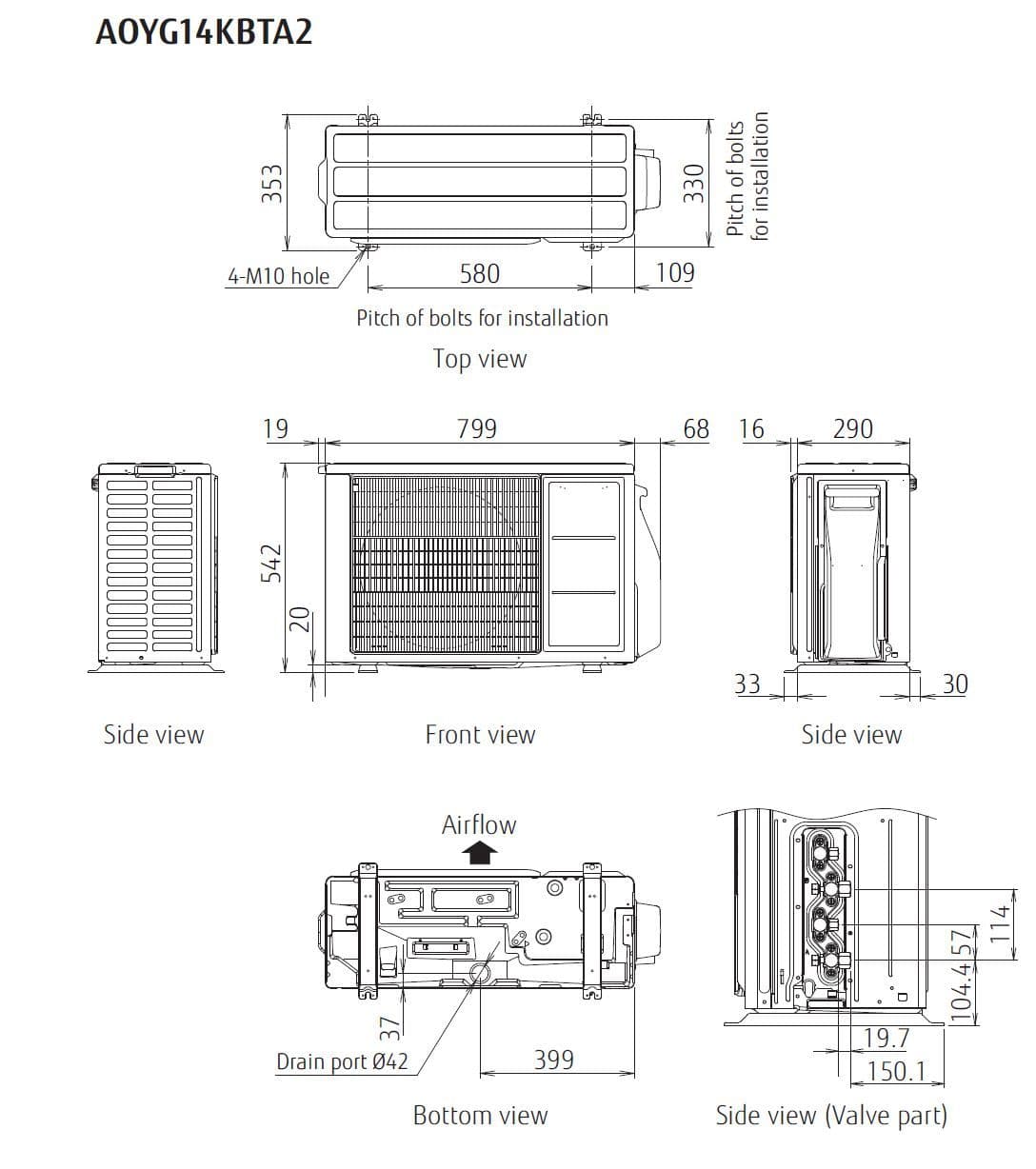

Net Dimensions H × W × D
|
mm
|
632×799×290
|
|
Weight
|
kg(lbs)
|
37 (82)
|
|
Interconnecting Cable (Suggested cable size 1.5mm)
|
3 core + earth
|
|
Suggested MCB Size
|
Amp
|
15
|
|
Max. Operating Current
|
Cooling/Heating
|
Amp
|
11.6
|
|
Starting Current
|
Amp
|
5.6
|
|
Power Supply To
|
|
Outdoor unit
|
|
Connection Pipe Diameter
|
Gas
|
Inch
|
3/8 × 2
|
|
Liquid
|
1/4×2
|
|
Max. Pipe Length
|
Total / Each
|
m
|
30 / 20
|
|
Max. Height Difference
|
Between Outdoor Unit and Each Indoor Units.
|
15
|
|
Between Indoor Units.
|
10
|
|
Refrigerant
|
Type
|
R32
|
|
Charge
|
g
|
1020
|
|
Additional Charge
|
g/m
|
20
|
|
Operation Range
|
Cooling
|
°CDB
|
-10 to 46
|
|
Heating
|
-15 to 24
|
