Fujitsu Air Conditioning AOYG Series Multi-Split Heat Pump Inverter A++

Fujitsu Air Conditioning AOYG18KBTA2 Heat Pump 2 x ASYG09KGTB 2.5Kw/9000Btu Wall R32 A++ 240V~50Hz

Fujitsu Air Conditioning AOYG18KBTA2 Heat Pump 2 x ASYG09KGTB 2.5Kw/9000Btu Wall R32 A++ 240V~50Hz

£1,651.20 £1,376.00 (ex. VAT)
Stock Status: In Stock

Fujitsu Air Conditioning Multi-Room R32 Inverter AOYG18KBTA2 5kW Heat Pump 2 x ASYG09KGTB 2.5Kw / 9000Btu Wall Mounted A++ 240V~50Hz

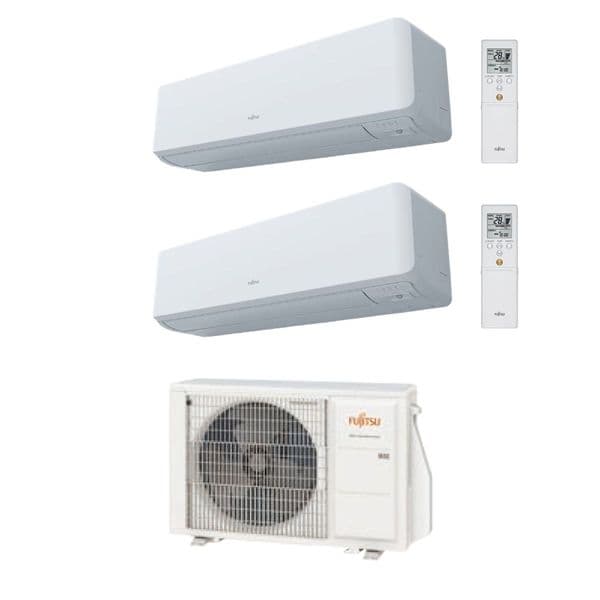

This Kit Includes:



1 x AOYG18KBTA2 R32 Inverter Heat Pump Condensing unit 2 way
2 x ASYG09KGTB Wall Mounted Air Conditioning Heat Pump R32 (2.5Kw / 9000 Btu)
2 x Wireless Controllers








2 Wall mounted indoor units connected to 1 outdoor unit, 15m long piping connections also possible. Compared with single type, the outdoor unit can be installed in various places offering space-saving installation.

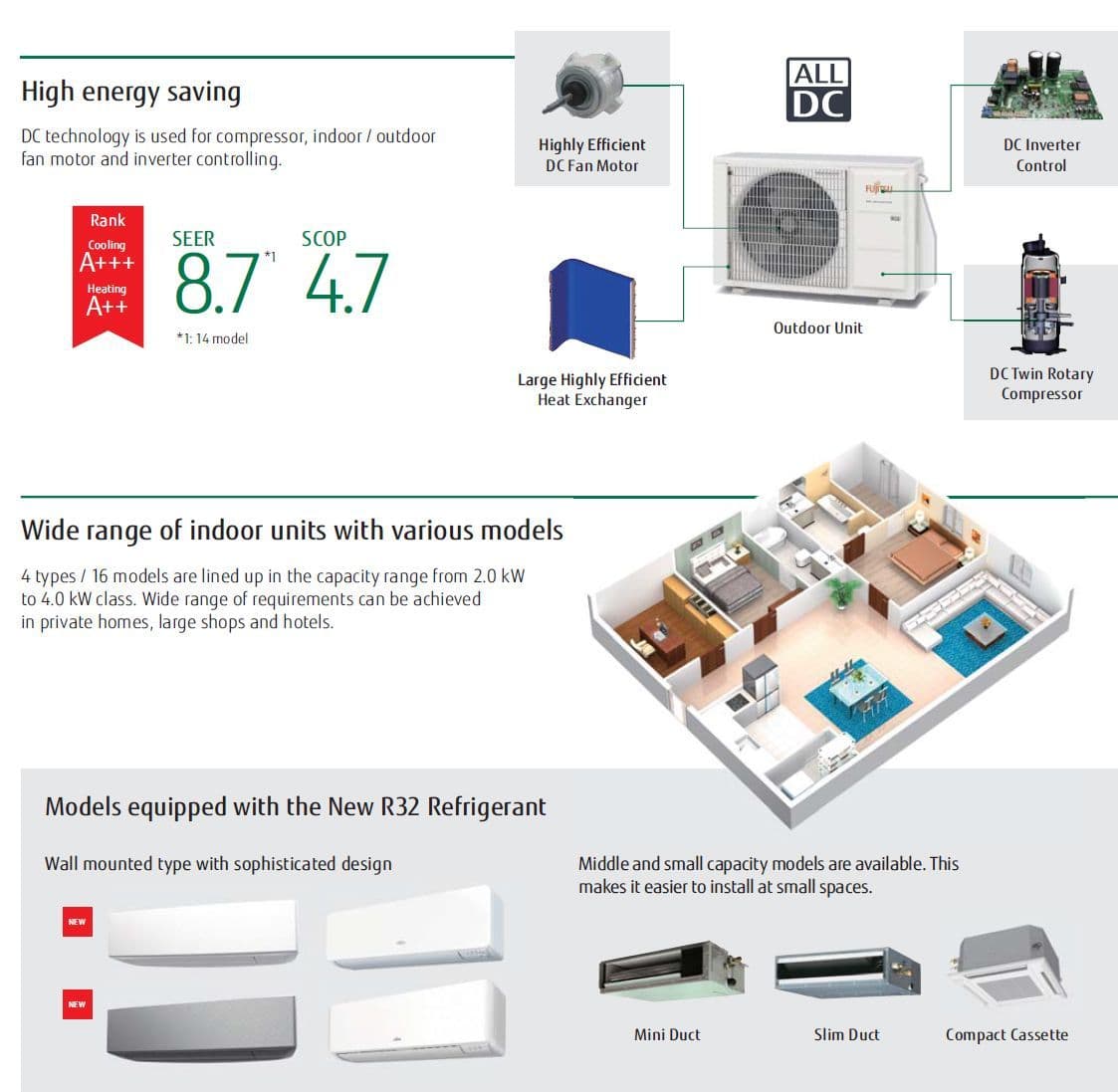

The AOYG Series R32 A+++ Multi-split units make it easily possible to have combinations of different kinds of indoor units with different capacities, in order to adapt to the needs of the user. Furthermore, being fitted with Inverter technology allows greater performance and lower energy consumption. Thanks to the DC Multi Inverter system, the Fujitsu R32 Multi-split Inverter units are up to 50% more efficient and offer a considerable energy saving with regard to the conventional models. This means the temperature reaches its optimum point in a rapid and uniform manner.

The R32 ASYG-KGTB standard indoor wall mounted units offer attractive aesthetics, the new design of the front of the indoor wall units provides easier cleaning as the air return remains hidden at the top. The indoor wall unit is a slim-line construction.

Ideal For Home or Small Office Applications:



As there is no need to install a large number of outdoor units, the outside aesthetics are virtually unaffected. Furthermore, these outdoor units are more compact than previous models, quieter and offer a greater installation location flexibility to ease the installation of the indoor units enormously.

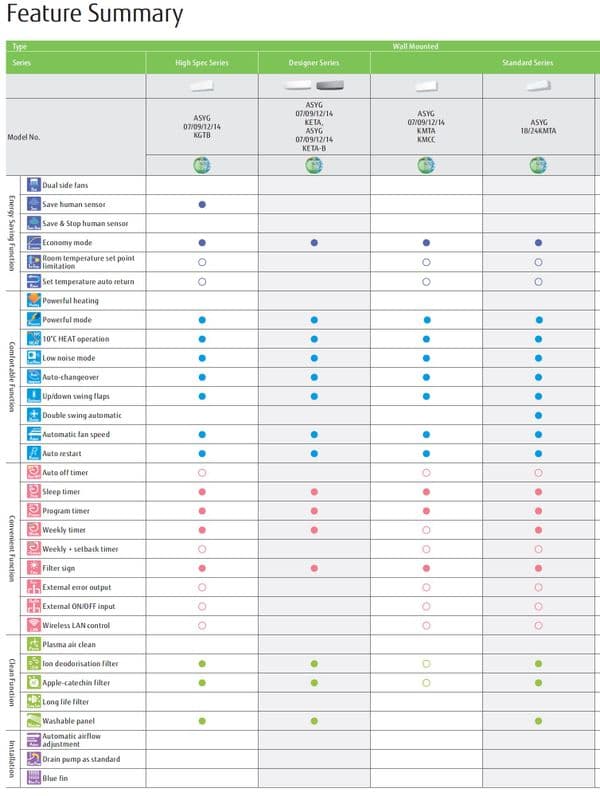

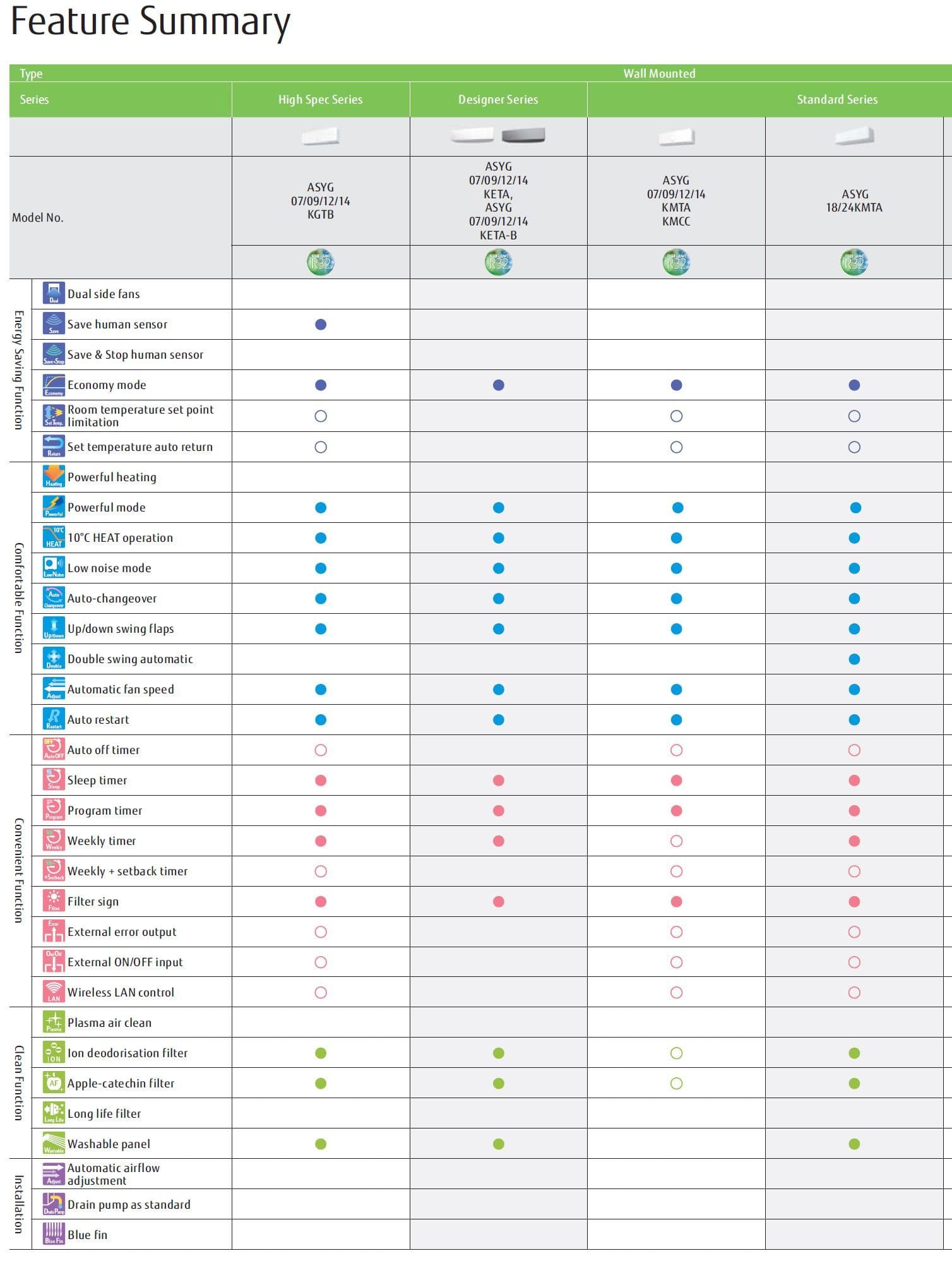

Product Key Feature's:


• CoP, up to 4.7 A+++

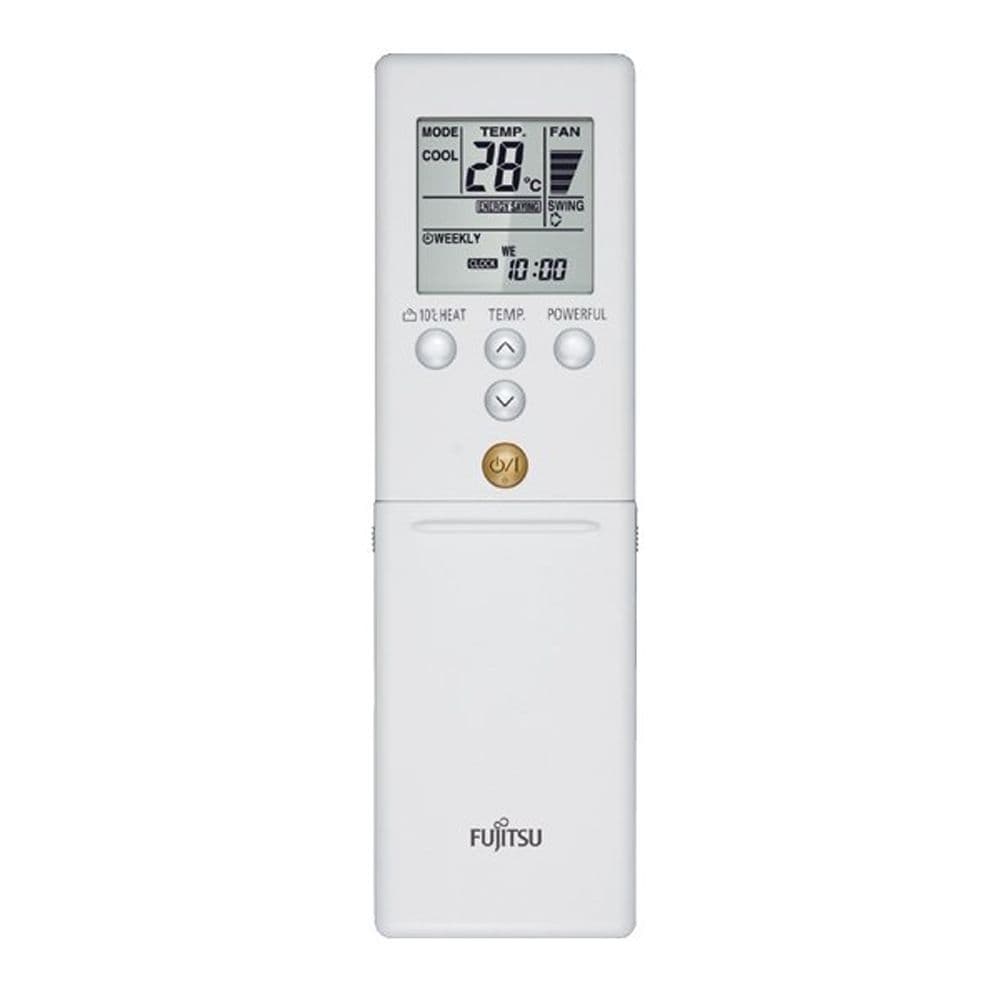

• Infra-red controller
• Slim construction on indoor and outdoor unit 320mm
• Pipe runs up to 30 metres
• Low noise – 21dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis with code output
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
• Cleaner and healthier air with washable indoor unit filters
• Low ambient tested to -10 Deg/C
• Light weight compact noise absorbing outdoor unit

Indoor Unit:



Model No. Indoor unit ASYG09KGTB

kW Class

kW

2.5

Power Source

Single phase, ~230V, 50Hz

Sound Pressure Level

Cooling

H/M/L/Q

dB(A)

40/34/29/21

Heating

42/36/31/22

Sound Power Level

Cooling

H

dB(A)

55

Heating

57

$LUÁRZ 5DWH

Cooling

H/M/L/Q

m3/h

700/560/430/270

Heating

750/610/470/330

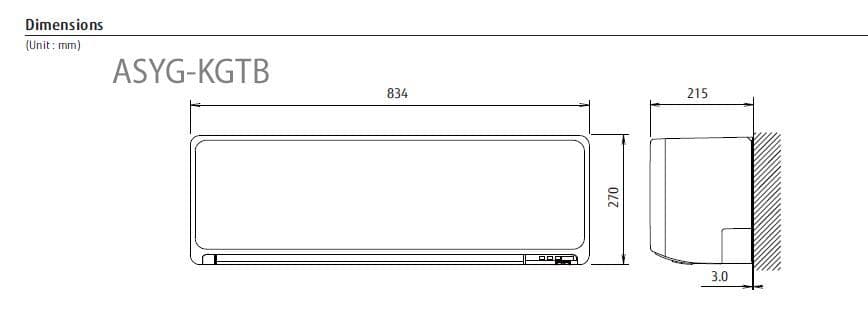

Net Dimensions

mm

270x834x215

Weight

kg(lbs)

10 (22)

Connection Pipe Diameter

Liquid/Gas

mm

6.35/9.52

Accessories:

Wired Remote Controller:  UTY-RVNYM
Simple Remote Controller: UTY-RSNYM
KNX® Convertor:UTY -VKSX
MODBUS® Convertor: UTY-VMSX
External connect kit: UTY-XWZXZ5
External Switch Controller: UTY-TERX
Communication kit: Wireless LAN Interface:UTY-TWBXF2 UTY-TFSXW1
Network Convertor for single split (DC power supply type): UTY-VTGX
Network Convertor for single split (AC power supply type): UTY-VTGXV
Wireless interface for use with Smart home products: FJ-AC-WIFI-1


Outdoor Unit:

Model No.         AOYG18KBTA2

Power Source

Single phase, ~230V, 50Hz

Nominal Capacity (min-max)

Cooling

kW

5.0 (1.7-5.8)

Heating

5.6 (1.8-6.6)

Power consumption

Cooling / Heating

kW

EER

Cooling

W/W

4.03

COP

Heating

4.59

Pdesign

Cooling/Heating(-10°C)

kW

5.0 / 4.2

SEER

Cooling

W/W

8.60

SCOP

Heating (Average)

4.70

(QHUJ\ (IÀFLHQF\ &ODVV

Cooling

A+++

Heating (Average)

A++

Annual Energy Consumption

Cooling

kWh/a

263

Heating

1434

Sound Pressure Level (High)

Cooling

dB(A)

47

Heating

50

Sound Power Level (High)

Cooling

60

Heating

62

$LUÁRZ 5DWH

Cooling/Heating

m3/h

1,960/2,020

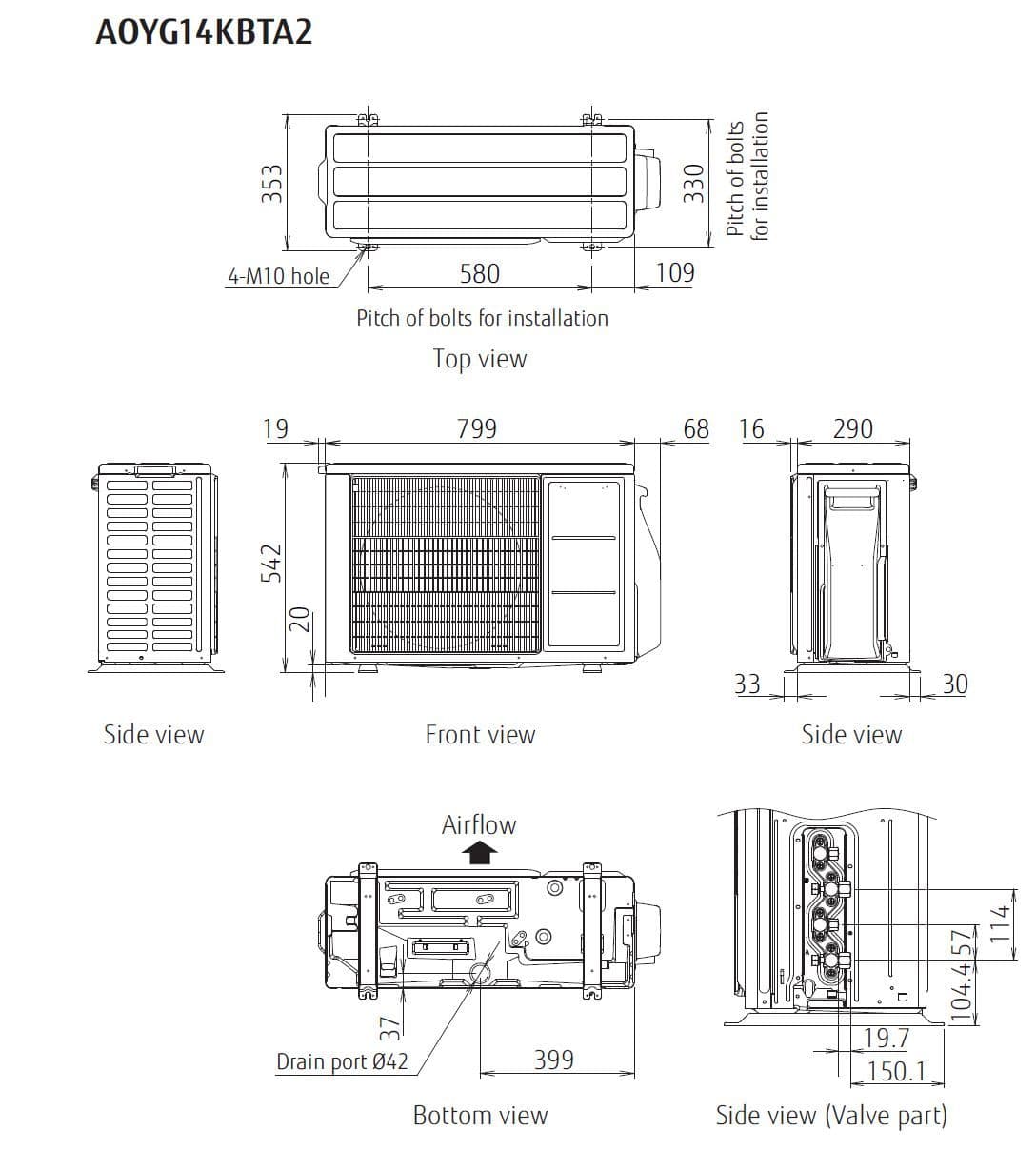

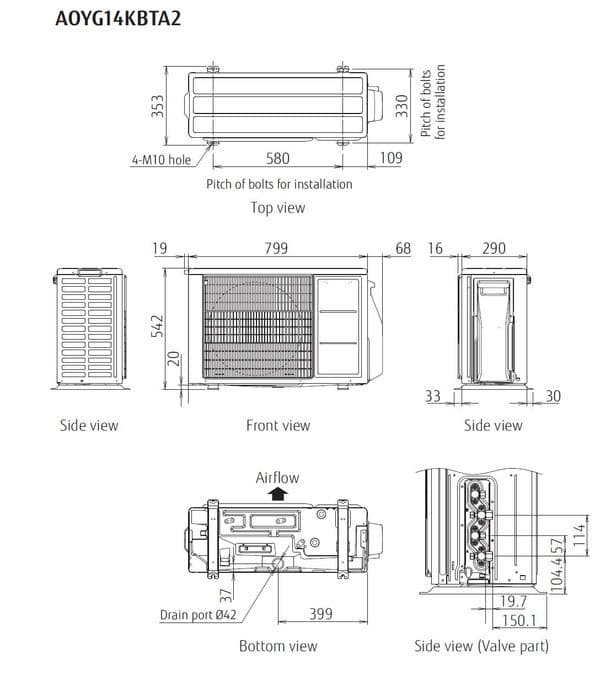

Net Dimensions H × W × D

mm

632×799×290

Weight

kg(lbs)

37 (82)

Interconnecting Cable (Suggested cable size 1.5mm)

3 core + earth

Suggested MCB Size

Amp

15

Max. Operating Current

Cooling/Heating

Amp

11.6

Starting Current

Amp

5.6

Power Supply To

Outdoor unit

Connection Pipe Diameter

Gas

Inch

3/8 × 2

Liquid

1/4×2

Max. Pipe Length

Total / Each

m

30 / 20

Max. Height Difference

Between Outdoor Unit and Each Indoor Units.

15

Between Indoor Units.

10

Refrigerant

Type

R32

Charge

g

1020

Additional Charge

g/m

20

Operation Range

Cooling

°CDB

-10 to 46

Heating

-15 to 24





PDF Data Sheet:
