Fujitsu Air Conditioning Multi-Room R32 Inverter AOYG14KBTA2 Heat Pump 2 x ASYG07KGTB 2Kw / 7000Btu Wall Mounted A++ 240V~50Hz

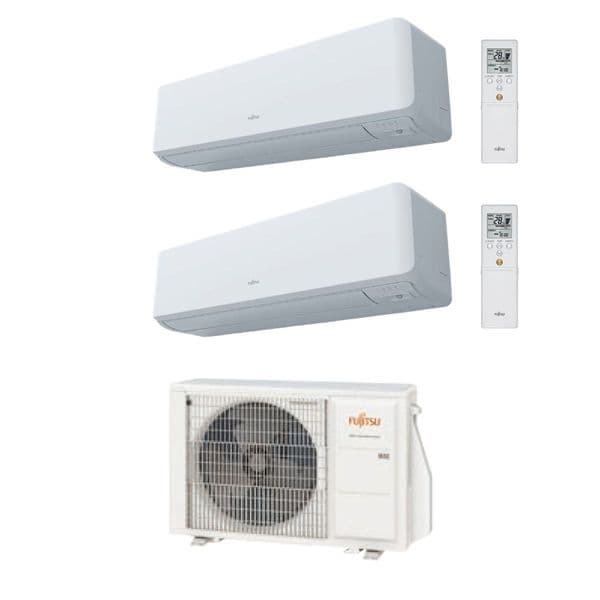

This Kit Includes:
1 x AOYG14KBTA2 R32 Inverter Heat Pump Condensing unit 2 way
2 x ASYG07KGTB Wall Mounted Air Conditioning Heat Pump R32 (2Kw / 7000 Btu)

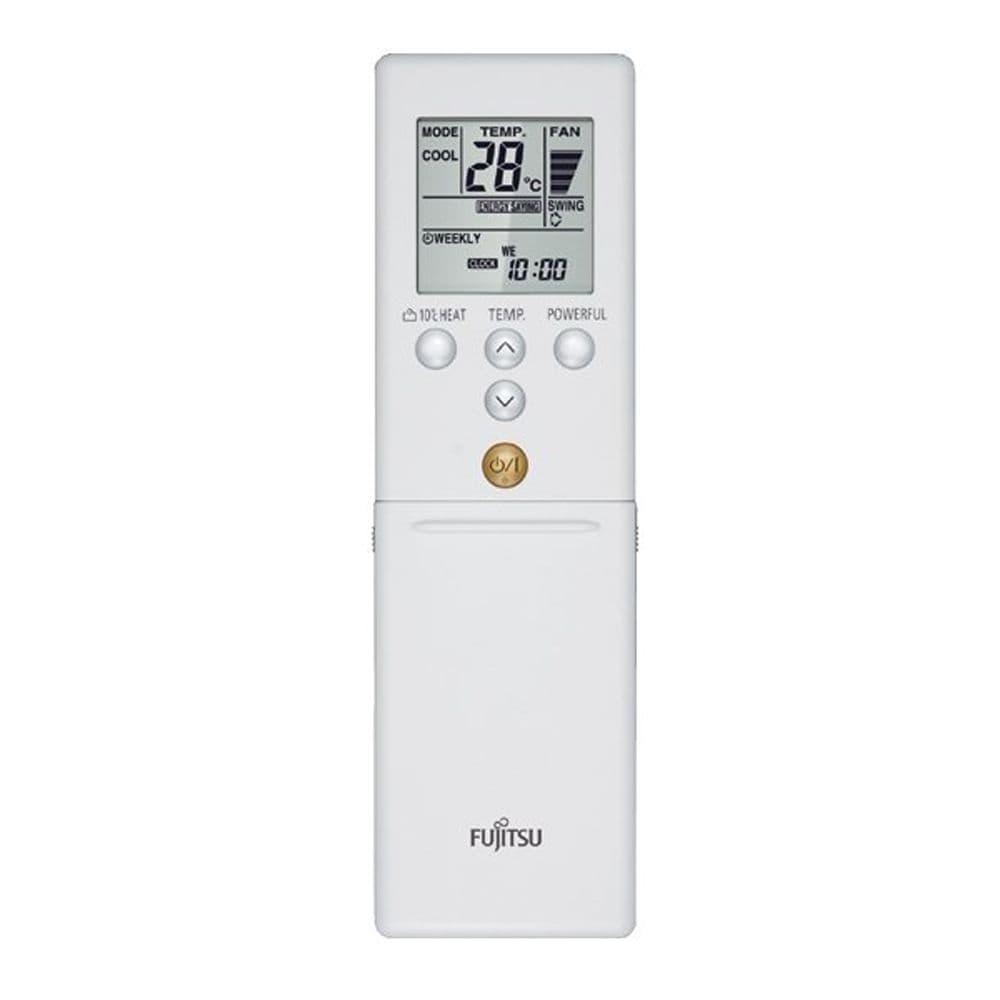

2 x Wireless Controllers
.jpg)
2 Wall mounted indoor units connected to 1 outdoor unit, 15m long piping connections also possible. Compared with single type, the outdoor unit can be installed in various places offering space-saving installation.

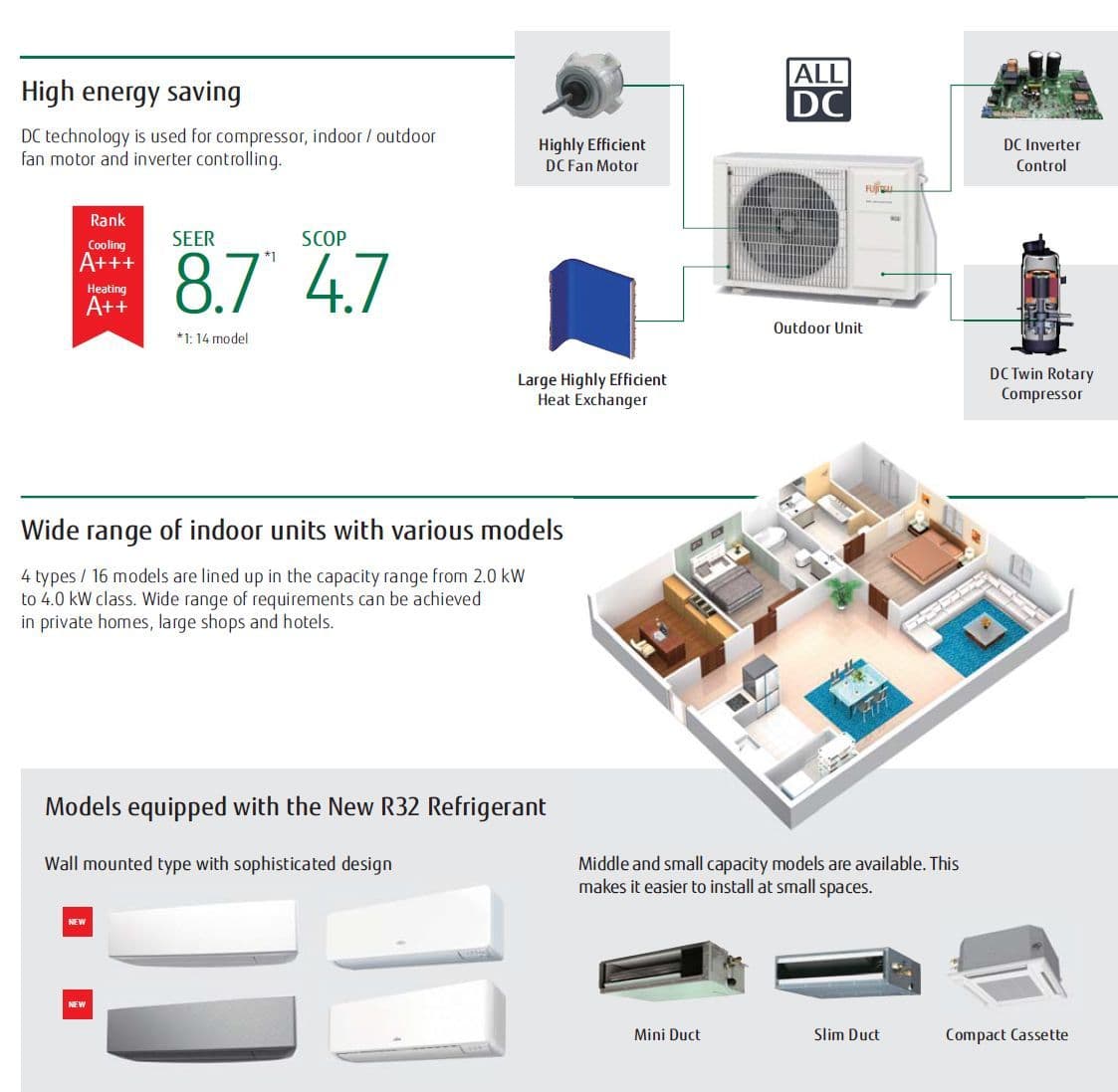

The AOYG Series R32 A+++ Multi-split units make it easily possible to have combinations of different kinds of indoor units with different capacities, in order to adapt to the needs of the user. Furthermore, being fitted with Inverter technology allows greater performance and lower energy consumption. Thanks to the DC Multi Inverter system, the Fujitsu R32 Multi-split Inverter units are up to 50% more efficient and offer a considerable energy saving with regard to the conventional models. This means the temperature reaches its optimum point in a rapid and uniform manner.
The R32 ASYG-KGTB standard indoor wall mounted units offer attractive aesthetics, the new design of the front of the indoor wall units provides easier cleaning as the air return remains hidden at the top. The indoor wall unit is a slim-line construction.
Ideal For Home or Small Office Applications:
As there is no need to install a large number of outdoor units, the outside aesthetics are virtually unaffected. Furthermore, these outdoor units are more compact than previous models, quieter and offer a greater installation location flexibility to ease the installation of the indoor units enormously.

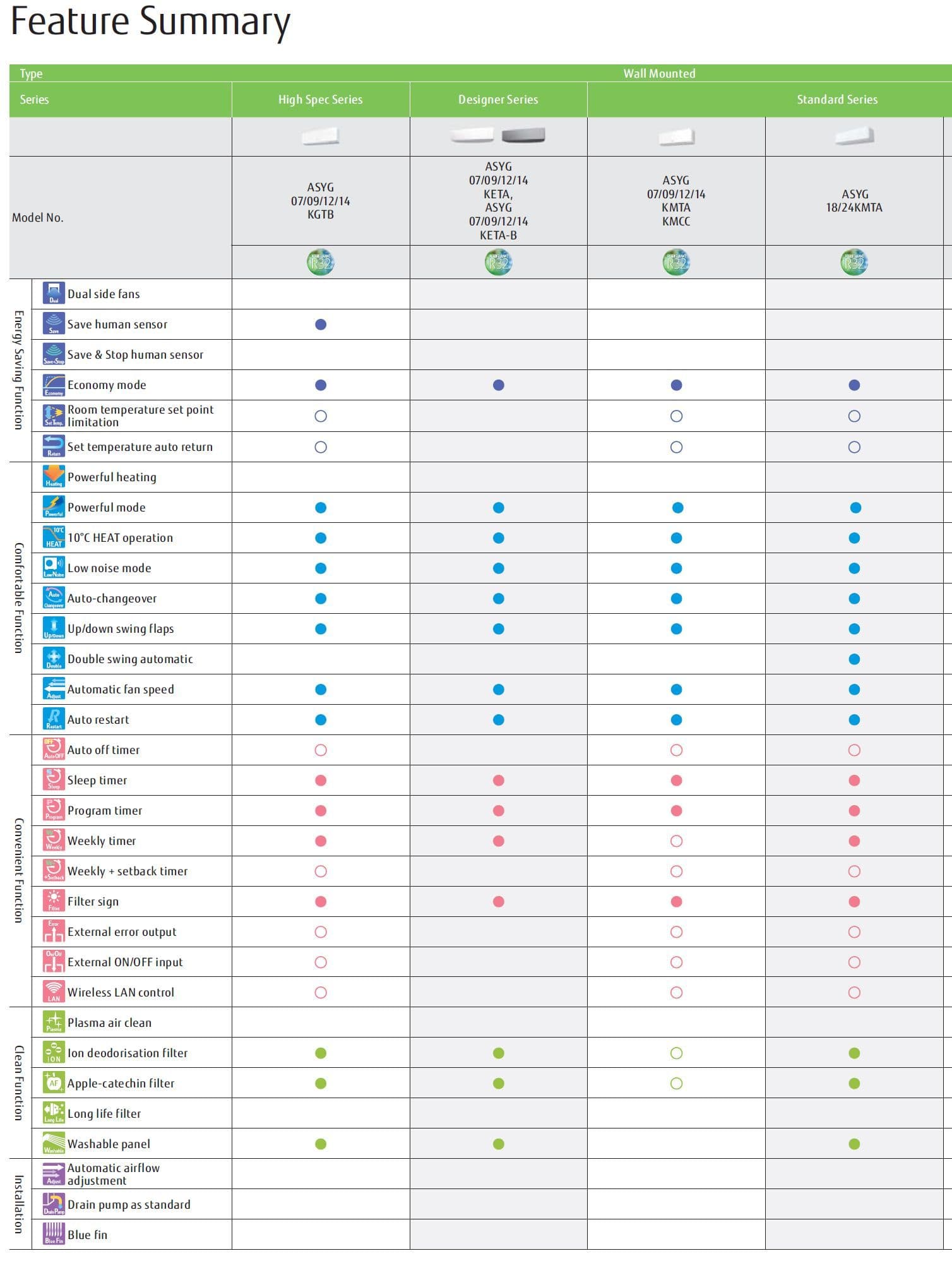

Product Key Feature's:
• CoP, up to 4.7 A+++
• Infra-red controller
• Slim construction on indoor and outdoor unit 320mm
• Pipe runs up to 30 metres
• Low noise – 21dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis with code output
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
• Cleaner and healthier air with washable indoor unit filters
• Low ambient tested to -10 Deg/C
• Light weight compact noise absorbing outdoor unit
Indoor Unit:
|
Model No. Indoor unit ASYG07KGTB
|
|
kW Class
|
kW
|
2.0
|
|
Power Source
|
Single phase, ~230V, 50Hz
|
|
Sound Pressure Level
|
Cooling
|
H/M/L/Q
|
dB(A)
|
38/33/29/21
|
|
Heating
|
41/35/31/22
|
|
Sound Power Level
|
Cooling
|
H
|
dB(A)
|
54
|
|
Heating
|
56
|
|
$LUÁRZ 5DWH
|
Cooling
|
H/M/L/Q
|
m3/h
|
650/540/430/270
|
|
Heating
|
720/580/460/330
|
|

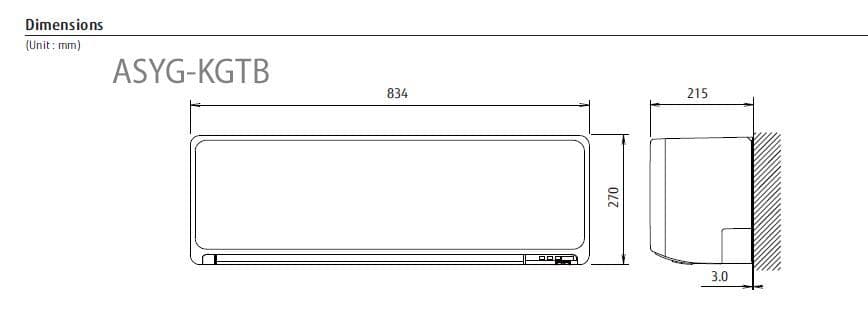

Net Dimensions
|
mm
|
270x834x215
|
|
Weight
|
kg(lbs)
|
10 (22)
|
|
Connection Pipe Diameter
|
Liquid/Gas
|
mm
|
6.35/9.52
|
Accessories:
Wired Remote Controller: UTY-RVNYM
Simple Remote Controller: UTY-RSNYM
KNX® Convertor:UTY -VKSX
MODBUS® Convertor: UTY-VMSX
External connect kit: UTY-XWZXZ5
External Switch Controller: UTY-TERX
Communication kit: Wireless LAN Interface:UTY-TWBXF2 UTY-TFSXW1
Network Convertor for single split (DC power supply type): UTY-VTGX
Network Convertor for single split (AC power supply type): UTY-VTGXV
Wireless interface for use with Smart home products: FJ-AC-WIFI-1
Outdoor Unit:
|
Model No. AOYG14KBTA2
|
|
Power Source
|
Single phase, ~230V, 50Hz
|
|

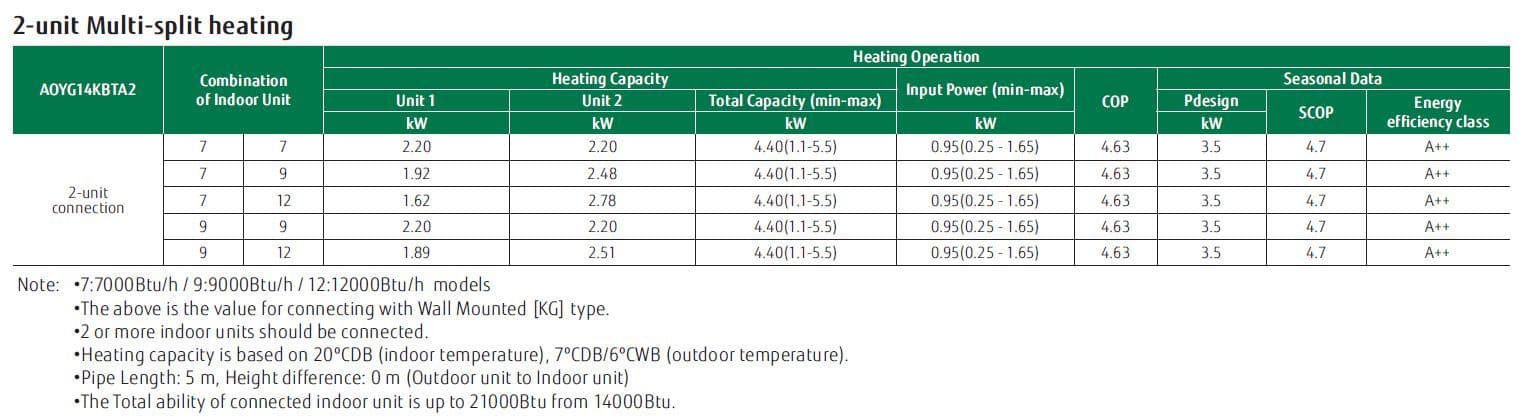

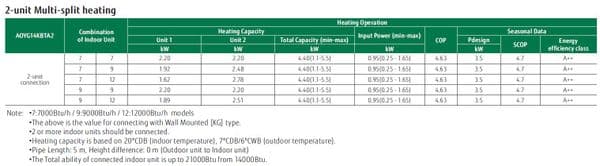

Nominal Capacity (min-max)
|
Cooling
|
kW
|
4.0 (1.4-4.6)
|
|
Heating
|
4.4 (1.1-5.5)
|
|
Power consumption
|
Cooling / Heating
|
kW
|
|
|
EER
|
Cooling
|
W/W
|
4.12
|
|
COP
|
Heating
|
4.63
|
|
P-design
|
Cooling/Heating(-10°C)
|
kW
|
4.0 / 3.5
|
|
SEER
|
Cooling
|
W/W
|
8.70
|
|
SCOP
|
Heating (Average)
|
4.70
|
|
(ENERGY CLASS)
|
Cooling
|
|
A+++
|
|
Heating (Average)
|
|
A++
|
|
Annual Energy Consumption
|
Cooling
|
kWh/a
|
209
|
|
Heating
|
1296
|
|
Sound Pressure Level (High)
|
Cooling
|
dB(A)
|
47
|
|
Heating
|
49
|
|
Sound Power Level (High)
|
Cooling
|
60
|
|
Heating
|
62
|
|
AIR FLOW
|
Cooling/Heating
|
m3/h
|
1,670/1,670
|
|

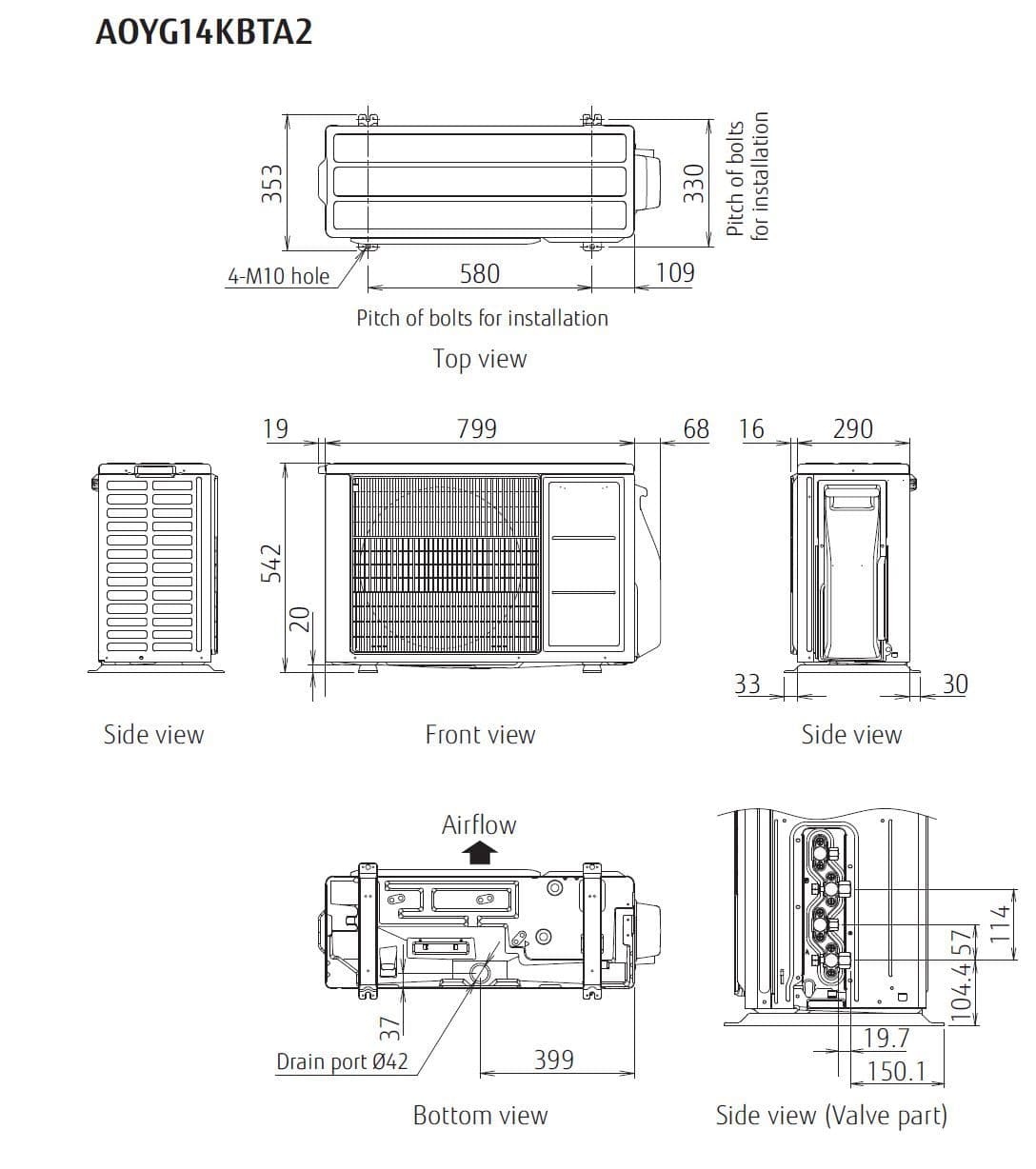

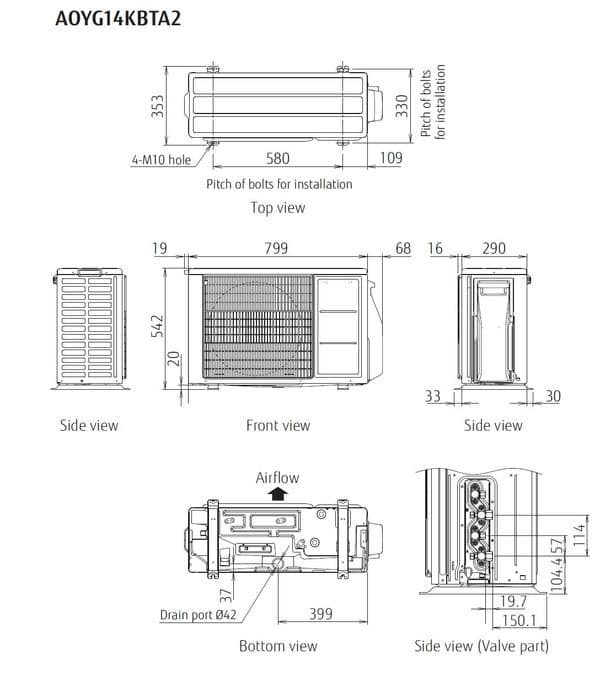

Net Dimensions H × W × D
|
mm
|
542×799×290
|
|
Weight
|
kg(lbs)
|
33 (73)
|
|
Interconnecting Cable (Suggested cable size 1.5mm)
|
3 core + earth
|
|
Suggested MCB Size
|
Amp
|
15
|
|
Max. Operating Current
|
Cooling/Heating
|
Amp
|
10.9
|
|
Starting Current
|
Amp
|
4.7
|
|
Power Supply To
|
|
Outdoor unit
|
|
Connection Pipe Diameter
|
Gas
|
Inch
|
3/8 × 2
|
|
Liquid
|
1/4×2
|
|
Max. Pipe Length
|
Total / Each
|
m
|
30 / 20
|
|
Max. Height Difference
|
Between Outdoor Unit and Each Indoor Units.
|
15
|
|
Between Indoor Units.
|
10
|
|
Refrigerant
|
Type
|
R32
|
|
Charge
|
g
|
900
|
|
Additional Charge
|
g/m
|
20
|
|
Operation Range
|
Cooling
|
°CDB
|
-10 to 46
|
|
Heating
|
-15 to 24
|
