This Kit Includes:

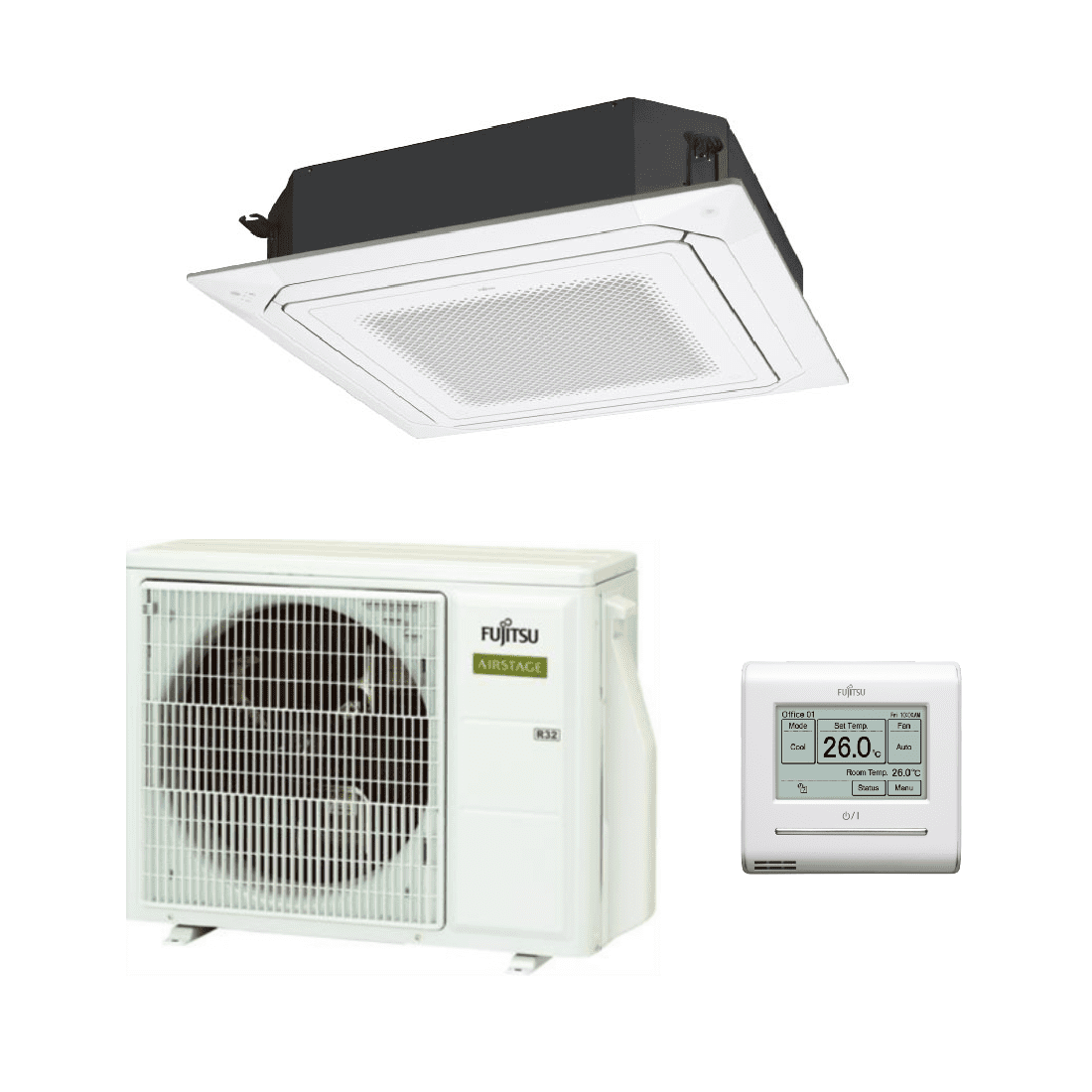

1 x Fujitsu Air Conditioning AIRSTAGE AUXG18KRLB Circular Flow Cassette 5Kw/18000Btu A++
1 x Fujitsu Air Conditioning AIRSTAGE AOEG18KBTB 5Kw/18000Btu Outdoor Heat Pump Inverter R32 A++ 220-240V~50Hz
1 x UTY-RNRYZ5 Touch Screen Controller
1 x UTG-UKYC-W Round-flow Fascia Panel

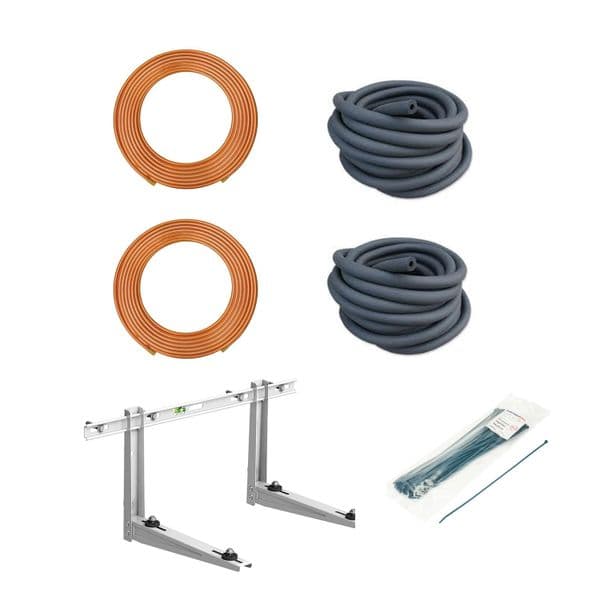

15 Meters x 3/8 inch coil pipe.
15 Meters x 5/8 inch coil pipe.
8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black
8 x Isoline (5/8 x 1/2) insulation 2 meter lengths Black
1 x Wall Bracket BJ TYPE 2 BRACKETS 120KG LOAD

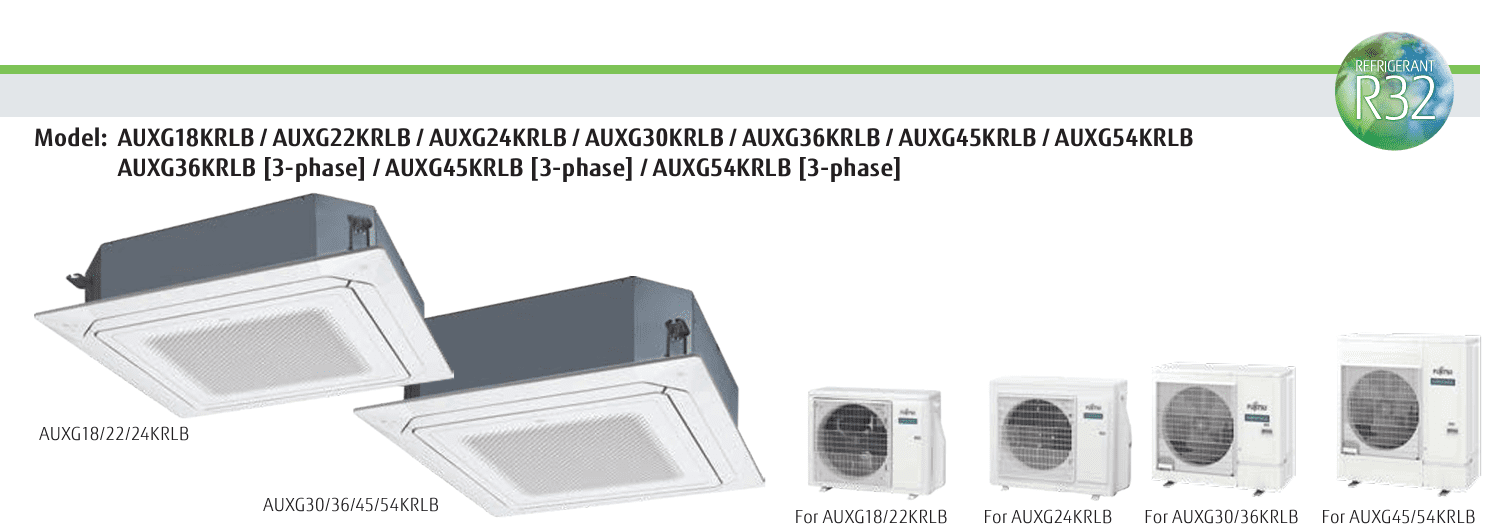

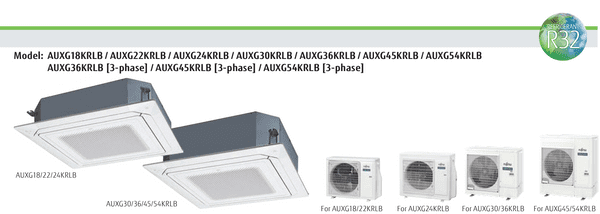

The advanced Fujitsu AUXG Circular Flow Cassette range has been expanded to include smaller-capacity INVERTER systems and high-efficiency models. These new systems feature an upgraded 7-Day Programmable Timer with a sleek touch-screen interface and multi-programmable 24-hour control, enhancing user convenience. Designed for both residential and commercial applications, this compact cassette series is ideal for offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open-plan areas.
The Fujitsu AUXG Circular Flow Cassette delivers exceptional 360º airflow, achieved through a high-performance DC turbo fan and a seamless louver design. Each louver can be individually controlled via the remote, allowing for customisable airflow directions tailored to various room layouts. To optimise energy efficiency, the system features a motion detector that activates energy-saving operations when movement is detected. The unit can also adapt airflow direction in two, three, or four configurations to suit room shapes, ensuring uniform air distribution. Its deflector slats enable sweeping airflow, quickly conditioning the space, with both sweep direction and auto-swing functions adjustable by remote control. Select models include a movable rosette and a weekly programming function, allowing for up to two on/off cycles per day.
The AUXG series incorporates intelligent features designed for optimal comfort and efficiency. The Auto Changeover function automatically transitions between cooling and heating modes based on the set temperature. Airflow is further refined with Optimised Airflow technology, where air vanes adjust to suit the operating mode, distributing warm air at a lower angle during heating mode to account for heat rising. Additionally, the Swirl Swing feature ensures even air distribution throughout the room by adjusting the louvers’ movements, creating a consistently comfortable environment.
Customisation options further enhance the flexibility of the AUXG range. Users can choose between black or white grilles, with configurations that include a white grille with or without a remote controller and a black grille without a remote controller. These options allow users to match the grille style to the room’s aesthetic or purpose. The system’s human motion sensor contributes to energy savings by initiating operation only when movement is detected. Two energy-saving modes—Save Mode and Stop Mode—are available, providing further control over energy usage.
This expanded range of Fujitsu AUXG Circular Flow Cassette systems combines advanced features, intelligent design, and customisation options, making it an excellent choice for diverse applications and room configurations.
Product Key Feature's:
- Full 360 degree air flow
- High Head Drain Pump 850mm
- Auto Changeover (heating and cooling)
- Low Standby Power (switch mode)
- Auto Restart after power outage
- Easy-to-Clean Air Filter
- Two Thermistor Temperature Control (Controller and Unit)
- Optimal Louver Air Distribution control
- Auto Operation
- Quiet Operation
- Healthy De-humidification
- Hot Start on heat mode
- 24-Hour ON/OFF Setting Timer With Weekly Program
- Optimal air distribution with a directional Air flow system
- Auto Louver Swing
Technical Data:
| Indoor unit |
AUXG54KRLB |
| Outdoor unit |
AOEG54KBTA |
| Capacity |
Cooling |
|
Rated (kW) |
14 |
|
|
Min.-Max. (kW) |
1.6-15.5 |
|
Heating |
|
Rated (kW) |
16 |
|
|
Min.-Max. (kW) |
0.9-8.0 |
|
| Input Power |
Cooling/Heating |
kW |
4.41/4.56 |
| EER |
Cooling |
|
W/W |
3.17 |
| COP |
Heating |
|
W/W |
3.73 |
| Pdesign |
Cooling (Heating -10°C) |
kW |
14 |
| SEER |
Cooling |
|
W/W |
6.5 |
| SCOP |
Heating (Average) |
W/W |
- |
| Energy Efficiency Class |
Cooling |
|
Class |
A++ |
|
Heating (Average) |
Class |
- |
| Max. Operating Current |
Cooling/Heating |
A |
28.5/28.5 |
| Annual Energy Consumption |
Cooling |
|
kWh/a |
752 |
|
Heating |
|
kWh/a |
5,000 |
| Moisture Removal |
|
l/h |
5.5 |
| Sound Pressure Level |
Indoor (Cooling) |
H/M/L/LL (dB(A)) |
40/35/32 |
|
Indoor (Heating) |
H/M/L/LL (dB(A)) |
40/35/32 |
|
Outdoor (Cooling/Heating) |
High (dB(A)) |
58/58 |
| Sound Power Level |
Outdoor (Cooling/Heating) |
High (dB(A)) |
72/72 |
| Airflow Rate |
Indoor/Outdoor (Cooling) |
High (m³/h) |
2,450/5,200 |
|
Indoor/Outdoor (Heating) |
High (m³/h) |
2,450/5,200 |

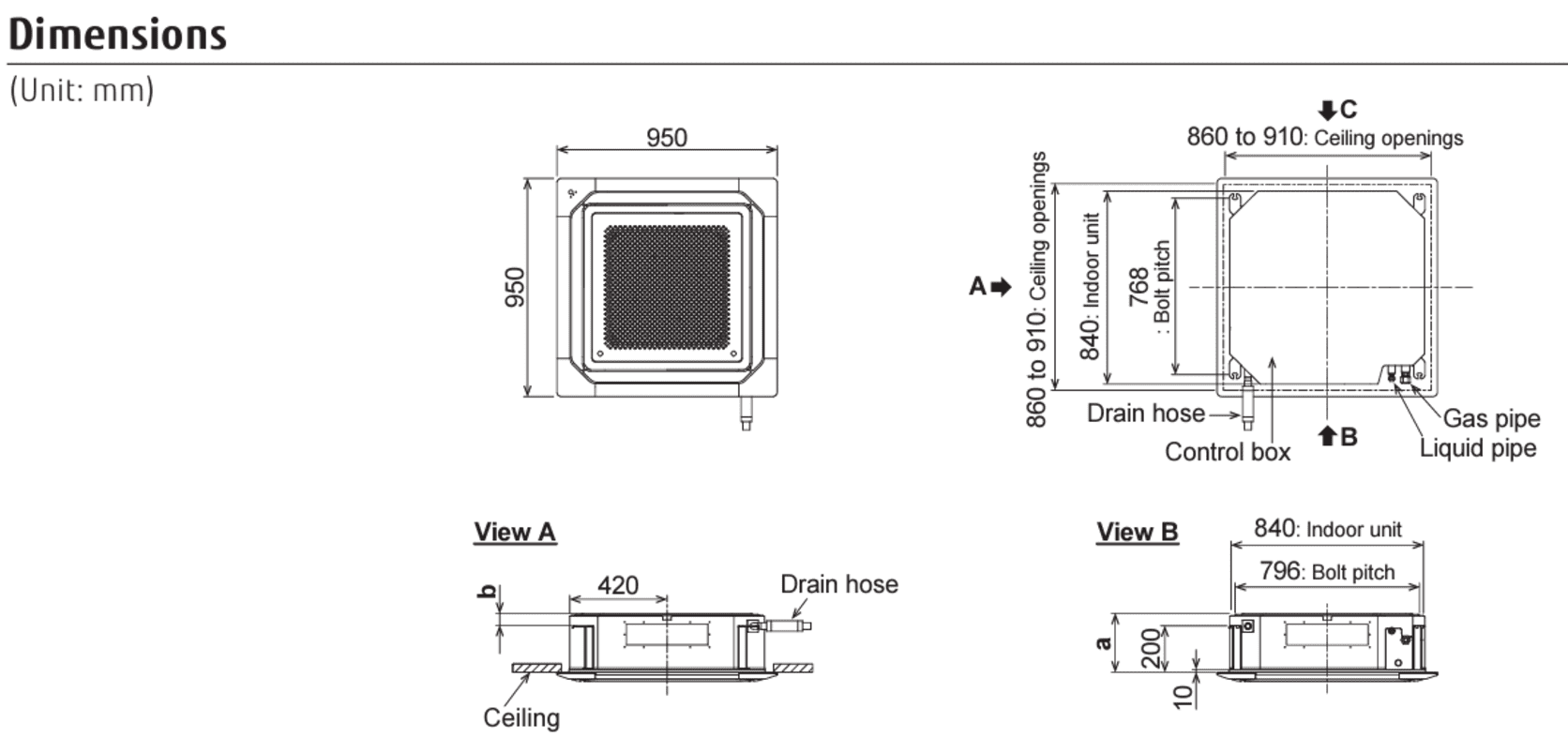

| Net Dimensions |
H × W × D |
|
Indoor (mm) |
288 × 840 × 840 |
|
|
|
Outdoor (mm) |
852 × 900 × 330 |
| Weight |
|
|
Indoor (kg) |
42 |
|
|
|
Outdoor (kg) |
83 |
| Connection Pipe Diameter (Liquid/Gas) |
|
(mm) |
9.52/15.88 |
| Drain Hose Diameter (I.D./O.D.) |
|
(mm) |
|
| Max. Pipe Length (Pre-Charge) |
|
(m) |
|
| Max. Height Difference |
|
(m) |
|
| Operating Range |
Cooling |
|
°CDB |
-15 to 46 |
|
Heating |
|
°CDB |
-15 to 24 |
| Refrigerant |
Type (Global Warming Potential) |
R32 |
(675) |
|
Charge |
|
kg (CO2eq-T) |
2.27 (1.533) |
| Cassette Grille |
Variation |
|
UTG-UKYA-W: White wired remote controller (touch panel) |
|
|
Dimensions (H × W × D) |
(mm) |
53 × 950 × 950 |
|
Weight |
|
(kg) |
6 |
Options:
| Optional parts |
| Wired Remote Controller (Design type): |
UTY-RVRY |
| Compact wired remote controller: |
UTY-RCRY |
| Wired remote controller (touch panel): |
UTY-RNRYZ5 |
| Wired remote controller: |
UTY-RLRY |
| Simple remote controller (without operation mode): |
UTY-RHRY |
| Simple remote controller: |
UTY-RSRY |
| Human sensor kit: |
UTY-SHZXC |
| External switch controller: |
UTY-TERX |
| IR receiver unit: |
UTY-LBTYC |
| WLAN adapter: |
UTY-TFSXZ1 |
|
FG-RC-WIFI1 |
|
UTY-TFSXJ3 |
|
FG-AC-WIFI1 |
| External input and output PCB: |
UTY-XCSX |
| External input and output PCB box: |
UTZ-GRXA |
| Insulation kit for high humidity: |
UTZ-XWRA |
|
UTZ-VXRA |
| Wide Panel: |
UTD-AKXA-W |
| Panel Spacer: |
UTD-BKXA-W |
| Air Outlet Shutter Plate: |
UTR-YDZK |
| Cassette Grille: |
UTG-UKYA-B |
|
UTG-UKYA-W |
|
UTG-UKYA-B1 |
| Network Converter for single split (DC power supply type): |
UTY-VTGX |
| Network Converter for single split (AC power supply type): |
UTY-VTGXV |
| Silver Ion Filter: |
UTD-HFRA |
| External connect kit: |
UTY-XWZXZG |
| (Outdoor unit 30/36/45/54) External connect kit: |
UTY-XWZXZ3 |
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
