Fujitsu Air Conditioning AIRSTAGE ARXG09KLLAP AOEG09KBTB Slim Duct Heat Pump Inverter R32 2.5Kw/9000Btu 220-240V~50Hz Installation Kit
Includes:

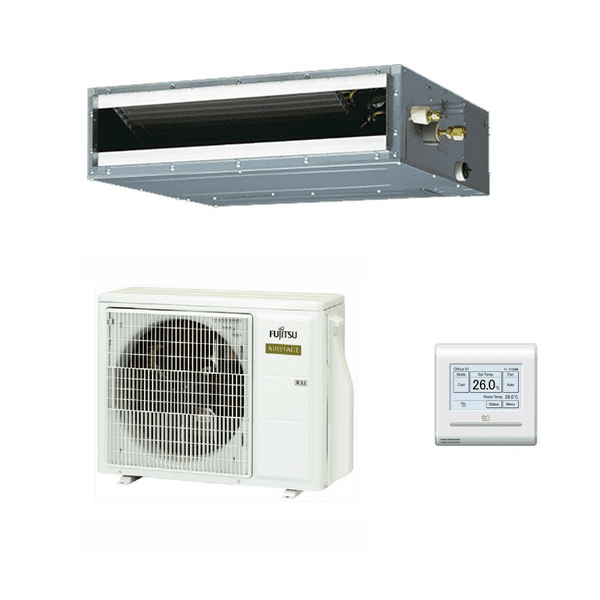

1 x Fujitsu Air Conditioning AIRSTAGE ARXG09KLLAP Slim Duct Heat Pump R32 2.5Kw/9000Btu
1 x Fujitsu Air Conditioning AIRSTAGE AOEG09KBTB Heat Pump Inverter Outdoor Condensing Unit 2.5Kw/9000Btu R32 220-240V~50Hz
1 x Hard Wired Touch-screen Controller UTY-RNRYZ5

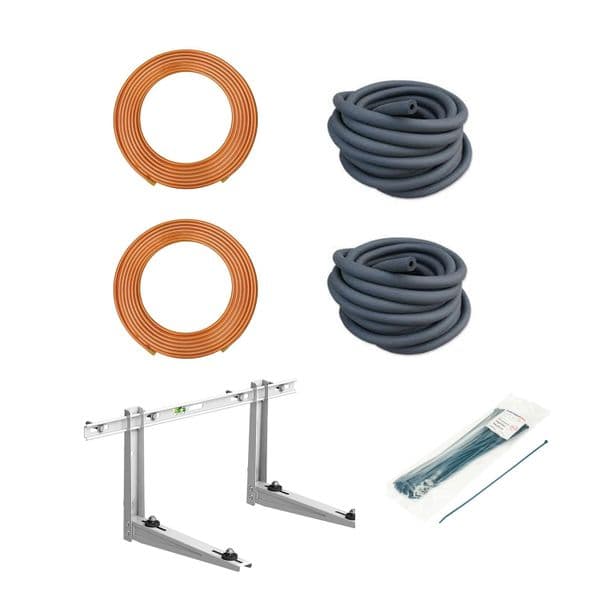

15 Meters x 1/4 inch coil pipe.
15 Meters x 3/8 inch coil pipe.
8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black
8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black
Wall Bracket BJ TYPE 2 BRACKETS 60KG LOAD
Horizontally Mounted

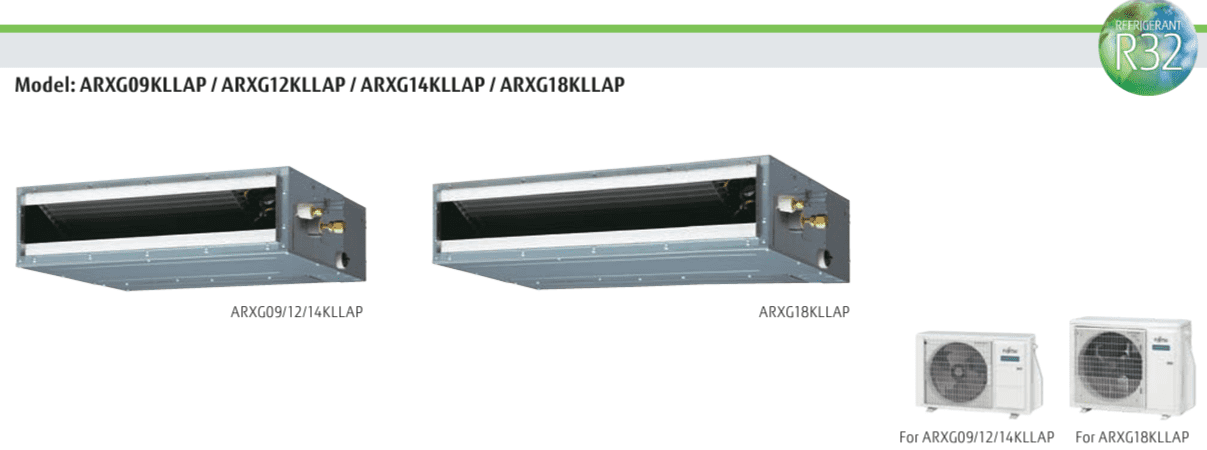

The Fujitsu ARXG ducted air conditioning systems provide an ideal solution for areas requiring discreet and efficient climate control. Perfect for small homes, offices, restaurants, or shops, these units are designed to be mounted above ceilings, operating at whisper-quiet noise levels for a virtually invisible presence. With a slim profile of just 198 mm and a lightweight build, installation is both simple and convenient, making them suitable for a variety of spaces. The units can be installed in bulkheads for an aesthetically pleasing architectural finish or integrated with duct outlets for seamless airflow distribution. For added versatility, an optional Auto-Louver Grille Kit allows for a professional finish with fully adjustable airflow direction, ensuring optimal comfort in any room. These systems are particularly well-suited for master bedrooms, living rooms, or other quiet environments where low noise and sleek integration are essential.

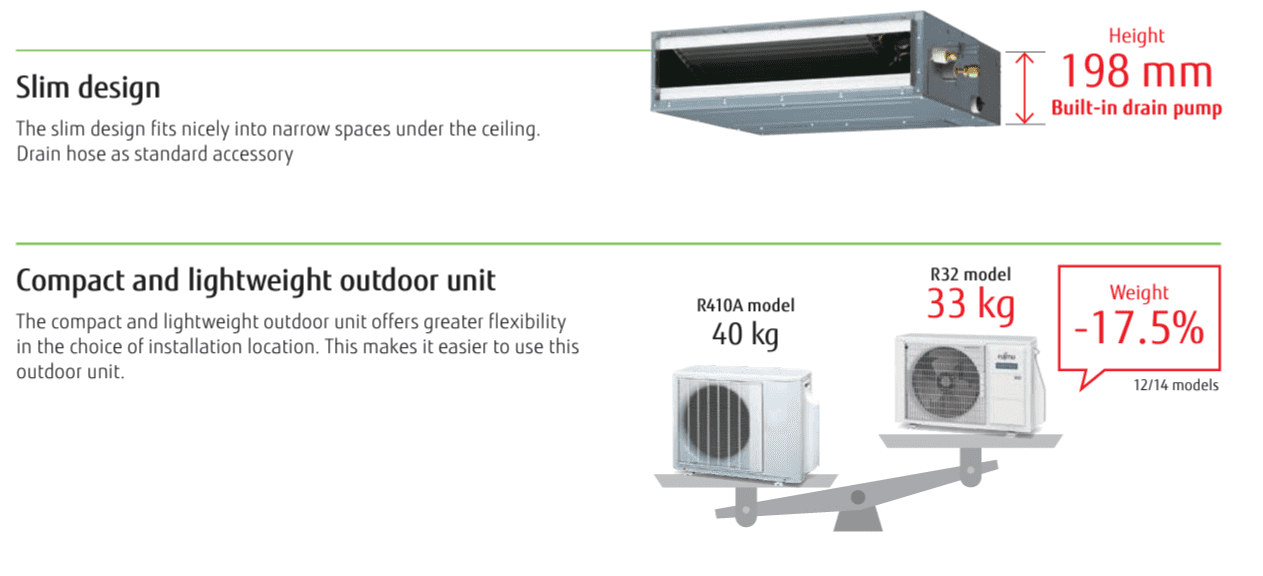

Paired with Fujitsu’s advanced R32 inverter outdoor units, the system delivers exceptional energy efficiency and reliable performance even in extreme temperatures. The outdoor units feature a compact and lightweight design, with a reduced size and weight of up to 17.5% compared to previous models. Equipped with an energy-saving V-Ram circuit, these systems intelligently adjust the compressor speed to meet real-time demands, drastically reducing temperature fluctuations and maintaining a stable ±0.5ºC room temperature range. The environmentally friendly R32 refrigerant further enhances system efficiency while reducing its environmental impact. Additional features include a wide static pressure range adjustable via remote control (0 to 90 Pa) and compatibility with centralized control systems such as KNX and MODBUS, making them ideal for modern integrated facility management. Together, the Fujitsu ARXG ducted units and R32 inverter outdoor systems deliver superior comfort, efficiency, and design for both residential and commercial applications.
Key Product Features:
- Slim Design: Compact 198 mm height fits narrow spaces and ceilings.
- Whisper-Quiet: Ideal for bedrooms, offices, and noise-sensitive areas.
- Flexible Installation: Compatible with duct outlets or Auto-Louver Grille for adjustable airflow.
- Energy Efficient: R32 inverter outdoor units reduce energy consumption.
- Lightweight: Easy to install with a compact, reduced-weight design.
- Precise Control: Maintains a stable ±0.5ºC temperature range.
- Eco-Friendly: Uses R32 refrigerant for lower environmental impact.
- Adjustable Pressure: Wide static pressure range (0-90 Pa) for installation flexibility.
- Centralized Control: Supports KNX and MODBUS for smart facility management.
- Versatile Use: Suitable for homes, offices, restaurants, and shops.
Specification:
|
Indoor Unit
|
ARXG09KLLAP
|
|
Outdoor Unit
|
AOEG09KBTB |
| Power Source |
Single phase, 230V, 50Hz |
| Cooling Capacity (kW) |
0.9-3.2 |
| Heating Capacity (kW) |
0.9-4.7 |
| Input Power (Cooling/Heating, kW) |
0.60/0.79 |
| EER (Cooling, W/W) |
4.17 |
| COP (Heating, W/W) |
4.05 |
| Pdesign (Cooling/Heating, kW) |
2.5/2.6 |
| SEER (Cooling, W/W) |
6.20 |
| SCOP (Heating, W/W) |
4.30 |
| Energy Efficiency Class (Cooling/Heating) |
A++/A+ |
| Max. Operating Current (Cooling/Heating, A) |
7.9/7.9 |
| Annual Energy Consumption (Cooling/Heating, kWh) |
141/845 |
| Moisture Removal (l/h) |
0.7 |
| Sound Pressure Level Indoor (Cooling, dB(A)) |
28/27/26/25 |
| Sound Power Level Indoor (Cooling, dB(A)) |
59/59 |
| Airflow Rate (Indoor/Outdoor, m³/h) |
600/1,480 |
| Static Pressure Range (Pa) |
0 to 90 (25) |

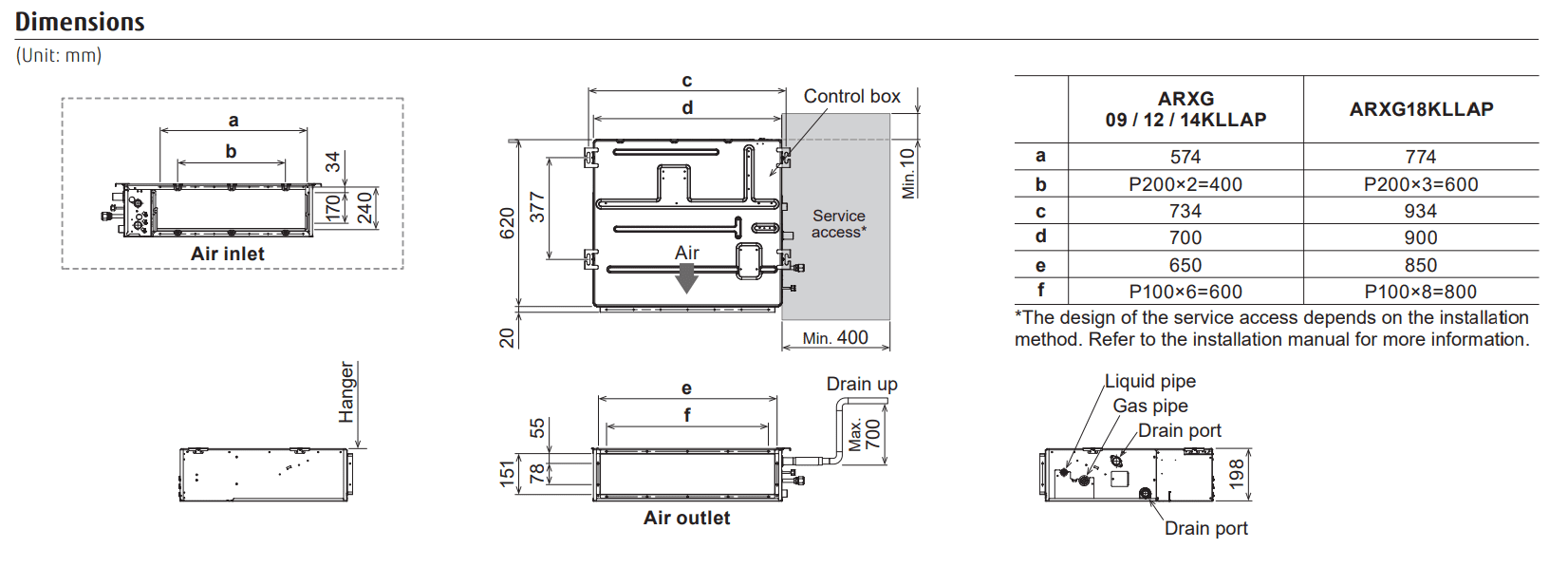

| Net Dimensions (Indoor, mm) |
198x700x620 |
| Net Dimensions (Outdoor, mm) |
542x799x290 |
| Weight (Indoor, kg) |
17 |
| Weight (Outdoor, kg) |
32 |
| Connection Pipe Diameter (Liquid/Gas, mm) |
6.35/9.52 |
| Drain Hose Diameter (mm) |
25/32 |
| Max. Pipe Length (Pre-charge, m) |
20 (15) |
| Max. Height Difference (m) |
15 |
| Operating Range (Cooling, °CDB) |
-15 to 46 |
| Operating Range (Heating, °CDB) |
-15 to 24 |
| Refrigerant Type (Global Warming Potential) |
R32 (675) |
| Refrigerant Charge (kg (Oz)) |
0.85 (0.574) |
Options:
| Part Type |
Model Number |
| Wired Remote Controller (Design type) |
UTY-RVRY |
| Compact wired remote controller |
UTY-RCRYZ1 |
| Wired remote controller (touch panel) |
UTY-RNRYZ5 |
| Wired remote controller |
UTY-RLRRY, UTY-RNNYM, UTY-RVNYM |
| Simple remote controller (without operation mode) |
UTY-RHRY |
| Simple remote controller |
UTY-RSRY |
| WLAN adapter |
UTY-TFSXZ1, FG-RC-WIFI2Z, UTY-TFSXJ3, FG-AC-WIFI2Z |
| Silver Ion Filter |
UTD-HFTA (09-14), UTD-HFTB (18) |
| External switch controller |
UTY-TERX |
| IR receiver unit |
UTY-LBTYM |
| Network Convertor for single split (DC power supply type) |
UTY-VTGX |
| Network Convertor for single split (AC power supply type) |
UTY-VTGXV |
| External connect kit |
UTY-XWZXZG |
| Remote sensor unit |
UTY-XSZXZ1 |
| Auto Louver Grille Kit |
UTD-GXTA-W (09-14), UTD-GXTB-W (18) |
| Remote sensor unit |
UTY-XSZXZ1 |
| WLAN adapter (alternate model) |
UTY-TFSXJ3 |
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
