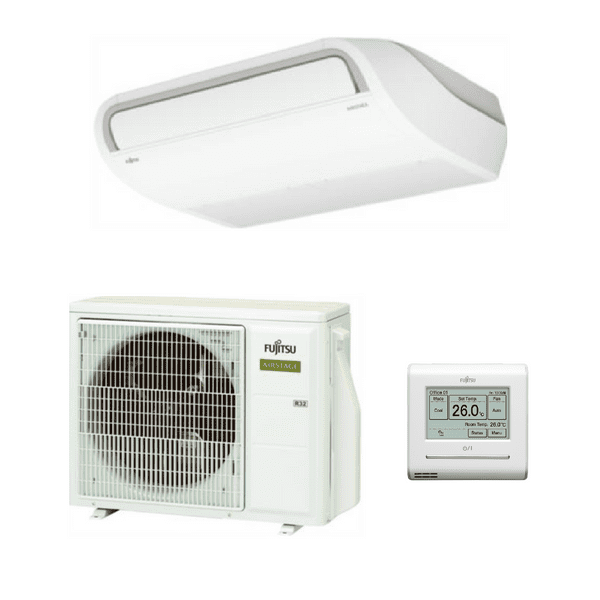

This Kit Includes:
1 x Fujitsu Air Conditioning AIRSTAGE ABEG36KRTA Ceiling Mounted Heat Pump 10Kw/36000Btu A++
1 x Fujitsu Air Conditioning AIRSTAGE AOEG36KBTB Outdoor Inverter Heat Pump 10Kw/36000Btu R32 A++ 380-415V~50Hz 3Ph
1 x Wired Touch Screen Remote Controller UTY-RNRYZ5
15 Meters x 3/8 inch coil pipe.
15 Meters x 5/8 inch coil pipe.
8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black
8 x Isoline (5/8 x 1/2) insulation 2 meter lengths Black
1 x Wall Bracket BJ TYPE 2 BRACKETS 120KG LOAD

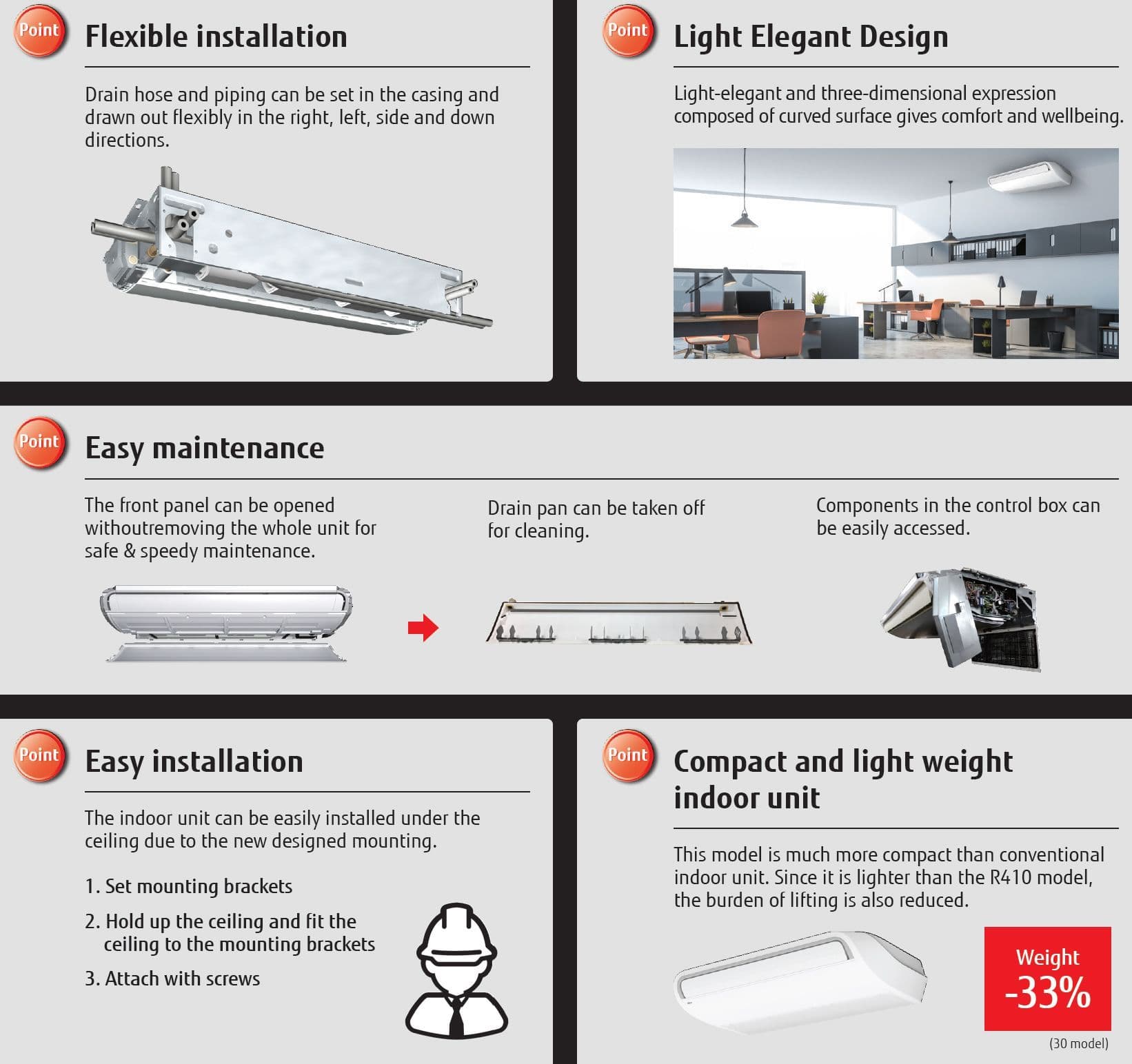

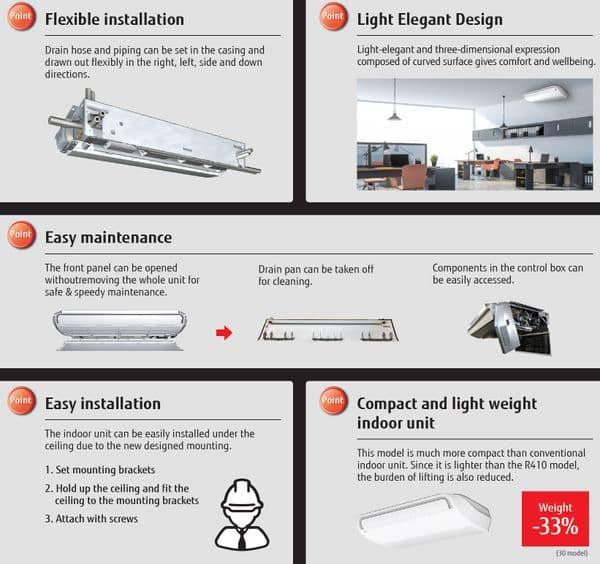

Fujitsu air conditioning AIRSTAGE ABEG ceiling units are compact and powerful with the latest inverter technology incorporated. The indoor unit has a rounded edge design and cover that allows easy maintenance of the indoor unit. The unit can also be semi-inserted into a false ceiling by as as much as 150mm. In addition, the profile of the inside unit is designed to fit into a false ceiling made of plaster. The horizontal and vertical air sweep combination allows three-dimensional control of the air direction. The remote control allows the air outlet direction and the fan function to be chosen with horizontal or vertical sweeps. Likewise, the deflector slat system uniformly distributes the airflow avoiding the unpleasant effects that direct airflow can cause.
Product Key Feature's:
• High SCOP and energy rating A+
• Hard wired touch screen controller with Infra-red controller option
• Slim construction
• Pipe runs up to 30 metres
• Low noise
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT
• Low ambient tested to -15 Deg/C in heating.
• Light weight noise absorbing outdoor unit.
Technical Data:
| Specifications |
ABEG36KRTA AOEG36KBTA |
| Power Source |
Single phase, 380-415V, 50 Hz |
| Cooling Capacity Rated (kW) |
9.5 |
| Cooling Capacity Min-Max (kW) |
2.8-11.2 |
| Heating Capacity Rated (kW) |
10.8 |
| Heating Capacity Min-Max (kW) |
2.7-12.7 |
| Input Power Cooling/Heating (kW) |
2.96/2.88 |
| EER Cooling (W/W) |
2.87 |
| COP Heating (W/W) |
3.52 |
| Pdesign Cooling/Heating (-10°C) (kW) |
9.5/8.7 |
| SEER Cooling (W/W) |
6.37 |
| SCOP Heating (Average) (W/W) |
4.21 |
| Energy Efficiency Class Cooling |
A++ |
| Energy Efficiency Class Heating (Average) |
A+ |
| Max. Operating Current Cooling/Heating (A) |
10.5/10.5 |
| Annual Energy Consumption Cooling (kWh/a) |
- |
| Annual Energy Consumption Heating (kWh/a) |
2,904 |
| Moisture Removal (l/h) |
4.5 |
| Sound Pressure Level Indoor (Cooling) (H/M/L/Q) |
44/39/34 |
| Sound Pressure Level Outdoor (Cooling/Heating) High (dB(A)) |
57/57 |
| Sound Power Level Outdoor (Cooling/Heating) High (dB(A)) |
70/70 |
| Airflow Rate Indoor/Outdoor (Cooling) High (m³/h) |
1,850/3,750 |

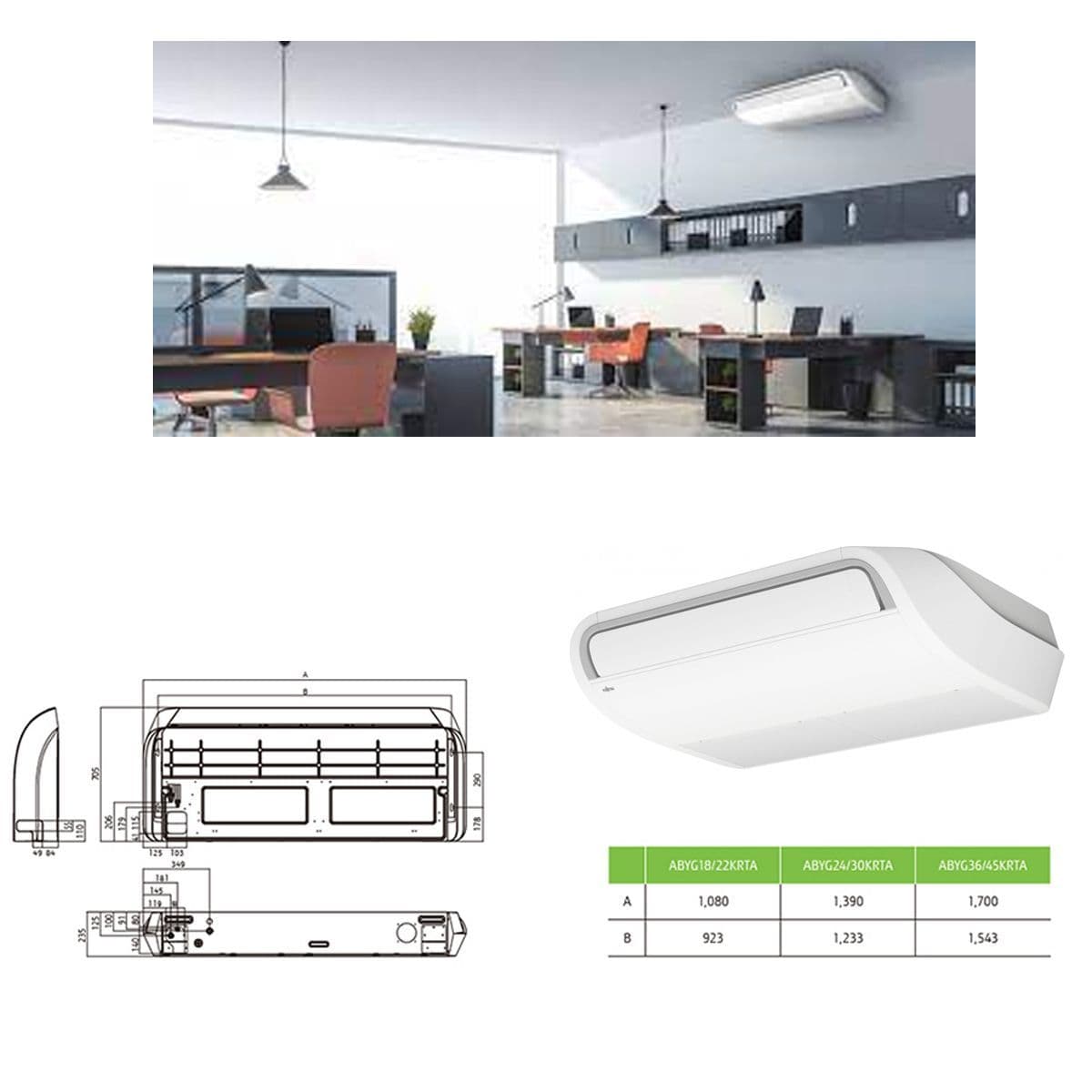

| Net Dimensions Indoor (H x W x D) (mm) |
235x1,700x705 |
| Net Dimensions Outdoor (H x W x D) (mm) |
788x940x320 |
| Weight Indoor (kg) |
52 |
| Weight Outdoor (kg) |
52 |
| Connection Pipe Diameter (Liquid/Gas) (mm) |
9.52/15.88 |
| Drain Hose Diameter (I.D./O.D.) (mm) |
25/32 |
| Max. Pipe Length (Pre-Charge) (m) |
50 (30) |
| Max. Height Difference (m) |
30 |
| Operating Range Cooling (°CDB) |
-15 to 46 |
| Operating Range Heating (°CWB) |
-15 to 24 |
| Refrigerant Type (Global Warming Potential) |
R32 (675) |
| Refrigerant Charge (kg (CO2eq-T)) |
1.90 (1.283) |
Option's:
| Compact Remote Controller: |
UTY-RCRYZ1 |
| Wired Remote Controller : (Touch Panel) |
UTY-RNRYZ3 |
| Simple Remote Controller: (Without operation mode) |
UTY-RHRY |
| Simple Remote Controller: |
UTY-RSRY |
| External Switch Controller : |
UTY-TERX |
| External input and output PCB : |
UTY-XCSX |
| External input and output PCB Box : |
UTZ-GXEA |
| External Connect Kit : |
UTY-XWZXZG |
| Wireless LAN Interface: |
UTY-TFSXZ1 |
| MODBUS® Converter: |
UTY-VMSX |
| KNX® Converter |
UTY-VKSX |
| Drain Pump Unit: |
UTR-DPB24T |
| IR Receiver Unit : |
UTY-LBTYH |
| L-Type Piping Kit: |
UTP-FX24A (18/22/24) |
| UTP-FX35A (30/36/45/54) |
| Network Convertor for single split : (DC power supply type) |
UTY-VTGX |
| Network Convertor for single split : |
UTY-VTGXV |
| Wireless interface for use with Smart home products: (AC power supply type) |
FJ-AC-WIFI-1 |
| (Outdoor unit 30/36/45/54) External Connect Kit: |
UTY-XWZXZ3 |
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
