This Kit Includes:

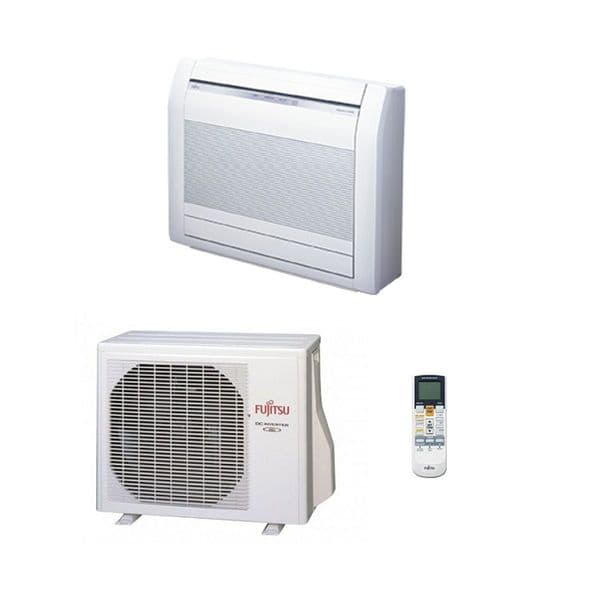

1 x Fujitsu Air conditioning AGYG09KVCA Floor Console Heat pump A+++ R32 2.5Kw/9000Btu
1 x Fujitsu Air conditioning AOYG09KVCA Outdoor Heat pump Inverter A+++ R32 2.5Kw/9000Btu 220V-240V~50Hz
1 x Ir Remote Controller
The Fujitsu air conditioner AGYG floor mounted unit is a people-friendly, function packed, environment-friendly range of heating and cooling systems. The Fujitsu AGYG floor mounted units offer a broad range of functions designed for small living spaces, offices, bedrooms and children’s rooms. Fujitsu air conditioners make the room being air conditioned more comfortable with automatic operation functions, air cleaning filters and easy control functions. All Fujitsu air conditioner models feature heat pump inverter technology which are highly efficient in operation and conserve electricity usage.

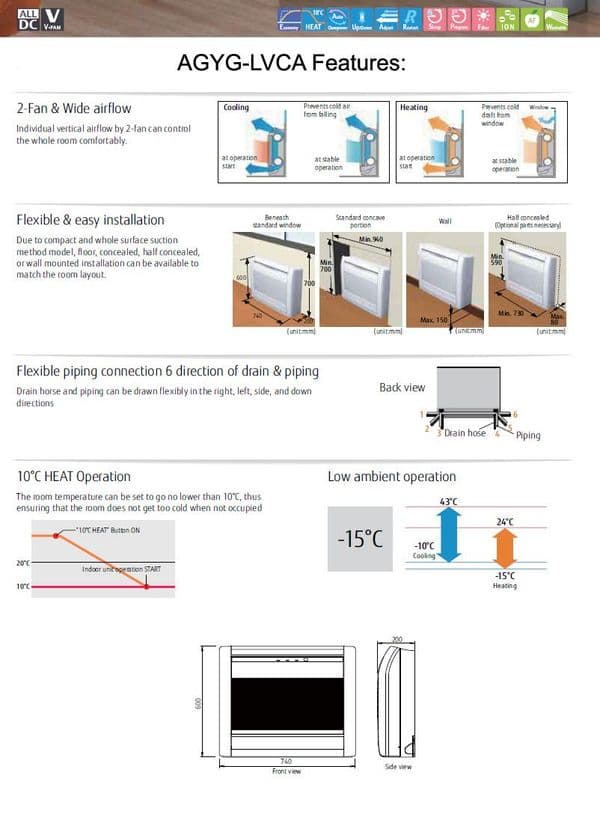

The new floor mounted design gives high performance from a compact unit. At only 600mm high, it will fit under most windows and on conservatory walls making it ideal for limited space applications. The indoor unit incorporates two fans, one for heating (blows down) and one for cooling (blows up. Once the desired temperature has been achieved, the lower fan stops and air continues to be supplied via the top only. In addition to more attractive aesthetics, the new design of the front of the units provides easier cleaning. The unit is a slim-line construction 600x740x200 on small models.
The single-phase outdoor units are low noise, small and weigh less whilst increasing their resistance to the outside weather conditions due to the powder coated IPX65 casing. Among the outstanding qualities of the outdoor units, the noise has been reduced as a result of the build quality, material quality and the incorporation of unique details, such as the protection of the connection valves.
Product Key Feature's:
• High SCOP and energy rating A++ / A+++
• Infra-red controller
• Slim construction 200mm
• Pipe runs up to 15 metres
• Low noise – 22dBA
• 5 Year Manufacturers warranty
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 15 metres pipe length
• With “Power Diffuser” effect for greater comfort.
• Automatic cleaning function.
• Cleaner and healthier air with ion generator incorporated in indoor unit.
• Low ambient tested to -15 Deg/C in heating.
• Light weight noise absorbing outdoor unit.
Technical Data:
|
Indoor Unit / Outdoor Unit
|
AGYG09KVCA AOYG09KVCA
|
|
Nominal Cooling Capacity (Range) kW
|
2.6 (0.9 - 3.5)
|
|
UK Cooling (Total / Sensible) kW
|
2.40 / 2.33
|
|
Nominal Heating Capacity (Range) kW
|
3.5 (0.9 - 5.1)
|
|
UK Heating kW
|
4.50
|
|
EER Cooling / COP Heating SEER / Energy Efficiency Class - Cooling SCOP / Energy Efficiency Class - Heating
Annual Energy Consumption Cool / Heat kWh/a Pdesign Cooling / Heating (-10°C) kW
|
4.70 / 4.30
8.50 / A+++
4.30 / A+ 103 / 845 2.5 / 2.6
|
|
Indoor Dimensions (H x W x D) mm
|
600×740×200
|
|
Outdoor Dimensions (H x W x D) mm
|
542×799×290
|
|
Weight Indoor / Outdoor kg
|
14.0 / 36.0
|
|
Sound Pressure Level Indoor - min/max dB(A)
|
22 / 41
|
|
Pipe Size (Liquid - Gas) mm
Min - Max Pipe Len. (Precharge) / Height Diff. m Additional Refrigerant Charge g/m
Ref. Type (Global Warming Potential) Refrigerant Charge kg / CO2eq-T
|
1/4" - 3/8"
3 - 20 (15) / 15
20
R32 (675)
0.85 / 574
|
|
Power Source / Suggested Fuse Size
|
1Ph-230V-50Hz / 10
|
|
Indoor Unit
|
£541
|
|
Remote Controller
|
IR Included
|
|
Outdoor Unit
|
£689
|
|
System Price
|
£1,230
|
R32 Floor Console AGYG-KVCA Control Options:
|
Model
|
AGYG..KVCA
09/12/14
|
|
Hi-Spec TP WRC
|
2-Wire
|
UTYRNRYZ3 £166 (KVCA’s + UTYTWRXZ3 £73)
|
|
Simple TP WRC
|
UTYRCRYZ1 £114 (KVCA’s + UTYTWRXZ3 £73)
|
|
Simple WRC
|
UTYRSRY £150 UTYRHRY £150 (KVCA’s + UTYTWRXZ3 £73)
|
|
FGLair Wi-Fi App Controlled Interface
|
UTYTFSXZ1 £155
|
|
Intesis WiFi
|
FJACWIFI1 £243
|
|
Modbus BMS Interface
|
NA
|
|
KNX BMS Interface
|
NA
|
|
Network Converter
|
UTYVTGX £462
|
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
