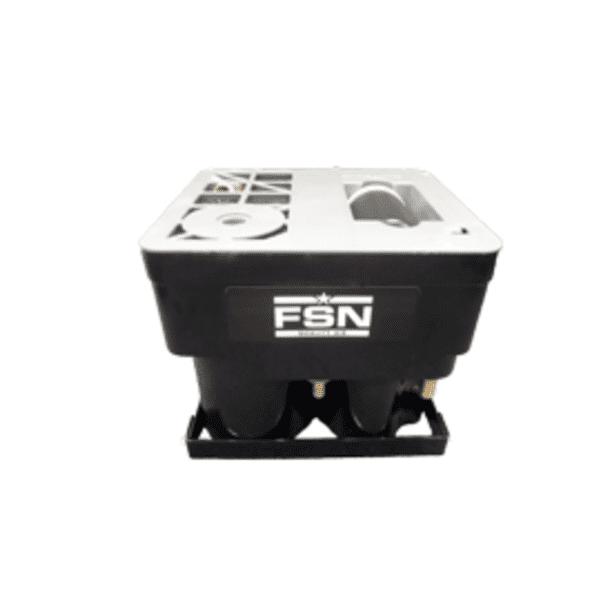

FSN EW20 Condensate Oil Water Separator 70 cfm 1/2"G Part No: F-8193408 2000 L/min

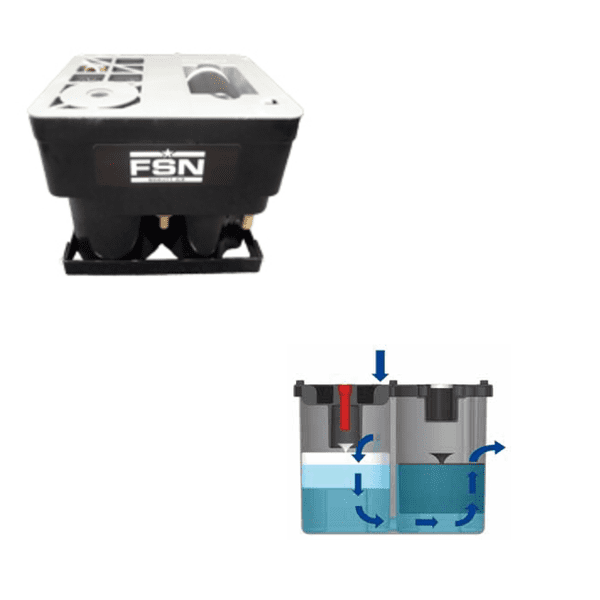

The EW20 ECOWATER oil-water separators are capable of removing mineral and synthetic oil resulting from the use of any compressors from the condensate discharged by compressed air systems giving a residual oil content well below current law limits. Separator inlet accommodates any type of condensate drain (float, timer-operated, capacitance drains, etc.) and outlet water can be piped directly into the drainage system. The EcoWater separators, with a two-towers multi-stage configuration, is constituted by a polypropylene fiber element and an active carbon element, specially selected and treated to maximize the adsorption properties, allowing the maximum filtration efficiency.The compact design and light weight of the elements, facilitate the inspection and routine maintenance.

Technical Data:



L/min 2000

m3/h 120

c.f.m 70

Bar 16

Psi 232

Outlet G (") 1/2"

Kg 5

Product L x W x H (mm) 250 x 250 x 230
