Home > Refrigeration Equipment > Refrigeration Evaporators And Coolers > Friga-Bohn Refrigeration Evaporators

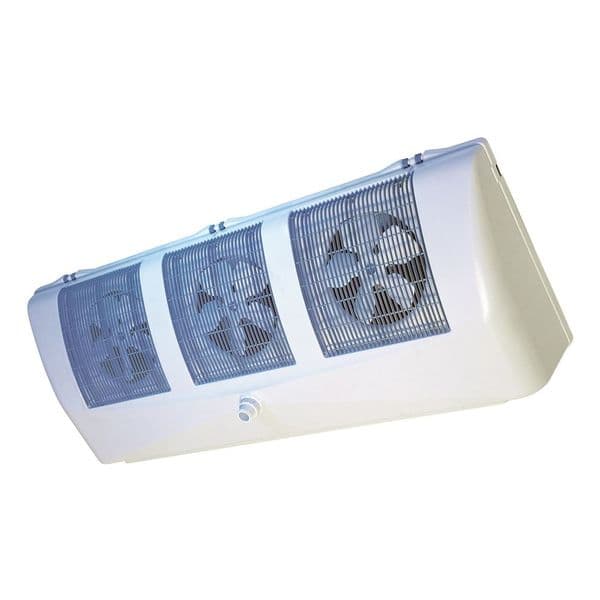

Friga-Bohn Ceiling Mounted Refrigeration Panel Coolers MR (R) 240V~50Hz

Our Price: £296.43
Model
Electric Defrost Kit
Description

Friga-Bohn Ceiling Mounted Refrigeration Panel Coolers MR (R) 240V~50hZ


MR units coolers are suitable for small refrigerated rooms for chilling or low temperature storage applications. 28 basic models with capacity ranging from 380 to 2620W.


Casing

    • ABS recyclable casing guarantees a high quality
    • robustness: high thermal (at low and high temperatures) and mechanical shock-proof characteristics.
    • aesthetics: its look, its finish and granulated white casing make the MR integrate completely with its installed environment, MR fins with polyester finish
    • hygiene: no water retaining areas favorable to germ development due to its round cornered casing
    • and no corrosive elements (for example: stainless steel screws),
    • safety no sharp or cutting edges.

Ventilation

50-60 Hz fan assembly (Ø 200 mm) used for MR and MRE models, is designed with an enclosed frame, class B, impedance protected, life lubricated motor, connected to the junction box (except for MR 75/65).  Fan guards conform to safety regulations.


Coil
  • The high efficient and compact MR range finned coils, are designed with corrugated aluminum fins (fin spacing: 4.23 or 6,35 mm) and grooved internal structure copper tubes.
  • The refrigerant distributors are Venturi type for models MR 160/140 to MR 270/250 and MRE 135/120 to MRE 270/250.
  • The whole MR coil has a polyester painting protection, particularly for corrosive atmospheres.

Defrost
  • 230 V /1 tubular electric heater connected to a junction box (MRE only) is inserted in slots, under the coil which facilitates easy maintenance and ensures equal heat distribution through the coil. So, defrost is perfect.
  •  Defrost water is collected in an intermediate drain pan then drained through a Ø 1” G threaded polyamid drain fitting.

Technical Specification:



Models

MR ... R

75

110

135

160

180

210

270

Capacity

DT1 = 8K - SC 2 (1)

W

680

1070

1270

1550

1860

2060

2620

Surface

m2

3,35

3,66

6,10

8,04

8,04

10,05

13,40

Circuit volume

dm3

0,58

0,63

1,05

1,1

1,38

1,73

2,30

Air flow

m3/h

290

650

580

880

880

870

1160

Fan 230 V/1/50-60 Hz 1500 r.p.m.

Air throw (2)

m

3

3,7

3,5

4,1

4,1

4

4,5

Ø 200 mm

Num.

1

2

2

3

3

3

4

230 V/1/50 Hz

W max

1 x 38

2 x 38

2 x 38

3 x 38

3 x 38

3 x 38

4 x 38

A max (3)

1 x 0,24

2 x 0,24

2 x 0,24

3 X 0,24

3 X 0,24

3 x 0,24

4 x 0,24

Net weight

kg

3

7,5

9,5

14,5

14,5

15

20

Dimensions

A

mm

514

784

784

1174

1174

1174

1504

B

mm

326

596

596

493

493

493

658

Connections

Inlet

Ø ODF *

3/8" 10 mm **

3/8" 10 mm **

3/8" 10 mm **

D 1/2" ***

D 1/2" ***

D 1/2" ***

D 1/2" ***

Outlet

Ø ODF *

3/8" 10 mm

3/8" 10 mm

3/8" 10 mm

1/2" 12 mm

1/2" 12 mm

1/2" 12 mm

1/2" 12 mm
