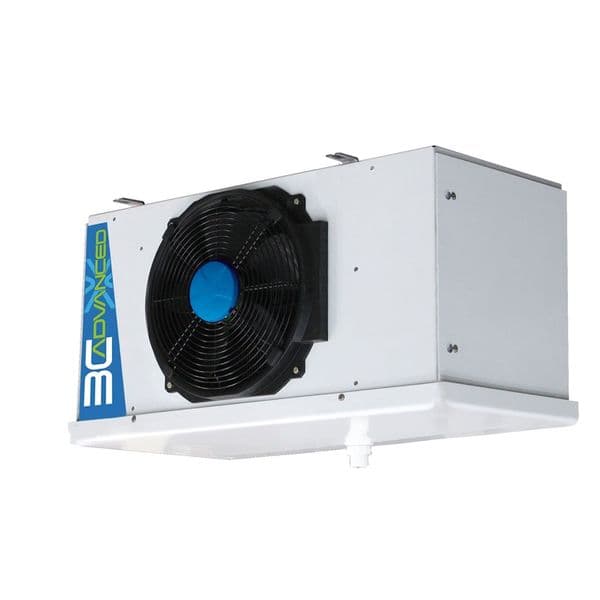

Multi Refrigerant (HFC) Coil. High efficiency motor fan factory wired. Heaters are factory wired to a terminal block.
Key Product Features:
- ABS recyclable casing guarantees a high quality
- robustness: high thermal (at low and high temperatures) and mechanical shock-proof characteristics.
- aesthetics: its look, its finish and granulated white casing make them integrate completely with its installed environment
- hygiene: no water retaining areas favorable to germ development due to its round cornered casing
- and no corrosive elements (for example: stainless steel screws),
- safety no sharp or cutting edges.
Ventilation:
50-60 Hz fan assembly (Ø 200 mm), designed with an enclosed frame, class B, impedance protected, life lubricated motor, connected to the junction box. Fan guards conform to safety regulations.
Coil:
- The high efficient and compact range finned coils, are designed with corrugated aluminum fins (fin spacing: 4.23 or 6,35 mm) and grooved internal structure copper tubes.
- The refrigerant distributors are Venturi type
- The whole case has a polyester painting protection, particularly for corrosive atmospheres.
Technical Specification:
- Cooling cap: 1570 W -R404A - SC3
- Fan - Number x Diam: 1 x 300 mm
- Length: 659 mm
