Ideal for Body Temperature Screening

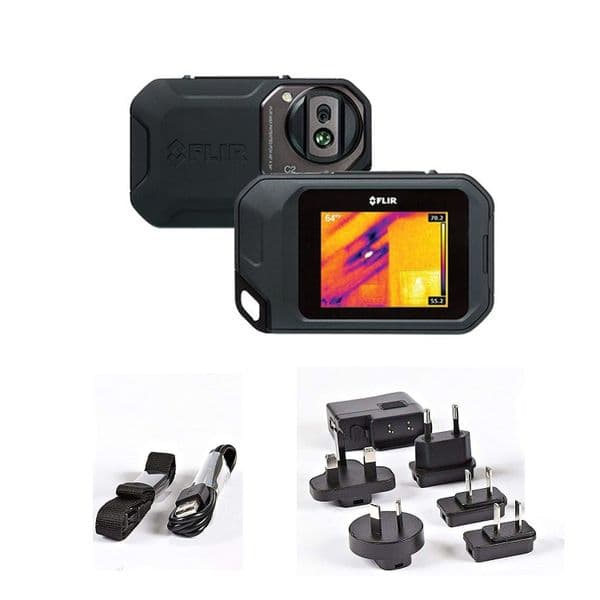

Package 72001-0101 Includes:
- FLIR C2 Radiometric Pocket-Sized Thermal Camera
- Rechargeable Battery (Inside Camera)
- Lanyard
- Power Supply/Charger with EU, UK, US, CN and AU Plugs
- Printed Getting Started Guide
- USB Cable

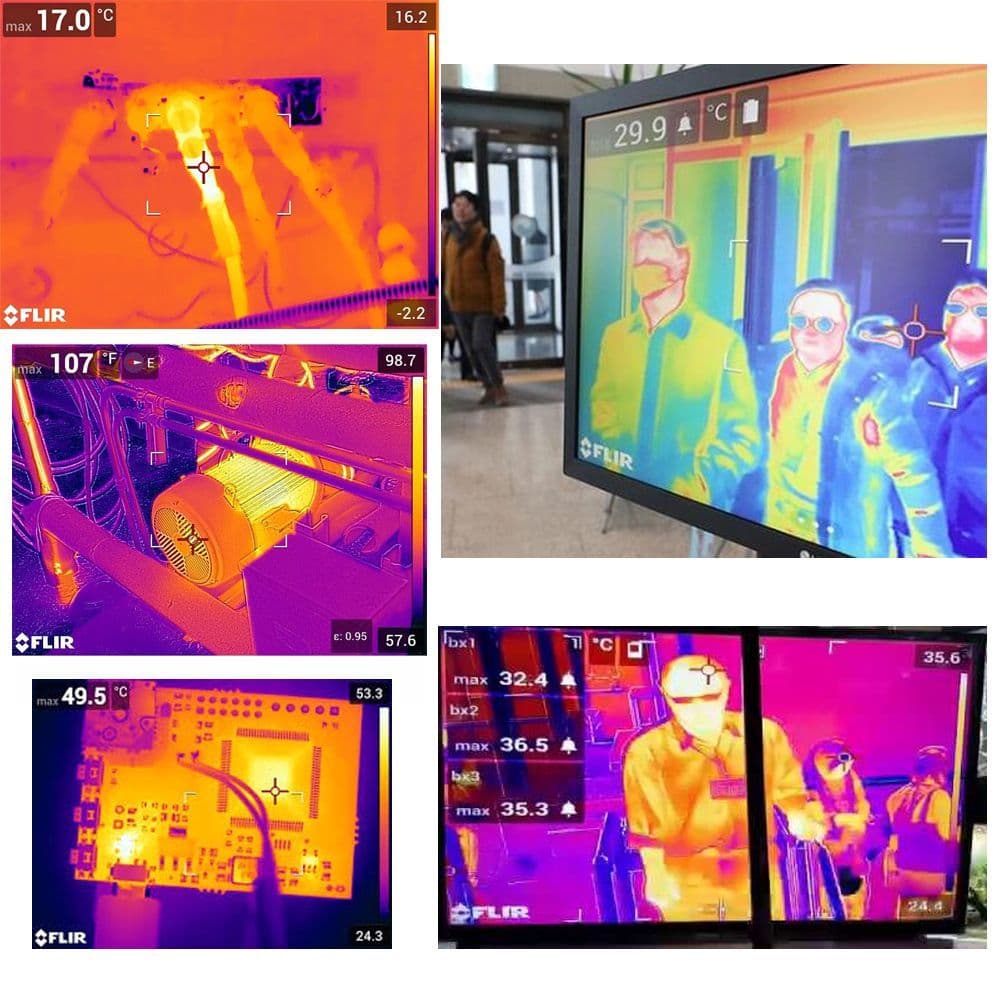

The FLIR C2, is a budget pocket-sized thermal camera with fully radiometric thermal capabilities that's ideal for a wide range of applications, such as building, electrical, mechanical and reading body temperature. There's countless uses for the FLIR C2; use this thermal camera to find hidden hot-spots on electrical equipment, to detect energy waste in a property, find structural defects, HVAC issues and much, much more. If you've been looking to get into thermo-graphy and looking for a great quality, entry-level thermal camera, the FLIR C2 is the one you've been searching for.
Fully Radiometric Thermal Imaging: Unlike other, slightly cheaper thermal cameras available, the FLIR C2 Thermal Camera has the added benefit of capturing fully radiometric thermal images. Radiometric images are different to standard thermal images; while thermal images show the heat map of the object the camera was looking at, radiometric images show this heat map and also assign a temperature reading to every captured pixel in the image. In short, this means that you can click on an exact area of the captured image (using FLIR Tools software on your PC) and get an accurate, reliable temperature reading!
With FLIR Tools, you can also:
- Analyse your findings
- Change colour palettes
- Access thermal and visual images
- Create professional reports
Key Product Features:
- Capture thermal images with resolution of 80 x 80 pixels (4,800 pixels per image) with radiometric analysis
- High-sensitivity thermal detector captures subtle temperature differences and thermal patterns (ideal for finding leaks and building problems)
- Generous 45° field of view helps you capture more in every image
- Live thermal video streaming via USB connection (non-radiometric), visual video streaming also possible
- Auto-orientation capacitive touch-screen (3.5")
- Built-in LED spotlight - ideal for use as a torch or for illuminating your photos
- On-board functions include thermal images, visual images, MSX ON/OFF and gallery view
- Wide temperature range from -10 to +150°C
- Emissivity correction caters for use on different types of surfaces
- Switch between different colour palettes - Iron, Rainbow, Rainbow HC (high contrast) and Grey all available as standard
- Built-in digital camera with resolution of 640 x 480 pixels
- Battery life of 2 hours, charges to full in 1.5 hours
Technical Specification:
FLIR C2
| Imaging and Optical Data |
|
| IR Sensor |
80 x 60 (4,800 measurement pixels) |
| Thermal Sensitivity |
<0.10°C |
| Field of View |
41 x 31° |
| Minimum Focus Distance |
Thermal: 0.15m (0.49ft)
MSX: 1.0m (3.3ft) |
| Image Frequency |
9Hz |
| Focus |
Focus-free |
| Spectral Range |
7.5 to 14μm |
| 3" Display (Colour) |
320 x 240 pixels |
| Auto Orientation |
Yes |
| Touch Screen |
Yes, capacitive |
| Image Presentation Modes |
|
| Types |
Thermal
Visual
MSX
Gallery |
| Measurement |
|
| Object Temperature Range |
-10 to +150°C (14 to 302°F) |
| Accuracy |
±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
| Measurement Analysis |
|
| Spotmeter |
On/off |
| Emissivity Correction |
Yes, matte/semi/glossy + user set |
| Measurement Correction |
Reflected apparent temperature
Emissivity |
| Setup |
|
| Colour Palettes |
Iron, rainbow, rainbow HC, grey |
| Storage Media |
Internal memory stores at least 500 sets of images |
| Image File Format |
Standard JPEG, 14-bit measurement data included |
| Video Streaming |
|
| Types |
Non-radiometric IR
Visual |
| Digital Camera |
|
| Type |
640 x 480 pixels |
| Focus |
Fixed focus |
| Additional Info |
|
| USB Connector Type |
USB Micro-B: data transfer to and from PC, iOS and Android |
| Battery |
3.7V rechargeable Li-ion polymer battery |
| Battery Operating Time |
2h |
| Charging System |
Charged inside the camera |
| Charging Time |
1.5h |
| External Power Operation |
AC adaptor, 90-260V AC input
5V output to camera |
| Power Management |
Automatic shutdown |
| Operating Temperature Range |
-10 to +50°C (14 to 122°F) |
| Storage Temperature Range |
-40 to +70°C (-40 to 158°F) |
| Weight (Incl. Battery) |
0.13kg (0.29lbs) |
| Size (L x W x H) |
125 x 80 x 24mm (4.9 x 3.1 x 0.94") |
