Thermal Imaging

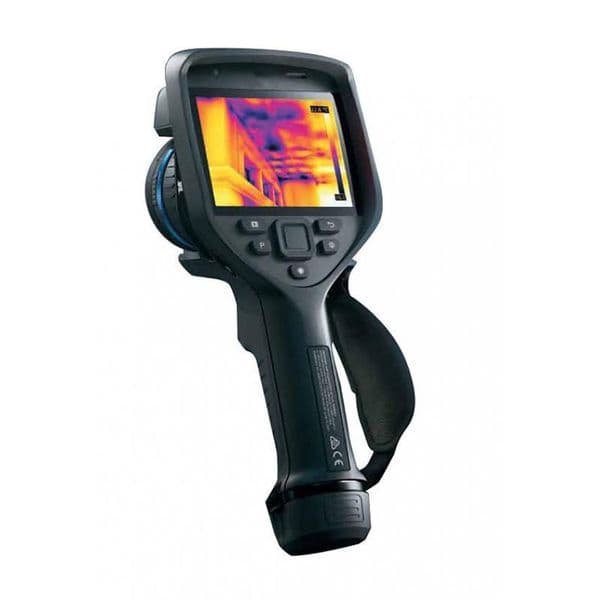

FLIR E75 Thermal Imaging Camera 24° Lens 78502-0101 320 x 240 pixels -0 to 650°C 30Hz

FLIR E75 Thermal Imaging Camera 24° Lens 78502-0101 320 x 240 pixels -0 to 650°C 30Hz

£7,716.00 £6,430.00 (ex. VAT)
Stock Status: In Stock

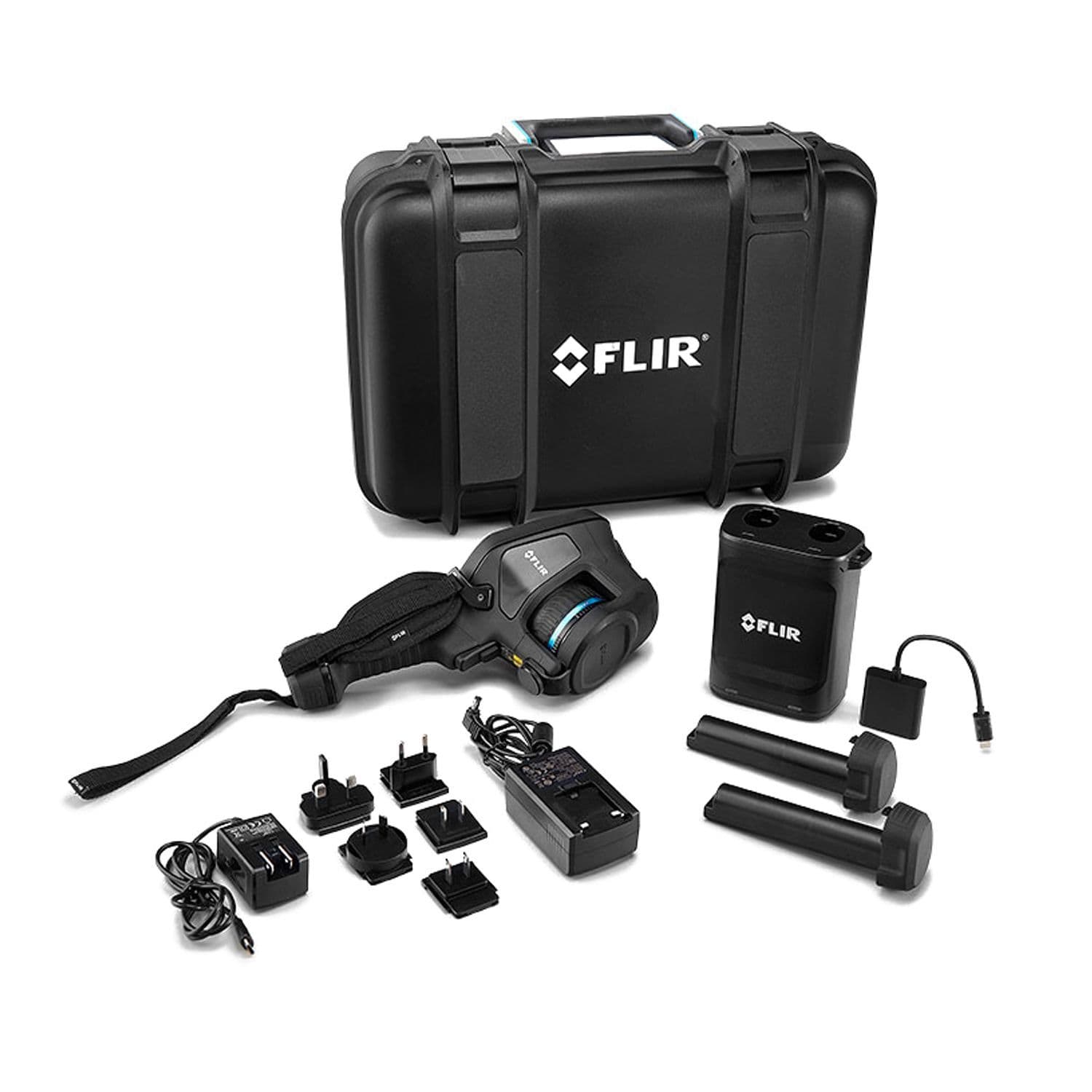

Package FLIR E75 Thermal Imaging Camera 78502-0101 Includes 24° Lens

  • FLIR E75 Thermal Imaging Camera
  • 2 x Rechargeable Batteries
  • Lenses (As Selected Above)
  • Hand Strap
  • Hard Transport Case
  • Lanyards for Battery Charger and Camera
  • Lens Caps
  • Lens Cleaning Cloth
  • Power Supply for Battery Charger
  • Power Supply, 15W/3A
  • Printed Documentation
  • SD Card (8GB)
  • Torx Screwdriver
  • USB 2.0A to USB Type-C cable, 1m
  • USB Type-C to HDMI Cable
  • USB Type-C to USB type-C cable, 1m
  • Wrist Strap

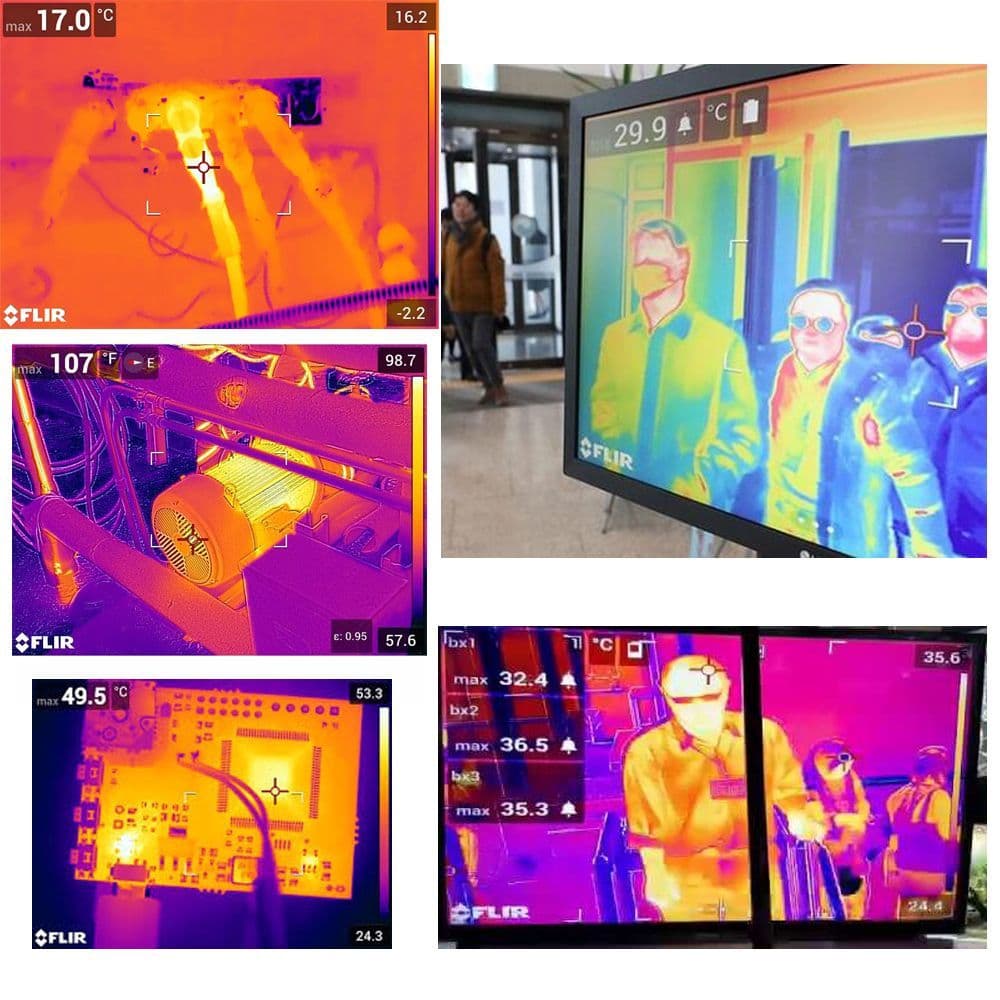

The best just got better, the FLIR E75 entry-level model series of professional-grade handheld thermal cameras. Re imagined from the handle up, the FLIR E75 produces crisp, clear thermal images, is packed with extra functions is designed for a wide variety of different applications ranging from studying electrical components to the temperature distribution of buildings. FLIR's E75 is made to produce high quality thermal images - its 320 x 240 pixel thermal resolution is higher than many thermal cameras on the market, ensuring you get more pixels of temperature data in every image.

High thermal sensitivity, wide field of view and multiple lens options all combine together to give you consistent images you can rely on and study at a later date on PC using free FLIR Tools software. NEW for the FLIR E75 is also FLIR's advanced automatic lens calibration - when swapping lenses, the camera will automatically adjust itself and takes camera of your image focusing, ensuring you can work faster. MSX is a unique mode found on FLIR thermal cameras where visual and thermal images are combined together, vastly enhancing the level of detail found in captured images. On the FLIR E75, MSX is better than ever before, bringing visual and infrared thermal images even closer together.

Key Product Features:

  • Capture both infrared and digital reference images using built-in thermal and digital cameras
  • Picture-in-picture mode - add a window of thermal to a digital image to isolate specific problems
  • Automatic hot and cold detection - automatically adds maximum/minimum markers within an area
  • Isotherm colour alarm - set above, below, interval, condensation and insulation alarms to instantly detect problems within buildings
  • Adjustable emissivity to cater for use on different types of surface
  • Selectable colour palettes - choose between iron, grey, rainbow, arctic, lava and rainbow high contrast
  • High quality touchscreen with auto orientation
  • Thumbnail image gallery to easily swap between images
  • Wide temperature measurement range from 0 to 650°C
  • Moisture and insulation alarms
  • Removable SD card memory (8GB included as standard)
  • Add voice text annotations to your images (up to 60 seconds) using built-in microphone and speaker
  • Add text annotations using predefined entries or set your own using the touchscreen
  • Sketch on images directly using the touchscreen
  • METERLiNK mode - allows the camera to connect wirelessly to other compatible FLIR/Extech testing tools for more complete readings
  • Integrated compass adds GPS data and image orientation to captured images
  • Radiometric and non-radiometric video recording and streaming
  • 5MP digital camera with built-in LED light
  • Laser pointer for added precision when lining up images
  • USB, Bluetooth and WiFi interfaces
  • Powered by rechargeable batteries - up to 2.5 hours operating time with field-swappable batteries
  • Tripod mount - UNC 1/4" - 20





Technical Specification:




Feature

FLIR E75

IR Resolution

320 x 240 (76,800 pixels)

Object Temperature Range

-20°C to 120°C (-4°F to 248°F)
0°C to 650°C (32°F to 1200°F)
300°C to 1000°C (572°F to 1830°F)
Optional calibration: 300°C to 1000°C (572°F to 1830°F)

Time-Lapse (Infrared) Mode

No

Spotmeter

1 in live mode
