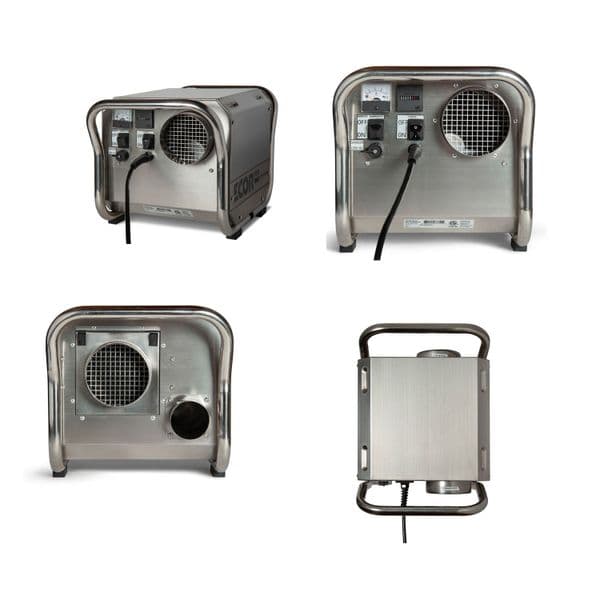

Ecor-Pro EPD30-MAX DryFan Commercial Stainless Steel Desiccant Dehumidifier 17Ltr/Day 240V~50Hz

The Ecor-Pro dehumidifier range is a tough, industrial unit designed to be used almost anywhere that dry air is required. Desiccant/Absorption dehumidifiers are especially suited to applications where low relative humidity's are needed and work well over a wide temperature range. The EPD30-MAX 17 Litre is a Industrial desiccant dehumidifier unit ideal  for the flood and water damage professional, temporary humidity control, museums, research laboratories, dry air storage, small production processes, stores, sports halls, and manufacturing plants.

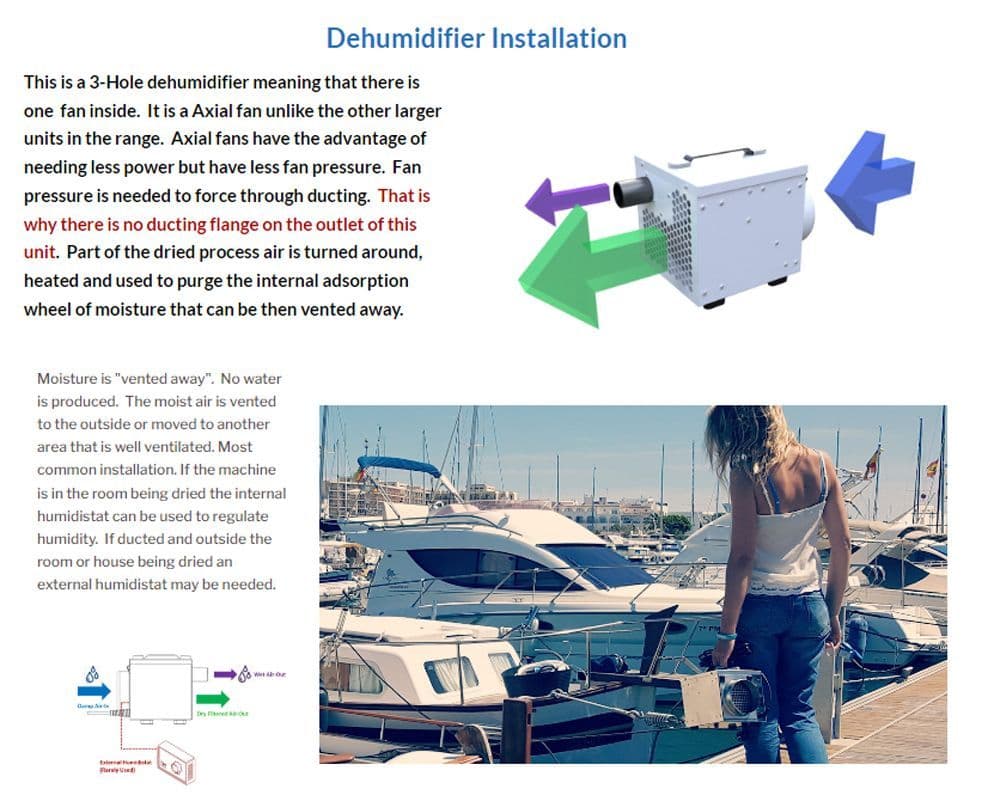

This is a 3-Hole dehumidifier meaning that there is one  fan inside.  It is a Axial fan unlike the other larger units in the range.  Axial fans have the advantage of needing less power but have less fan pressure.  Fan pressure is needed to force through ducting.  That is why there is no ducting flange on the outlet of this unit.  Part of the dried process air is turned around, heated and used to purge the internal adsorption wheel of moisture that can be then vented away.

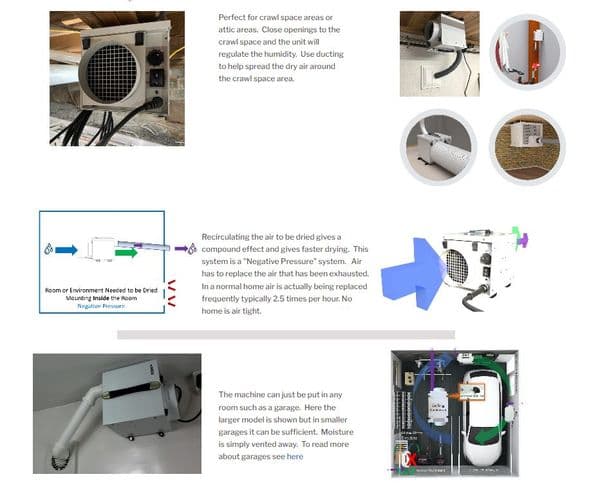

Moisture is "vented away".  No water is produced.  The moist air is vented to the outside or moved to another area that is well ventilated. Most common installation. If the machine is in the room being dried the internal humidistat can be used to regulate humidity.  If ducted and outside the room or house being dried an external humidistat may be needed.

Key Product Features:

• Highly Compact – Smallest 17 Pint dehumidifier in the market.
• Dust Filter – Simple reticulated dust filter in metal frame. Hence, ability to be shakened clean or easily replaced. Prevents dust particles entering the unit, impeding performance.
• Easy Repair – Furthermore, maintenance and eventual repair have been thought through. Simple to remove cover. Effortless access to replace cord sets or warn parts by a qualified persons quickly. Lifetime of the dehumidifier prolonged.
• On Four Feet – Design-patented anti scratch plastic feet. Used as anchor points for the dehumidifier.
• Carrying Handle – Easy to carry by one person. Removable handle for installation, replaced by a top lid without the handle.
• Humidistat Connection – Internal humidistat fitted already. Possibility to put on an external humidistat. Jack plug connector is on the external humidistat, EPHUM24DF. EPHUM24DF remotely switches the dehumidifier on an off automatically when the dehumidifier is concealed or ducted in position.

• Duct Air-In & Out – Dehumidifier has all ducts fitted with flanges. Allows ducting to be added with 125mm / 5″ hard or flexible ducting.

• Wet Air Exhaust – One internal fan. Moisture is vented away. Allows it to work in colder temperatures, for instance. Moisture purged from the system by 15% of the process air. Dries with a slight negative pressure.
• “Three Hole System” – One inlet and two outlets.
• Moreover, note that the EPD50 dehumidifiers have a process air outlet flange. The EPD30 models do not. Hence, this allows dry air to be ducted into a space.
• Auto Reset – Dehumidifier will continue to operate as soon as the power has been returned when interrupted. Perfect in locations where the there is a “dirty” power supply that can affect other electronically controlled products.
• All Metal Construction – Stainless steel metal inside & outside. Thus, designed for longevity.
• 5m / 15′ Power Cord – No need to join cables when placed for instance in crawl spaces or lofts in the home, for example.

View Youtube Demonstration:

Technical Specification:







PDF Data:
