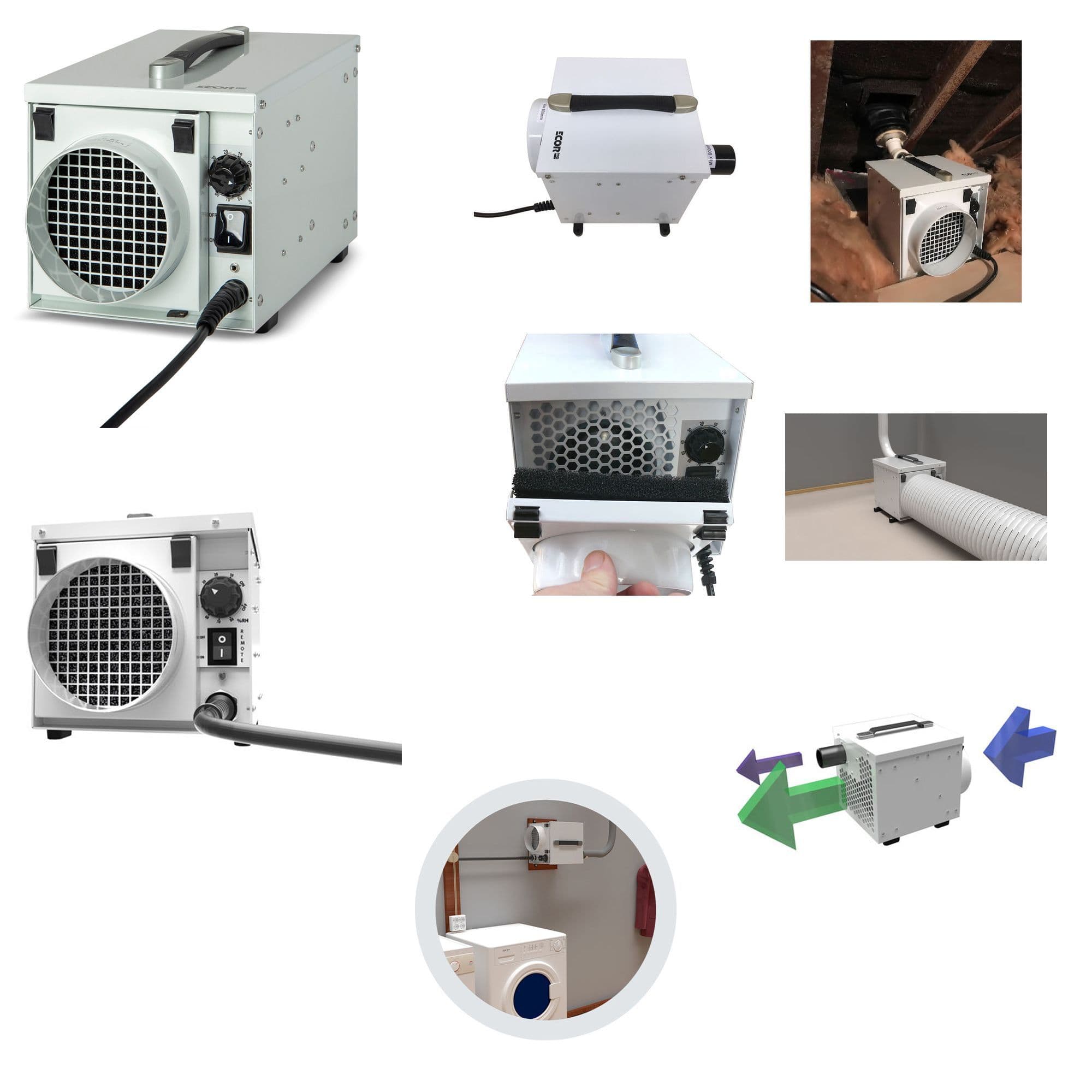

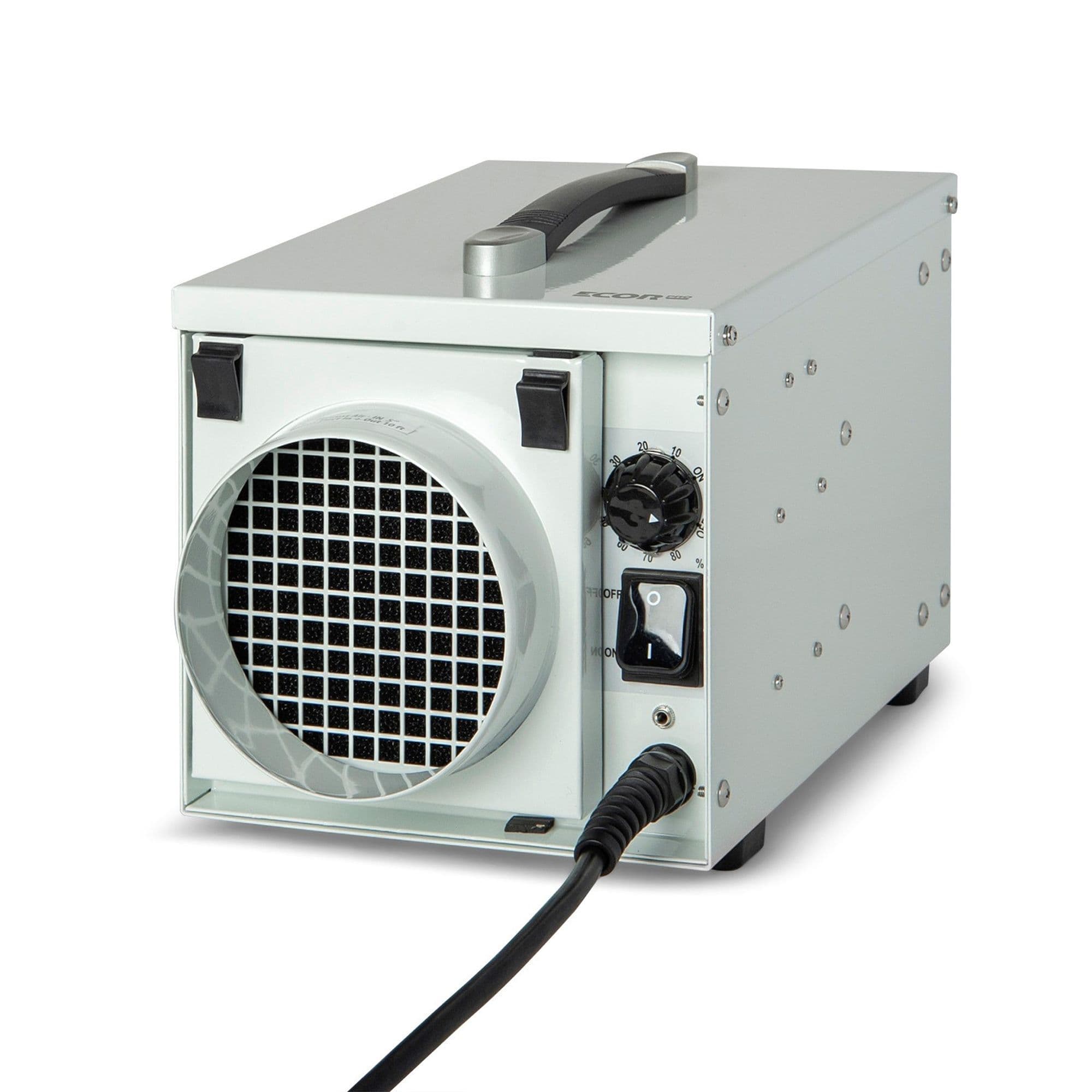

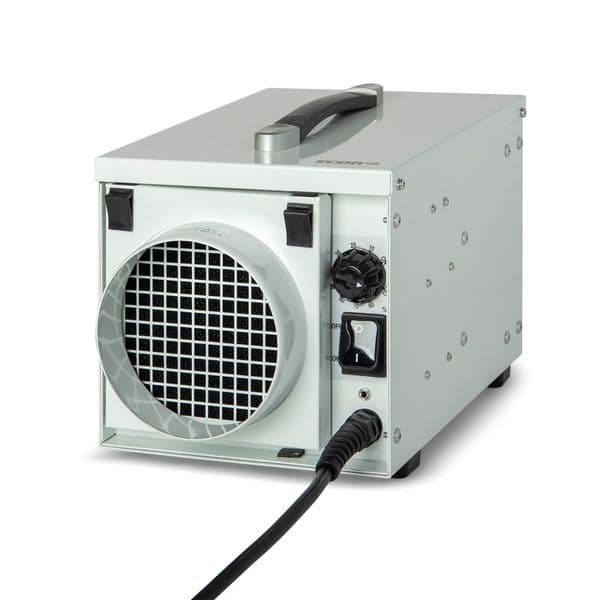

The Ecor Pro DH800 is a commercial grade dehumidifier designed to run 24/7. Thanks to its desiccant technology it performs 4 to 6 times better than traditional dehumidifiers at low temperatures. The DH800 uses a three-hole system, with wet air being separately vented out via a 41mm outlet – this means there’s no tank to empty for minimal maintenance. Warm dry air can either be expelled back into the room or ducted to another space. Roughly the size of a shoebox, its compact dimension make it ideal in such applications as laundry rooms, lofts, basements, garages, caravans and more. The DH800 can also be mounted in any orientation using the integrated mounting points (fixings not included) for maximum versatility. Designed in the UK and featuring a low noise fan, galvanised steel body, reticulated dust filter and 5m power cord for quite, long and trouble free operation.

• Highly Compact – Perhaps the smallest 8 Litre dehumidifier in the market.
• Dust Filter – The desiccant industrial dehumidifier benefits from a simple reticulated dust filter in metal frame that can be shaken clean or easily replaced to prevent dust particles entering the unit and impeding performance.
• Easy Repair – Maintenance and eventual repair have been thought through with an easy to remove cover that gives easy access to replace cord sets or warn parts by a qualified persons quickly. Prolonging the lifetime of the dehumidifier.
• On Four Feet – Anti scratch plastic feet that are design Patented.Swivel out to provide anchor points for the dehumidifier.
• Carrying Handle – Easy to carry by one person. The handle can be removed if the product is being installed and replaced by a top lid without handle.
• Humidistat Connection – There is both and internal humidistat fitted & the possibility to put on an external humidistat but one can also be added very simply. A jack plug connector is on the on the humidistat EPHUM24DF. This will turn the dehumidifier on an off automatically remotely if the dehumidifier is concealed or ducted in position.

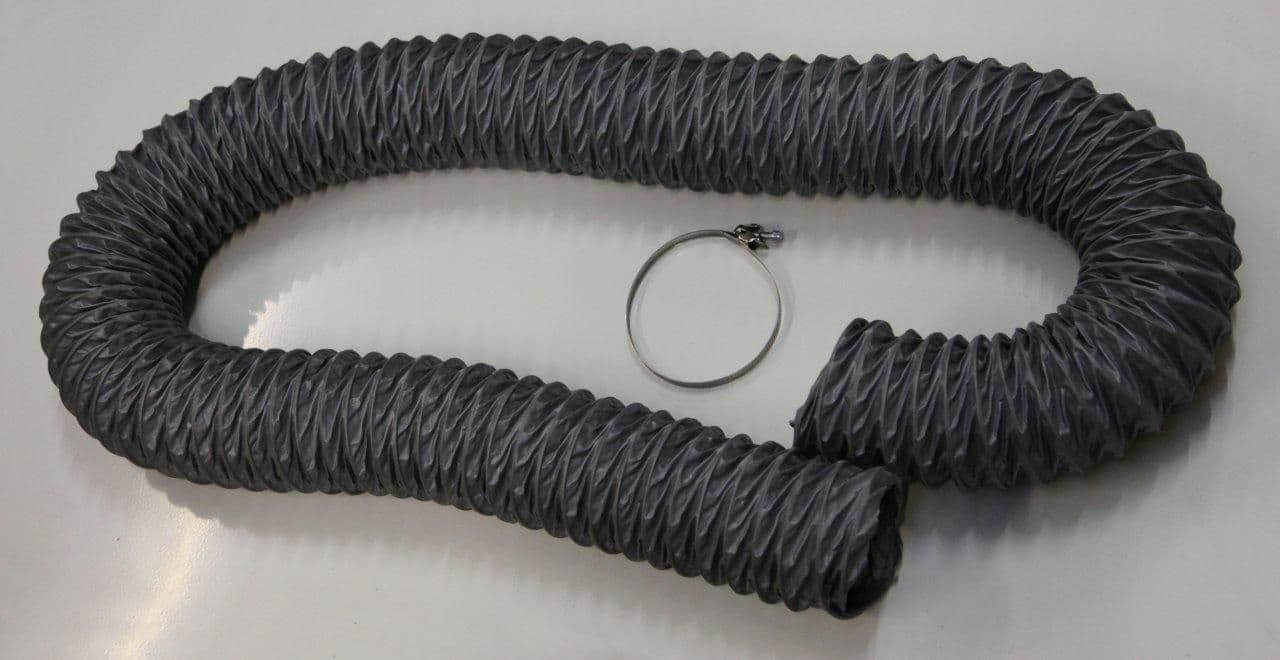

• Duct Air-In & Out – The dehumidifier has all ducts fitted with flanges to allow ducting to be added with 125mm / 5″ hard or flexible ducting.
• Wet Air Exhaust – The has one internal fan. The moisture is vented away allowing it to work in colder temperatures. The moisture is purged from the system by 15% of the process air so will dry with slight negative pressure.
• “Three Hole System” – The system is classed as a “three hole” system due to the one inlet and two outlets.
