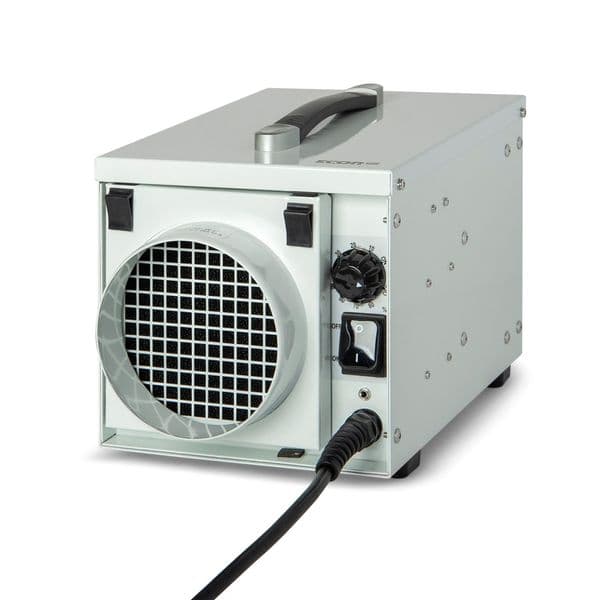

110V supply 50 Hz that can be run off a 12V DC-110V AC converters or 220V to 110V transformers, auto power reset in case of power supply interruption. “3-hole” technology commercial desiccant dehumidifier; water removal 12 litres maximum extraction. Operating range from -20?C up 40?C maximum room temperature for continuous drying applications, with 380 m3/hr air volume capacity (124 m3/hr – Process / 20m3/hr – exhaust air flow). Highly efficient, very quiet fan operation and yet low energy consumption in use for large moisture extraction capacity. 52dB Process air in 125mm – Process air out 125mm – Exhaust air 40mm

• Highly Compact – Perhaps the smallest 8 Litre dehumidifier in the market.
• Dust Filter – The desiccant industrial dehumidifier benefits from a simple reticulated dust filter in metal frame that can be shaken clean or easily replaced to prevent dust particles entering the unit and impeding performance.
• Easy Repair – Maintenance and eventual repair have been thought through with an easy to remove cover that gives easy access to replace cord sets or warn parts by a qualified persons quickly. Prolonging the lifetime of the dehumidifier.
• On Four Feet – Anti scratch plastic feet that are design Patented.Swivel out to provide anchor points for the dehumidifier.
• Carrying Handle – Easy to carry by one person. The handle can be removed if the product is being installed and replaced by a top lid without handle.
• Humidistat Connection – There is both and internal humidistat fitted & the possibility to put on an external humidistat but one can also be added very simply. A jack plug connector is on the on the humidistat EPHUM24DF. This will turn the dehumidifier on an off automatically remotely if the dehumidifier is concealed or ducted in position.

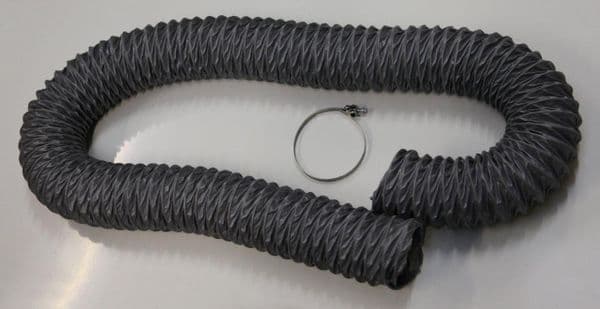

• Duct Air-In & Out – The dehumidifier has all ducts fitted with flanges to allow ducting to be added with 125mm / 5″ hard or flexible ducting.
• Wet Air Exhaust – The has one internal fan. The moisture is vented away allowing it to work in colder temperatures. The moisture is purged from the system by 15% of the process air so will dry with slight negative pressure.
• “Three Hole System” – The system is classed as a “three hole” system due to the one inlet and two outlets.

PDF Data:
