Industrial And Scientific Dehumidifiers

Ebac Industrial Dehumidifier 1028285-GB PD200 120 Litre/Day 415V~50Hz

Ebac Industrial Dehumidifier 1028285-GB PD200 120 Litre/Day 415V~50Hz

£3,117.00 £2,597.50 (ex. VAT)
Stock Status: In Stock
Blog

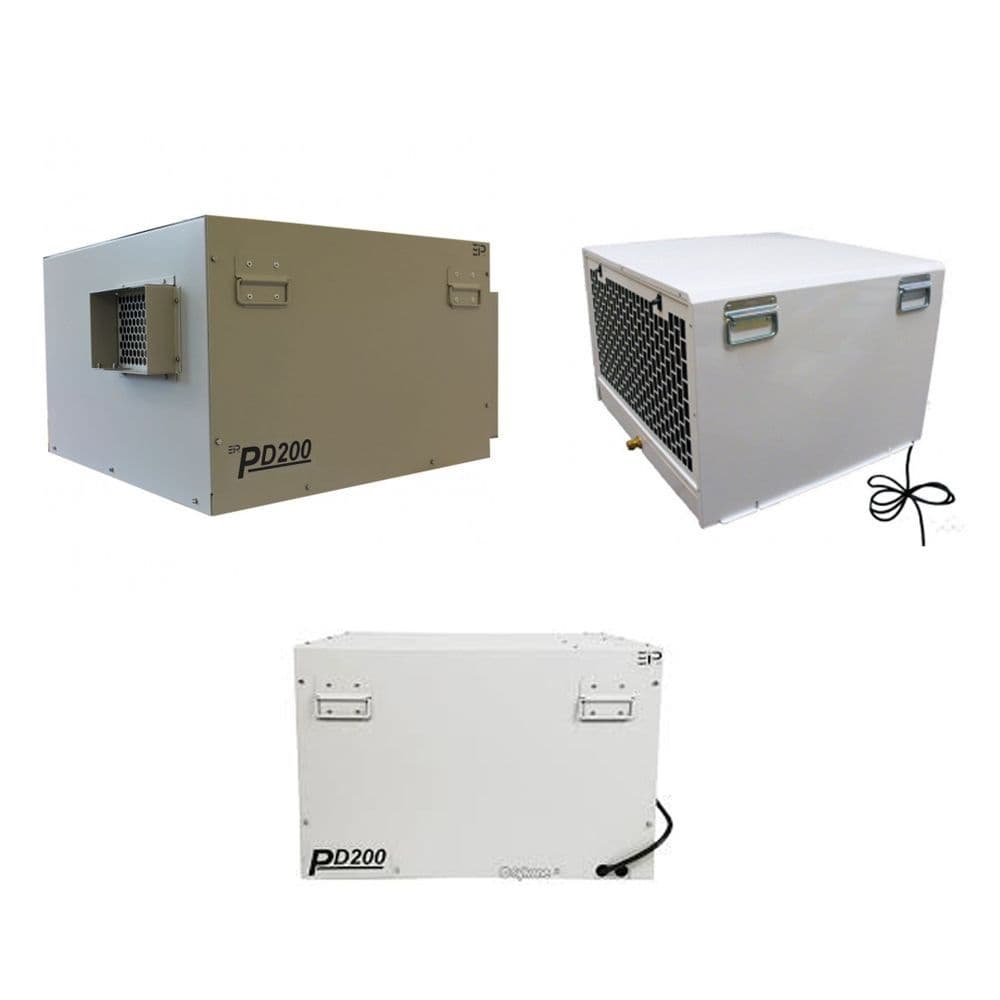

Ebac Industrial Dehumidifier 1028285-GB PD200 120 Litre/Day 415V~50Hz

Ebac Industrial are Europe's leading manufacturer of commercial dehumidifiers with over 40 years experience manufacturing in the UK. The EIPL PD range of compressor dehumidifiers are high capacity, made to operate at high efficiencies by removing moisture from the air through the refrigeration process. They incorporate an adjustable speed fan providing the flexibility for direct or ducted applications. The low voltage remote humidistat control circuit makes the equipment easy and safe to install. The quiet operation make the PD range ideal for restaurants, swimming pools and libraries where noise is prohibited. The temperature sensitive reverse cycle defrost system ensures that any defrost period is short and effective, thereby increasing the overall drying capacity. The heat pump design of the PD refrigeration system means there is no heat loss in the dehumidifying process, thereby saving energy consumption.



Key Product Features:




120 litre per day extraction
Single phase 415 V
Power 3kW
Airflow (cubic meters per hour): 850
Maximum extraction: 120 litres per day
Minimum operating temperature: 3 degrees centigrade
Maximum operating temperature: 35 degrees centigrade
Carrying handles
Reverse cycle defrost
Temperature sensitive defrost
Optional remote humidi-stat sensor facility
High capacity forward curved fan
Quiet operation
2 fan speeds
Air inlet filter
Can be suspended above false ceilings
Feet for floor mounting
Duct flange attachments
Inlet duct mounting
Optional stainless steel drain tray
High temperature safety cut-outs
Epoxy powder coated panels
Low voltage controls
Energy efficient heat pump operation
Gravity drainage system
Suitable for swimming pools, garages, archives, store rooms, hotels, restaurants, bars, nightclubs, printing facilities

PDF Data:

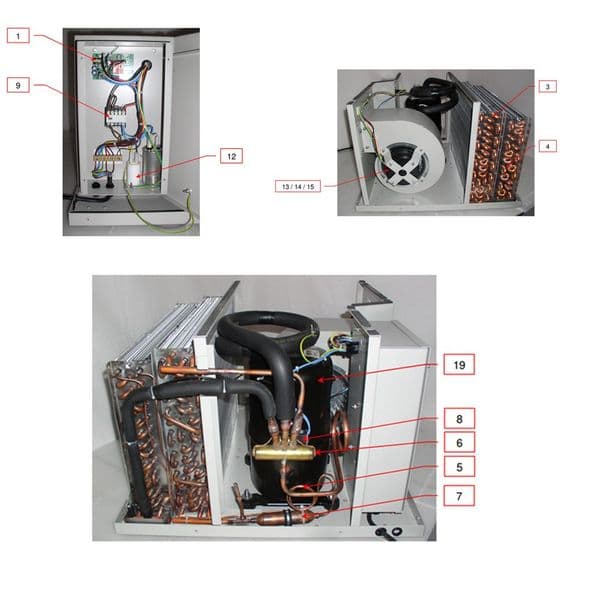

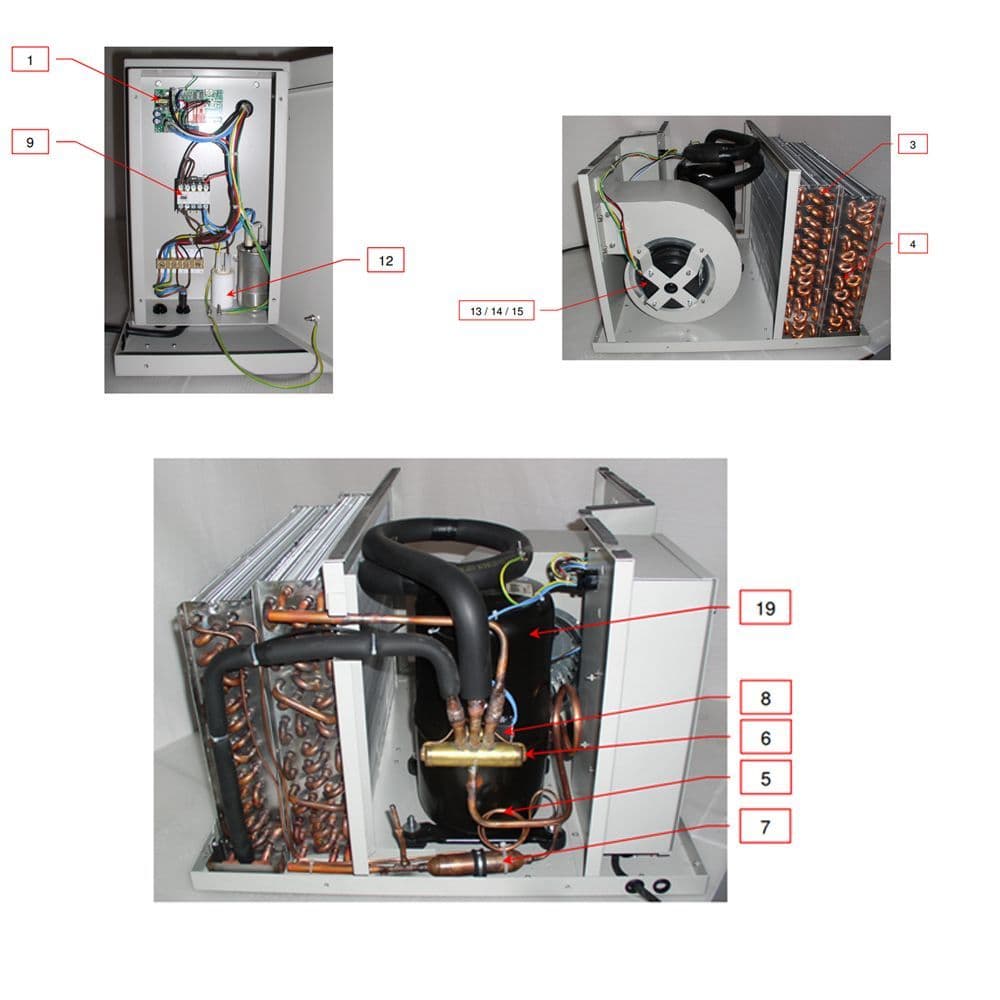

Parts Detailed:

Ref

Item

Description

UM

1

1619400

Defrost Timer

EA

2

2028225

Inlet Filter

EA

3

2028226

Condenser Coil

EA

4

2028227

Evaporator Coil

EA

5

3014252

Capillary Tube Stainless Steel (3.18mm)

FT

6

3020834

Reversing Valve

EA

7

3020957

Filter Dryer

EA

8

3030454

Solenoid Coil - 230V

EA

9

3033408

Contactor - 230V

EA

10

3035142

Thermistor Sensor

EA

11

3035157

Humidistat - Gold Contacts

EA

12

3036350

Capacitor - 5uF (Motor)

EA

13

3040247

Fan Wheel

EA

14

3040248

Fan Inlet Ring

EA

15

3040266

Fan Motor - 230V

EA

16

3086101

Jubilee Clip

EA

17

3101413

PCB Plastic Mounting Support

EA

18

3944115

PVC Tube - Unreinforced - 12mm X 18mm

EA

19

3944941

Compressor - QXC - 230V

EA
