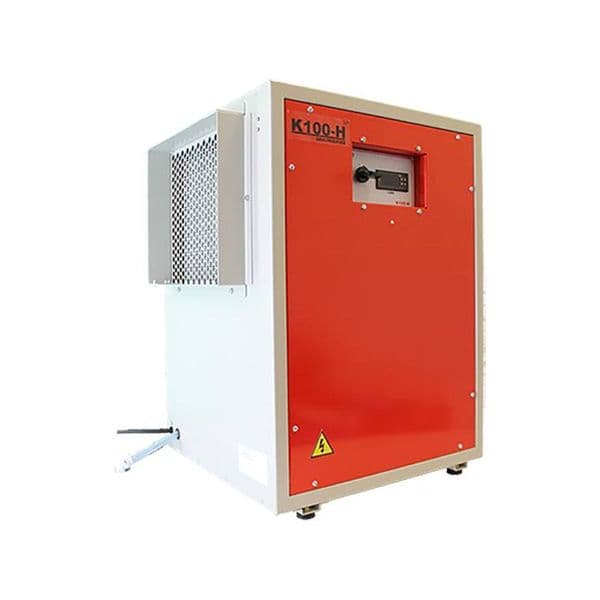

The EIPL K100-H is a versatile workhorse, designed to eliminate high humidity problems in harsh environments. Warehouses, storage rooms, electrical and communications switching stations, locker rooms, basements, pumping stations, offshore oil rigs and active and laid-up marine vessels have all found this rugged range of units to be more than adequate for the tasks. The impressive K100-H can be easily moved from site to site, or can be permanently mounted and ducted to suit a variety of applications.
A rugged epoxy-coated, steel chassis, A “floating” compressor for vibration and mobility protection, System lamps to tell the operating status of the unit at a glance, EIPL’s unique “Reverse Cycle” defrosting system, for effective operation in low ambient temperatures. The adjustable electronic humidistat allows precise control of the desired level of dryness, Integral high lift condensate pump, Standard power requirements for operation in any location, Washable Air Filter, Integral High Capacity Water Pump and Rugged.
For use in commercial areas and large buildings the K100-H is the ideal unit to control humidity and maintain desired conditions in your premises. With the capacity to extract up to 36 litres of moisture in 24 hours combined with a Electronic humidistat control the K100-H will maintain conditions without the worry of excessive energy costs or over drying. Installation is quick and easy, simply position the unit, connect to the mains supply, connect the drain outlet to a suitable drainage point, and switch On. The K100-H is a free standing unit, however a wall mounting bracket is available which will allow the unit to be wall mounted. The K100-H range of dehumidifiers all incorporate a high lift condensate pump, allowing the condensate to be pump to heights in excess of 4m. The compact size of the K100 products, and remote monitoring feature (via a smart phone app) of the K100-E, makes the unit and the ideal choice for installations where access is limited i.e. loft installations, etc.
Technical Specification:
| Height (mm) |
686 |
| Width (mm) |
457 |
| Depth (mm) |
559 |
| Weight(kgs) |
63 |
| Voltage |
230 |
| Phase |
1 |
| Frequency(Hz) |
50 |
| Power(kW) |
1.5 |
| Current(A) |
8 |
| Airflow(m3/hr) |
510 |
| Noise Level(dba) |
57 |
| Effective Volume(m3) |
300 |
| Typical Extraction(l/d) |
36 |
| Min Operating Temp (°C) |
3 |
| Max OperatingTemp (°C) |
35 |
| Electronic Humidity Control |
Y |
| On/Off Control |
Y |
| Reverse Cycle Defrost |
Y |
| Electronic Defrost Timer |
Y |
| High Lift Condensate Pump |
Y |
| Power On Indicator |
Y |
| Refrigerant Type |
R407c |
| Free Standing |
Y |
| Wall Mounting Bracket |
O |
| Internal Saftey Float Switch |
Y |
| Stoved Epoxy Finish |
Y |
| All Steel Construction |
Y |
Options:
| Part Number |
Description |
Qty |
| 10185GH-US |
Dehumidifier |
1 |
| 3086144 |
Quick release hose coupling |
1 |
| 3944110 |
PVC tube - 3/8" I/D |
7.8m |
| TPC452 |
Manual |
1 |
PDF Data:
