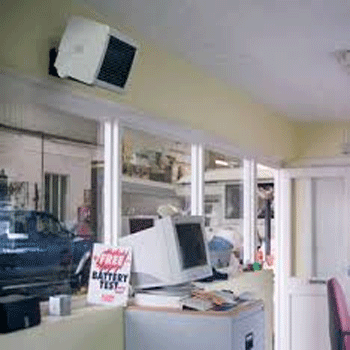

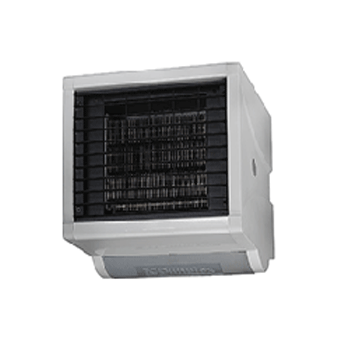

Robust metal/plastic design for wall mounting, wall bracket with universal turn and pivot options, controlled using an external wall-mountable control panel CFCH. Up to 7 CFH devices can be connected in series via a control panel. The connections between the fan heater and the control panel as well as between the devices are established using a standard data cable type CAT 5E (or higher, not included in the scope of supply). Colour white, air outlet grid black.

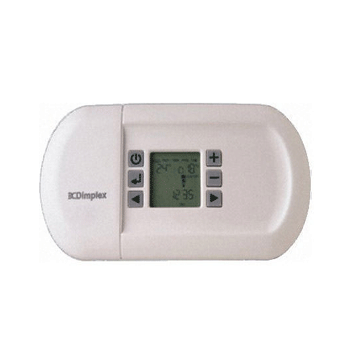

Includes Electronic Controller Model: CFCH
Key Product Features
Certification mark: BEAB
Sound pressure level in 3 m: 60 dB (A)
Degree of protection: IP 20
Protection class: l
Technical Specification:
OutPut: 9kW / 30000 Btu
Weight: 13.8 kG
Dimensions: 362mm(h) x 306mm(w) x 530mm(d)
Max' installed depth: 530mm.
Rated voltage: 3/N/PE ~400 V. 50 Hz
