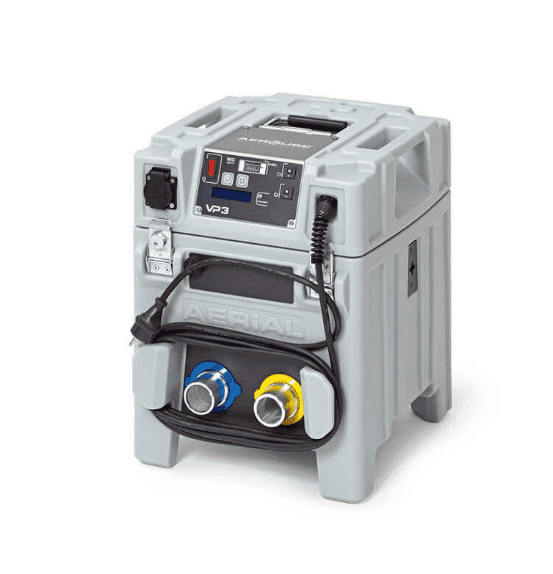

The Dantherm Aercube VP 3 is a compact and reliable side channel blower designed for industrial pressure and vacuum applications. Engineered for continuous operation, it delivers consistent airflow with oil-free performance, making it suitable for clean, low-maintenance air movement in demanding environments.


Its robust construction, quiet operation and compact dimensions make the VP 3 ideal for integration into machinery, process systems and fixed installations where dependable airflow and pressure control are required.


Key Features:


• Side channel blower for pressure and vacuum applications

• Oil-free operation for clean air delivery

• Suitable for continuous-duty operation

• Compact and robust industrial design

• Low noise level for improved working environments

• Stable airflow performance under load

• Designed for industrial and commercial installations

• Minimal maintenance requirements



Product Specifications:


• Blower type: Side channel blower

• Air flow: 150 m³/h (free blowing)

• Maximum pressure differential – vacuum: 170 mbar

• Maximum pressure differential – pressure: 190 mbar

• Motor power: 1,100 W

• Operating temperature range: 0 to 38 °C

• Sound level: 50 dB(A)

• Power supply: 230V single-phase 50Hz

• Protection class: IP44

• Product size (height × width × depth): 507 × 390 × 455 mm

• Weight: 26.5 kg



Suitable For:


• Industrial vacuum systems

• Pressure and suction applications

• Pneumatic conveying

• Packaging and processing equipment

• Manufacturing and production environments

• Automation and process engineering

• Centralised air and vacuum systems

Disclaimer:


Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
