Danfoss Optyma Slim Frozen Food OP-LSQM068NTW05G/E - GCE253G6ED -21 DegC Room 25-30m3 in 230V or 415V

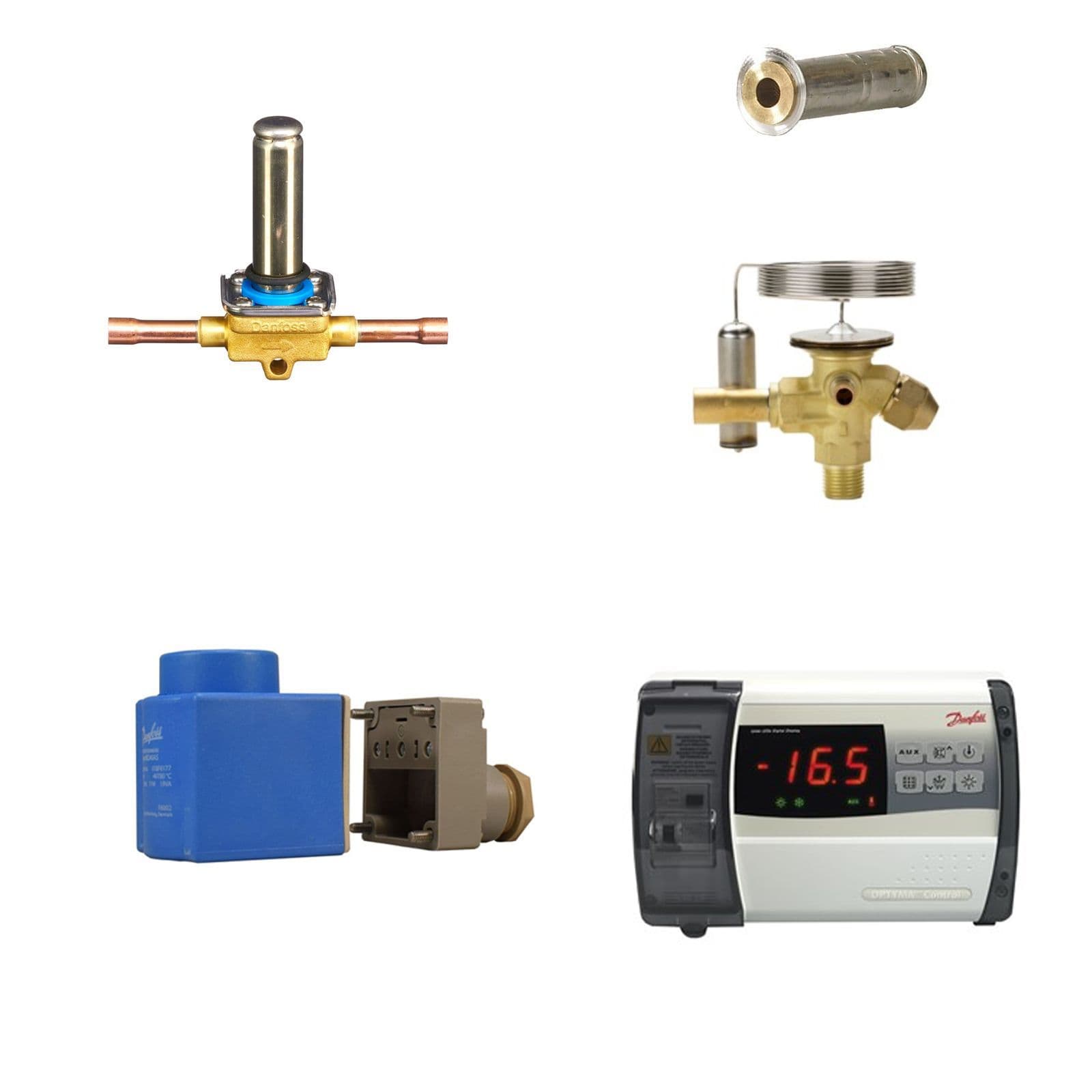

What this refrigeration kit includes:
Condensing Unit |
OP-LSQM068NTW05G/E Danfoss Optyma |
Evaporator Blower |
GCE253G6ED ECO GCE Box Cooler Evaporator Blower |
Flare/solder adaptor size |
3/8" 068-206000 |
Orifice no. |
No. 4 068-209400 |
Solenoid valve |
EVR3 3/8" Solder 032F120400 |
Solenoid coil |
240v 018F670200 |
Expansion valve R452A |
TE2 range-N flare/solder 068Z380700 |
Controller Pack:

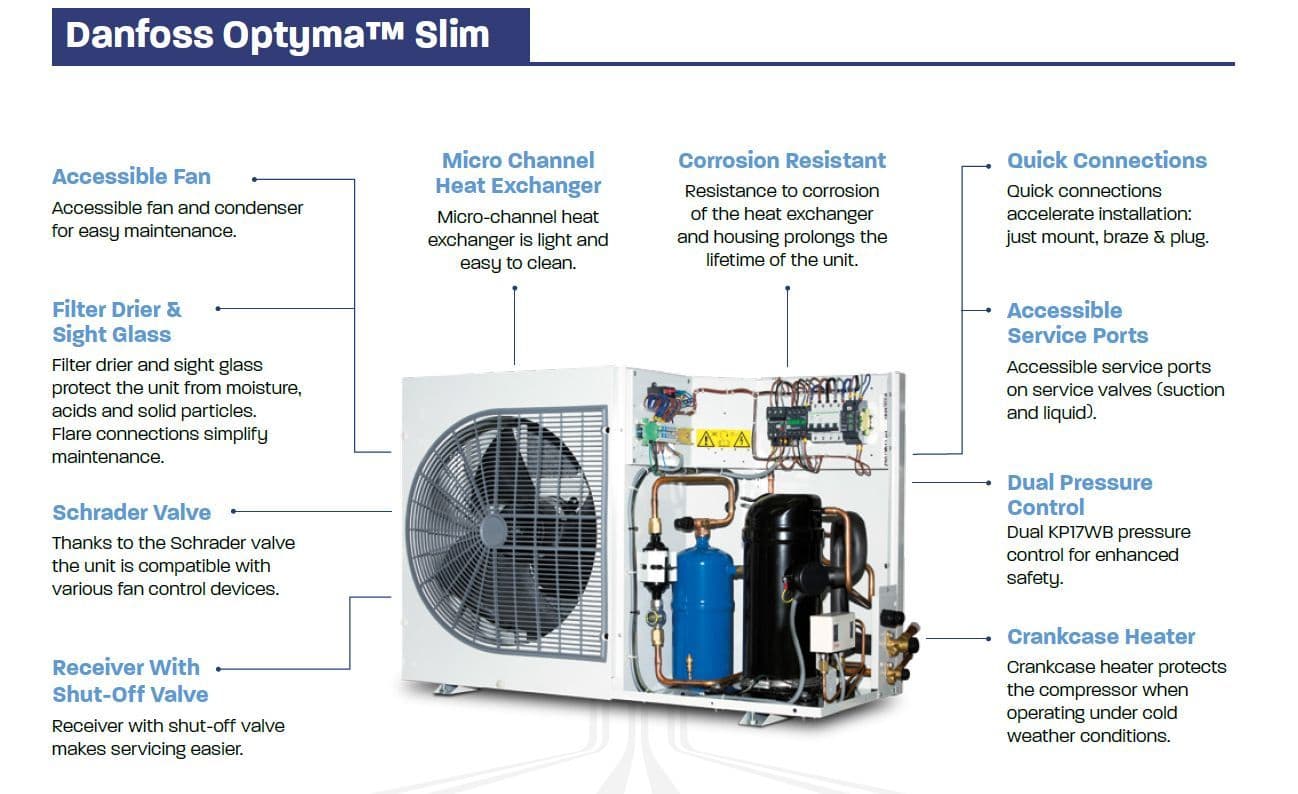

Danfoss Fridgesplit uses the market leading Danfoss Optyma Slim condensing all in one AC style outdoor unit which has been perfectly matched to an ECO indoor unit evaporator with defrost heaters installed. These high quality evaporators have casings made from magnesium aluminium alloy which provides a high class appearance combined with durability and ease of cleaning. The coil design uses ‘aeraulic’ principles to maximise the transfer of heat using pressurised air.This results in a compact design for the refrigerating capacity. Heaters and fan motors are connected to an IP54 terminal box that is easily accessible. Fridgesplits are a range of competitive refrigeration systems, designed to take the guess work out of cold room and freezer room selections. Each fridgesplit uses the market leading Danfoss Optyma Slim condensing unit which has been perfectly matched to an ECO evaporator.
This is a complete refrigeration plant kit for a Frozen Food Holding Room Size Up to 25-35 cubic Metres at -21 DegC. This refrigeration plant kit contains a selected condensing unit, evaporator, drier, sight-glass, solenoid valve and coil, thermostat controller which is a complete selection for the installation. The controller is an electronic refrigeration control with selectable defrost periods and warning signals/audible alarm signals. An ideal kit for cold room applications replacements and new projects,. Pipe and cable can be purchased as an option.
Technical Data:
Model number |
FS255L1B/3B |
Indoor model number |
GCE253G6ED |
Refrigerant (ID) |
R452A |
Airflow (ID) |
2540 m3/h |
Air Throw (ID) |
12 M |
Power Supply (ID) |
220 - 240v / 1ph / 50Hz V/ph/Hz |
Evaporator Dimensions - L x W x H (ID) |
1674 x 509 x 431 mm |
Weight (ID) |
28 kg |
Outdoor Model Type |
OP-LSQM068NTW05G/E |
Outdoor Model Number |
114X708900 |
Refrigerant (OD) |
R452A |
Sound Pressure 10m (OD) |
40 dBA |
Power Supply (OD) |
220 - 240v / 1ph / 50Hz V/ph/Hz 415V 3ph |
Outdoor Dimensions - L x W x H (OD) |
1087 x 464 x 690 mm |
Weight (OD) |
65 kg |
Suction pipe size |
3/4" |
Liquid pipe size |
3/8" |
PDF DATA:
Fridgesplit
Indoor Eco Coil
Optyma™ Packaged condensing units
Apply with Danfoss to extend your warranty to 3-5 Years.
