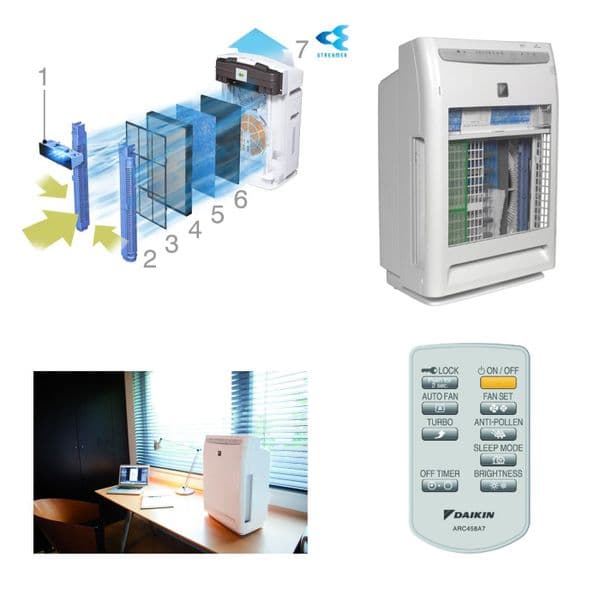

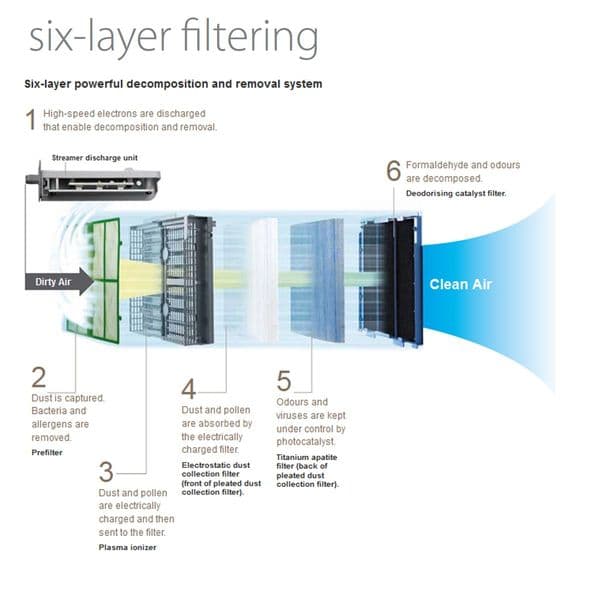

The ultimate in air purification with six layers of filtration to eliminate any issues with the air you breath
This is a new product for 2020, packed with the features you would expect form the worlds premier air conditioning manufacturer. Decomposes and fragmenting viruses, mould and bacteria
The MC70LB is for users who want peace of mind that the air they breathe is ultimately cleaned. The Daikin MC70LB has six layers of purification and is ideal for virus / mould / bacteria depletion and dirty air reduction. There are so many particles in the air we breath, many of which are natural and generally harmless while others are viral, bacterial and chemical contaminants. It is essential, therefore, to remove and destroy the contaminants and any allergens present as these have a direct negative impact on our health. This has become ever apparent with strains of viruses and pathogens we are all facing on a day to day basis. This creates an environment that means we no longer enjoy the health benefits of clean air or have peace of mind of a pathogen free environment.
The Daikin MC70LB air purifier is designed to do all of the above efficiently and effectively, producing clean air that it is, once again, fit to breath. At the same time, the MC70LB air purifier filters out the particles that produce odours, ‘decomposes’ them, and thus eliminate residual and unwanted smells. By removing the unwanted and potentially dangerous particles, the MC70LB air purifier is directly contributing to the creation of an enhanced and healthy environment.

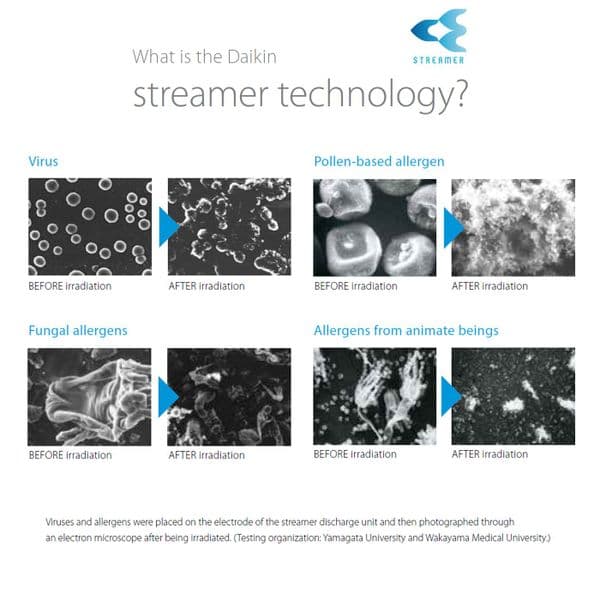

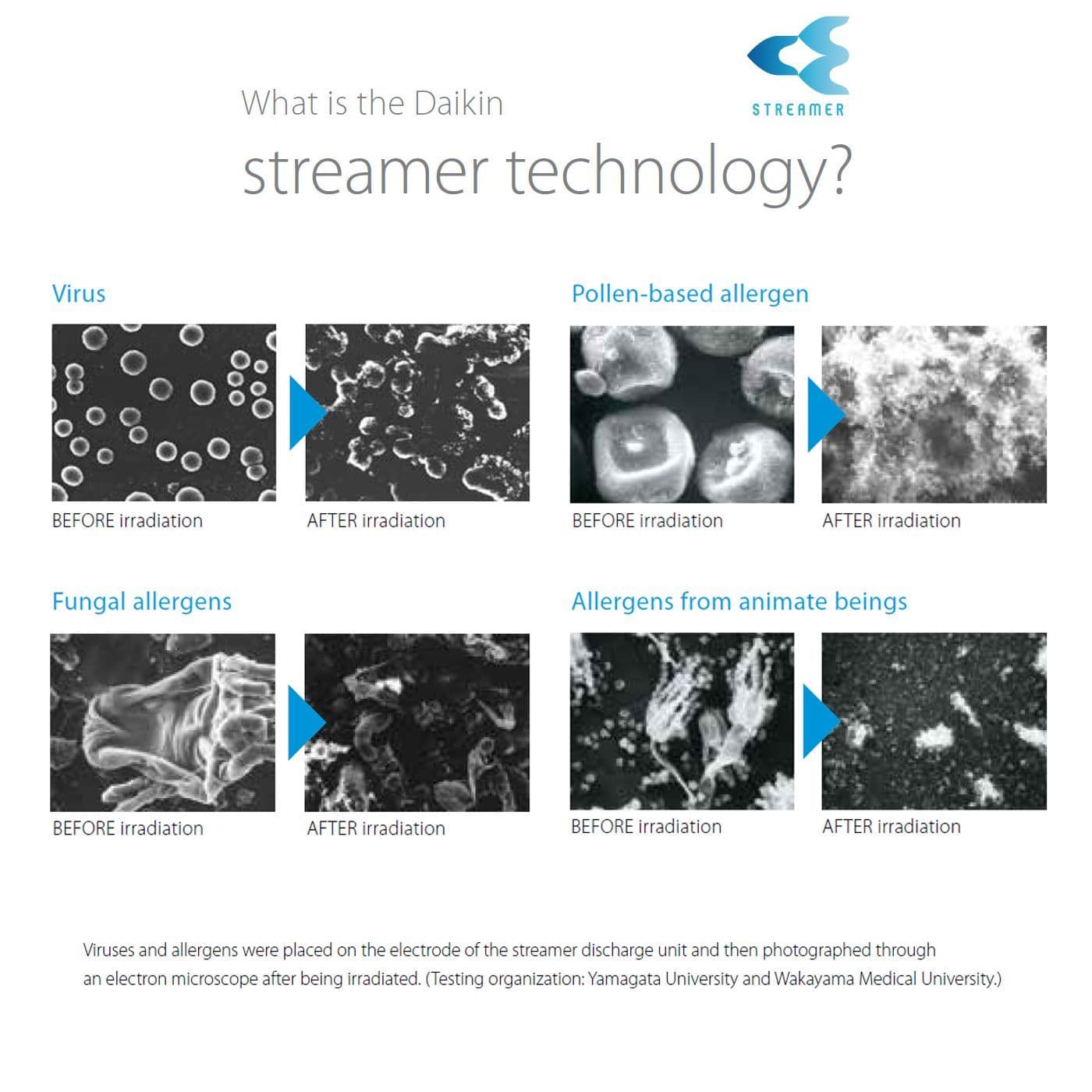

How Daikin's Streamer technology works:
The massive streamer discharge hits the viruses, mould, bacteria, allergens and hazardous chemical substances, decomposing and fragmenting their surface proteins, which are then destroyed through oxidation, thus rendering the virus safe. The streamer discharge then breaks down into safe nitrogen and oxygen atoms and water molecules.
Key Product Features:
- Powerful air purification increases indoor air quality with Daikin Streamer technology
- Large air flow: 420m³/h in turbo mode
- Whisper quiet operation: down to 16dBA sound pressure level
- Lightweight and compact
- Easy to clean flat panel
- Plasma ionizer as standard
Technical Specifications:
| PRODUCT NAME |
MC70LB |
|
|
|
|
| Casing |
Colour |
|
|
|
White |
| Dimensions |
Unit |
|
Height |
mm |
576 |
|
|
|
Width |
mm |
403 |
|
|
|
Depth |
mm |
241 |
|
Packed unit |
|
Height |
mm |
615 |
|
|
|
Width |
mm |
445 |
|
|
|
Depth |
mm |
280 |
| Weight |
Unit |
|
|
kg |
8.5 |
|
Packed unit |
|
|
kg |
11 |
| Applicable room area |
m² |
|
|
|
46 |
| Air purifying operation |
Power input |
|
Turbo |
kW |
0.065 |
|
|
|
H |
kW |
0.026 |
|
|
|
M |
kW |
0.016 |
|
|
|
L |
kW |
0.010 |
|
|
|
Silent |
kW |
0.007 |
| Sound pressure level |
Air purifying operation |
|
Turbo |
dBA |
63 |
|
|
|
High |
dBA |
54 |
|
|
|
Medium |
dBA |
47 |
|
|
|
Low |
dBA |
39 |
|
|
|
Silent |
dBA |
31 |
| Fan |
Type |
|
|
|
Multi Blade Fan (Sirocco fan with shroud assembly) |
|
Air flow rate |
Air purifying operation |
Turbo |
m³/h |
420 |
|
|
|
High |
m³/h |
285 |
|
|
|
Medium |
m³/h |
210 |
|
|
|
Low |
m³/h |
130 |
|
|
|
Silent |
m³/h |
55 |
| Fan motor |
Speed |
|
Drive |
|
Direct drive |
| Dust collecting method |
|
|
|
|
Plasma ionizer, Electrostatic dust collection filter |
| Deodorizing method |
|
|
|
|
Flash streamer + Titanium apatite deodorising filter |
| Air filter |
Type |
|
|
|
Polypropylene net |
| Sign |
Item |
|
01 |
|
Dust: 3 stages |
|
|
|
02 |
|
Odour: 3 stages |
|
|
|
03 |
|
Automatic operation (LL-H) |
|
|
|
04 |
|
Airflow rate (LL/L/M/H) |
|
|
|
05 |
|
Turbo mode (HH) |
|
|
|
06 |
|
Anti-pollen mode |
|
|
|
07 |
|
Sleep mode |
|
|
|
08 |
|
Lock (Anti-tamper) |
|
|
|
09 |
|
Off timer (1.2.4h) |
|
|
|
10 |
|
Maintenance: Filter replacement |
|
|
|
11 |
|
Maintenance: Cleaning of ionization/streamer |
| Safety devices |
Item |
|
01 |
|
Safety switch (operation stops when the front panel opens) |
| Standard Accessories |
Wireless remote control |
|
|
|
1 |
|
Pleated filter |
|
|
|
5 |
|
Operation manual |
|
|
|
1 |
| Power cord |
m |
|
|
|
2 |
| Power supply |
Phase |
|
|
|
1~ |
|
Frequency |
|
|
Hz |
50/60 |
|
Voltage |
|
|
V |
220-240/220-230 |
| Running current |
Air purifying operation |
|
Turbo |
A |
0.55 |
|
|
|
High |
A |
0.25 |
|
|
|
Medium |
A |
0.15 |
|
|
|
Low |
A |
0.10 |
|
|
|
Silent |
A |
0.08 |
| Notes |
|
|
|
|
Sound power levels are the average of values measured at 1m away from the front, left, right and top of the unit (this is equal to the value in an anechoic chamber). |
|
|
|
|
|
Panel color: white; Display part color: silver |
PDF Data sheets:
Catalogue
User Manual
Article from Wikipedia: regards ionizer technology and virus depletion in NHS environments:
""""
The frequency of nosocomial infections in British hospitals prompted the National Health Service (NHS) to research the effectiveness of anions for air purification, finding that repeated airborne acinetobacter infections in a ward were eliminated by the installation of a negative air ioniser—the infection rate fell to zero, an unexpected result. Positive and negative ions produced by air conditioning systems have also been found by a manufacturer to inactivate viruses including influenza.[2]
""""""""""
