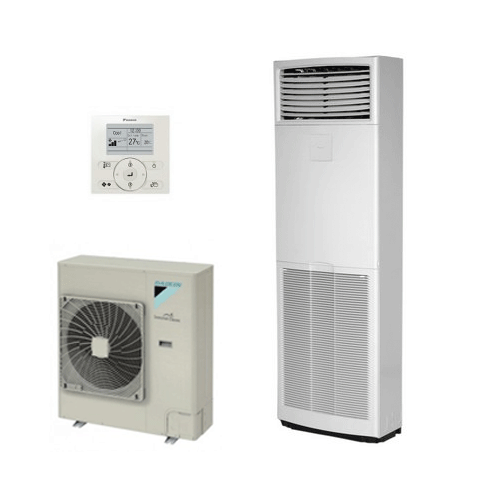

Daikin Air Conditioning SB.FVA100/RZAG/1 Alpha Floor Standing Heat Pump R32 10Kw/34000Btu 1Ph A+ 85M pipe run

Included Items:

The Daikin FVA floor-mounted heat pump offers a wealth of advanced features to deliver efficient climate control. It can function as a fan to circulate air without heating or cooling, while its Dry Programme lowers humidity levels without temperature fluctuations. The Vertical Auto Swing system ensures even temperature distribution throughout the room, and the Weekly Timer provides the flexibility to schedule daily or weekly heating or cooling cycles. Additionally, centralized control allows for seamless management of multiple air conditioners from a single point, and the self-diagnosis feature identifies system faults for quick maintenance. Selectable horizontal out blow to better suit the layout of the room (via wired remote controller BRCmanufactured1H52W). Wi-fi is optional, available with the BRP069C81 Wifi adaptor for connection to on-line controller

Efficiency and adaptability are at the heart of the FVA system. Its outdoor unit has a high quality Daikin manufactured inverter compressor which automatically adjusts their speed to match demand, reducing energy consumption by up to 30% while maintaining stable temperatures. The Swing Compressor ensures smooth operation with reduced vibration and friction, improving reliability and efficiency overall. The Auto Cooling-Heating Changeover automatically selects the ideal mode based on the set temperature. With multiple fan speed options and an air filter that removes airborne dust, clean air and comfort are guaranteed.

Designed for a broad range of environments, this unit is ideal for for commercial spaces with high ceilings as well as server rooms, shops, restaurants, or offices. It uses environmentally friendly R-32 Bluevolution technology to significantly reduce energy consumption and environmental impact. Its flexible installation supports existing R-22, R-410A, or R-407C piping systems, and it features standard plug-and-play connections for centralized control systems like the Madoka hardwired controller and intelligent manager. Seasonal efficiency is optimized for year-round climate control, while Night Quiet Mode ensures low noise levels during operation, making it a perfect addition to any environment.

Key Product Features:

• Decrease of temperature variation by automatic fan speed selection or freely selectable 3-step fan speed.
• Improved comfort as a result of better airflow distribution from the vertical out blow which allows manual adjustment of air outlet blades at the top of the unit.
• Selectable horizontal out blow to better suit the layout of the room (via wired remote controller BRC1E*/BRC1H*)
• Unified indoor unit range for R-32 and R-410A
• Combining with R-32 Bluevolution technology, reduces environmental impact with 68% compared to R-410A, leads directly to lower energy consumption thanks to its high energy efficiency and has up to lower 16% refrigerant charge

Technical Data:

Indoor Unit:

Outdoor Unit:

Options:

KRP4A53 and UK.FB2 Unit/group adaptor PCB for remote on/off, status indication and temperature setting

RTD-10 and UK.FB2 Enhanced function PCB for Sky Air and VRV. Duty rotation, Lead Lag control and heating interlock RTD-20 and

UK.FB2 Energy control PCB for Sky Air and VRV

RTD-NET and UK.FB2 Modbus interface PCB for Sky Air and VRV

BRP069C81 Wifi adaptor for connection to on-line controller

BRC1E53A Wired Remote Controller suitable for integration in front panel

BRC1H52W Wired touch screen remote controller - White (Included as standard)

BRC1H52S Wired touch screen remote controller - Silver

BRC1H52K Wired touch screen remote controller - Black

K.CGM Condensing unit guard (1150 x 1150 x 650)

K.CWBXL Wall bracket (250kg, 660mm support arm)

K.DT2 Condensate drip tray for use with K.CWBXL

KLIC-DI KNX Interface for Sky Air and VRV systems

Please Note:

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
