Includes

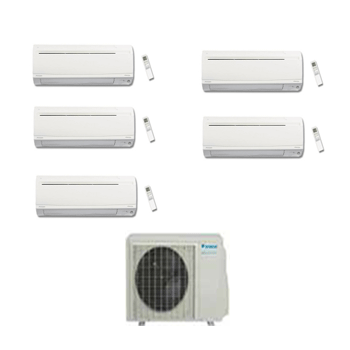

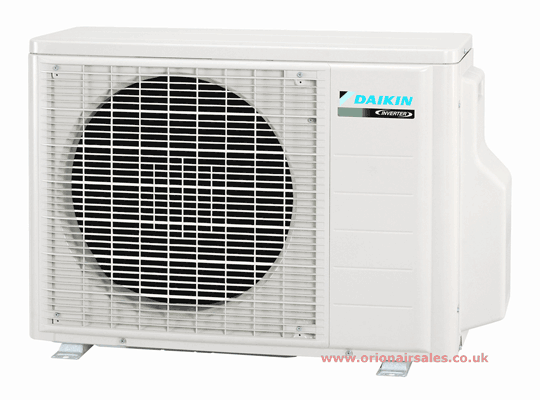

1 x 5MXS90E 9.00kW / 31000 Btu Condensing unit
5 x FTXS35K 3.5kw / 12000 Btu Heat pump floor Indoor Unit

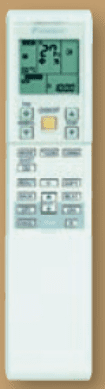

5 x Remote controllers



5 indoor units on 1 outdoor condensing unit

Variable capacity multi air conditioning system


Product Key Feature's

• High CoP, up to record 3.65
• 1 Outdoor unit saving space
• Energy saving inverter
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Pipe runs up to 60 metres total
• Low noise – 26dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for
up to 15 metres pipe length

INDOOR UNITS

Power source 1 ph 240V
Type  Inverter controlled
COOLING (nominal) max. kW 3.5 / 12000 BTU
HEATING (nominal) max. kW 4 / 14000 BTU
UK Cooling (max) kW  3.8
UK Sensible Cooling kW  3.5
E.E.R.  3.21
Energy label in heating A
Energy label in cooling  A
C.o.P  3.42
ECA - Yes
Exterior dimensions (mm) (H/W/D) 295/800/215
Net weight kg 10
Sound Pressure Level* (cooling) dB(A) 46/26/22
Sound Pressure Level* (heating) dB(A) 38/29/26

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
