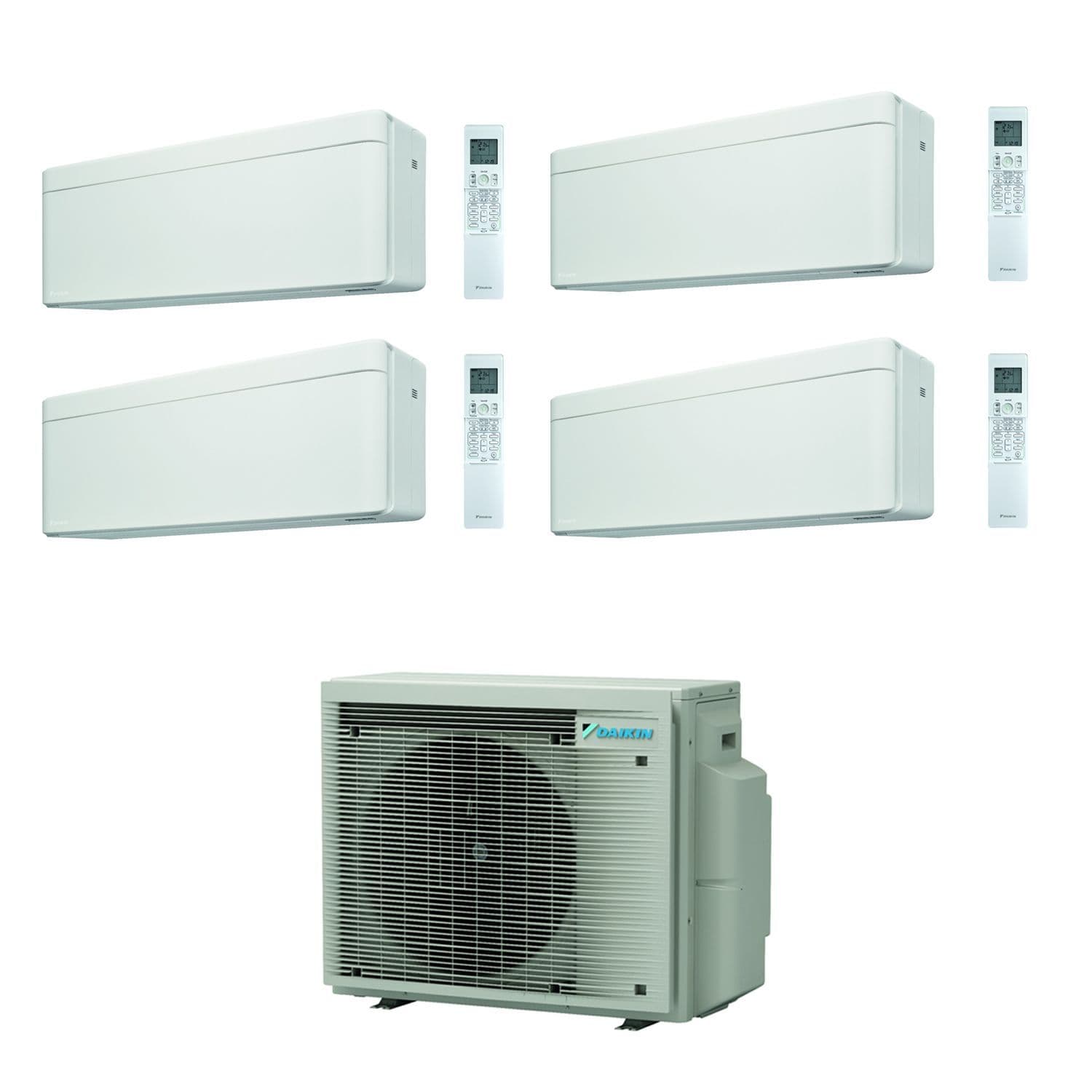

Daikin Air conditioning Multi 1 x 4MXM80A 4 x FTXA35AW 3.5Kw Wall Stylish Heat Pump R32 A+ 240V~50Hz

This Kit Includes:

1 x 4MXM80A Inverter Heat Pump Condensing unit 3 port
4 x FTXA35AW 3.5kw / 12000 Btu Stylish Heat pump wall Indoor Unit with Flash Steamer air purifier
4 x Remote controllers ARC466A58

The Daikin Stylish wall mounted unit brings together excellent design and technology to deliver a total climate solution for any interior. Measuring only 189 mm, Stylish is the thinnest unit on the market in the design segment for wall mounted units and uses innovative features to achieve the best in comfort, energy efficiency, reliability and control. Curved corners create an unobtrusive and space saving design. Thin dimensions make it the most compact design unit on the market. Perfect indoor air quality: the flash streamer captures viruses and allergens leaving you with a cleaner indoor environment. Award winning design: Stylish earned the Good Design Award and iF award for its innovative look and functional capabilities.

Daikin's "Flash Streamer" air purification technology

The Emura 3 has Daikin's Flash Streamer technology air purification integrated into the stylish internal wall unit. The Streamer technology releases ions by plasma discharge and combines them with particulates in the air. They attach to the surface of a particulate in the air such as fungi and viruses and decompose their proteins by oxidation. On the inside, the Streamer technology then decomposes hazardous elements. This technology effectively eliminates dust, odours, bacteria, mould, pollen, mites and other allergens in the air that have the potential to cause harm. This is ideal for users who want the peace of mind of clean conditioned air, a new benchmark in wall mounted air conditioning units.

The variable capacity R32 multi room MXM systems are ideal for light commercial and residential applications, having the highest SCoP and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 2 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit. There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all Cooling. There are many permutations of connectible indoor units to each outdoor unit. These are listed below. The cooling and heating data is based on all connected units operational at the same time at full load. In practise the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly. Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions.

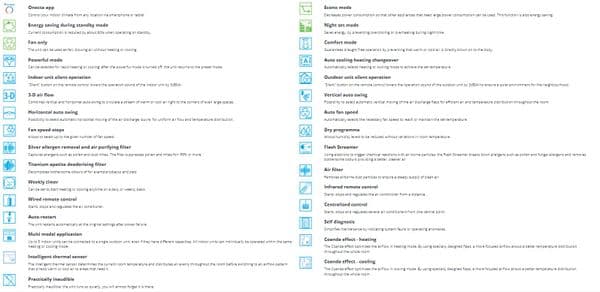

Product Key Feature's:

•  High sCoP
• 1 Outdoor unit saving space
• Energy saving inverter
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Pipe runs up to 70 metres total
• Low noise – 19dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 20 metres pipe length


OUTDOOR UNIT:



INDOOR UNITS:


PDF Data:
