Daikin Air conditioning Multi 1 x 4MXM68A 4 x FTXP20M9 2Kw Wall Mounted Heat Pump R32 A+ 1Ph 240V~50Hz A+ max pipe run 60M

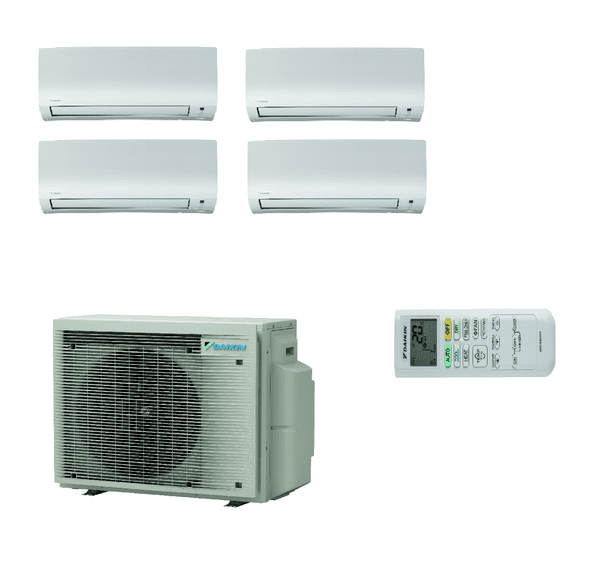

This Kit Includes:

1 x 4MXM68A Inverter Heat Pump Condensing unit 4 port
4 x FTXP20M9 2kw / 6000 Btu Heat pump wall Indoor Unit

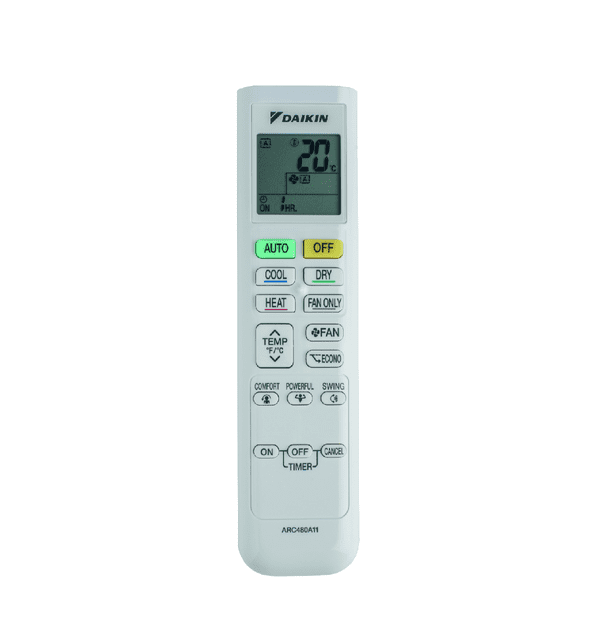

4 x Remote controllers ARC480A53

The variable capacity R32 multi systems are ideal for light commercial and residential applications, having the highest SCoP and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 2 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit.

There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all Cooling. There are many permutations of connectible indoor units to each outdoor unit. These are listed below. The cooling and heating data is based on all connected units operational at the same time at full load. In practise the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly. Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions.

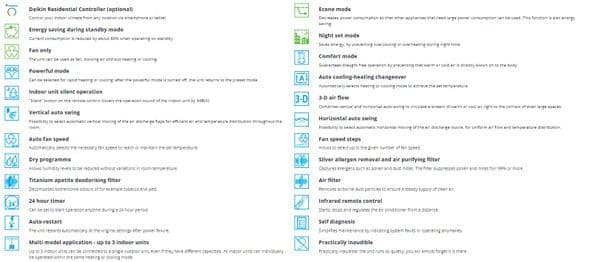

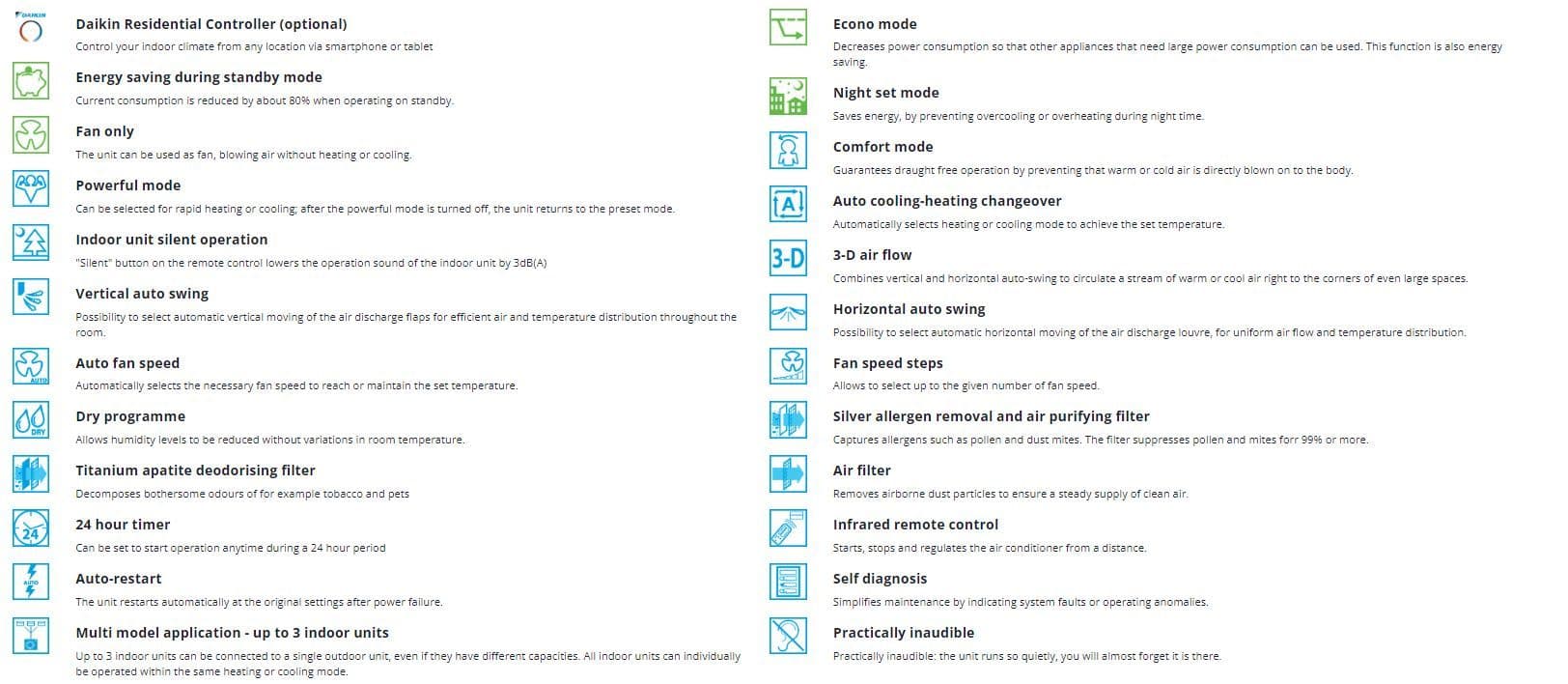

Product Key Feature's:

•  High sCoP
• 1 Outdoor unit saving space
• Energy saving inverter
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Pipe runs up to 30 metres total
• Low noise – 19dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 20 metres pipe length


OUTDOOR UNIT:



• Wide choice of connectable indoor units
• Outdoor units with swing compressor
• Multi application: combines up to 4 indoor units
• Bluevolution range: lower environmental impact
• Seasonal efficiency values up to A+++ in cooling and A++ in heating
• New design outlook for outdoor unit

INDOOR UNITS:


PDF Data:
