Daikin MXS Multi Air Conditioning Inverter Heat Pump A+++

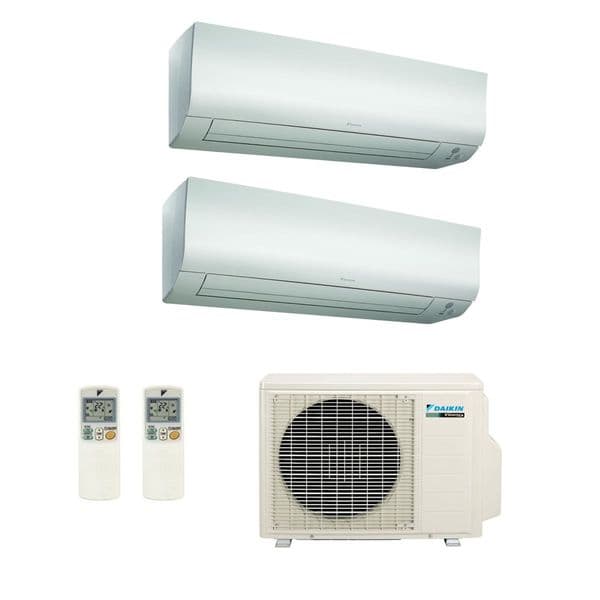

Daikin Air conditioning Multi 1 x 2MXM40M 2 x FTXM35M 3.5Kw Wall Mounted Heat Pump R32 A+ 240V~50Hz

Daikin Air conditioning Multi 1 x 2MXM40M 2 x FTXM35M 3.5Kw Wall Mounted Heat Pump R32 A+ 240V~50Hz

£1,848.28 £1,540.23 (ex. VAT)
Stock Status: In Stock

A+ Rated energy product




Includes:

1 x 2MXM40M Inverter Heat Pump Condensing unit R32
2 x FTXM35M 3.5kw / 12000 Btu Heat pump wall Indoor Unit R32
2 x Remote controllers ARC466A33



Mitsubishi inverter Multi outdoor running 2 STM50ZG Cassette units.

2 indoor units on 1 outdoor condensing unit

Variable capacity multi air conditioning system

The variable capacity R32 multi systems are ideal for light commercial and residential applications, having the highest SCoP and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 2 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit.

There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all Cooling. There are many permutations of connectible indoor units to each outdoor unit. These are listed below. The cooling and heating data is based on all connected units operational at the same time at full load. In practise the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly.
Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions.




Product Key Feature's

• High sCoP

• 1 Outdoor unit saving space
• Energy saving inverter

• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Pipe runs up to 30 metres total
• Low noise – 19dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for
up to 15 metres pipe length



OUTDOOR UNIT:


Outdoor Units

2MXM40M

Capacity

Nominal Cooling                         kW

4.0

Nominal Heating                         kW

4.4

Dimensions                         Height x Width x Depth            mm

550 x 765 x 285

Weight                                                                                       kg

36

Electrical Details

Power Supply

Phase

1ph

Hz

50

V

220-240

Running Current                          amps

Refer to Multi Combination Tables

Starting Current                           amps

4.6

Fuse Rating                                   amps

16

Refrigerant Circuit

Refrigerant Type

R32

Refrigerant Charge                      kg

0.88

Sound Pressure (Cooling)   Nom                                               dBA

48

Sound Power (Cooling)

60

Piping Limits

Max. Length (OU- IU)                    m

20

Max. Level Difference (IU- IU)     m

7.5

Max. Level Difference (IU- OU)   m

15

Total piping length (Actual)       m

30

Piping Connections

Liquid                                            inches (mm)

2x 1/4 (6.4)

Gas                                                 inches (mm)

2x 3/8 (9.5)

Operating range (Cooling) Min / Max                                      °CDB

-10 / 46

Operating range (Cooling) Min / Max                                     °CWB

-15 / 18

Number of Connected Indoor Units

2

Air Flow Rate (Cooling)       Nom                                               m3/sec

0.550




INDOOR UNITS:


FTXM35M2V1B

Power input

Cooling

Nom.

kW

0.035

Heating

Nom.

kW

0.025

Casing

Colour

White

Dimensions

Unit

Height

mm

294

Width

mm

811

Depth

mm

272

Packed unit

Height

mm

350

Width

mm

865

Depth

mm

375

Weight

Unit

kg

10.0

Packed unit

kg

12

Packing

Weight

kg

2.0

Heat exchanger

Length

mm

610

Rows

Quantity

2

Fin pitch

mm

1.40

Stages

Quantity

18

Passes

Quantity

2.2

Tube type

ø5 Hi-XB

Fin

Type

ML fin (Multi louver)

Heat exchanger 2

Length

mm

600

Rows

Quantity

1

Fin pitch

mm

1.40

Stages

Quantity

4

Heat exchanger 3

Length

mm

Rows

Quantity

Fin pitch

mm

Stages

Quantity

Fan

Type

Cross flow fan

Air flow rate

Cooling

High

m³/min

12.6

High

cfm

445

Medium

m³/min

8.3

Medium

cfm

293

Low

m³/min

6.4

Low

cfm

226

Silent operation

m³/min

4.6

Silent operation

cfm

162

Heating

High

m³/min

10.4

High

cfm

367

Medium

m³/min

9.0

Medium

cfm

318

Low

m³/min

7.1

Low

cfm

251

Silent operation

m³/min

5.3

Silent operation

cfm

187

Fan motor

Model

MM6K11S20VA

Speed

Steps

5 + silent, + auto

Cooling

High

rpm

1,190

Medium

rpm

840

Low

rpm

680

Silent operation

rpm

530

Heating

High

rpm

1,000

Medium

rpm

900

Low

rpm

730

Silent operation

rpm

590

Output

Rated

W

22

Sound power level

Cooling

dBA

60

Heating

dBA

54

Sound pressure level

Cooling

High

dBA

45

Medium

dBA

33

Low

dBA

29

Silent operation

dBA

19

Heating

High

dBA

39

Medium

dBA

35

Low

dBA

28

Silent operation

dBA

20

Refrigerant

Type

R-32

Piping connections

Liquid

OD

mm

6,35

Gas

OD

mm

9.50

Drain

18

Heat insulation

Both liquid and gas pipes

Air filter

Type

Removable / washable

Air direction control

Right, Left, Horizontal, Downward

Temperature control

Microcomputer control

Control systems

Infrared remote control

ARC466A33

Wired remote control

BRC944B2, BRC073A1

Standard Accessories

Installation manual

1

Operation manual

1

Wireless remote control

1

AAA dry-cell batteries

2

Remote control holder

1

Mounting plate

1

Titanium apatite deodorizing filter

1

Indoor unit fixing screws

2

Power supply

Name

V1

Phase

1~

Frequency

Hz

50

Voltage

V

220-240

Power factor

Nominal

Cooling

%

Heating

%

Current

Nominal running current (RLA) - 50Hz

Cooling

A

0.25

Heating

A

0.17

Wiring connections - 50Hz

For power supply

Quantity

3

Remark

3 for power supply, 4 for interunit wiring (Earth wire included)

PDF Data:



These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
