A+ Rated energy product
Includes:

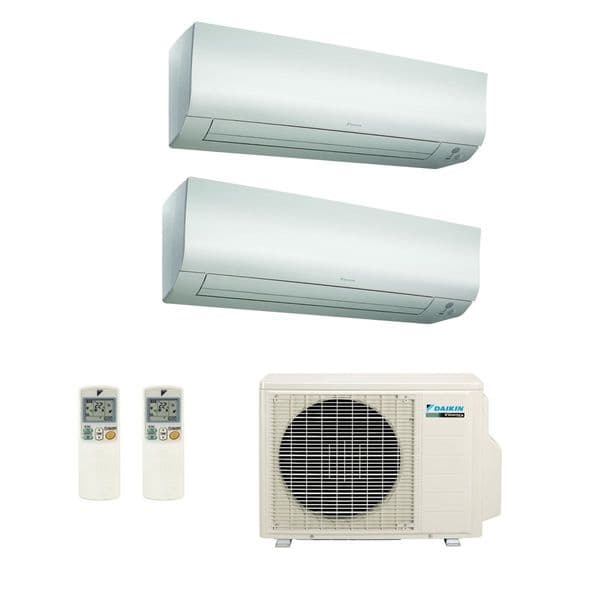

1 x 2MXM40M Inverter Heat Pump Condensing unit R32
2 x FTXM25M 2.5kw / 9000 Btu Heat pump wall Indoor Unit R32
2 x Remote controllers ARC466A33
2 indoor units on 1 outdoor condensing unit
Variable capacity multi air conditioning system
The variable capacity R32 multi systems are ideal for light commercial and residential applications, having the highest SCoP and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 2 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit.
There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all Cooling. There are many permutations of connectible indoor units to each outdoor unit. These are listed below. The cooling and heating data is based on all connected units operational at the same time at full load. In practise the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly. Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions.
Product Key Feature's
• High sCoP
• 1 Outdoor unit saving space
• Energy saving inverter
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Pipe runs up to 30 metres total
• Low noise – 19dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for
up to 15 metres pipe length
OUTDOOR UNIT:
|
Outdoor Units
|
2MXM40M
|
|
Capacity
|
Nominal Cooling kW
|
4.0
|
|
Nominal Heating kW
|
4.4
|
|
Dimensions Height x Width x Depth mm
|
550 x 765 x 285
|
|
Weight kg
|
36
|
|
Electrical Details
|
Power Supply
|
|
Phase
|
1ph
|
|
Hz
|
50
|
|
V
|
220-240
|
|
Running Current amps
|
Refer to Multi Combination Tables
|
|
Starting Current amps
|
4.6
|
|
Fuse Rating amps
|
16
|
|
Refrigerant Circuit
|
Refrigerant Type
|
R32
|
|
Refrigerant Charge kg
|
0.88
|
|
Sound Pressure (Cooling) Nom dBA
|
48
|
|
Sound Power (Cooling)
|
60
|
|
Piping Limits
|
Max. Length (OU- IU) m
|
20
|
|
Max. Level Difference (IU- IU) m
|
7.5
|
|
Max. Level Difference (IU- OU) m
|
15
|
|
Total piping length (Actual) m
|
30
|
|
Piping Connections
|
Liquid inches (mm)
|
2x 1/4 (6.4)
|
|
Gas inches (mm)
|
2x 3/8 (9.5)
|
|
|
|
|
|
Operating range (Cooling) Min / Max °CDB
|
-10 / 46
|
|
Operating range (Cooling) Min / Max °CWB
|
-15 / 18
|
|
Number of Connected Indoor Units
|
2
|
|
Air Flow Rate (Cooling) Nom m3/sec
|
0.550
|
INDOOR UNITS:
|
FTXM25M2V1B
|
|
Power input
|
Cooling
|
Nom.
|
kW
|
0.030
|
|
Heating
|
Nom.
|
kW
|
0.025
|
|
Casing
|
Colour
|
|
White
|
|
Dimensions
|
Unit
|
Height
|
mm
|
294
|
|
|
Width
|
mm
|
811
|
|
|
Depth
|
mm
|
272
|
|
Packed unit
|
Height
|
mm
|
350
|
|
|
Width
|
mm
|
865
|
|
|
Depth
|
mm
|
375
|
|
Weight
|
Unit
|
kg
|
10.0
|
|
Packed unit
|
kg
|
12
|
|
Packing
|
Weight
|
kg
|
2.0
|
|
Heat exchanger
|
Length
|
mm
|
610
|
|
Rows
|
Quantity
|
|
2
|
|
Fin pitch
|
mm
|
1.40
|
|
Stages
|
Quantity
|
|
18
|
|
Passes
|
Quantity
|
|
2.2
|
|
Tube type
|
|
ø5 Hi-XB
|
|
Fin
|
Type
|
|
ML fin (Multi louver)
|
|
Heat exchanger 2
|
Length
|
mm
|
600
|
|
Rows
|
Quantity
|
|
1
|
|
Fin pitch
|
mm
|
1.40
|
|
Stages
|
Quantity
|
|
4
|
|
Heat exchanger 3
|
Length
|
mm
|
|
|
Rows
|
Quantity
|
|
|
Fin pitch
|
mm
|
|
|
Stages
|
Quantity
|
|
|
Fan
|
Type
|
|
Cross flow fan
|
|
Air flow rate
|
Cooling
|
High
|
m³/min
|
11.1
|
|
|
|
High
|
cfm
|
392
|
|
|
|
Medium
|
m³/min
|
8.1
|
|
|
|
Medium
|
cfm
|
286
|
|
|
|
Low
|
m³/min
|
6.2
|
|
|
|
Low
|
cfm
|
219
|
|
|
|
Silent operation
|
m³/min
|
4.4
|
|
|
|
Silent operation
|
cfm
|
155
|
|
|
Heating
|
High
|
m³/min
|
10.4
|
|
|
|
High
|
cfm
|
367
|
|
|
|
Medium
|
m³/min
|
8.7
|
|
|
|
Medium
|
cfm
|
307
|
|
|
|
Low
|
m³/min
|
6.8
|
|
|
|
Low
|
cfm
|
240
|
|
|
|
Silent operation
|
m³/min
|
5.3
|
|
|
|
Silent operation
|
cfm
|
187
|
|
Fan motor
|
Model
|
|
MM6K11S20VA
|
|
Speed
|
Steps
|
|
5 + silent, + auto
|
|
|
Cooling
|
High
|
rpm
|
1,070
|
|
|
|
Medium
|
rpm
|
820
|
|
|
|
Low
|
rpm
|
660
|
|
|
|
Silent operation
|
rpm
|
520
|
|
|
Heating
|
High
|
rpm
|
1,000
|
|
|
|
Medium
|
rpm
|
860
|
|
|
|
Low
|
rpm
|
710
|
|
|
|
Silent operation
|
rpm
|
590
|
|
Output
|
Rated
|
W
|
22
|
|
Sound power level
|
Cooling
|
dBA
|
57
|
|
Heating
|
dBA
|
54
|
|
Sound pressure level
|
Cooling
|
High
|
dBA
|
41
|
|
|
Medium
|
dBA
|
33
|
|
|
Low
|
dBA
|
25
|
|
|
Silent operation
|
dBA
|
19
|
|
Heating
|
High
|
dBA
|
39
|
|
|
Medium
|
dBA
|
34
|
|
|
Low
|
dBA
|
27
|
|
|
Silent operation
|
dBA
|
20
|
|
Refrigerant
|
Type
|
|
R-32
|
|
Piping connections
|
Liquid
|
OD
|
mm
|
6,35
|
|
Gas
|
OD
|
mm
|
9.50
|
|
Drain
|
|
18
|
|
Heat insulation
|
|
Both liquid and gas pipes
|
|
Air filter
|
Type
|
|
Removable / washable
|
|
Air direction control
|
Right, Left, Horizontal, Downward
|
|
Temperature control
|
Microcomputer control
|
|
Control systems
|
Infrared remote control
|
|
ARC466A33
|
|
Wired remote control
|
|
BRC944B2, BRC073A1
|
|
Standard Accessories
|
Installation manual
|
1
|
|
Operation manual
|
1
|
|
Wireless remote control
|
1
|
|
AAA dry-cell batteries
|
2
|
|
Remote control holder
|
1
|
|
Mounting plate
|
1
|
|
Titanium apatite deodorizing filter
|
1
|
|
Indoor unit fixing screws
|
2
|
|
Power supply
|
Name
|
|
V1
|
|
Phase
|
|
1~
|
|
Frequency
|
Hz
|
50
|
|
Voltage
|
V
|
220-240
|
|
Power factor
|
Nominal
|
Cooling
|
%
|
|
|
|
Heating
|
%
|
|
|
Current
|
Nominal running current (RLA) - 50Hz
|
Cooling
|
A
|
0.22
|
|
|
Heating
|
A
|
0.17
|
|
Wiring connections - 50Hz
|
For power supply
|
Quantity
|
|
3
|
|
|
Remark
|
|
3 for power supply, 4 for interunit wiring (Earth wire included)
|
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
